Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

39 part groups · 10 illustrations

Illustrations

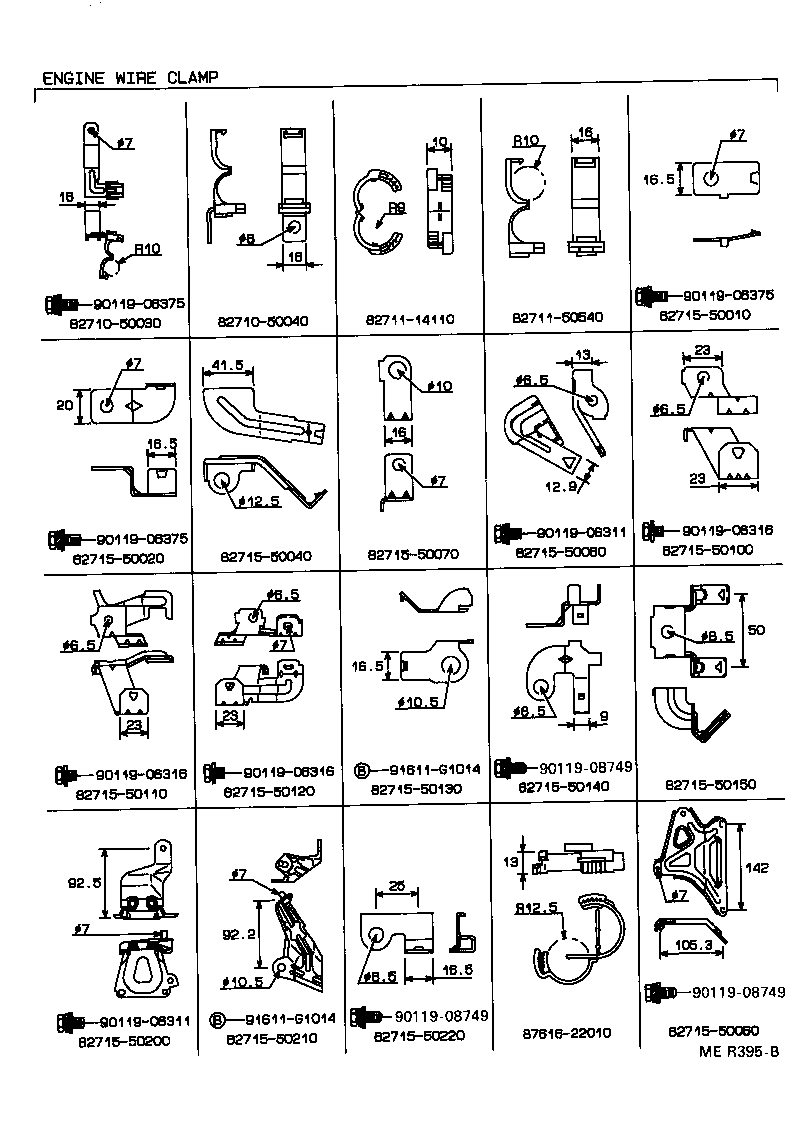

Figure MEP315E MEP315E 1989-12 → — Figure MER395B MER395B 1989-12 → — Figure MER396C MER396C 1989-12 → — Figure MEP298C MEP298C 1989-12 → — Figure MEP486E MEP486E 1989-12 → — Figure MEP318 MEP318 1989-12 → — Figure MEP711E MEP711E 1989-12 → — Figure MEP488A MEP488A 1989-12 → — Figure MET627A MET627A 1989-12 → — Figure MEP487A MEP487A 1989-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1

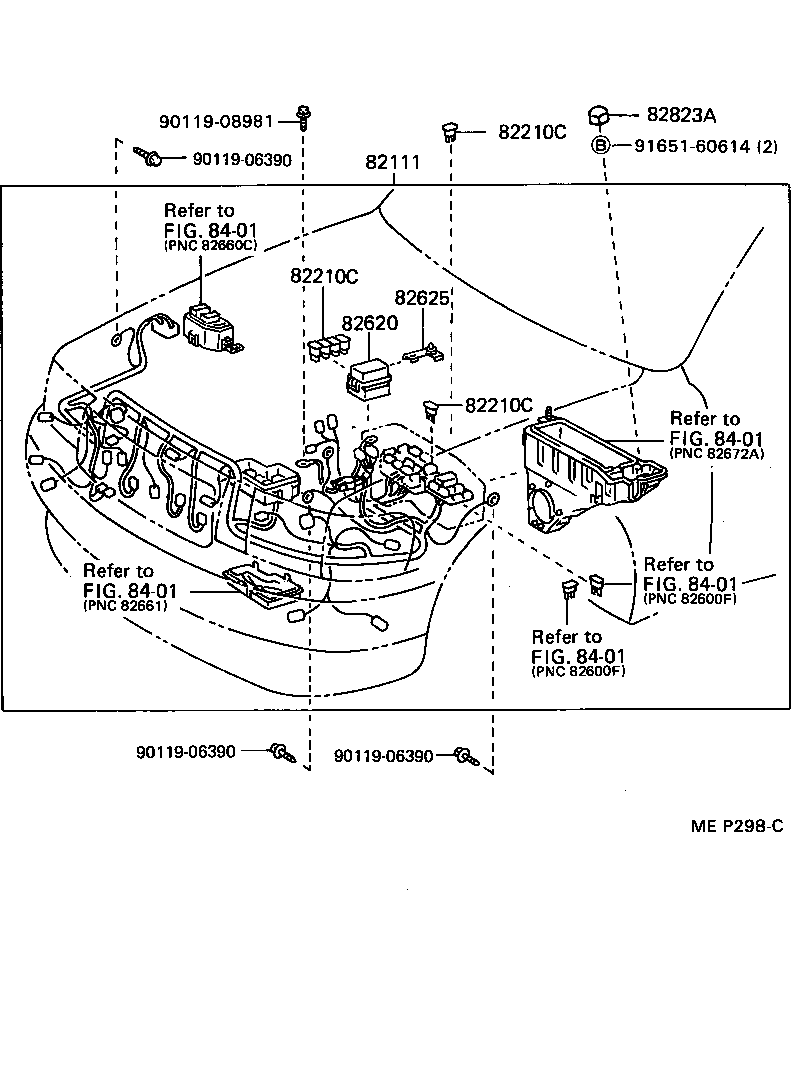

82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5

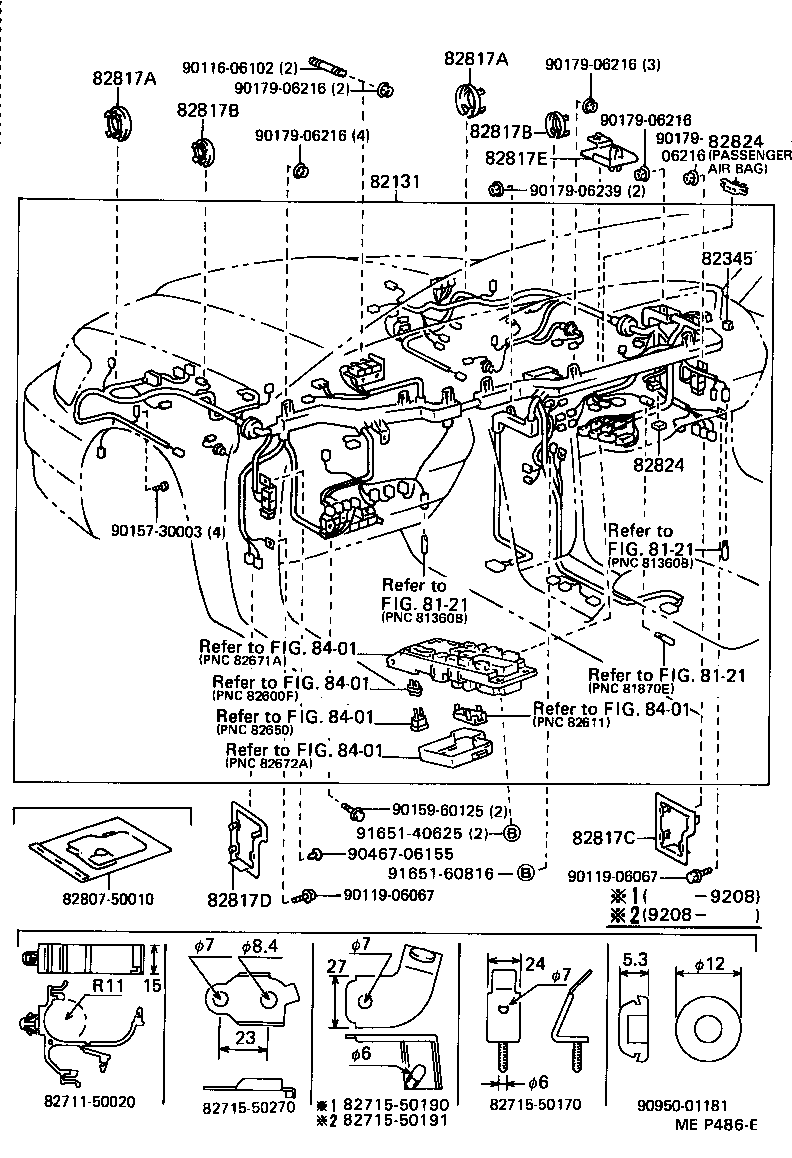

82131 Wire, Cowl
82141 Wire, Instrument Panel

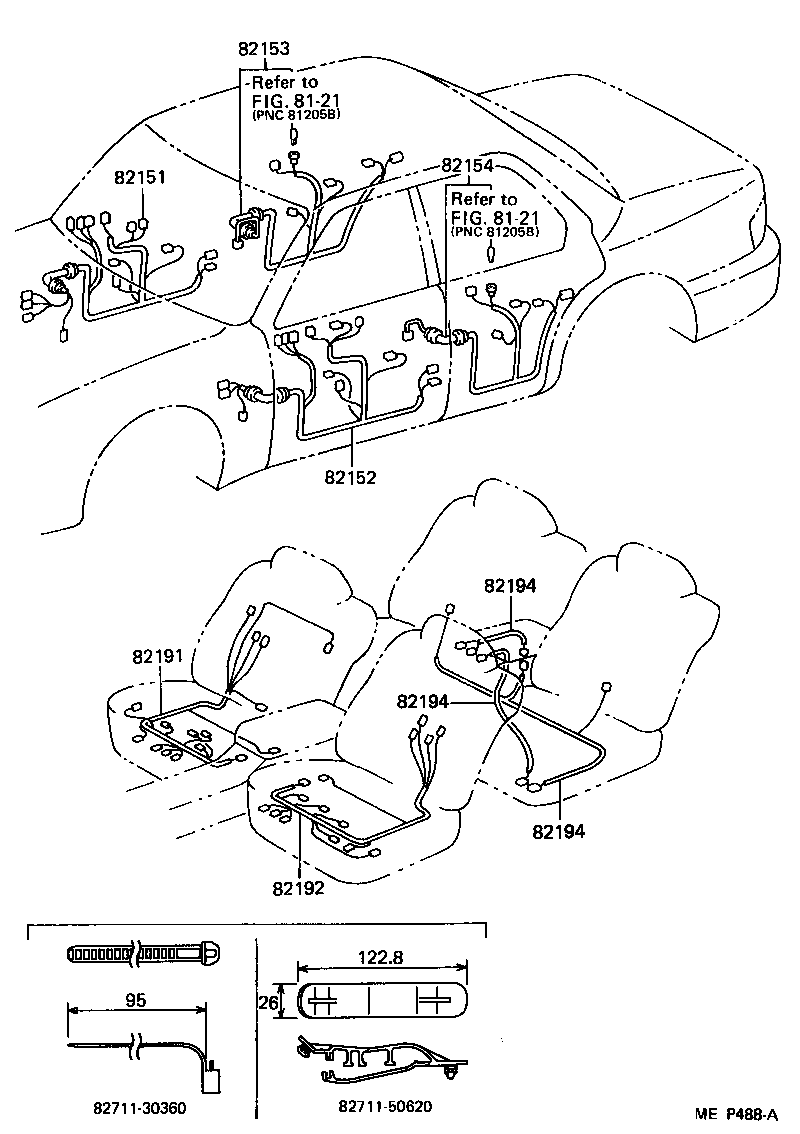

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

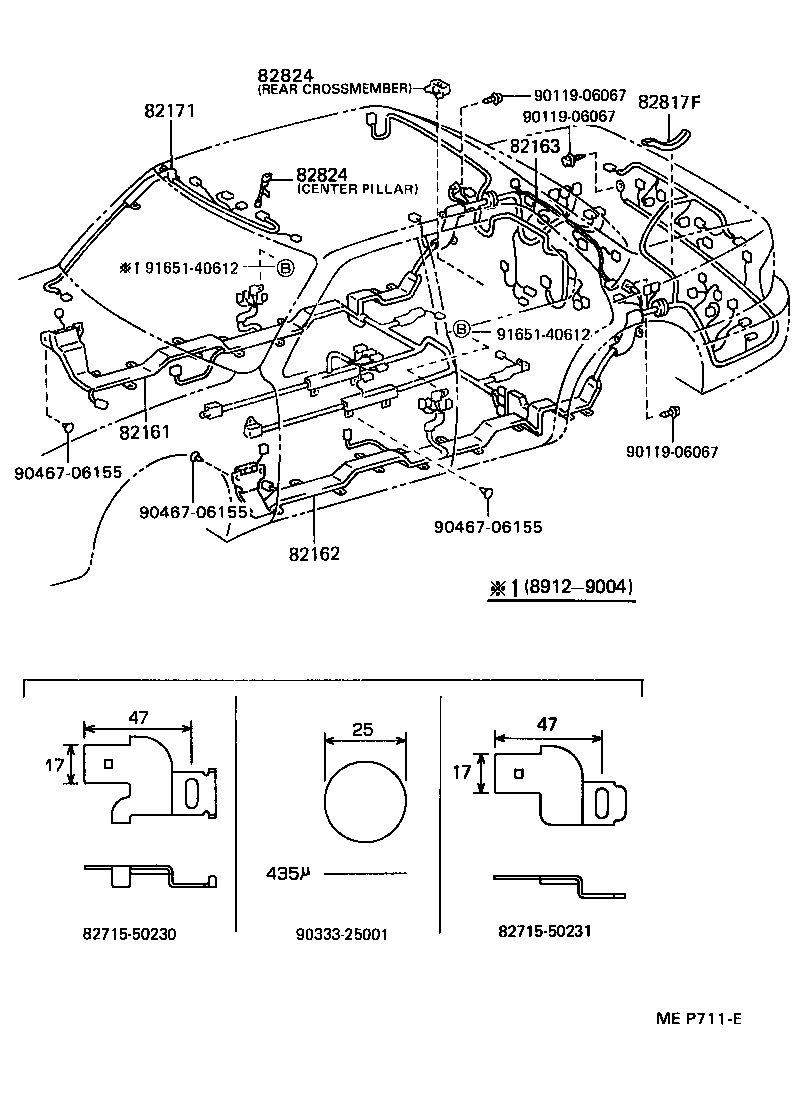

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82194 Wire, Rear Seat, LH
82210C Fusible Link
82345 Diode
82620 Block Assy, Fusible Link
82625 Terminal, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82824 Connector, Wiring Harness

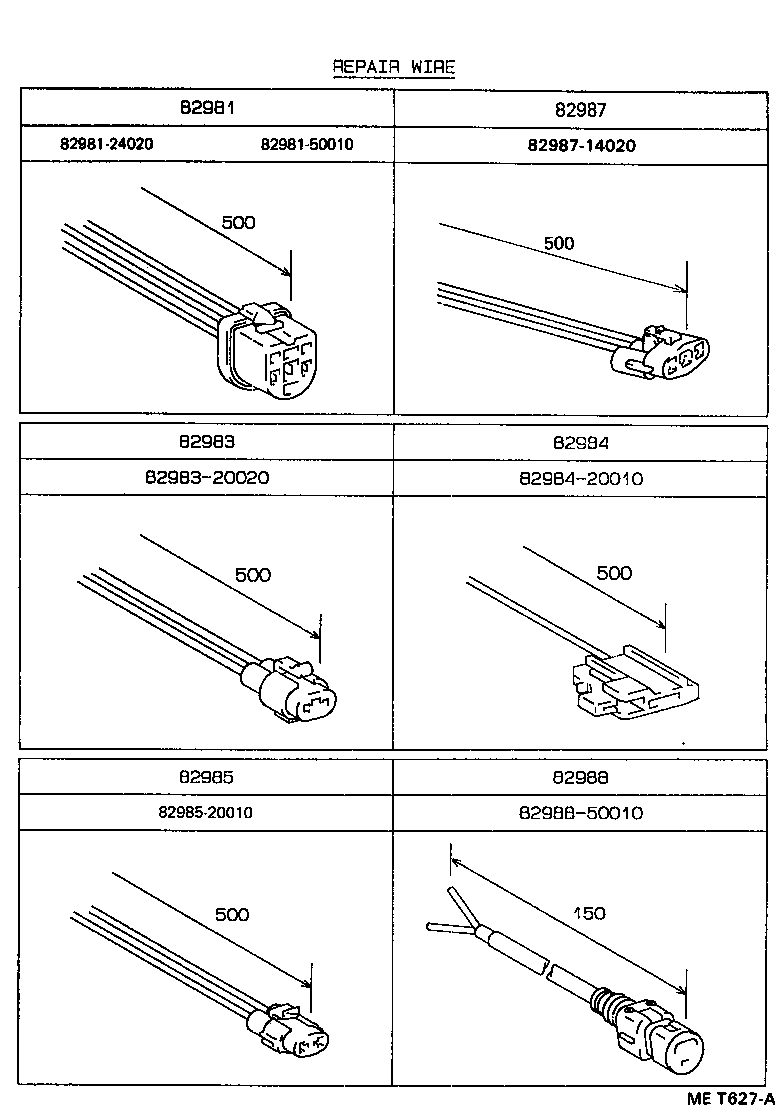

82981 Wire, Headlamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82987 Wire, Fog Lamp Repair
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
