Toyota Lexus LS400
1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe
Discontinued model
Data version 1995-05
Switch & Relay & Computer
112 part groups · 13 illustrations

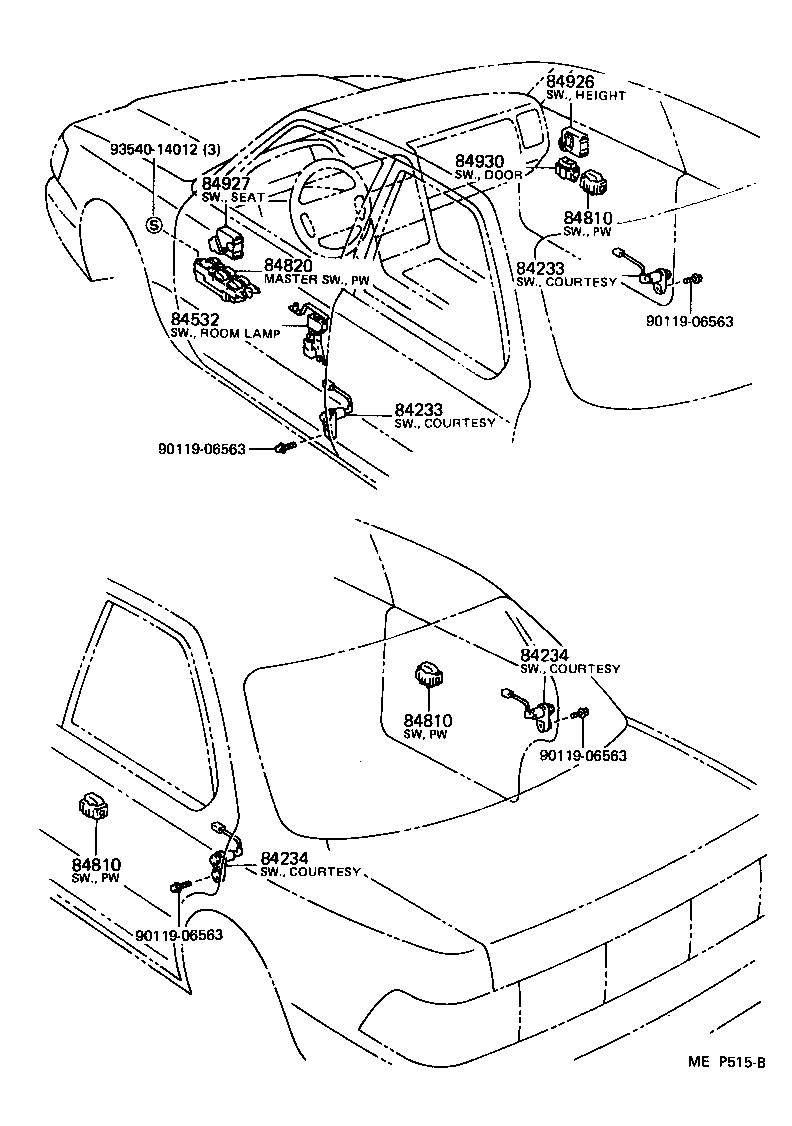

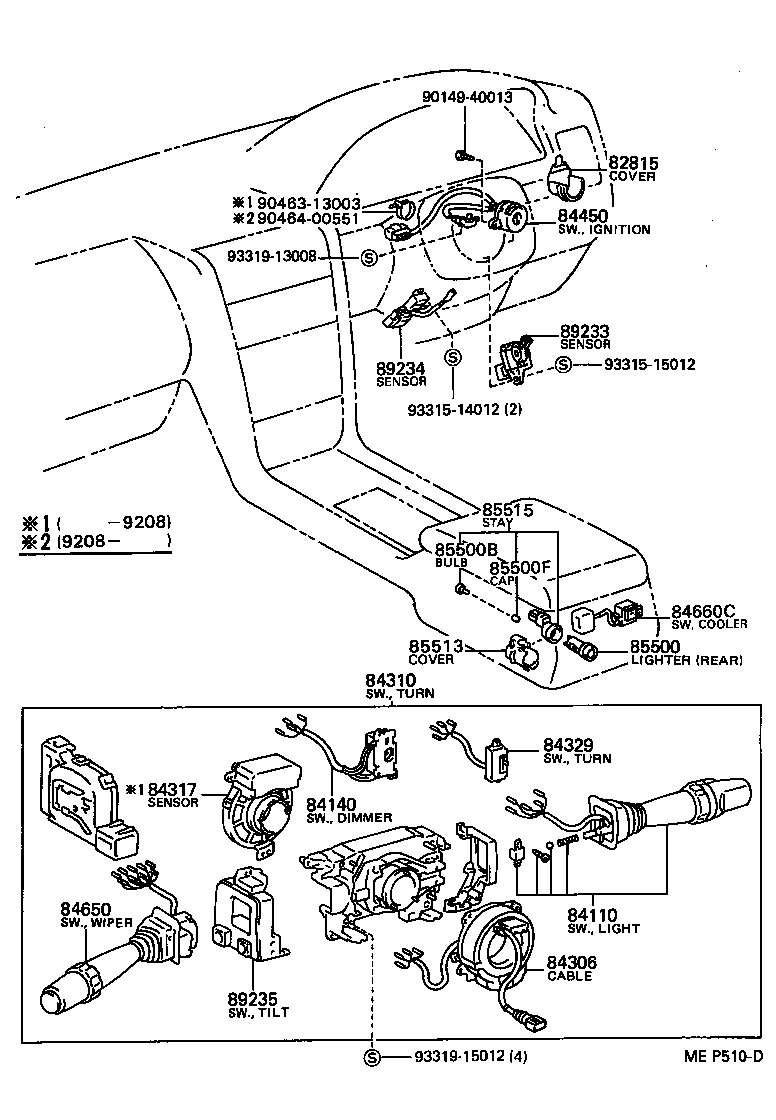

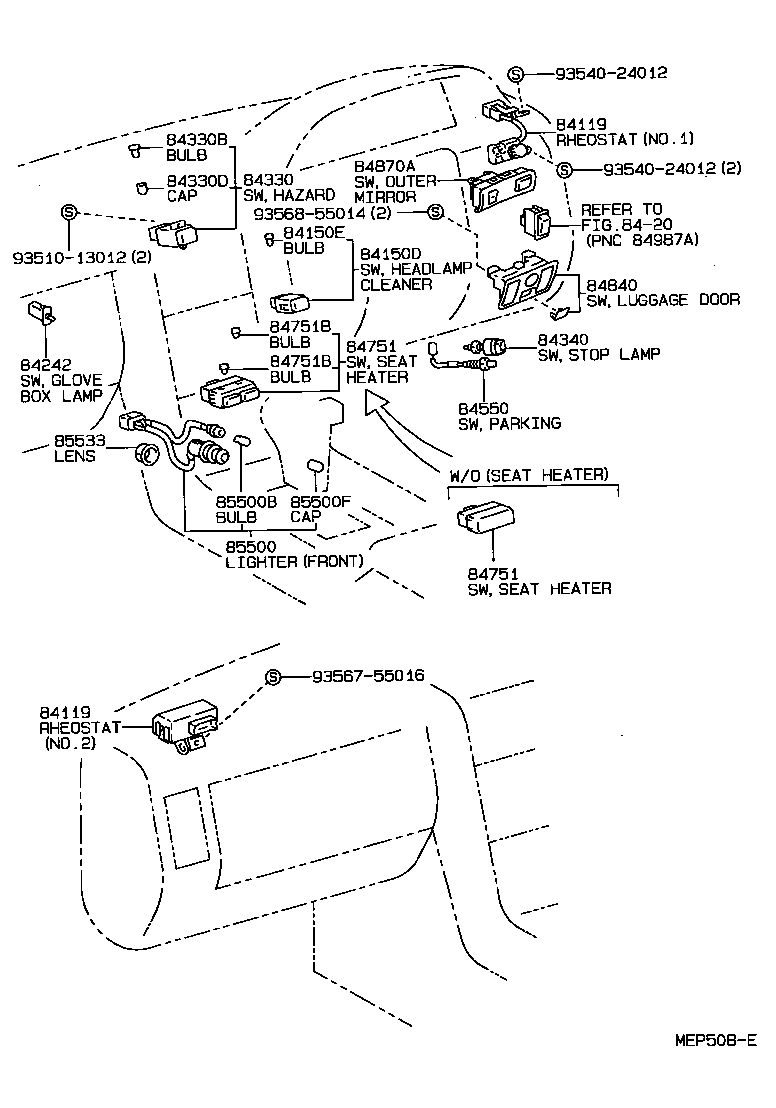

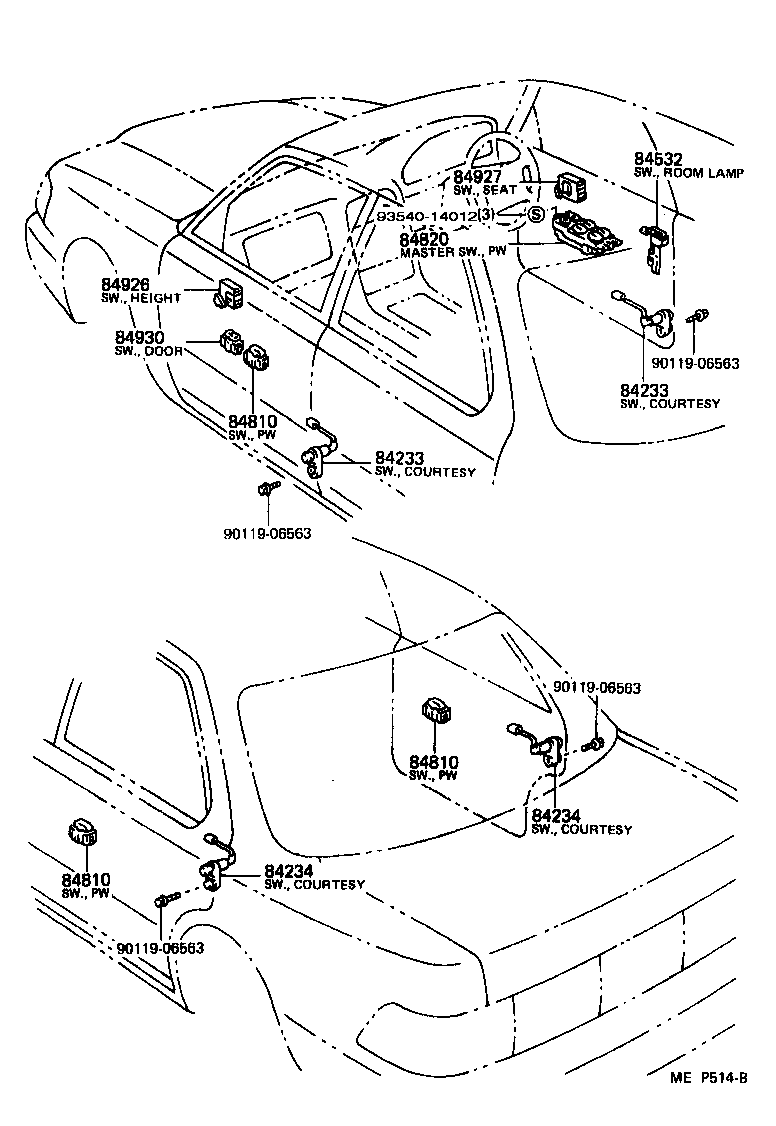

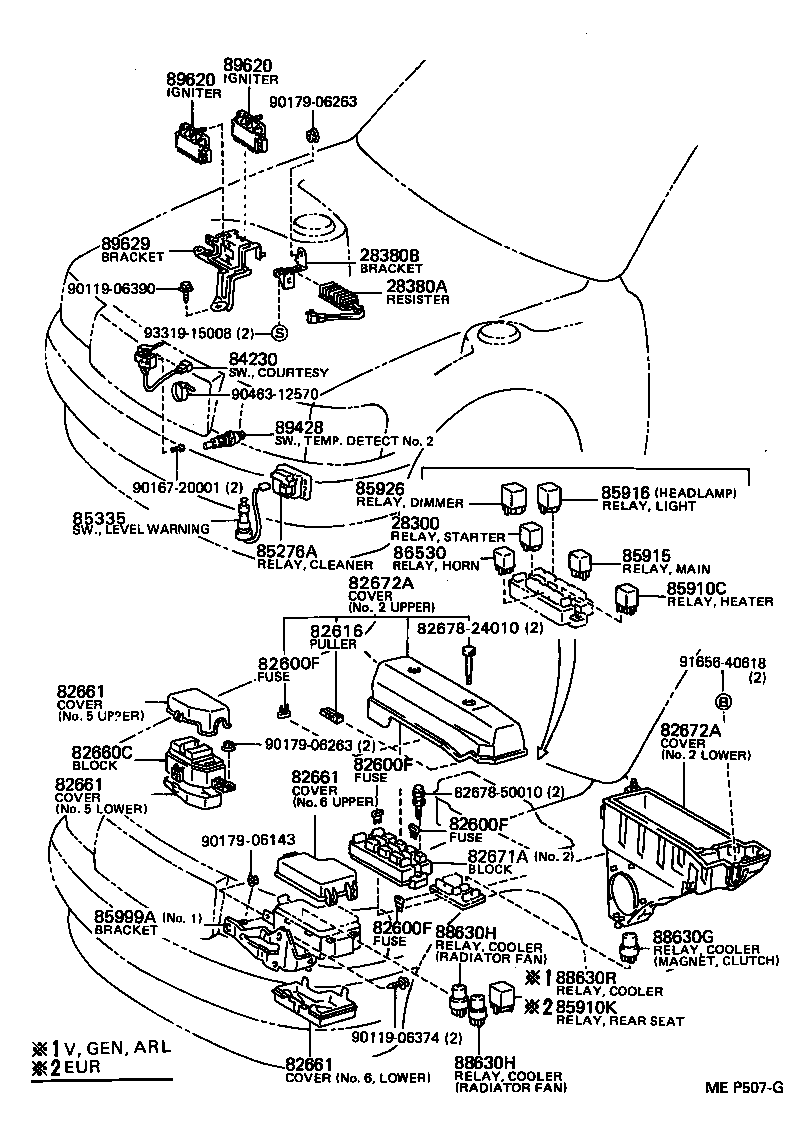

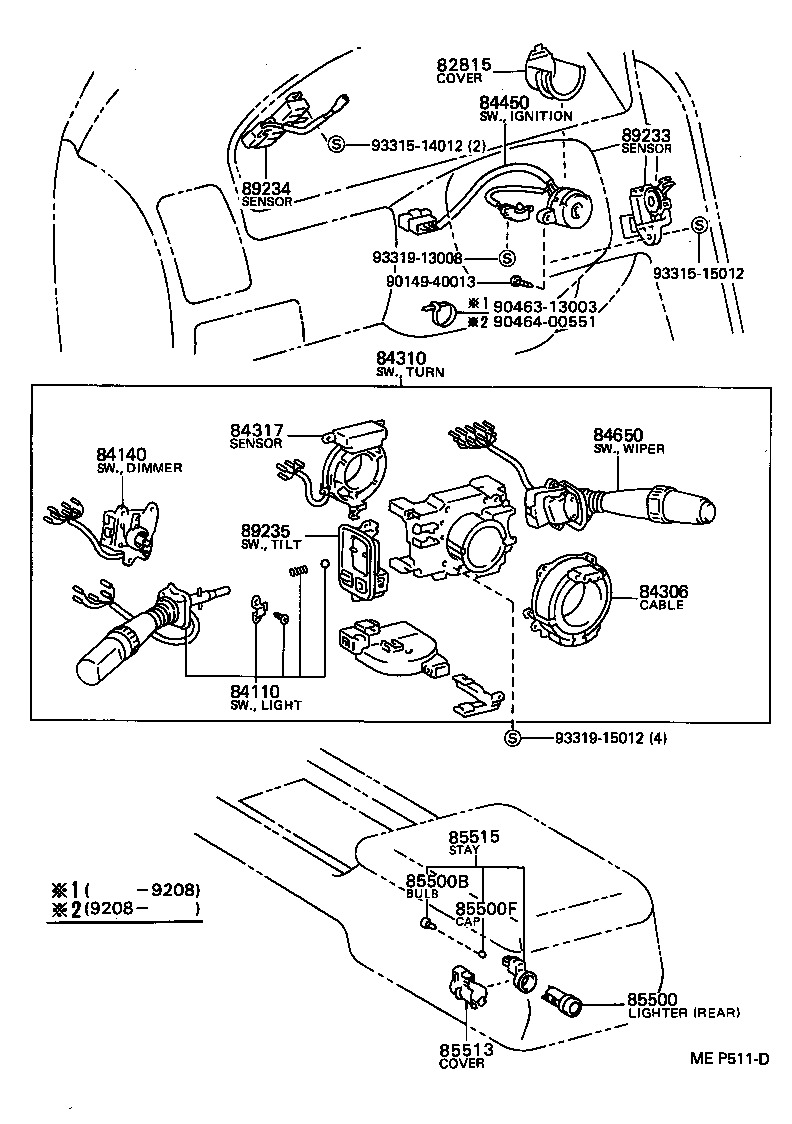

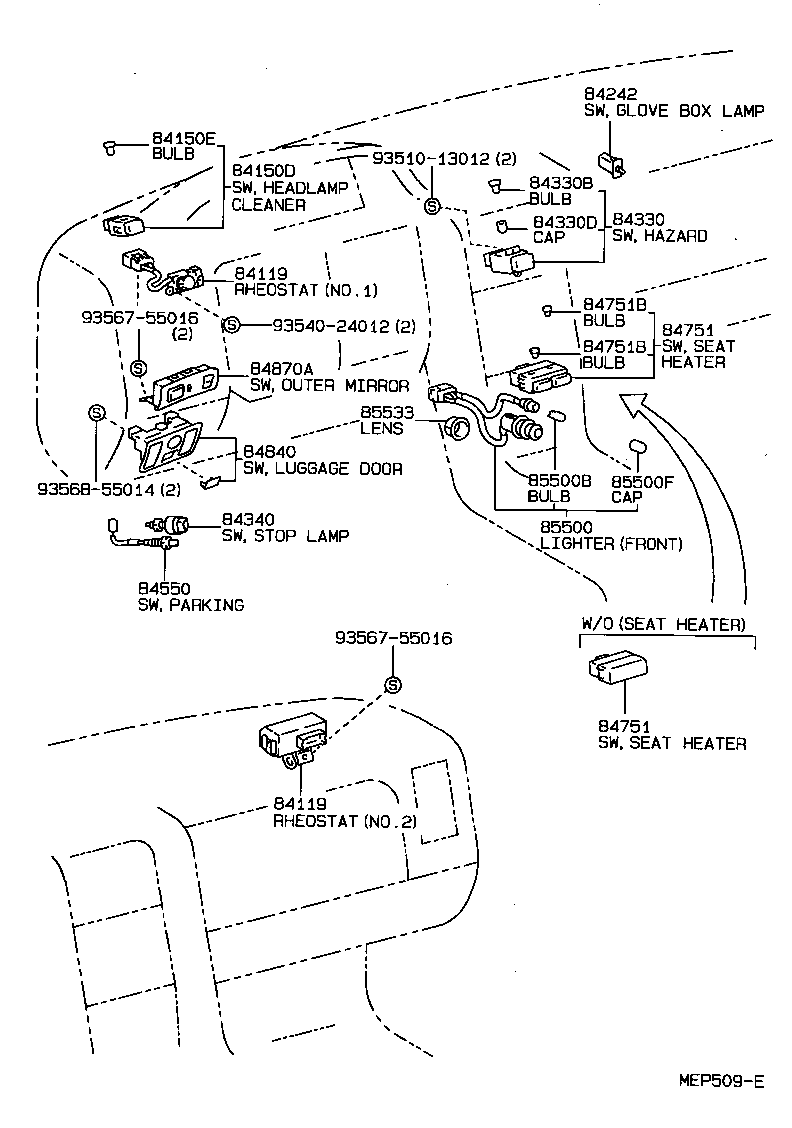

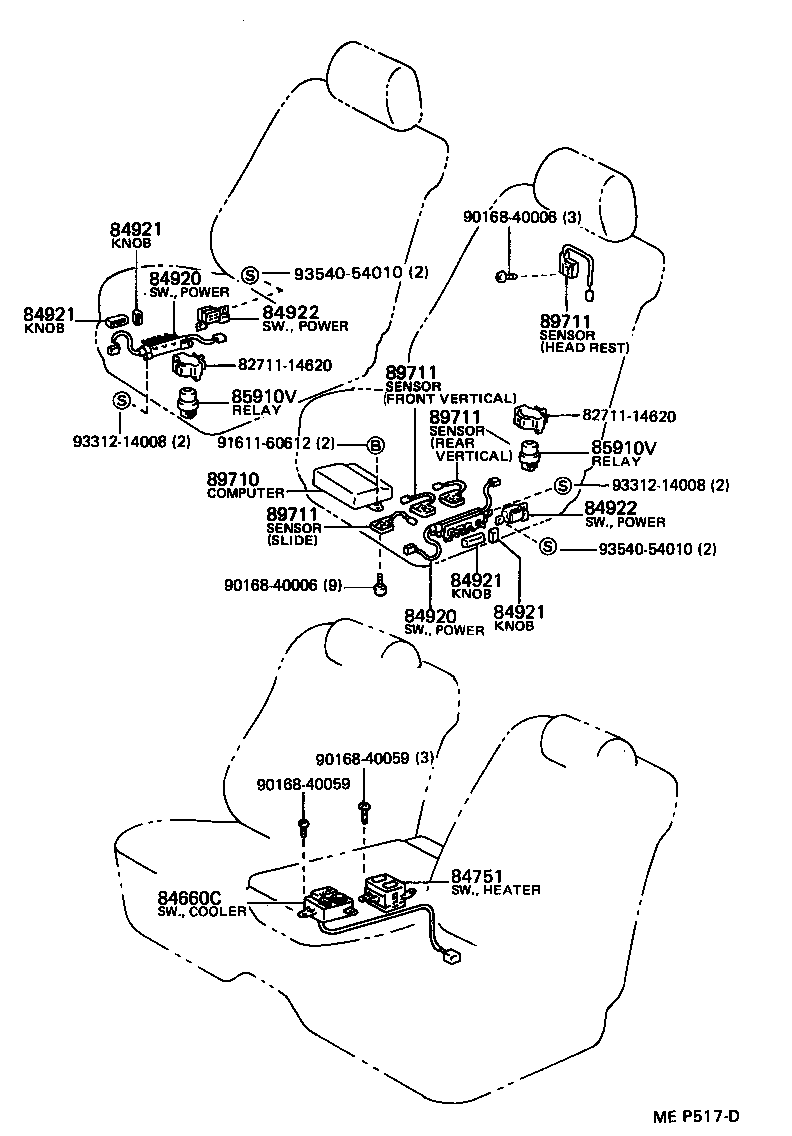

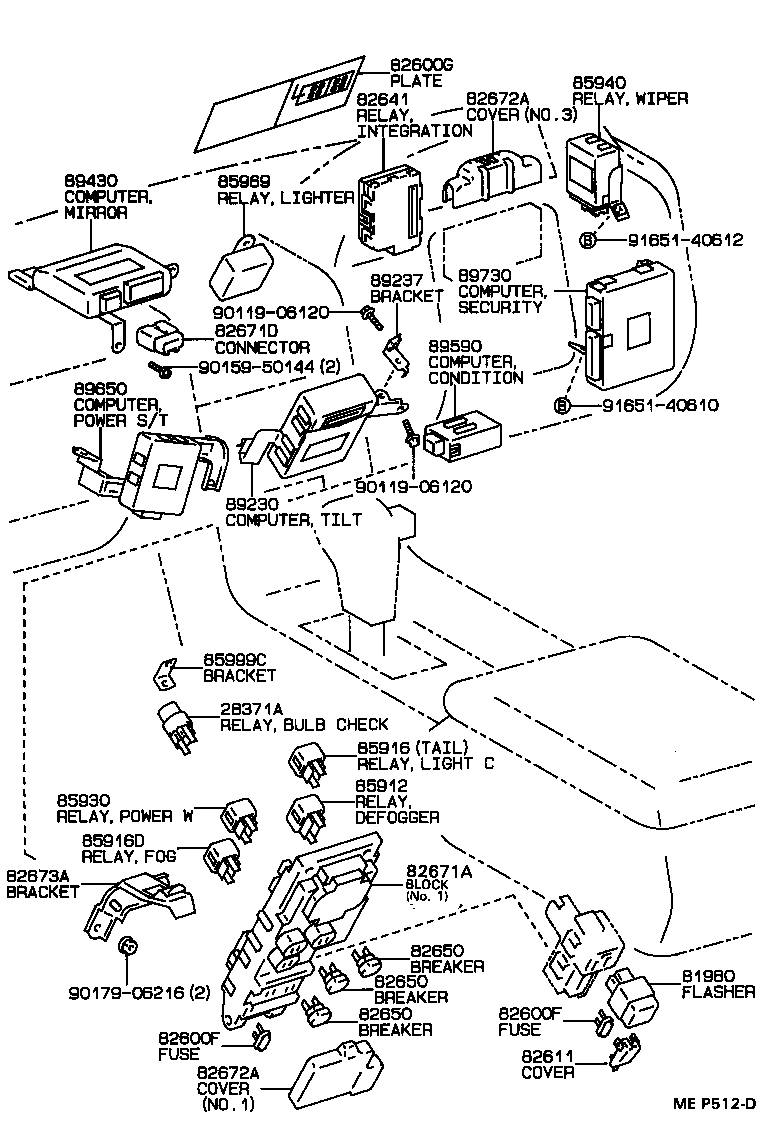

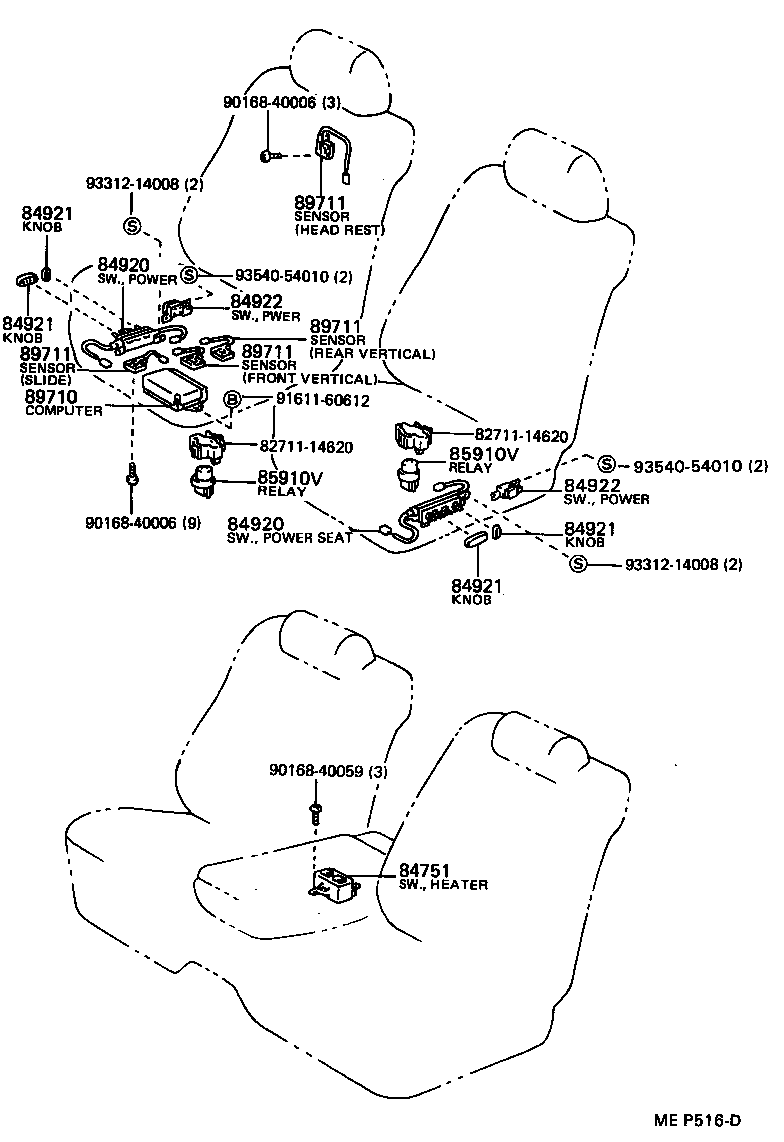

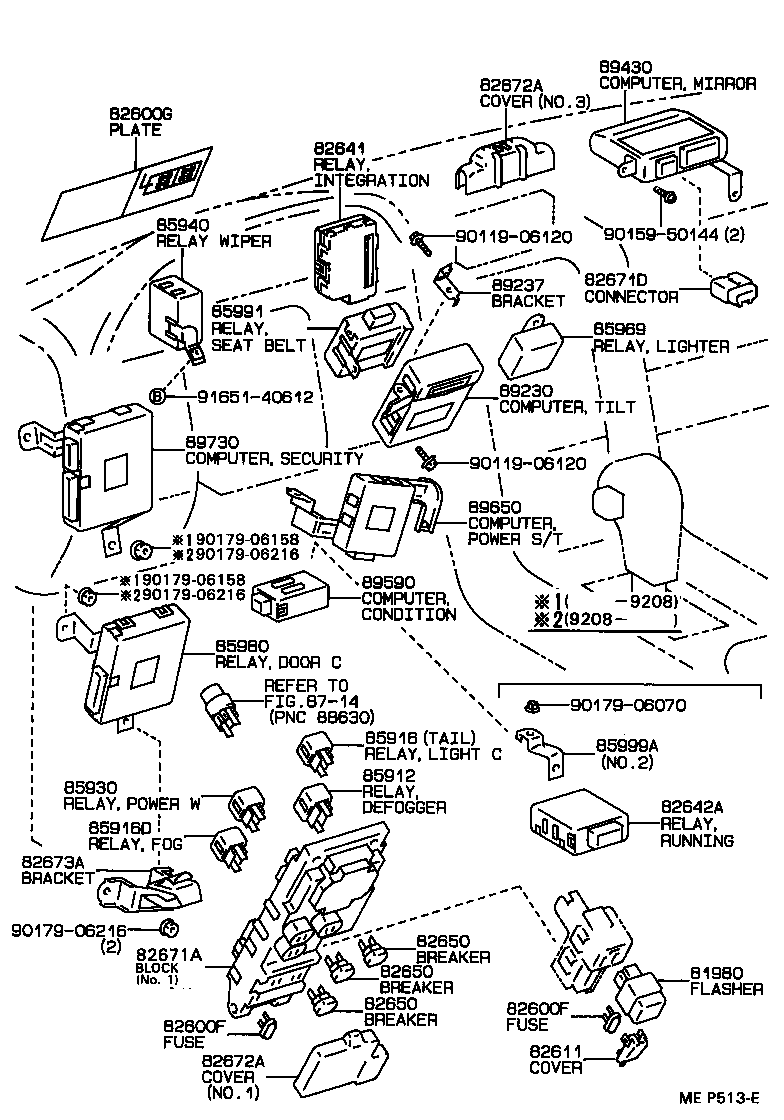

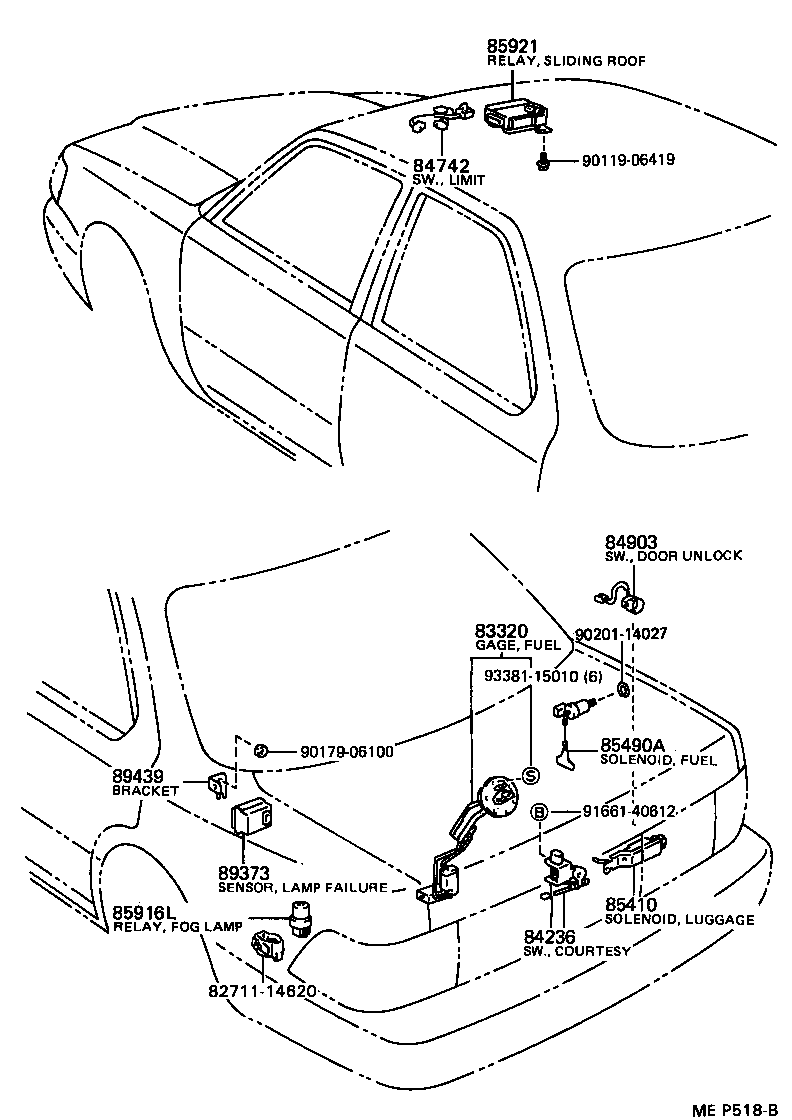

Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371A | Relay, Bulb Check |
| 28380A | Resister, Fuel Pump |
| 28380B | Bracket, Fuel Pump Resister |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82642A | Relay, Running Light |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82660C | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82671A | Block, Junction |
| 82671D | Block, Junction |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82815 | Cover, Wiring Harness Protector |
| 83320 | Gage Assy, Fuel Sender |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84150E | Bulb, Headlamp Cleaner Switch |
| 84230 | Switch Assy, Courtesy Lamp (FOR ENGINE ROOM) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84242 | Switch, Glove Box Lamp |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84317 | Sensor, Steering Position |
| 84329 | Switch, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84330D | Cap, Hazard Warning Switch Bulb |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84532 | Switch, Room Lamp Retainer |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84660C | Switch, Cooler |
| 84742 | Switch, Slide Roof Limit |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84870A | Switch Assy, Outer Mirror |
| 84903 | Switch Sub-assy, Door Un-lock |
| 84920 | Switch Assy, Power Seat |
| 84921 | Knob, Power Seat Switch |
| 84922 | Switch, Front Power Seat |
| 84926 | Switch, Height Adjustable Anchor |
| 84927 | Switch, Seat Memory |
| 84930 | Switch Assy, Door Control |
| 85276A | Relay, Cleaner Control |
| 85335 | Switch Assy, Washer Level Warning |
| 85410 | Solenoid Assy, Luggage Door Lock |
| 85490A | Solenoid Assy, Fuel Lid Opener |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910K | Relay, Rear Seat Heater |
| 85910V | Relay, Seat Heater |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85921 | Relay, Sliding Roof Control |
| 85926 | Relay, Headlamp Dimmer |
| 85930 | Relay Assy, Power Window |
| 85940 | Relay Assy, Windshield Wiper |
| 85969 | Relay, Light Reminder |
| 85980 | Relay Assy, Door Control |
| 85991 | Relay, Seat Belt Warning |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 86530 | Relay Assy, Horn |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 88630R | Relay Assy, Cooler, NO.3 |
| 89230 | Computer Assy, Tilt Steering |
| 89233 | Sensor, Tilt Position |
| 89234 | Sensor, Telescopic Position |
| 89235 | Switch, Tilt Steering |
| 89237 | Bracket, Computer Unit |
| 89373 | Sensor, Lamp Failure Indicator |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89430 | Computer Assy, Outer Mirror Control |
| 89437 | Cover, Sensor |
| 89439 | Bracket, Sensor |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89590 | Computer Assy, Condition Indicator |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
| 89650 | Computer Assy, Power Steering |
| 89710 | Computer Assy, Position Control |
| 89711 | Sensor, Position Control |
| 89730 | Computer Assy, Security Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
