Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

6 part groups · 2 illustrations

Illustrations

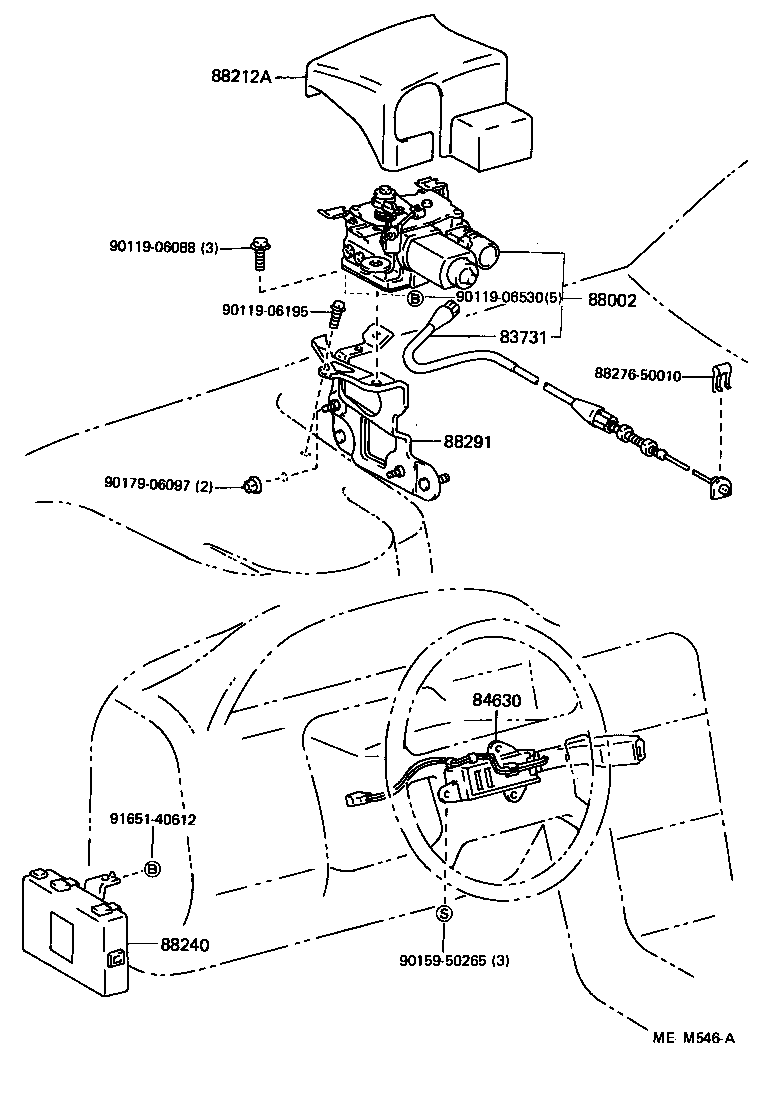

Figure MEP324C MEP324C 1989-12 → — Figure MEM546A MEM546A 1989-12 → —

Part groups

PNCDescription
83731 Cable, Cruise Control
84630 Switch Assy, Cruise Control Main
88002 Cruise Control(AUTO DRIVE) Set
88212A Cover, Cruise Control Actuator
88240 Computer Assy, Cruise Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
