Toyota Lexus LS400
1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe
Discontinued model
Data version 1995-05
Abs & Vsc
6 part groups · 2 illustrations
Part groups

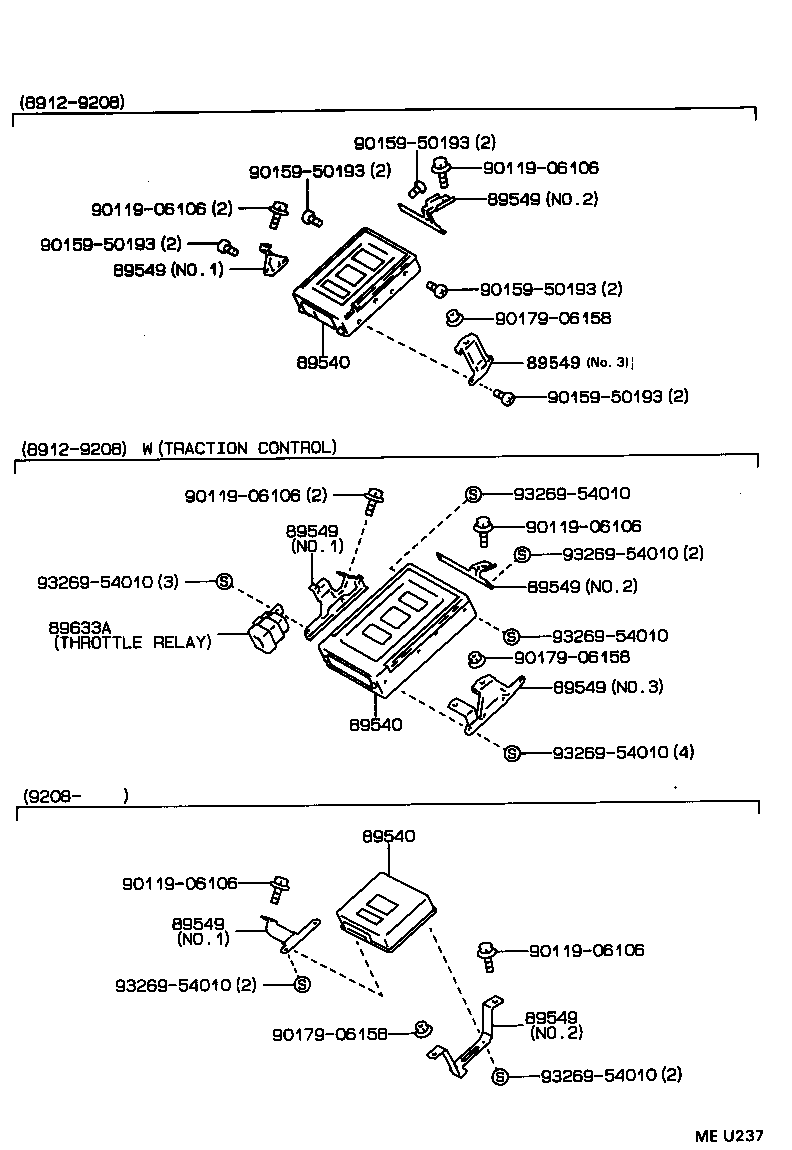

| PNC | Description |
|---|---|
| 85999M | Bracket, Relay |
| 88263A | Relay, Skid Control |
| 89411 | Sensor, Speed |
| 89540 | Computer Assy, Skid Control |
| 89549 | Bracket, Skid Control Computer |
| 89633A | Relay, Traction Control OR Vsc |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
