Toyota Lexus LS400

1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe

Discontinued model Data version 1995-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 3 illustrations

Illustrations

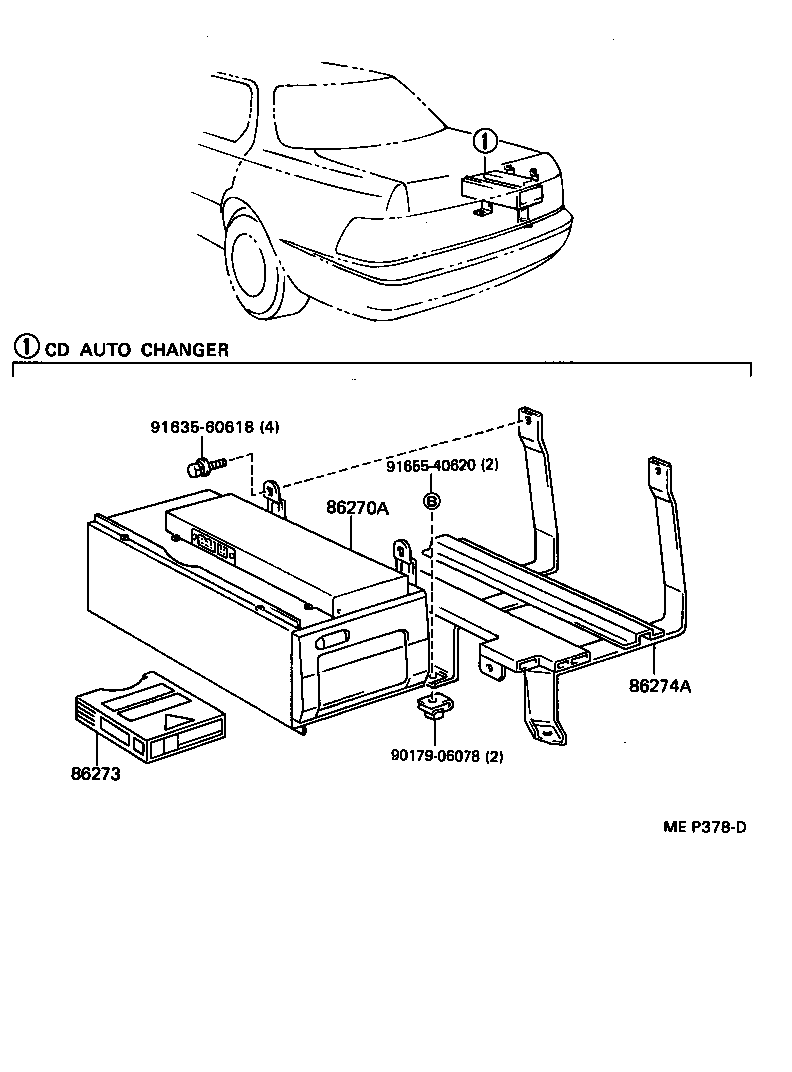

Figure MEM696C MEM696C 1989-12 → — Figure MEP378D MEP378D 1989-12 → 1992-08 Figure MEU380A MEU380A 1992-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86270A Disc Player Assy
86273 Magazine, Disc Player
86274A Bracket, Disc Player
86275A Changer, Disc Player
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
