Toyota Lexus LS400
1989-12 → 1994-10 · chassis UCF10 · catalogue 431210 · Europe
Discontinued model
Data version 1995-05

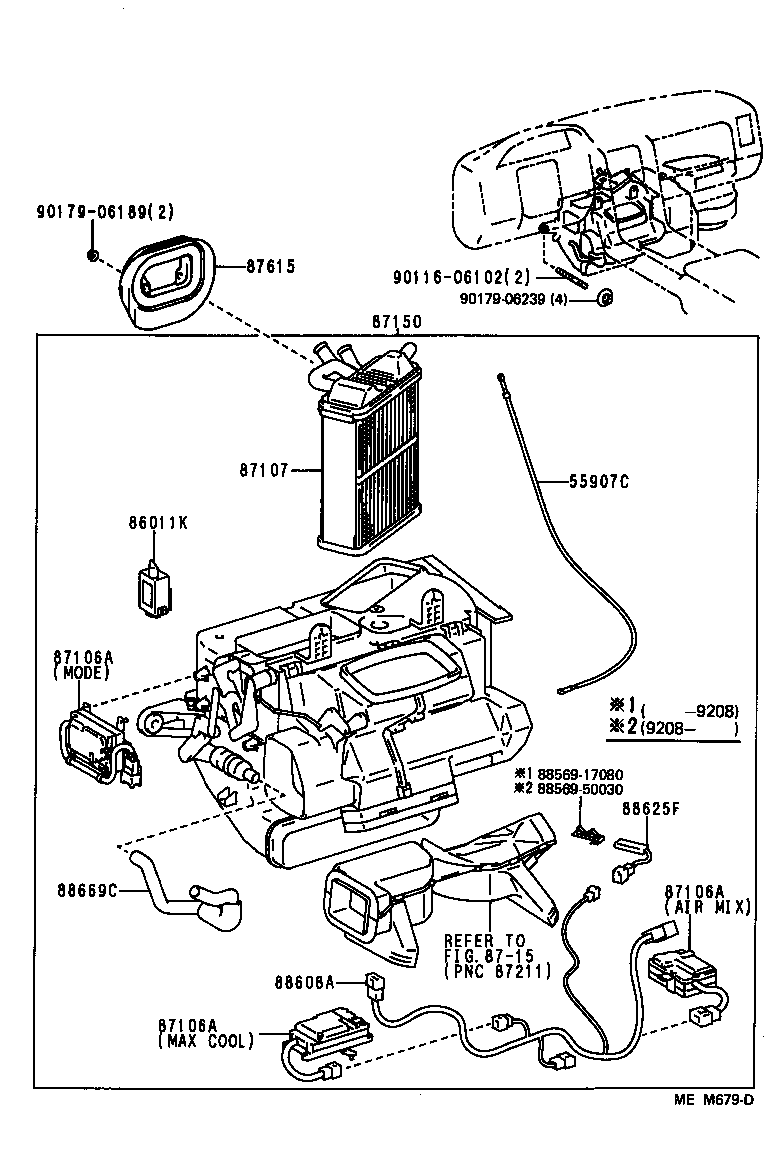

Heating & Air Conditioning - Heater Unit & Blower
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 86011K | Filter, Noise |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87150 | Radiator Assy, Heater |
| 87615 | Retainer, Insulator |
| 88608A | Harness Sub-assy, Wiring Air Conditioner, NO.2 |
| 88625F | Sensor, Temperature |
| 88669C | Hose, Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
