Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

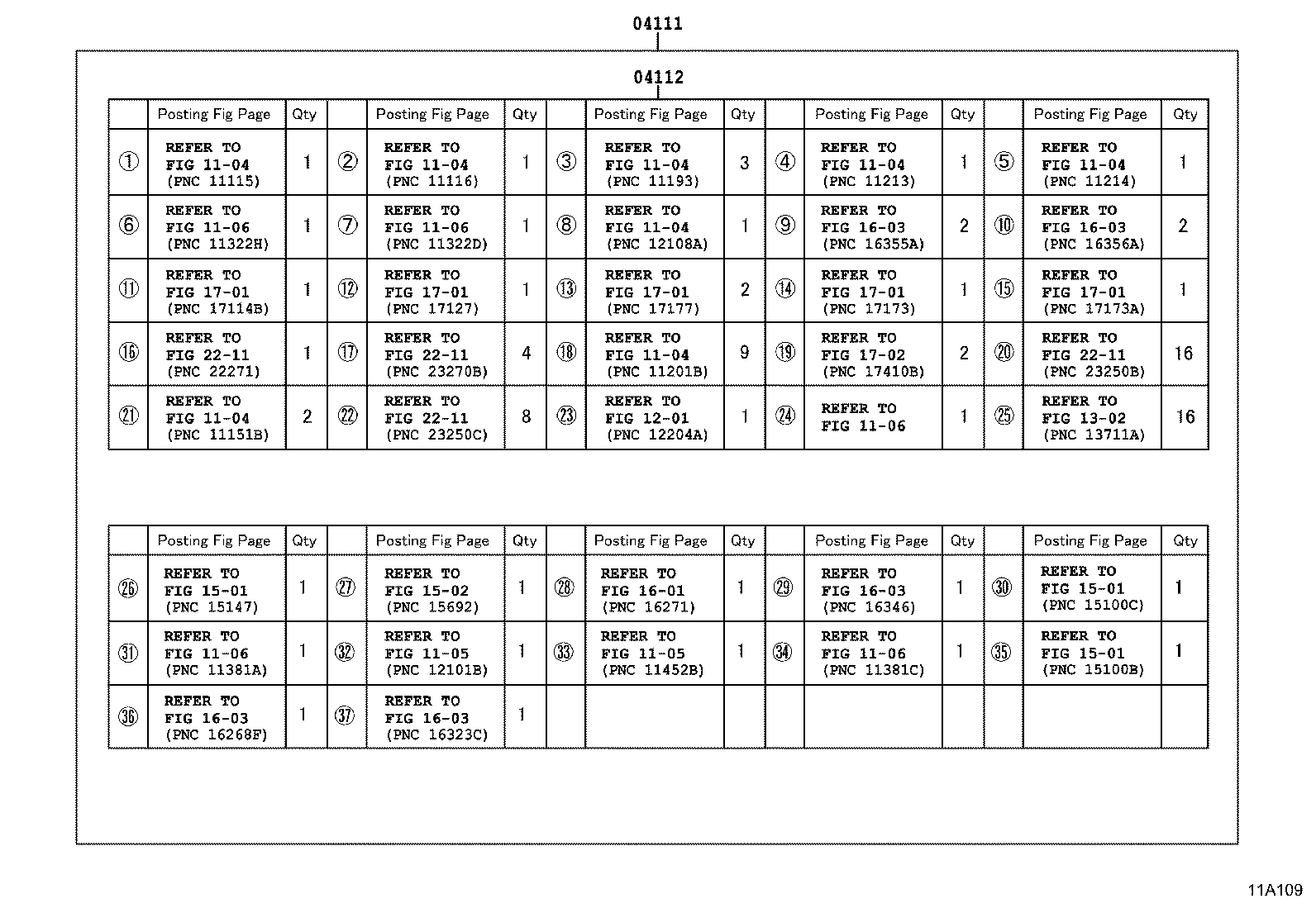

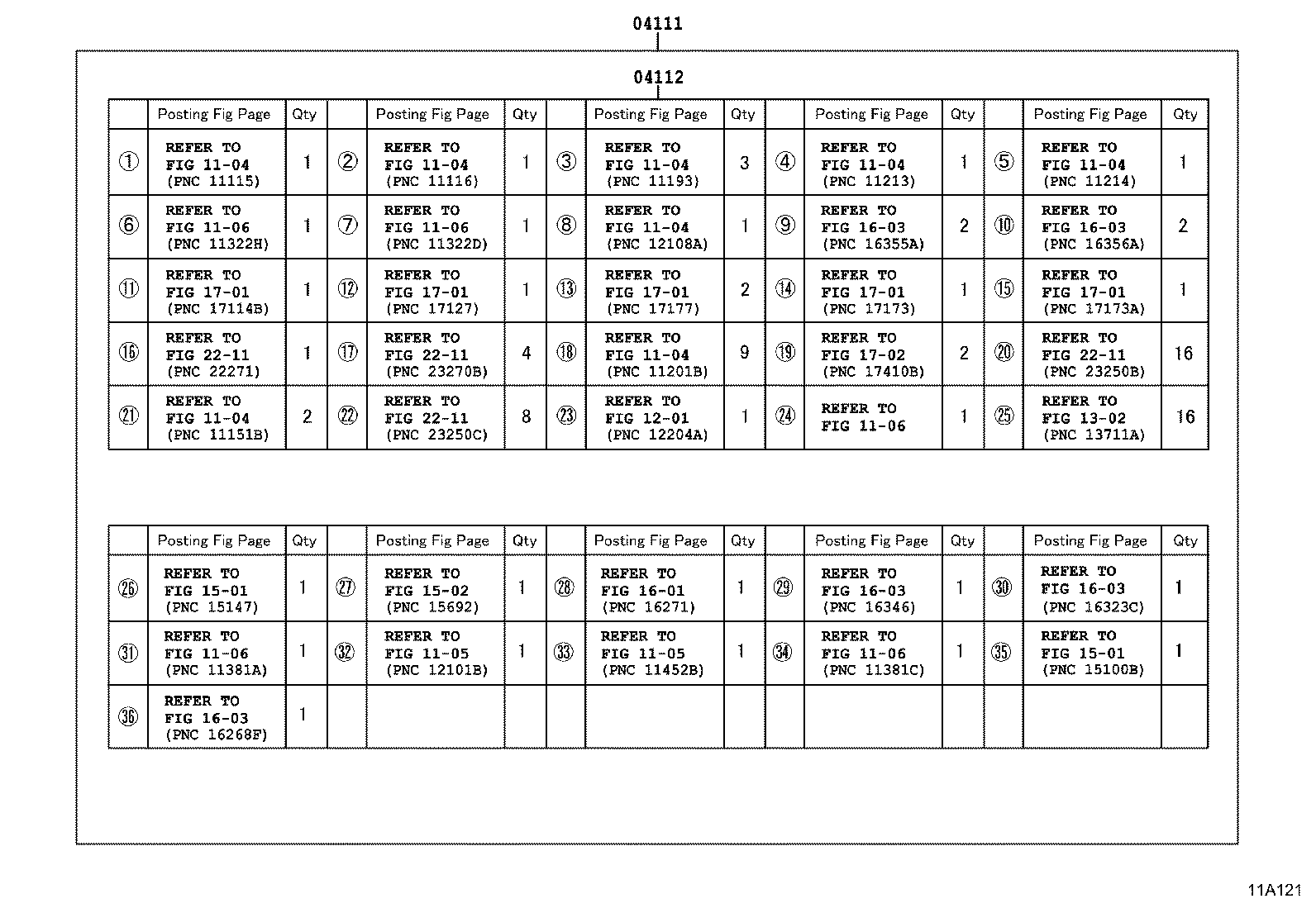

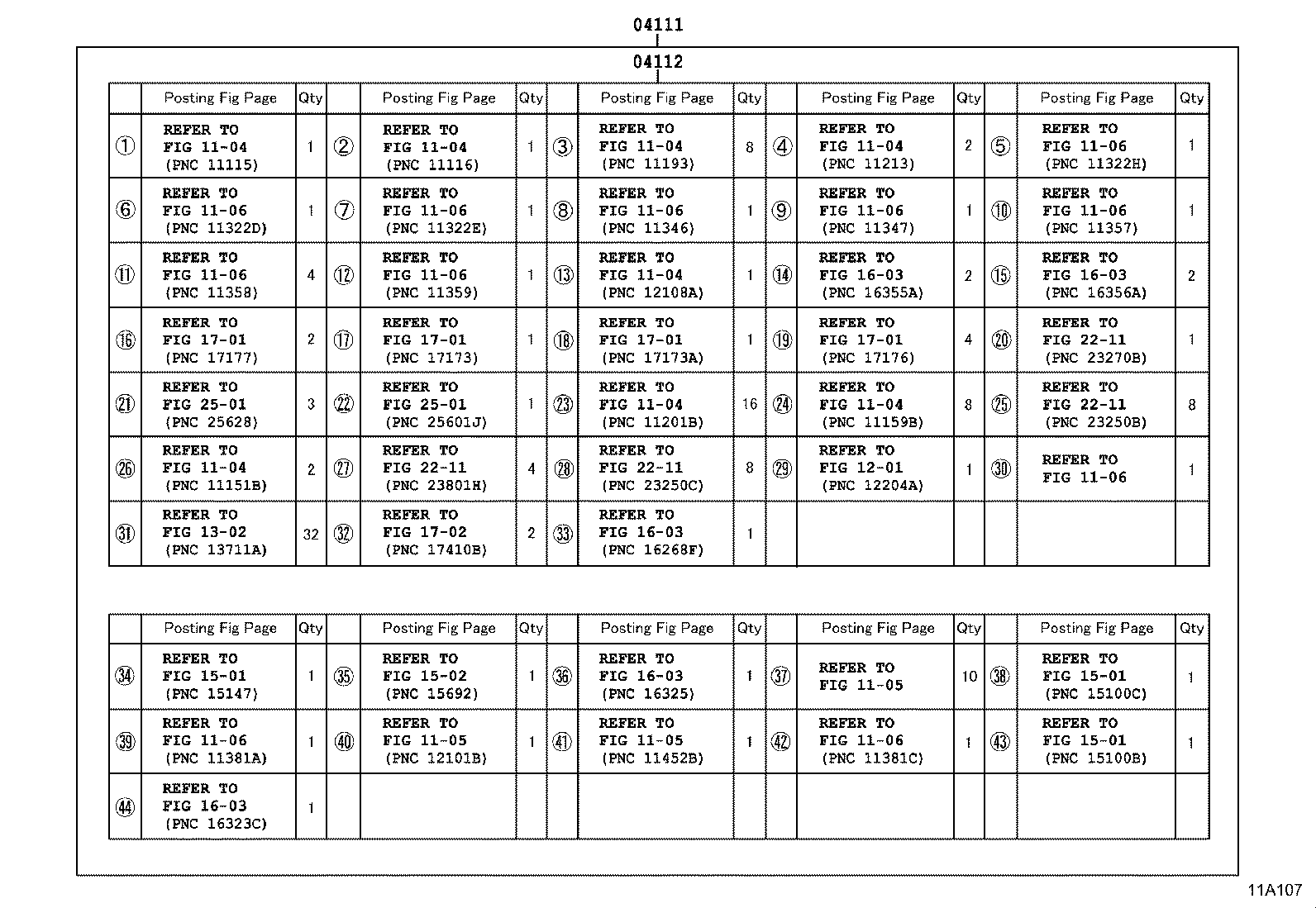

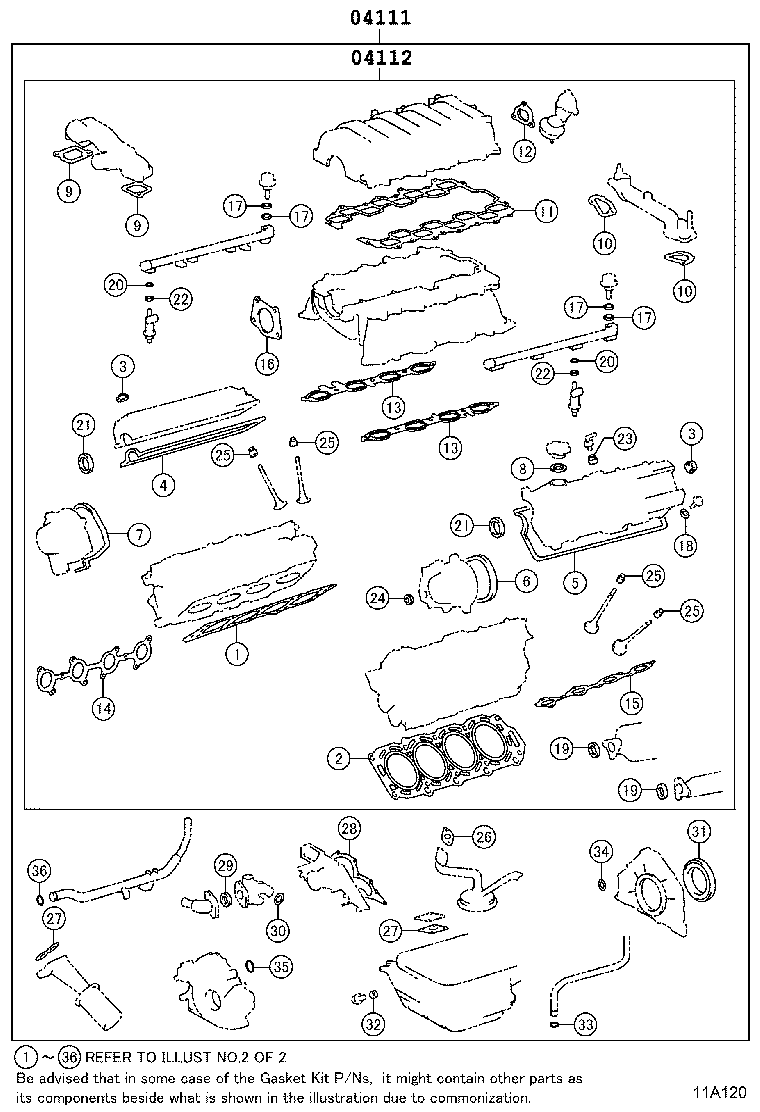

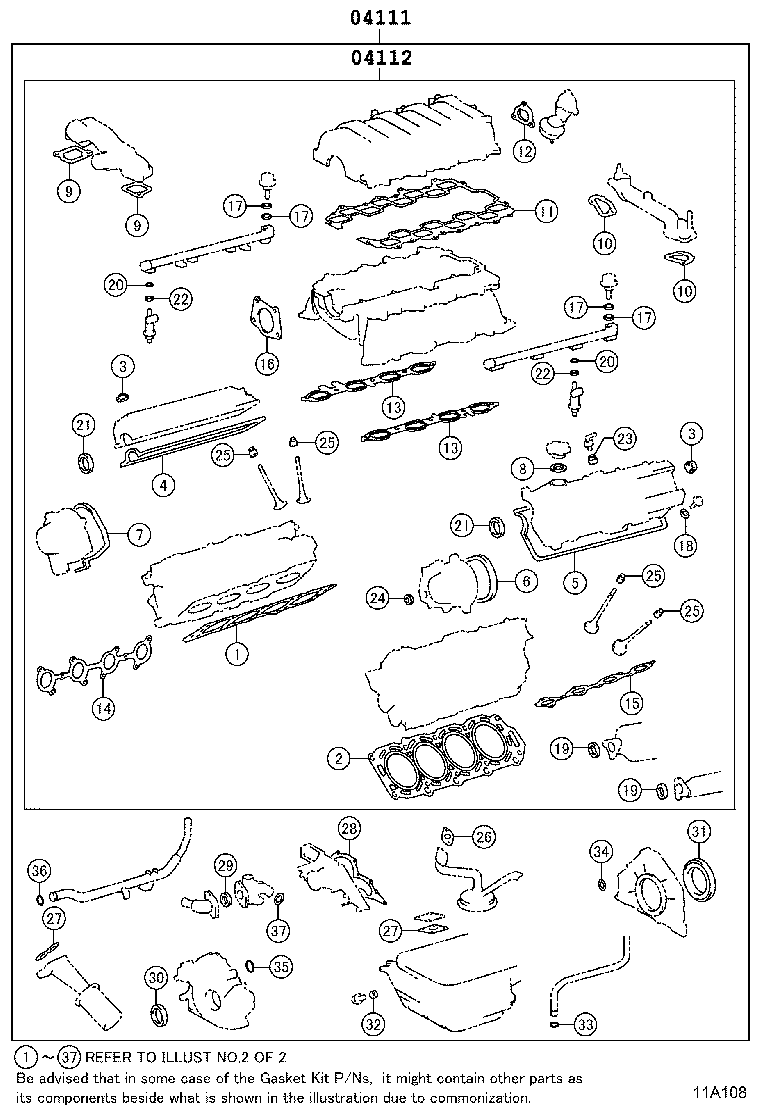

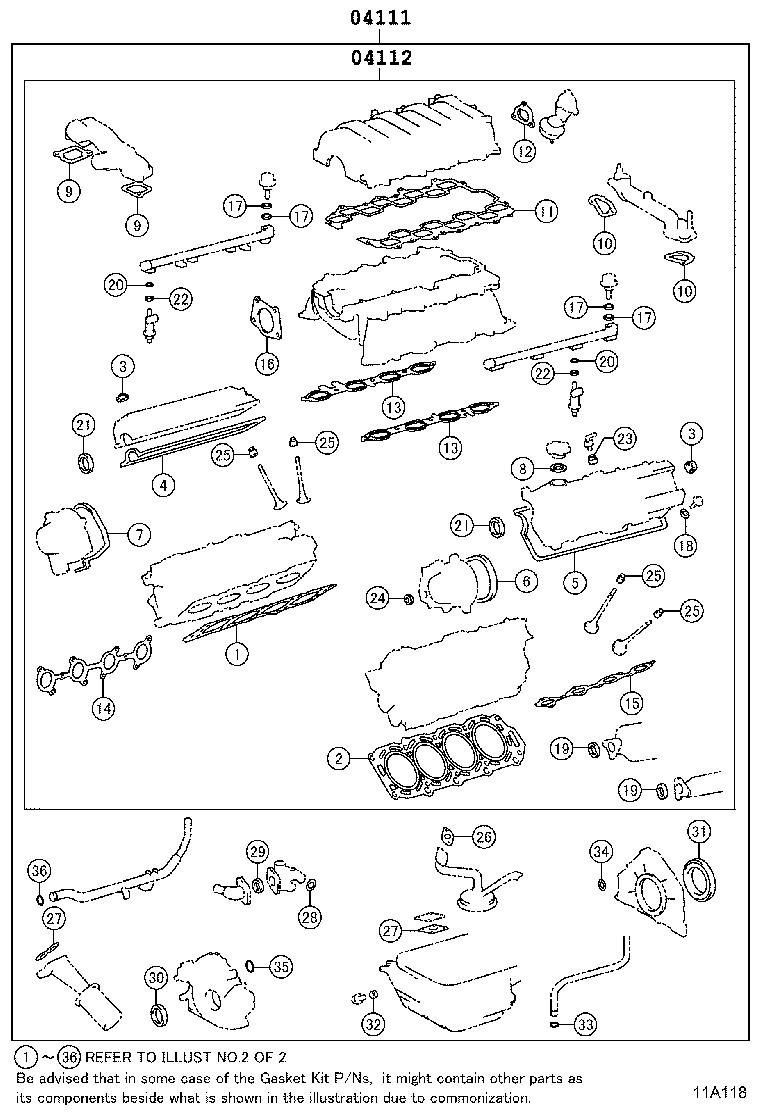

Figure 11A106 11A106 1994-10 → 1997-07 Figure 11A107 11A107 1994-10 → 1997-07 Figure 11A118 11A118 1997-07 → 1997-11 Figure 11A119 11A119 1997-07 → 1997-11 Figure 11A120 11A120 1997-11 → 1998-08 Figure 11A121 11A121 1997-11 → 1998-08 Figure 11A108 11A108 1998-08 → — Figure 11A109 11A109 1998-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
