Toyota Lexus LS400
1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe
Discontinued model
Data version 2001-03
Cylinder Head

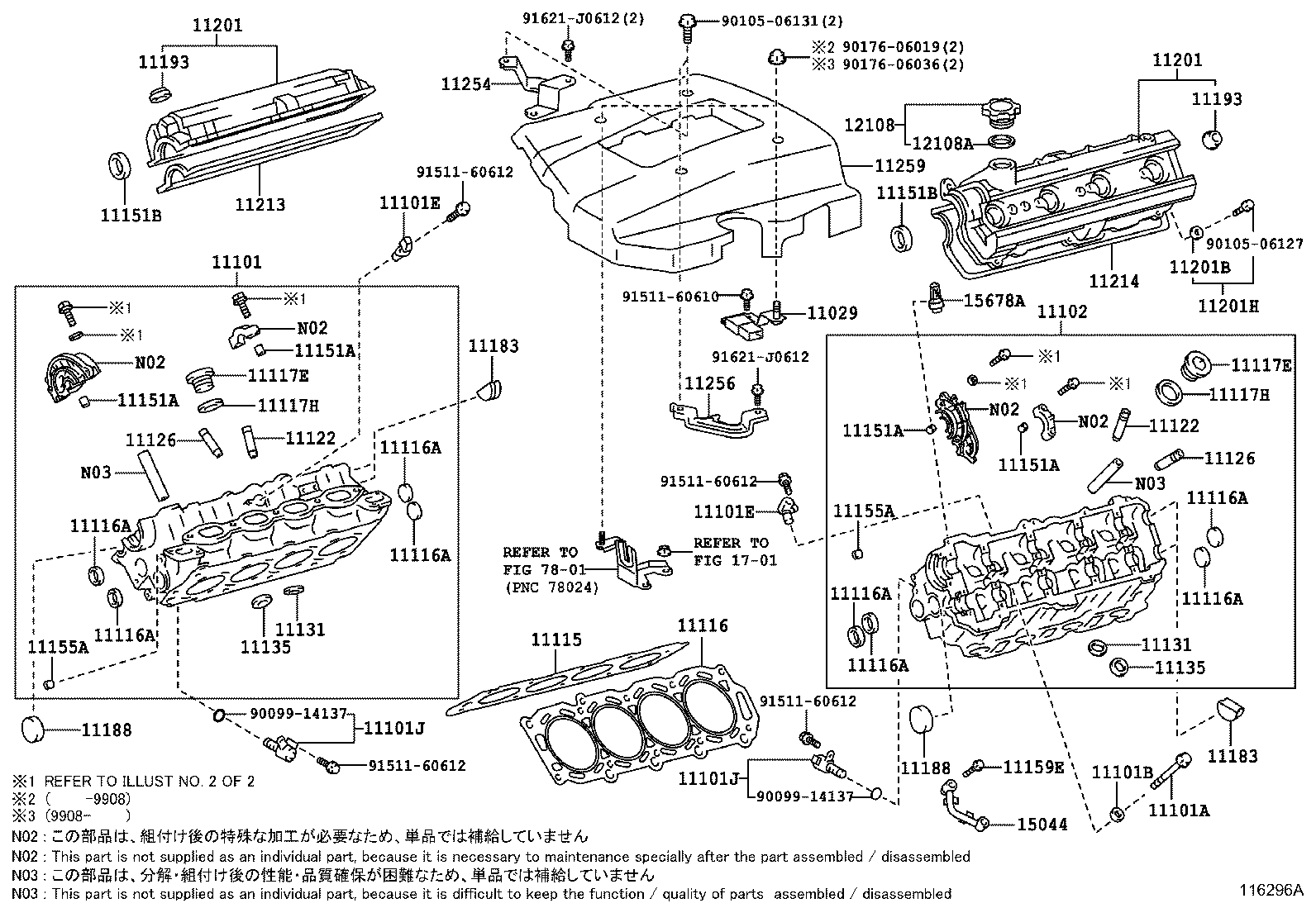

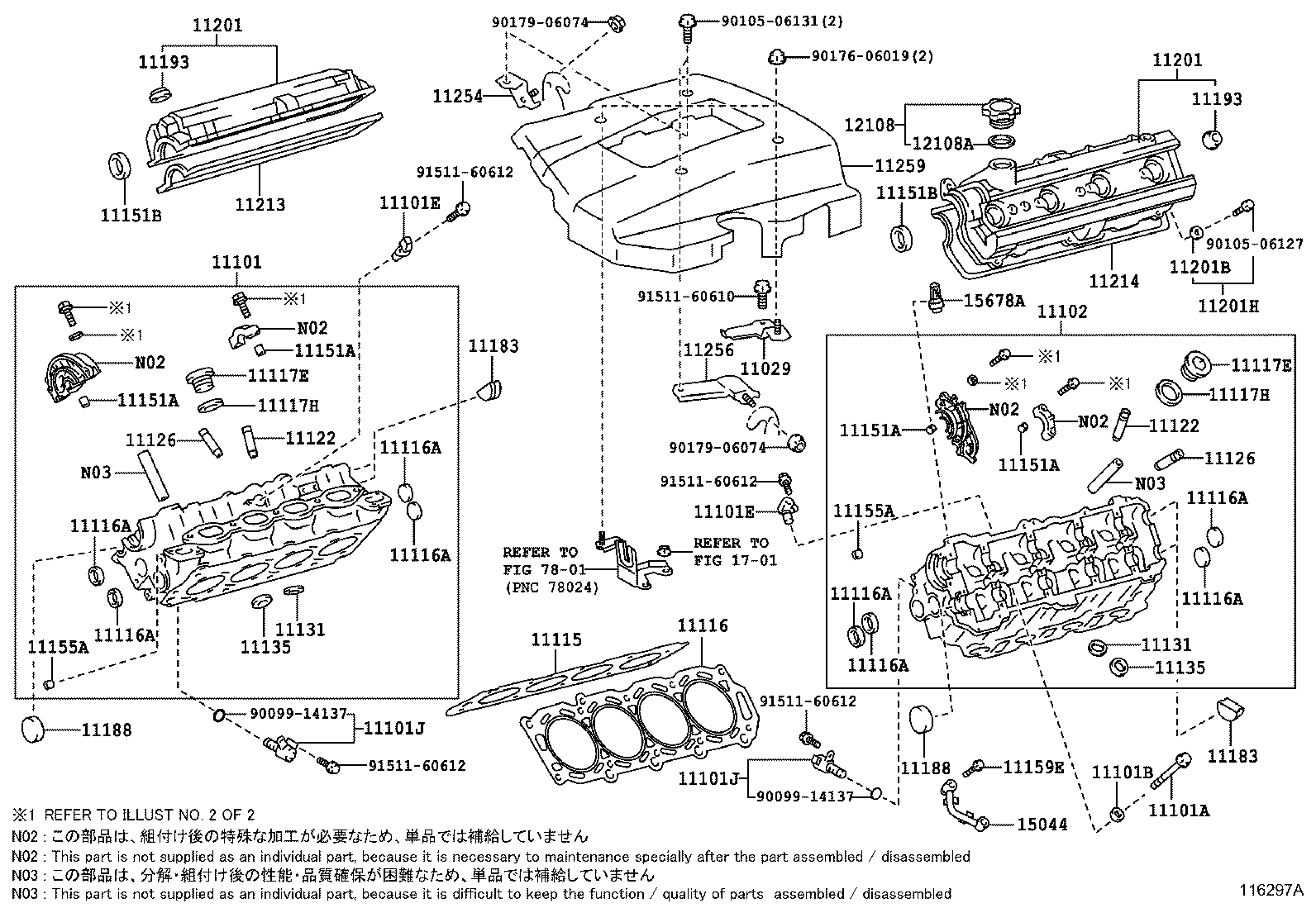

38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11029 | Bracket Sub-assy, V-bank Cover |
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101B | Washer, Plate(FOR CYLINDER HEAD SET) |
| 11101E | Sensor, Cam Position |
| 11101J | Valve Assy, Camshaft Timing Oil Control |
| 11102 | Head, Cylinder, LH |
| 11115 | Gasket, Cylinder Head |
| 11116 | Gasket, Cylinder Head, NO.2 |
| 11116A | Plug, Tight, NO.1 |
| 11117E | Plug, W/Head Straight Screw, NO.1 |
| 11117H | Gasket(FOR WATER HOLE) |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11151A | Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) |
| 11151B | Seal, Oil(FOR CAMSHAFT SETTING) |
| 11155A | Pin, Ring W/Head |
| 11159A | Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159B | Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP) |
| 11159E | Bolt(FOR CAMSHAFT OIL FEED PIPE) |
| 11183 | Plug, Semicircular |
| 11185A | Cover, Camshaft Rear Housing, NO.1 |
| 11188 | Plug, Camshaft Housing |
| 11193 | Gasket, Spark Plug Tube |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11201H | Bolt(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 11214 | Gasket, Cylinder Head Cover, NO.2 |
| 11254 | Bracket, V-bank Cover, NO.1 |
| 11256 | Bracket, V-bank Cover, NO.2 |
| 11259 | Cover, V-bank |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
| 15044 | Pipe Sub-assy, Camshaft Oil Feed |
| 15678A | Filter, Oil Control Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
