Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

19 part groups · 2 illustrations

Illustrations

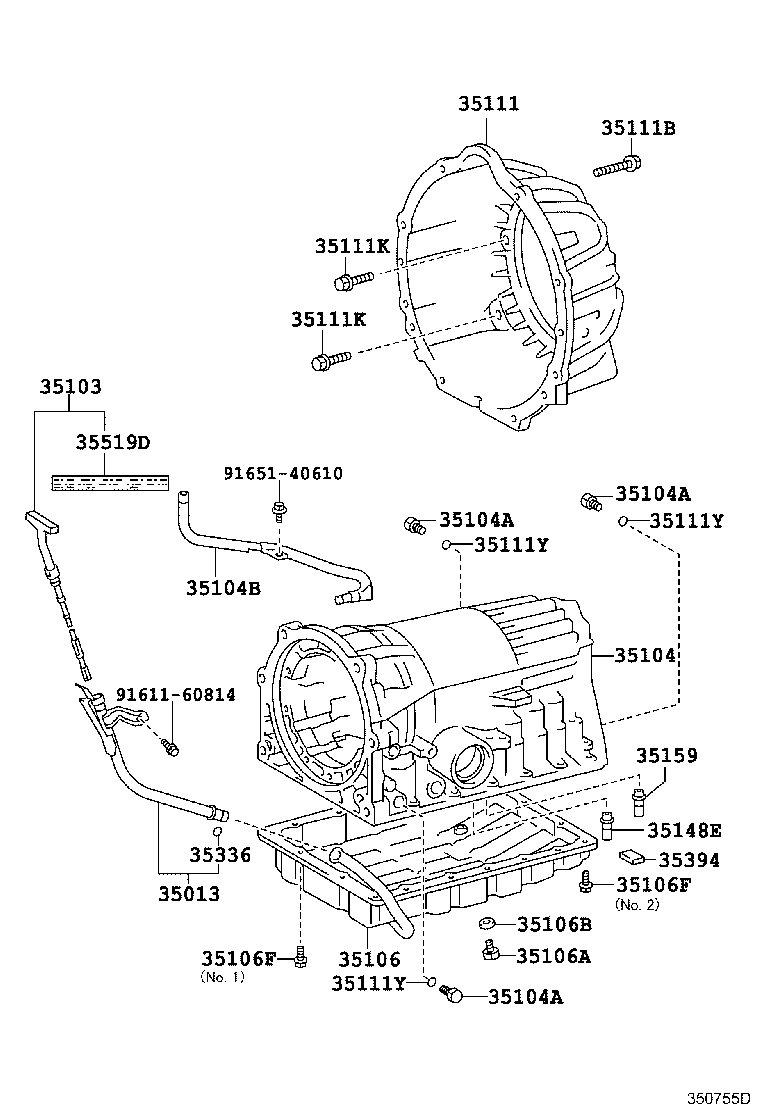

Figure 350732A 350732A 1994-10 → 1997-07 Figure 350755D 350755D 1997-07 → —

Part groups

PNCDescription
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35104V Hose (FOR BREATHER PLUG)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106F Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
35111 Housing, Automatic Transmission
35111B Bolt (FOR TRANSMISSION HOUSING & ENGINE SETTING)
35111K Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35148E Gasket, Brake Drum, NO.2
35159 Gasket, Brake Drum
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
35519D Label, Automatic Transmission Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
