Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 4 illustrations

Illustrations

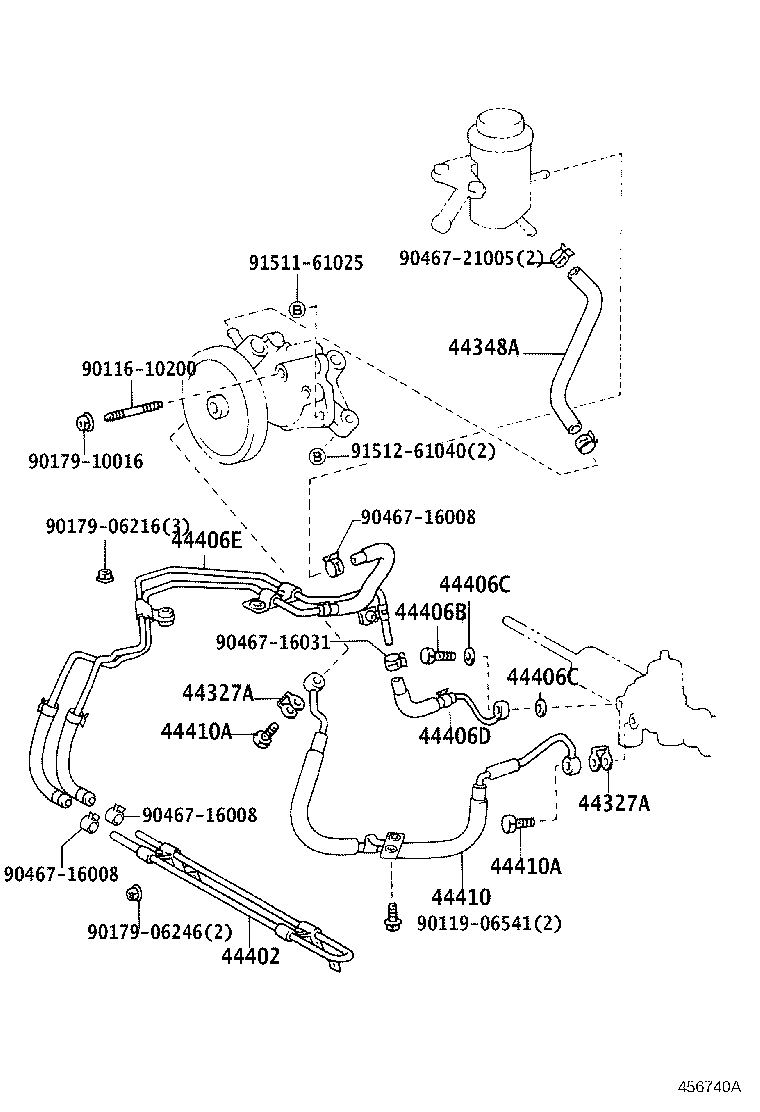

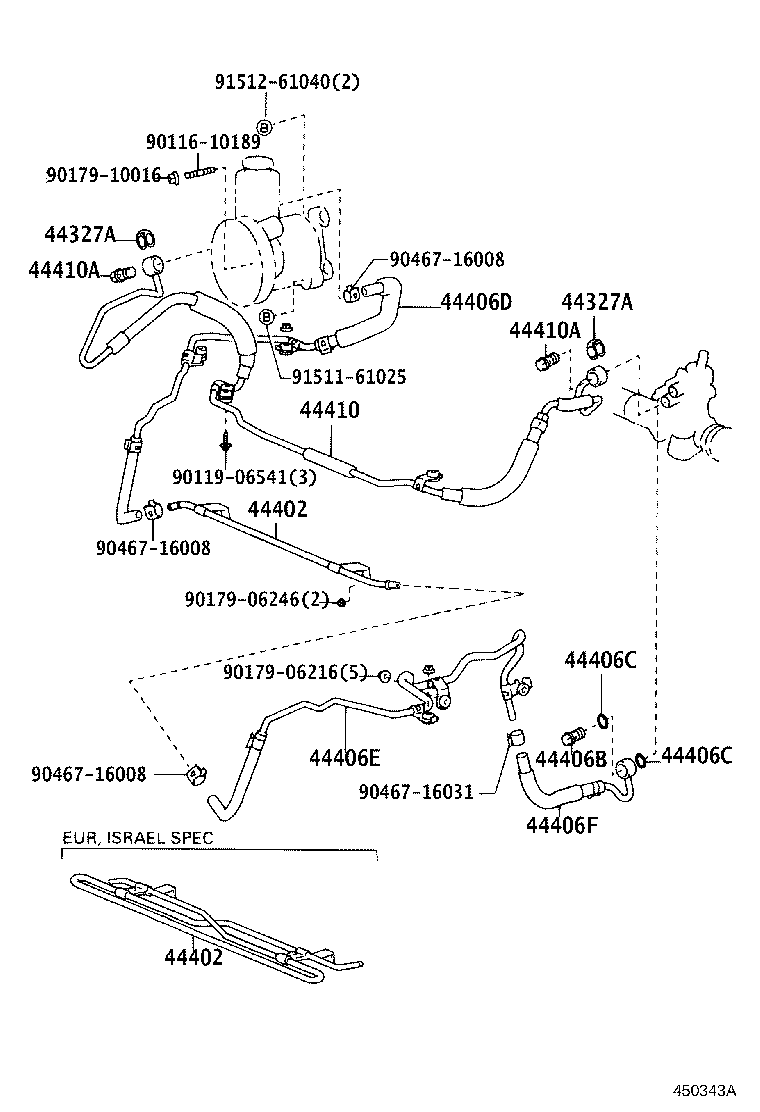

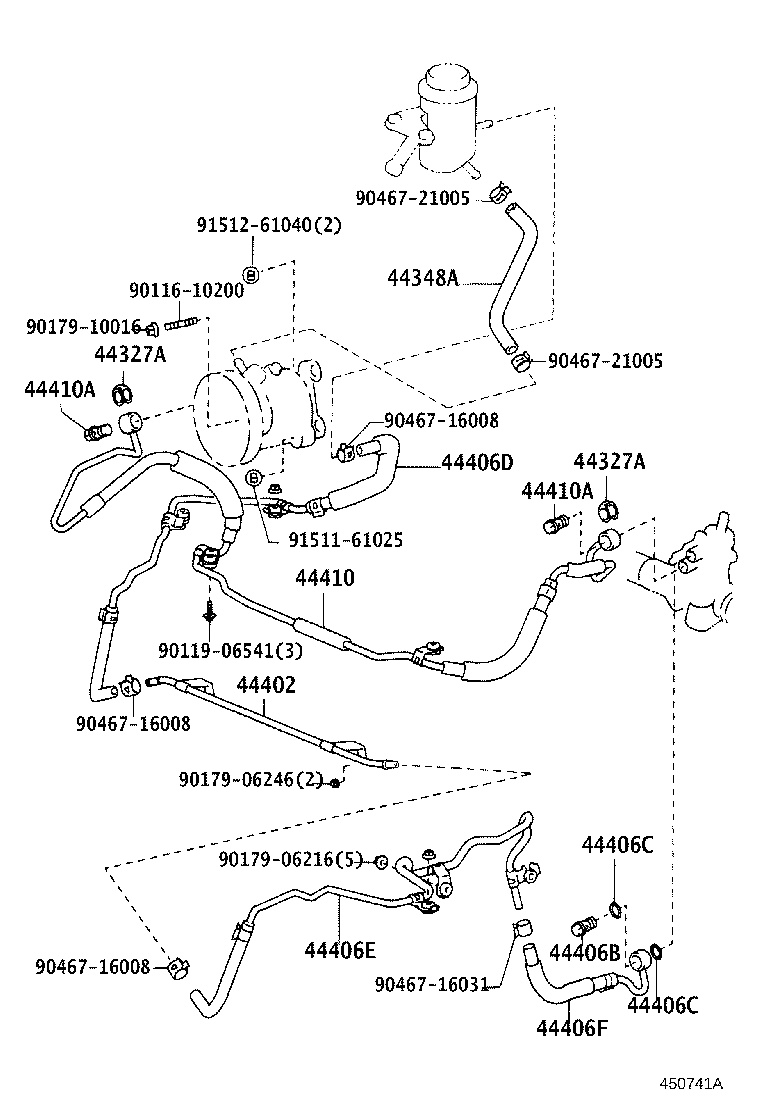

Figure 450738A 450738A 1994-10 → 1997-07 Figure 450740A 450740A 1997-07 → — Figure 450343A 450343A 1994-10 → 1997-07 Figure 450741A 450741A 1997-07 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44406F Tube Sub-assy, Return, NO.3
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
