Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

70 part groups · 16 illustrations

Illustrations

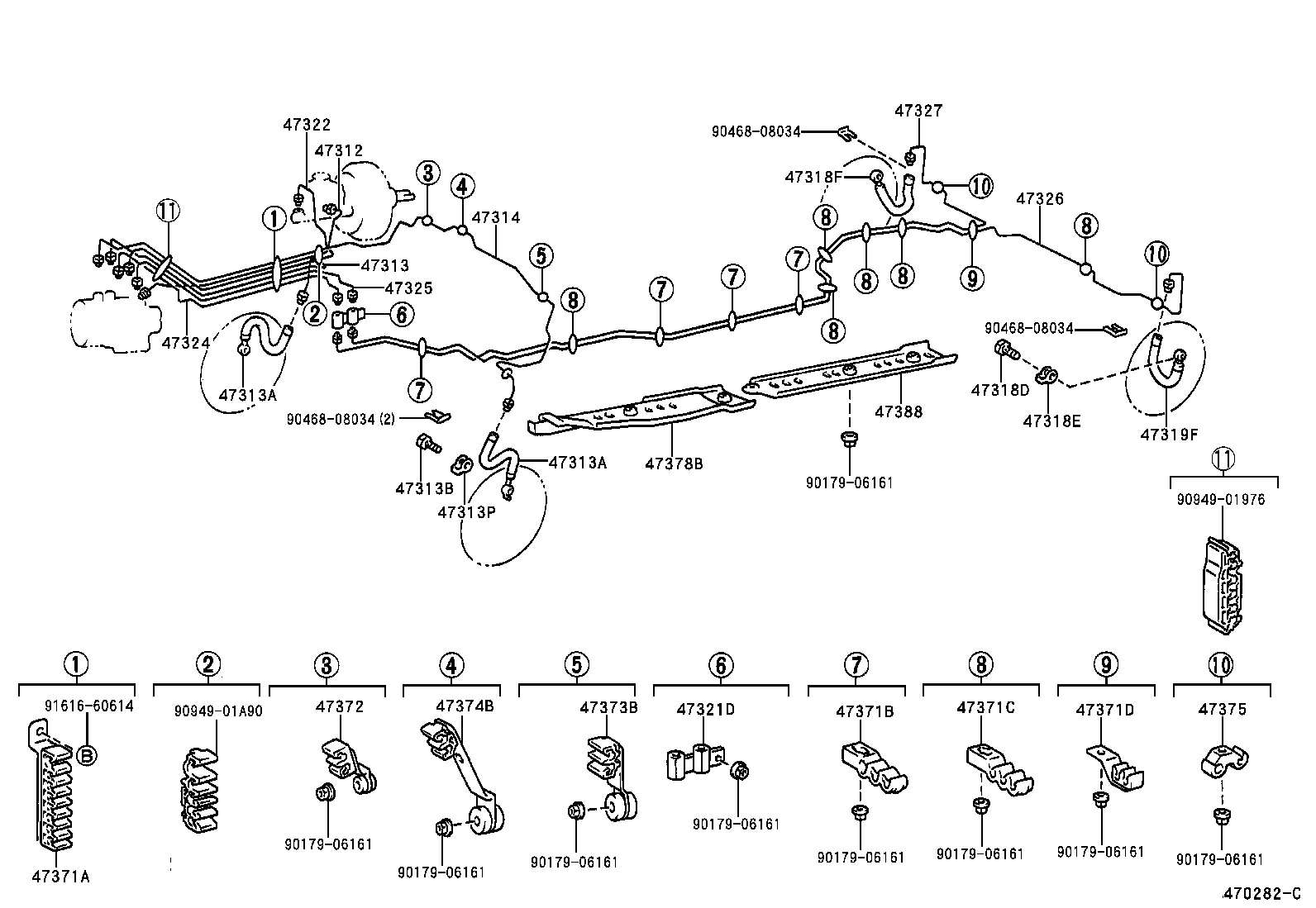

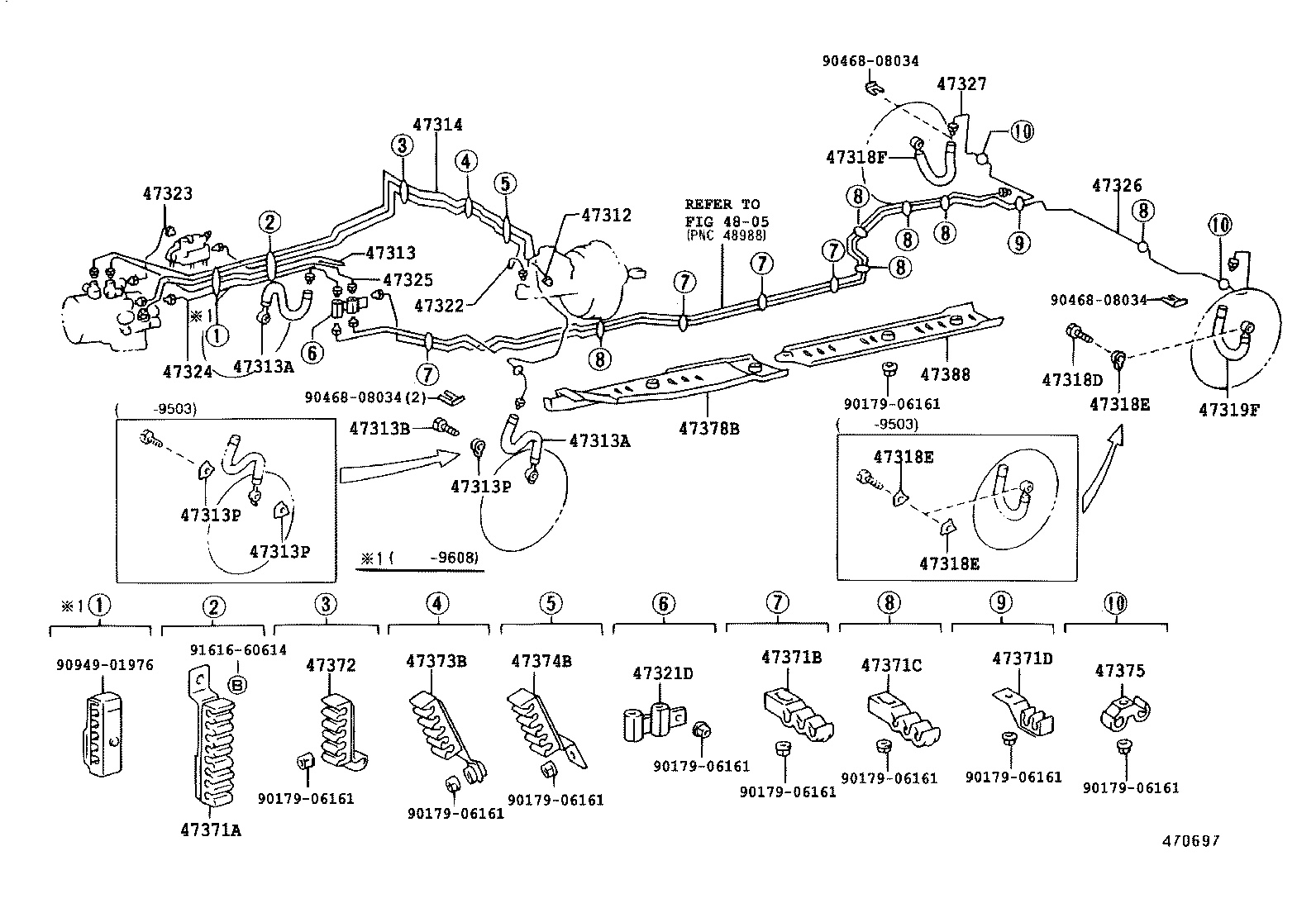

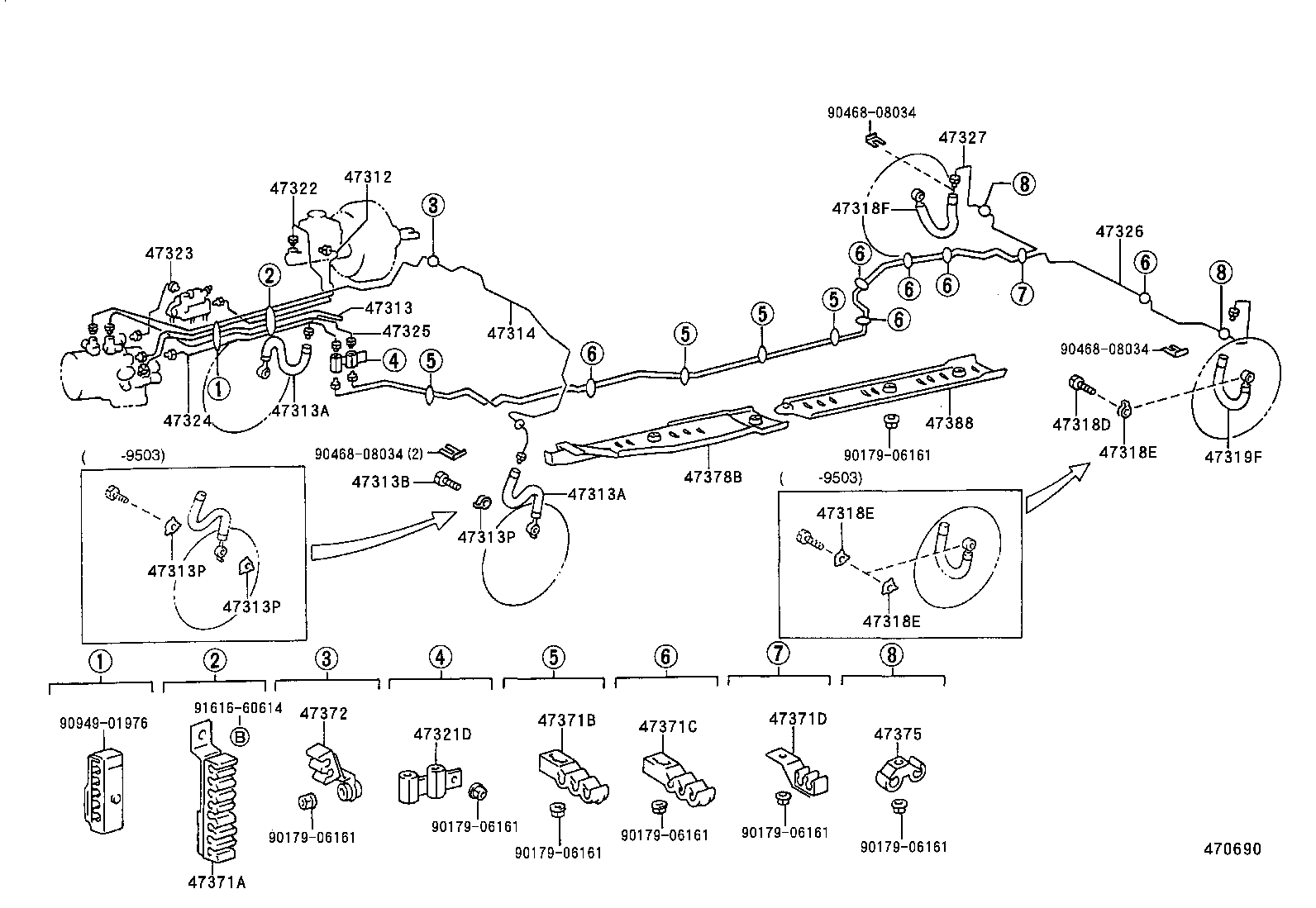

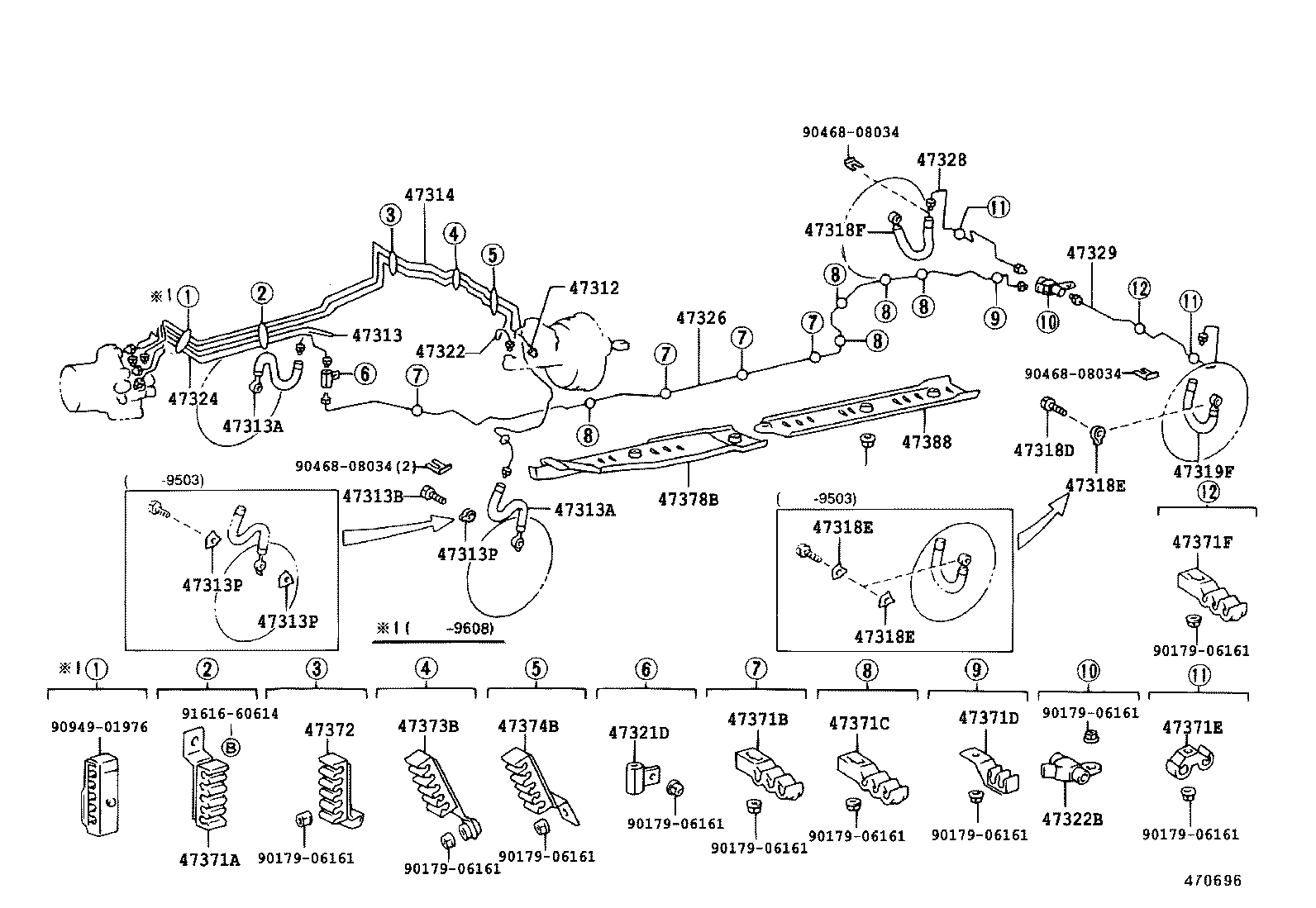

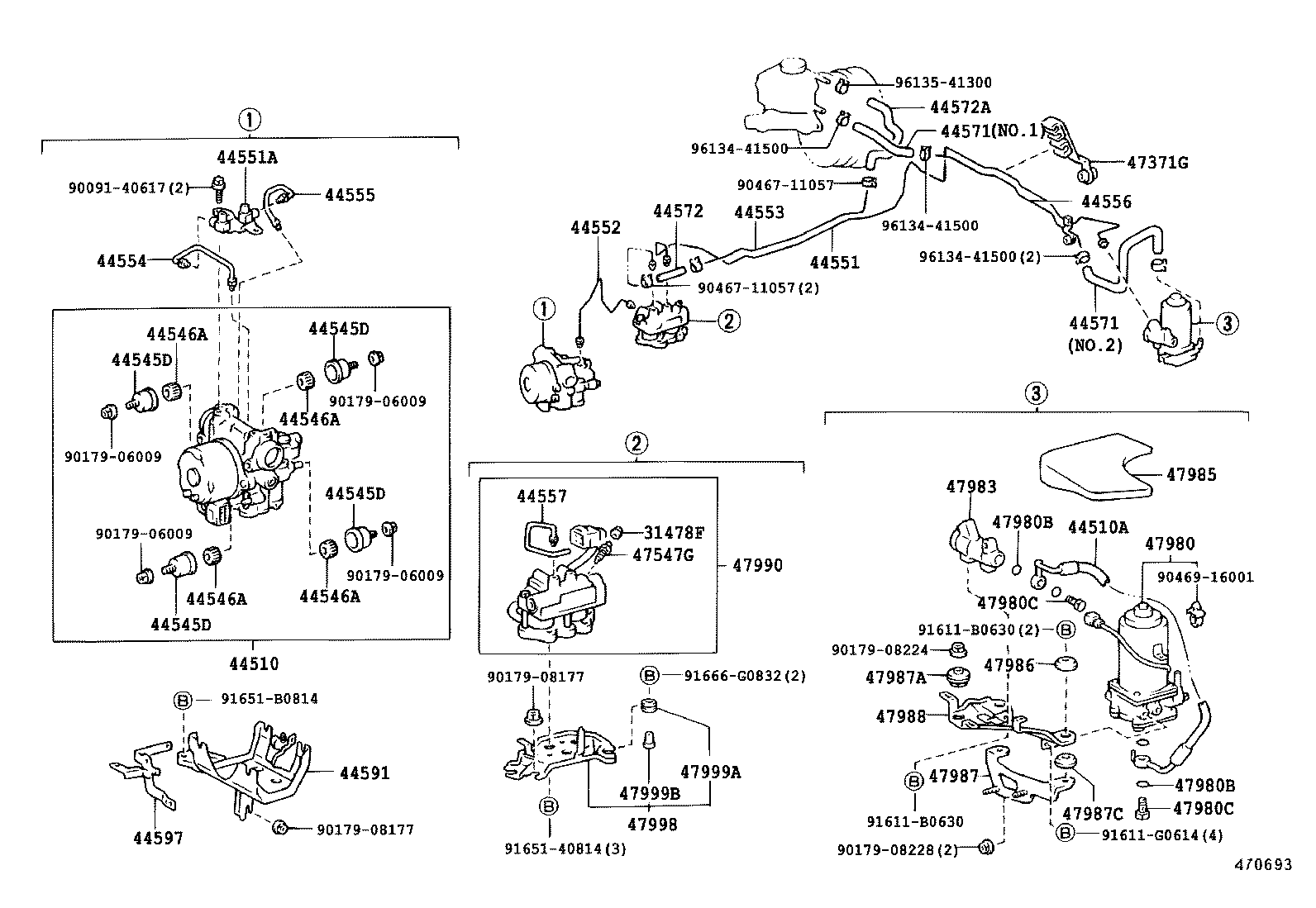

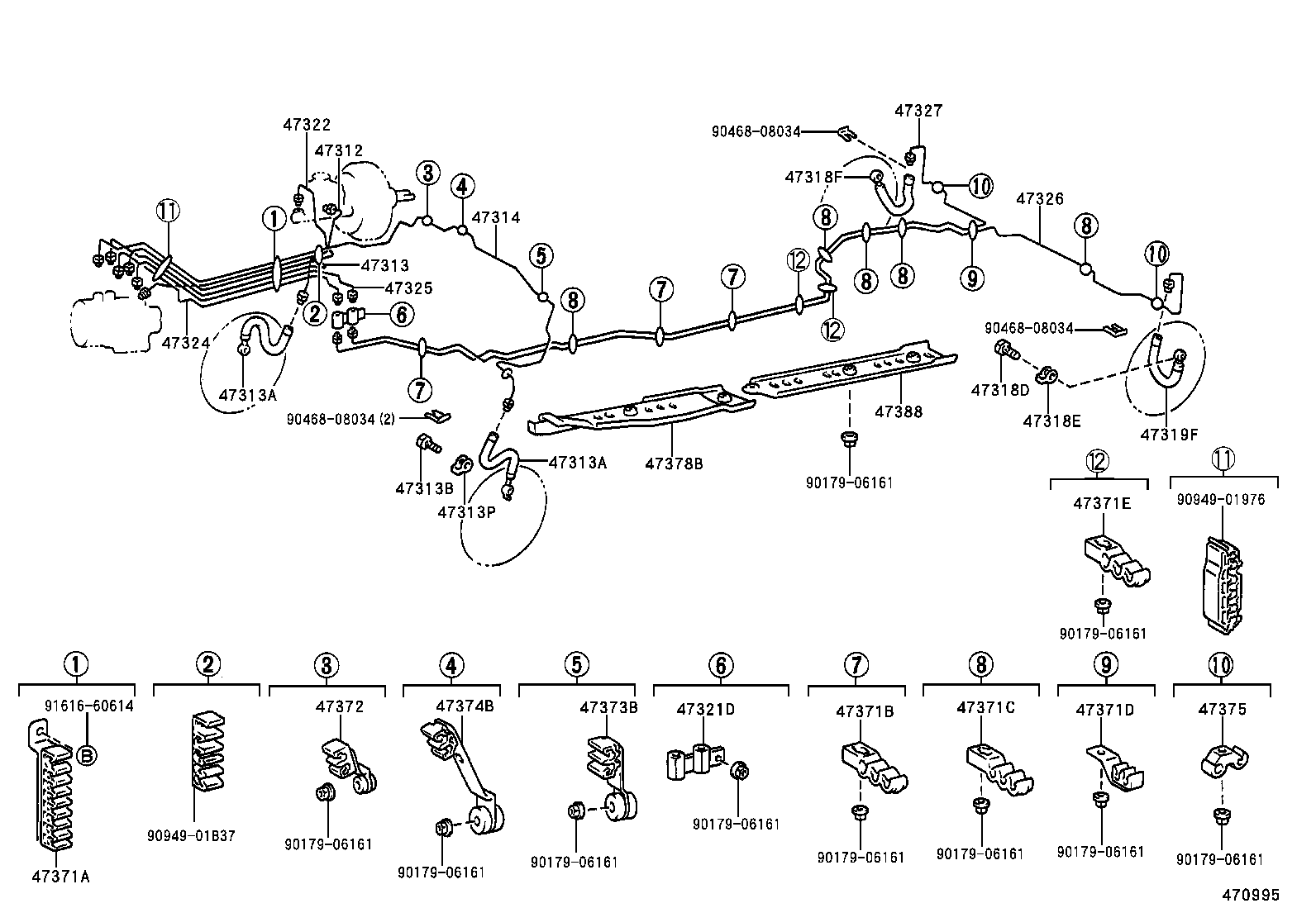

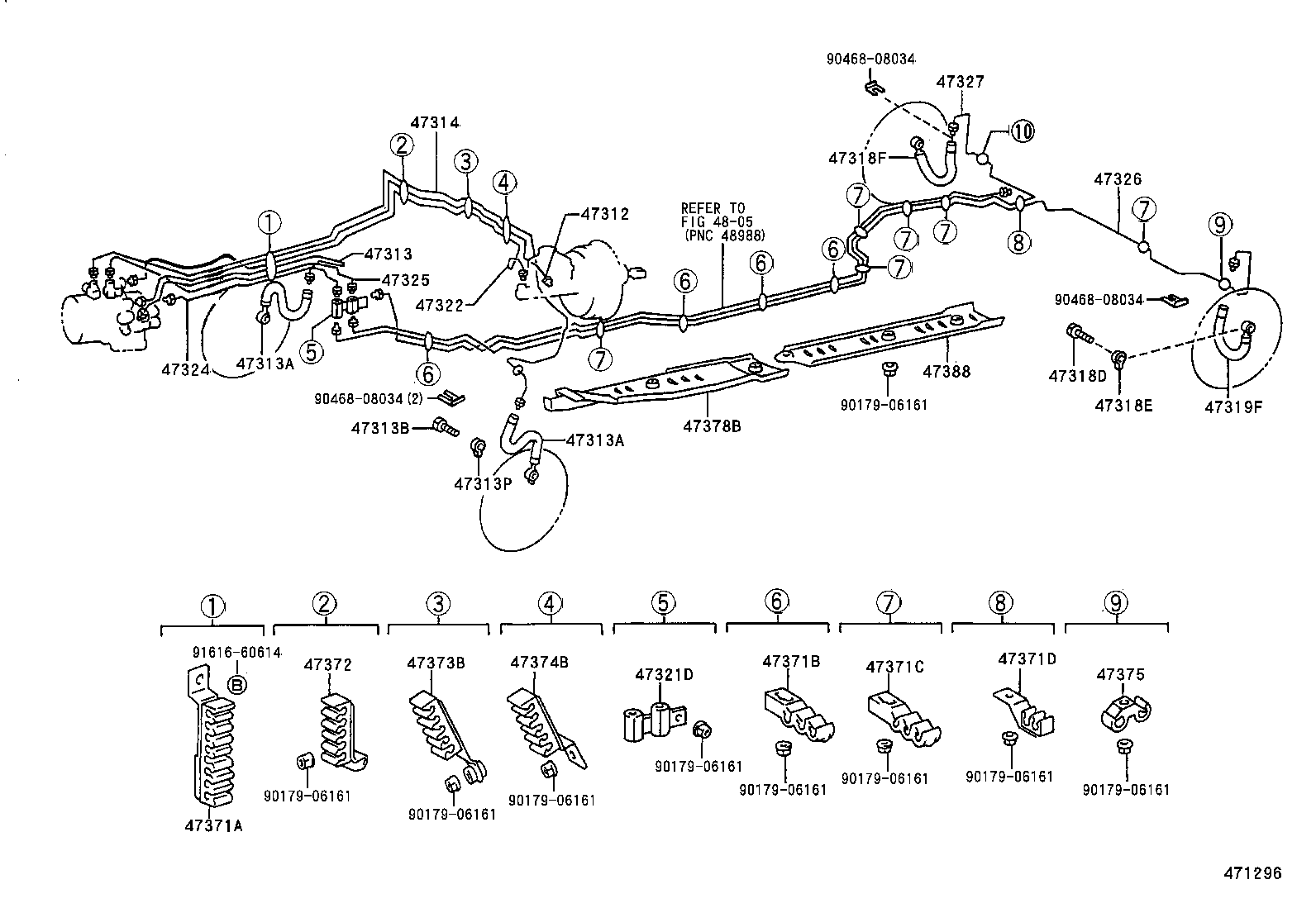

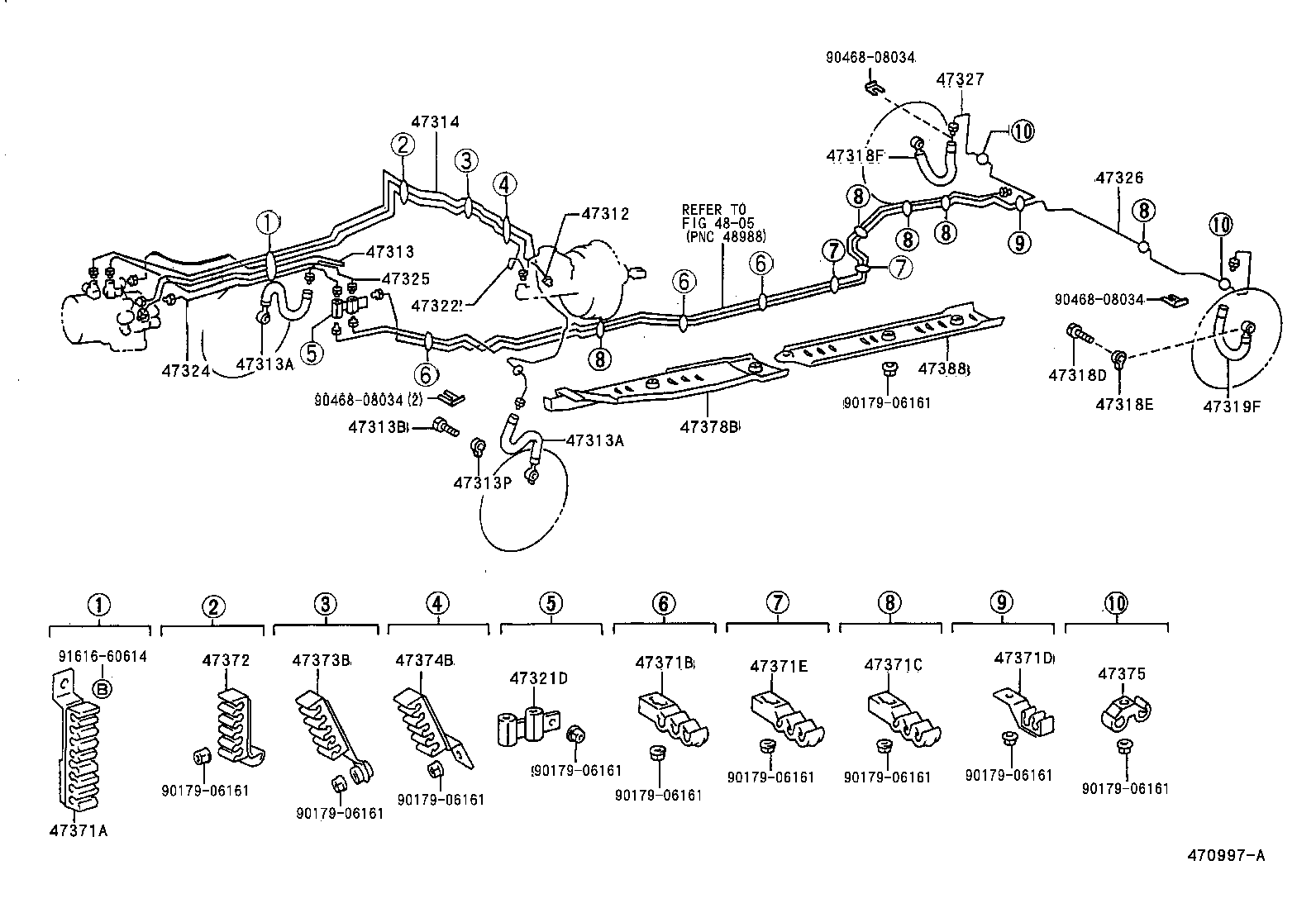

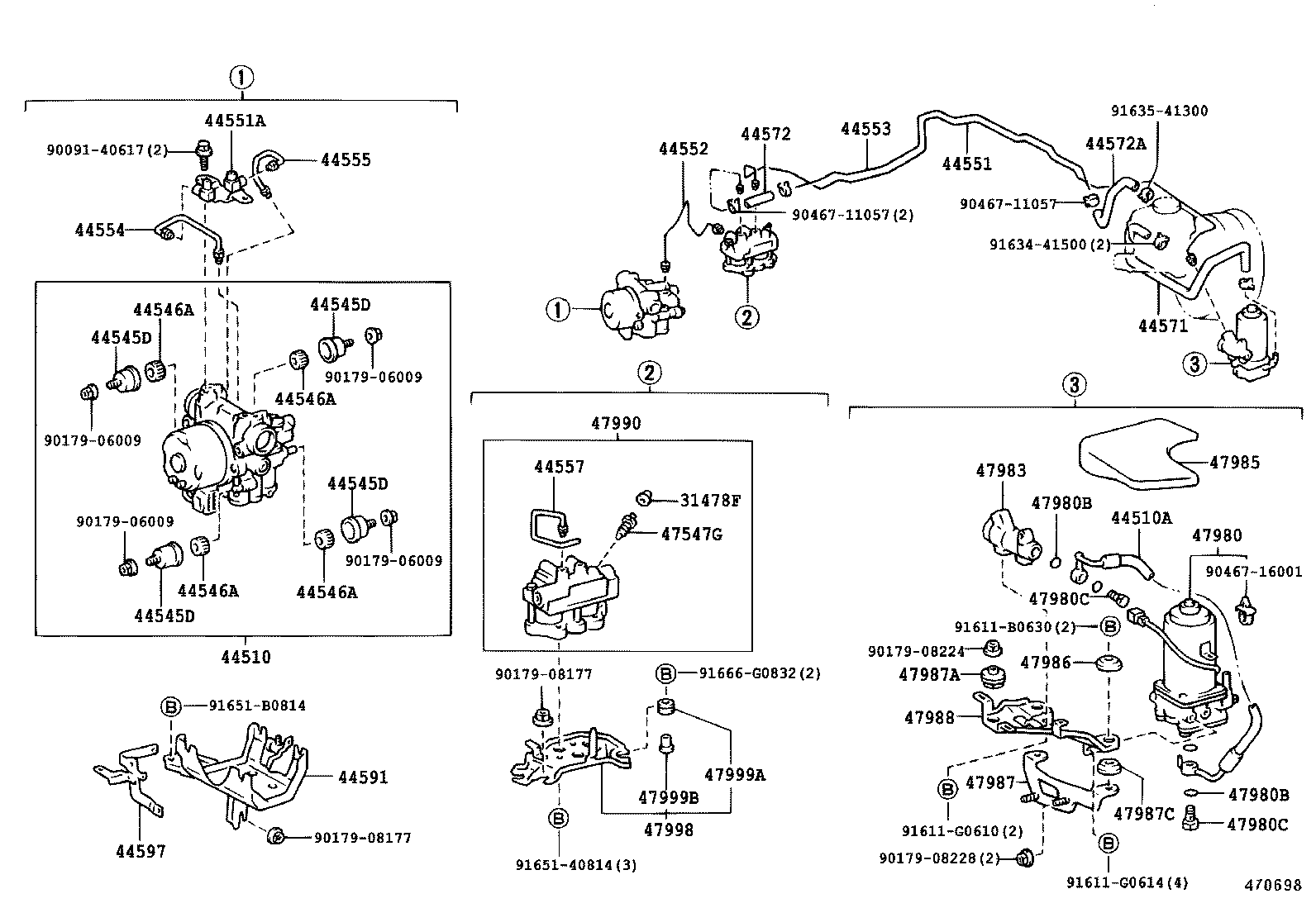

Figure 470689 470689 1994-10 → 1997-07 Figure 470690 470690 1994-10 → 1996-08 Figure 470282C 470282C 1996-08 → 1997-07 Figure 470995 470995 1997-07 → — Figure 470696A 470696A 1994-10 → 1997-07 Figure 470697A 470697A 1994-10 → 1996-08 Figure 471296 471296 1996-08 → — Figure 470997A 470997A 1997-07 → — Figure 470692A 470692A 1994-10 → 1996-08 Figure 470693A 470693A 1994-10 → 1996-08 Figure 470698A 470698A 1994-10 → 1996-08 Figure 470694A 470694A 1996-08 → 1997-07 Figure 470695A 470695A 1996-08 → — Figure 470860A 470860A 1997-07 → — Figure 470699A 470699A 1996-08 → — Figure 470861A 470861A 1997-07 → —

Part groups

PNCDescription
31478F Cap, Bleeder Plug(FOR BRAKE TRACTION ACTUATOR)
44510 Actuator Assy, Brake
44510A Hose, Pressure
44540 Actuator Assy, Abs & Traction
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44551 Tube, Brake Actuator, NO.1
44551A Way, NO.1(FOR BRAKE ACTUATOR)
44551B Hose, Brake Actuator
44552 Tube, Brake Actuator, NO.2
44553 Tube, Brake Actuator, NO.3
44554 Tube, Brake Actuator, NO.4
44555 Tube, Brake Actuator, NO.5
44556 Tube, Brake Actuator, NO.6
44557 Tube, Brake Actuator, NO.7
44558 Tube, Brake Actuator, NO.8
44571 Hose, Brake Actuator
44572 Hose, Brake Actuator, NO.2
44572A Hose, Brake Actuator, NO.3
44591 Bracket, Brake Actuator, NO.1
44597 Clamp, Brake Actuator Connector, NO.1
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47318D Bolt, Union(FOR REAR FLEXIBLE HOSE)
47318E Gasket(FOR REAR FLEXIBLE HOSE)
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47371E Clamp, Brake Tube, NO.9
47371F Clamp, Brake Tube, NO.10
47371G Clamp, Brake Tube, NO.11
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47378B Protector, Tube, Upper
47388 Protector, Brake Tube, Lower
47547G Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR)
47980 Pump Assy, Brake Traction
47980B Ring, O(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47980C Bolt, Union(FOR BRAKE TRACTION PUMP PRESSURE HOSE)
47983 Damper, Brake Traction
47985 Cover, Brake Traction Pump, NO.1
47986 Cover, Brake Traction Pump, NO.2
47987 Bracket, Brake Traction Pump, NO.1
47987A Bush, NO.1(FOR BRAKE TRACTION PUMP BRACKET)
47987C Bush, NO.2(FOR BRAKE TRACTION PUMP BRACKET)
47988 Bracket, Brake Traction Pump, NO.2
47990 Actuator Assy, Brake Traction
47998 Bracket, Brake Traction Actuator, NO.1
47999A Bush(FOR BRAKE TRACTION ACTUATOR BRACKET)
47999B Spacer(FOR BRAKE TRACTION ACTUATOR BRACKET)
89637E Sensor, Oil Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
