Toyota Lexus LS400
1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe
Discontinued model
Data version 2001-03

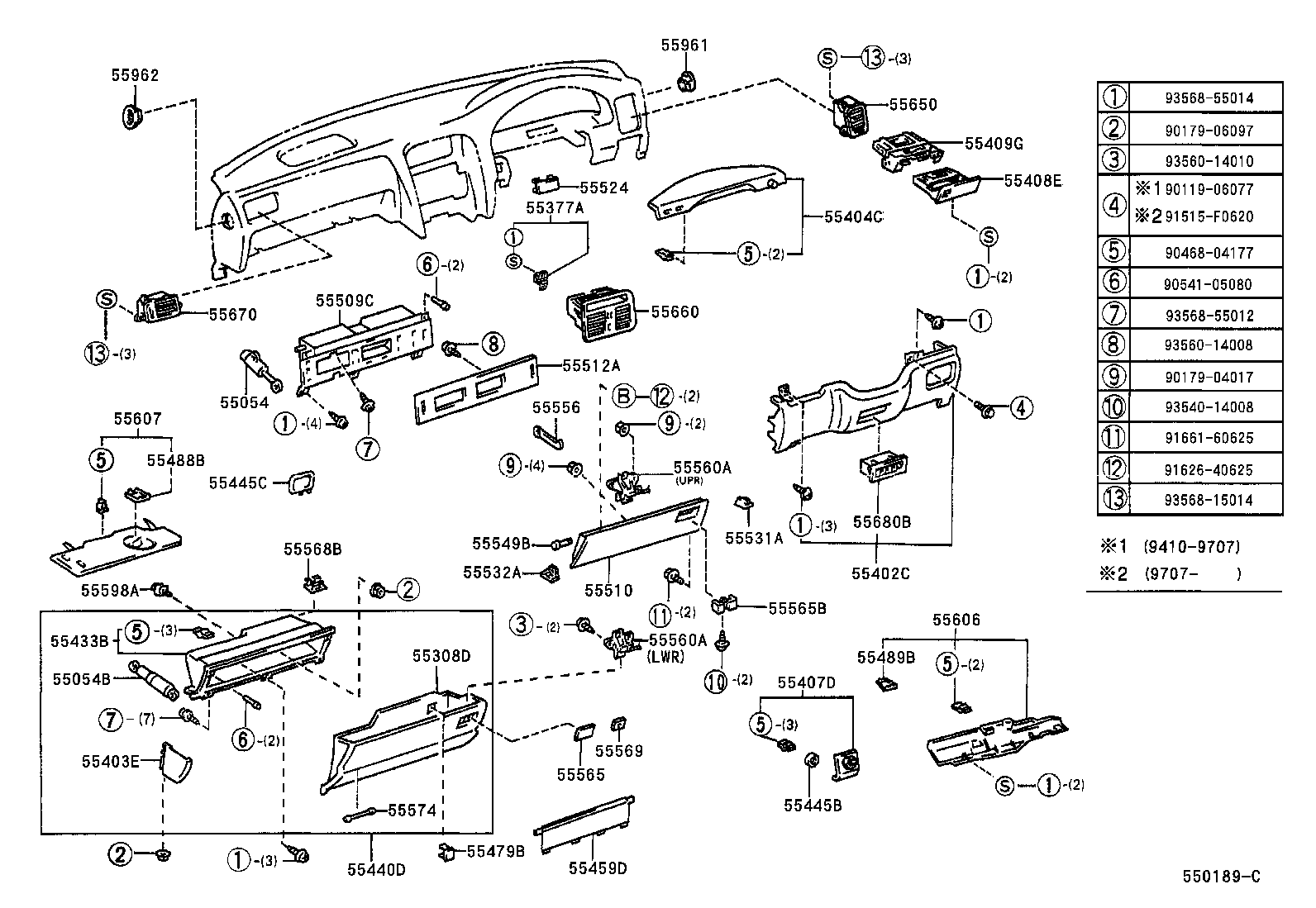

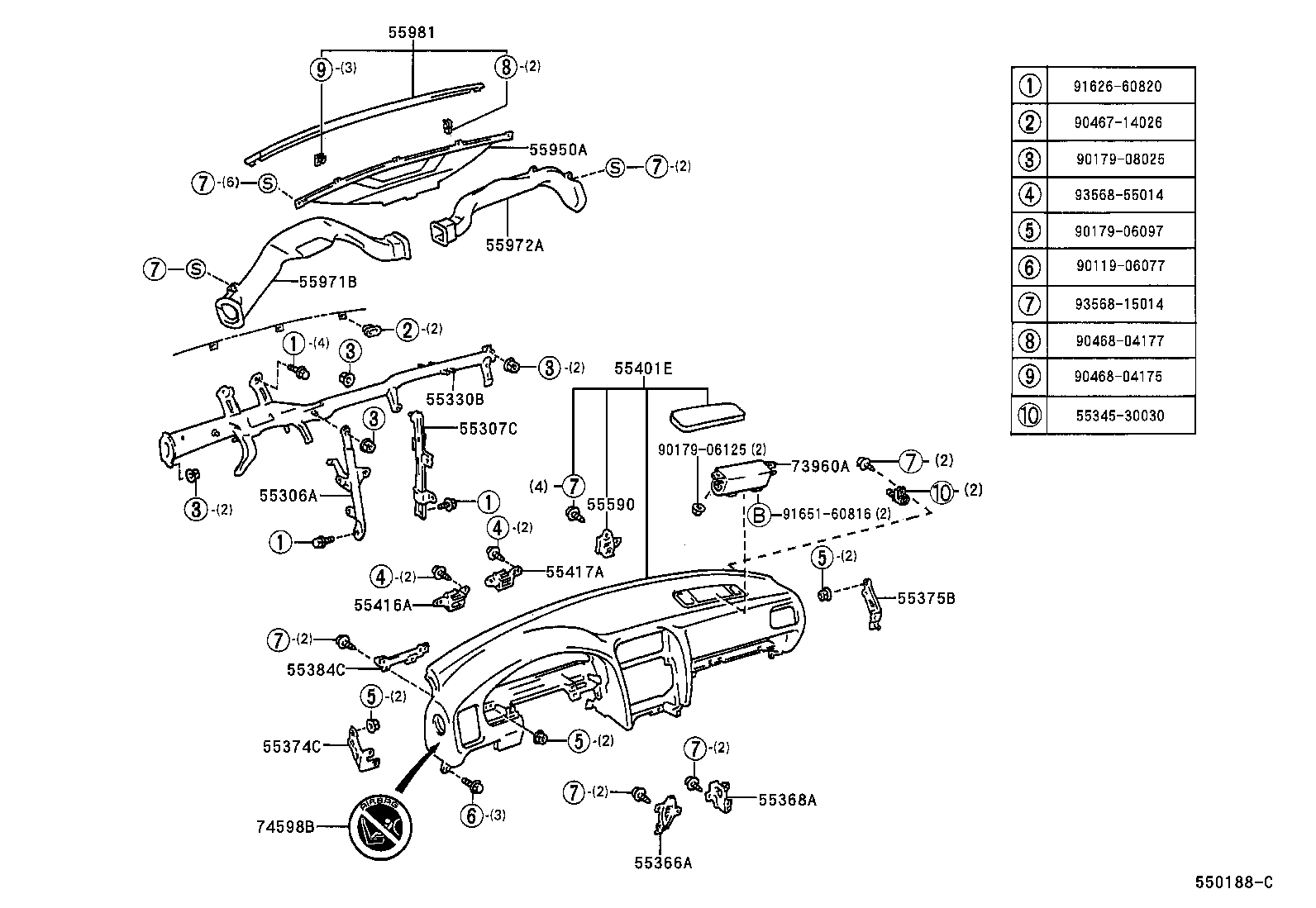

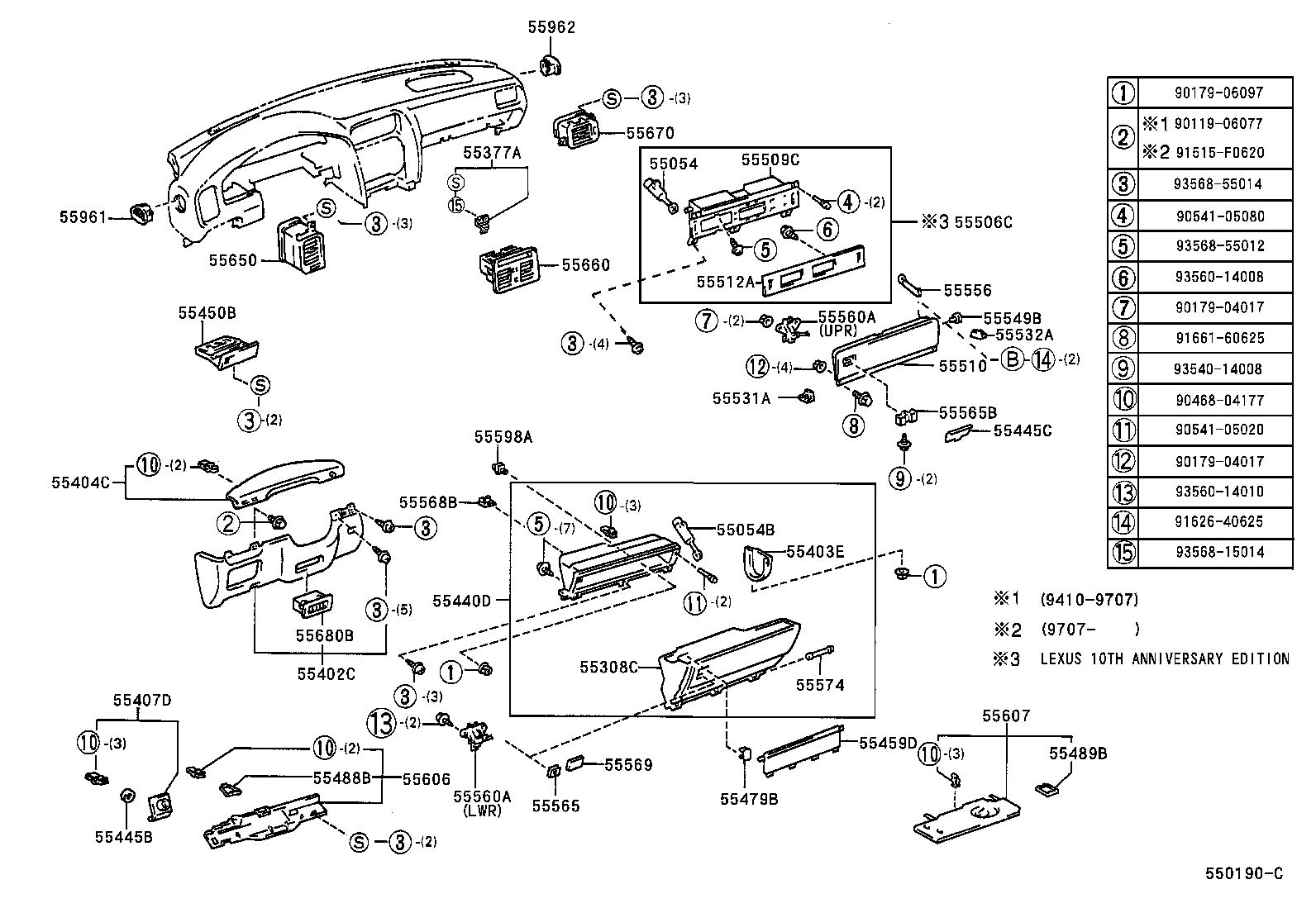

Instrument Panel & Glove Compartment
63 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55054B | Stopper Sub-assy, Glove Compartment Door |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55308D | Box Sub-assy, Instrument Panel, Center |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55381B | Bracket, Finish Panel Mounting, NO.1 |
| 55384C | Bracket, Finish Panel Mounting, NO.4 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55402C | Pad Sub-assy, Instrument Panel, Lower RH |
| 55403E | Pad Sub-assy, Instrument Panel Safety, NO.2 |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55407D | Pad Sub-assy, Instrument Panel, End |
| 55408E | Box Sub-assy, Instrument Panel Coin |
| 55409G | Retainer Sub-assy, Coin Box |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55417A | Retainer, Meter Hood, NO.2 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55440D | Box Assy, Instrument Panel |
| 55445B | Plate, Instrument Panel Finish |
| 55445C | Plate, Instrument Panel Box |
| 55450B | Box Assy, Coin |
| 55459D | Cover, Instrument, Lower LH |
| 55479B | Cover, Instrument, Lower Center |
| 55488B | Lens, Front Foot Lamp, NO.1 |
| 55489B | Lens, Front Foot Lamp, NO.2 |
| 55506C | Compartment Sub-assy, Glove |
| 55509C | Panel Sub-assy, Glove Compartment |
| 55510 | Door Assy, Glove Compartment |
| 55512A | Plate, Glove Compartment |
| 55524 | Cover, Switch Bace Hole |
| 55531A | Panel, Glove Compartment, NO.1 |
| 55532A | Panel, Glove Compartment, NO.2 |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55556 | Arm, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55565 | Handle, Glove Compartment Door Lock |
| 55565B | Knob, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55598A | Bracket, Glove Compartment Door Hinge |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680B | Register Assy, Instrument Panel, Lower NO.1 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
