Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

15 part groups · 2 illustrations

Illustrations

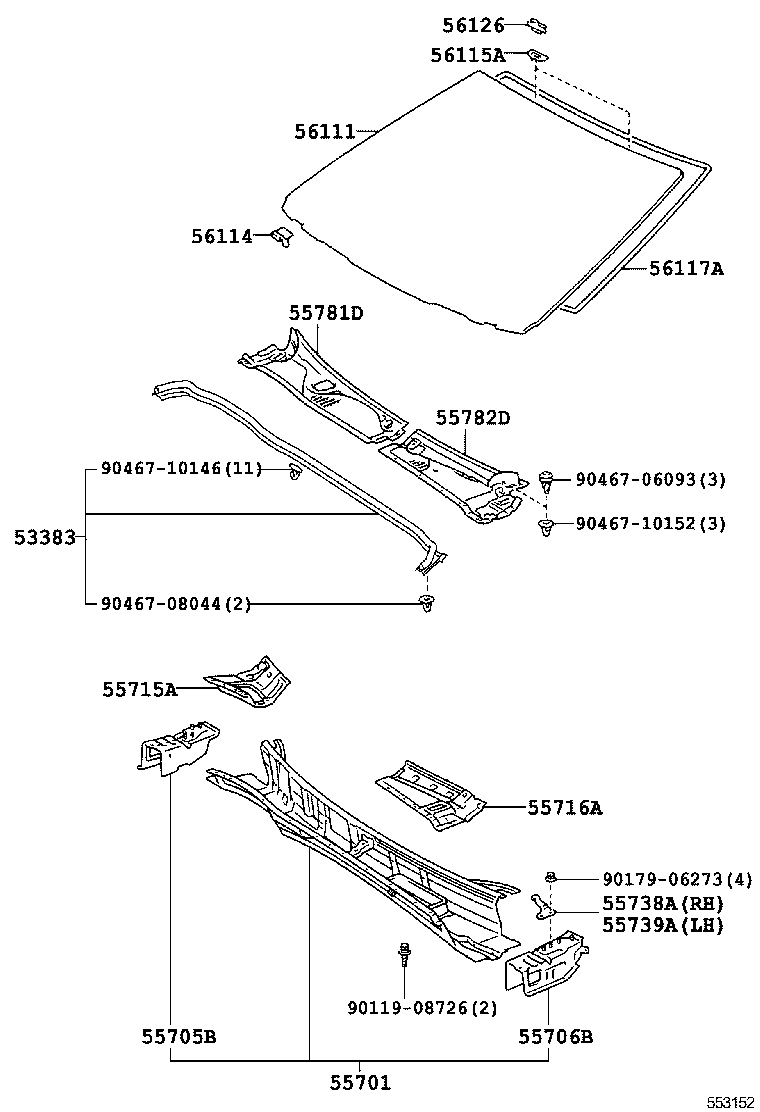

Figure 550309A 550309A 1994-10 → 1997-07 Figure 553152 553152 1997-07 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55738A Stopper, Hood, RH
55739A Stopper, Hood, LH
55781D Louver, Cowl Top Ventilator, RH
55782D Louver, Cowl Top Ventilator, LH
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56117A Dam, Window Glass Adhesive
56126 Spacer, Windshield Glass, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
