Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

10 part groups · 5 illustrations

Illustrations

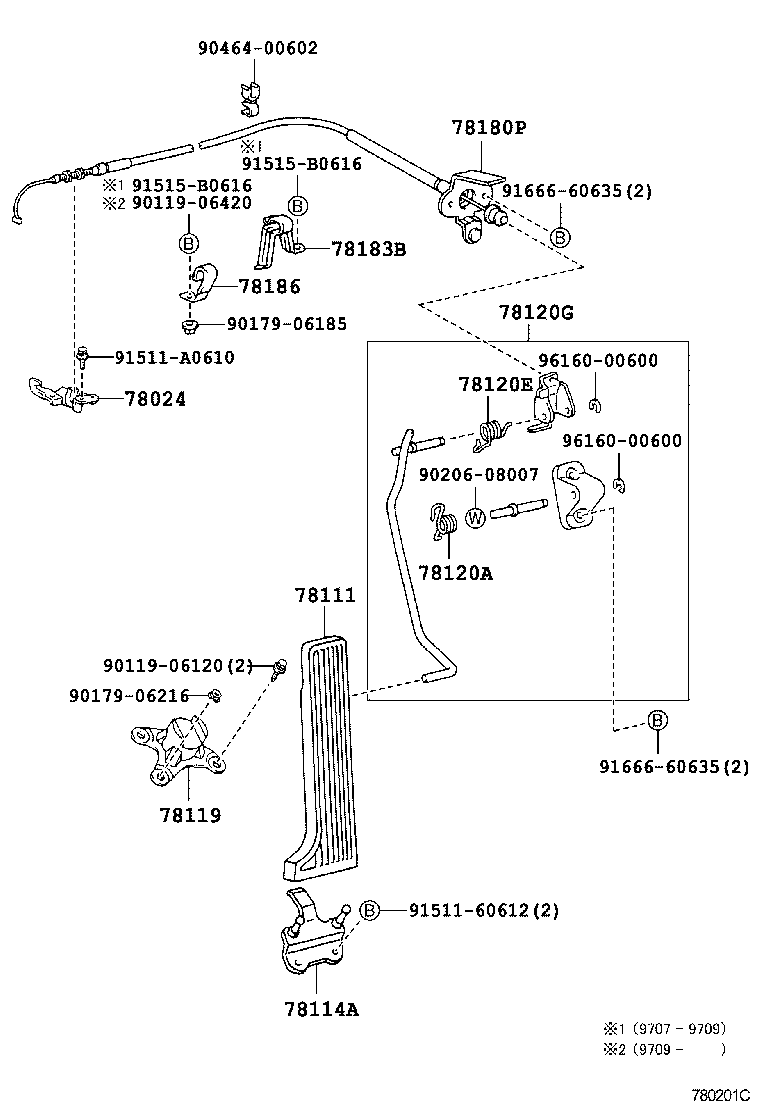

Figure 780198C 780198C 1994-10 → — Figure 780097D 780097D 1994-10 → — Figure 780201C 780201C 1994-10 → — Figure 780098C 780098C 1994-10 → — Figure 780099C 780099C 1994-10 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78111 Pedal, Accelerator
78114A Bracket, Accelerator Pedal Support
78119 Stopper, Accelerator Pedal Rod
78120A Spring, Compression (FOR ACCELERATOR LINK ROD)
78120E Spring, Tension (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
