Toyota Lexus LS400
1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe
Discontinued model
Data version 2001-03

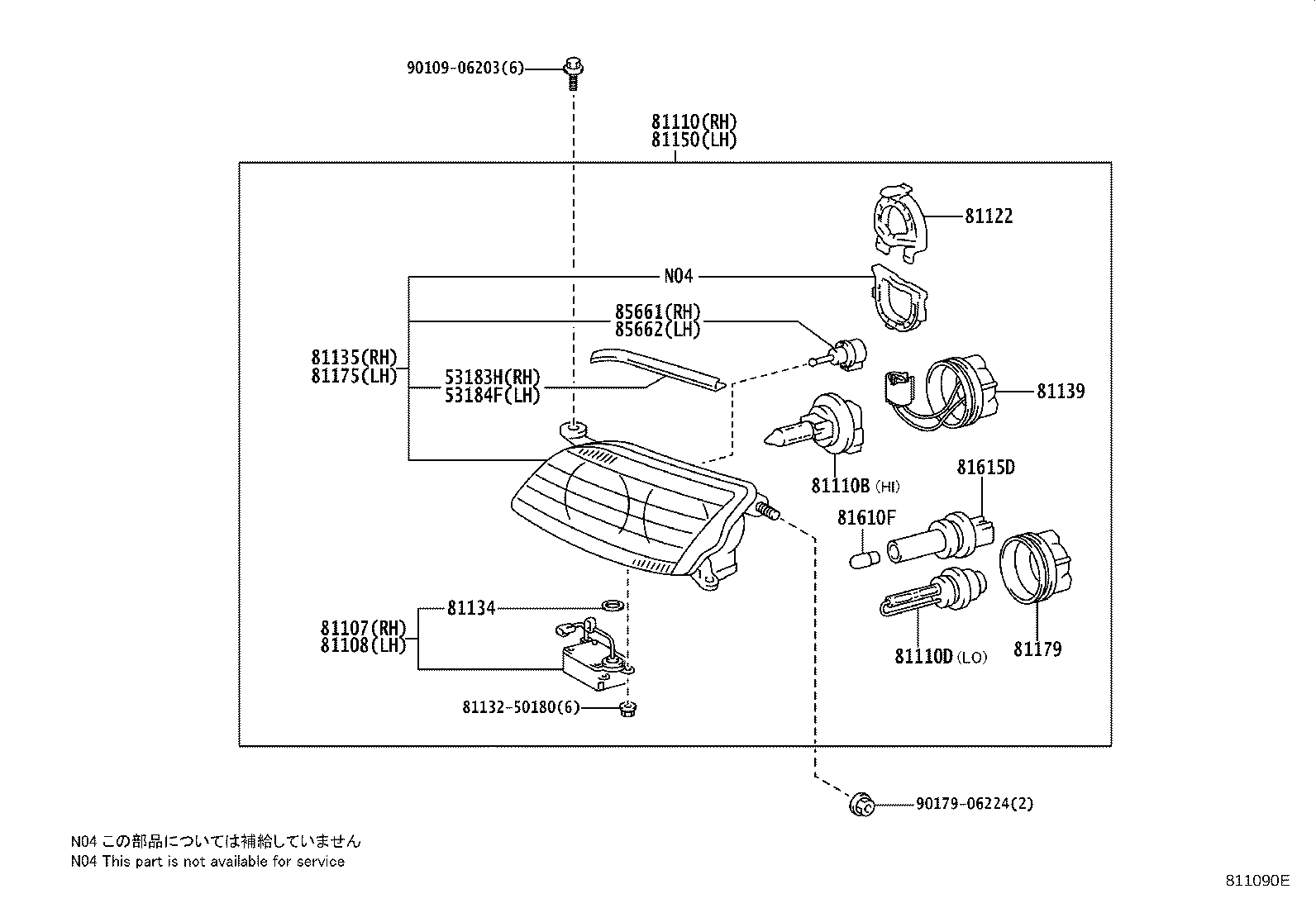

Headlamp
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183H | Seal, Headlamp Cover, RH |
| 53184F | Seal, Headlamp Cover, LH |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81122 | Holder, Headlamp |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81171B | Head Lamp Lens, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81179 | Cover, Headlamp Socket |
| 81210D | Bulb, Fog Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85691 | Motor, Headlamp Leveling, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
