Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 12 illustrations

Illustrations

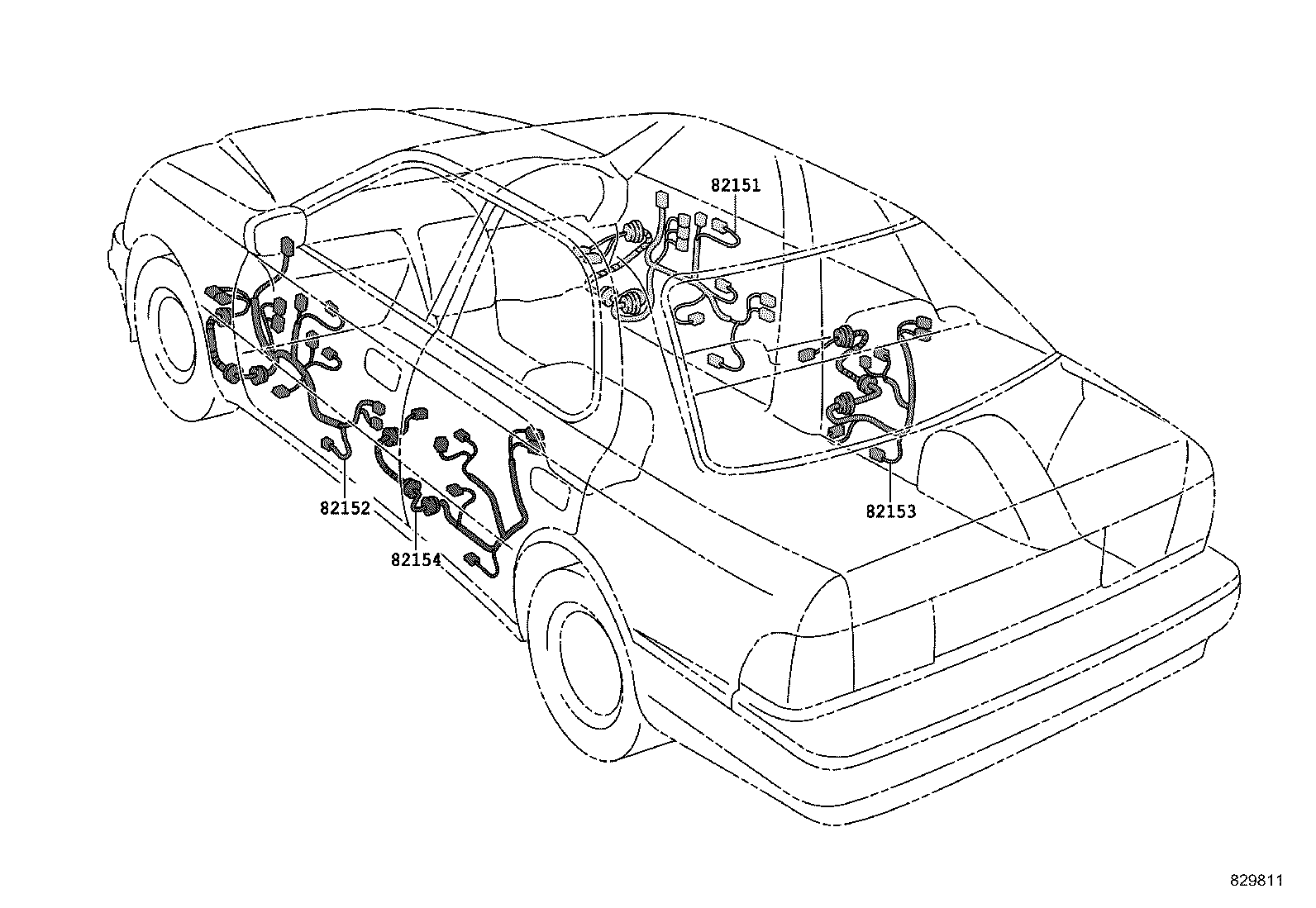

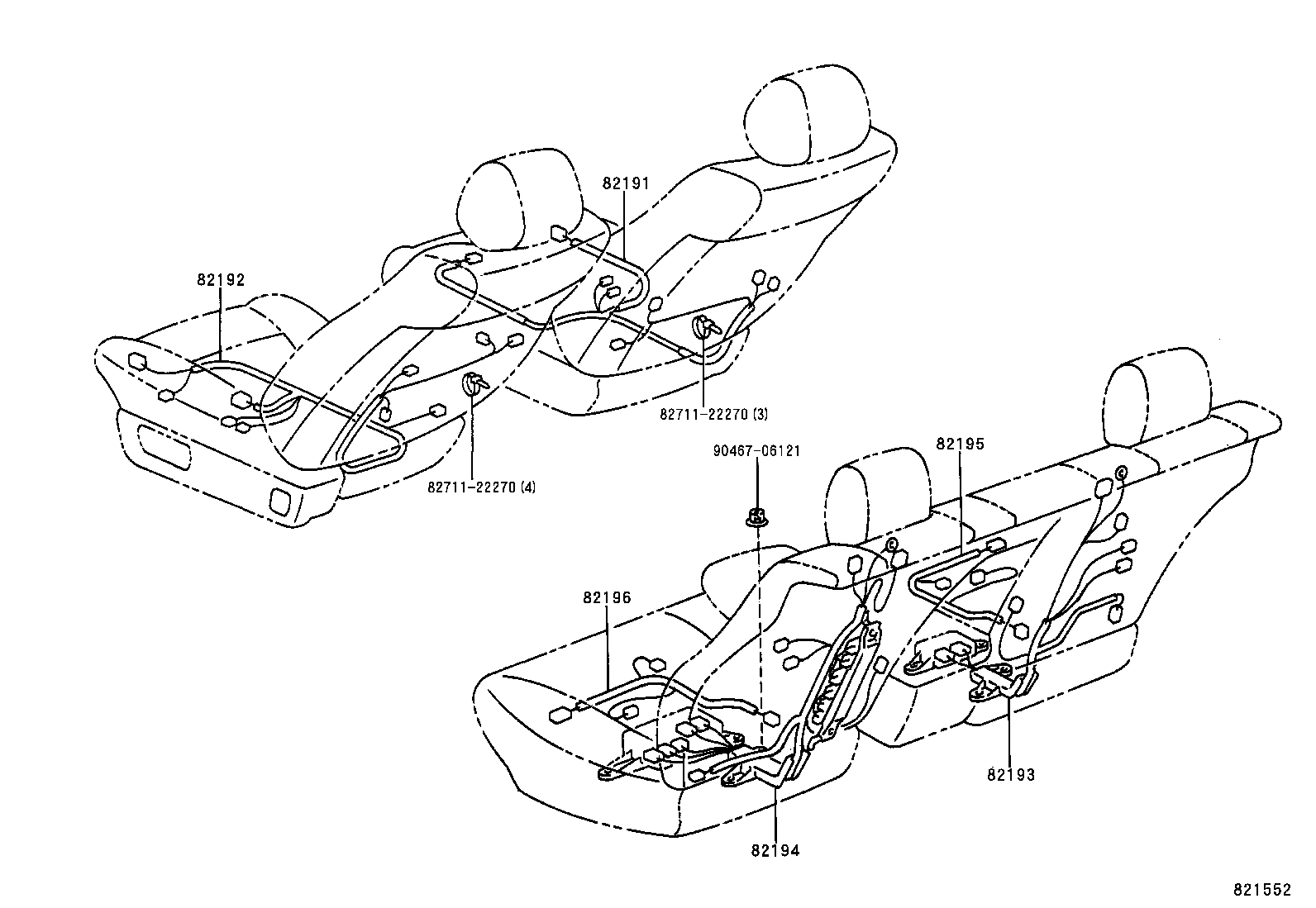

Figure 82E622 82E622 1994-10 → — Figure 820971A 820971A 1994-10 → — Figure 820917B 820917B 1994-10 → — Figure 820561B 820561B 1994-10 → — Figure 821669 821669 1994-10 → — Figure 821671 821671 1994-10 → — Figure 829811 829811 1994-10 → — Figure 829812 829812 1994-10 → — Figure 829813 829813 1994-10 → — Figure 821552 821552 1994-10 → — Figure 820563E 820563E 1994-10 → — Figure 829814 829814 1994-10 → —

Part groups

PNCDescription
64166C Cover, Upper Back Panel Hole, NO.2
82001 Cable, Bond, NO.1

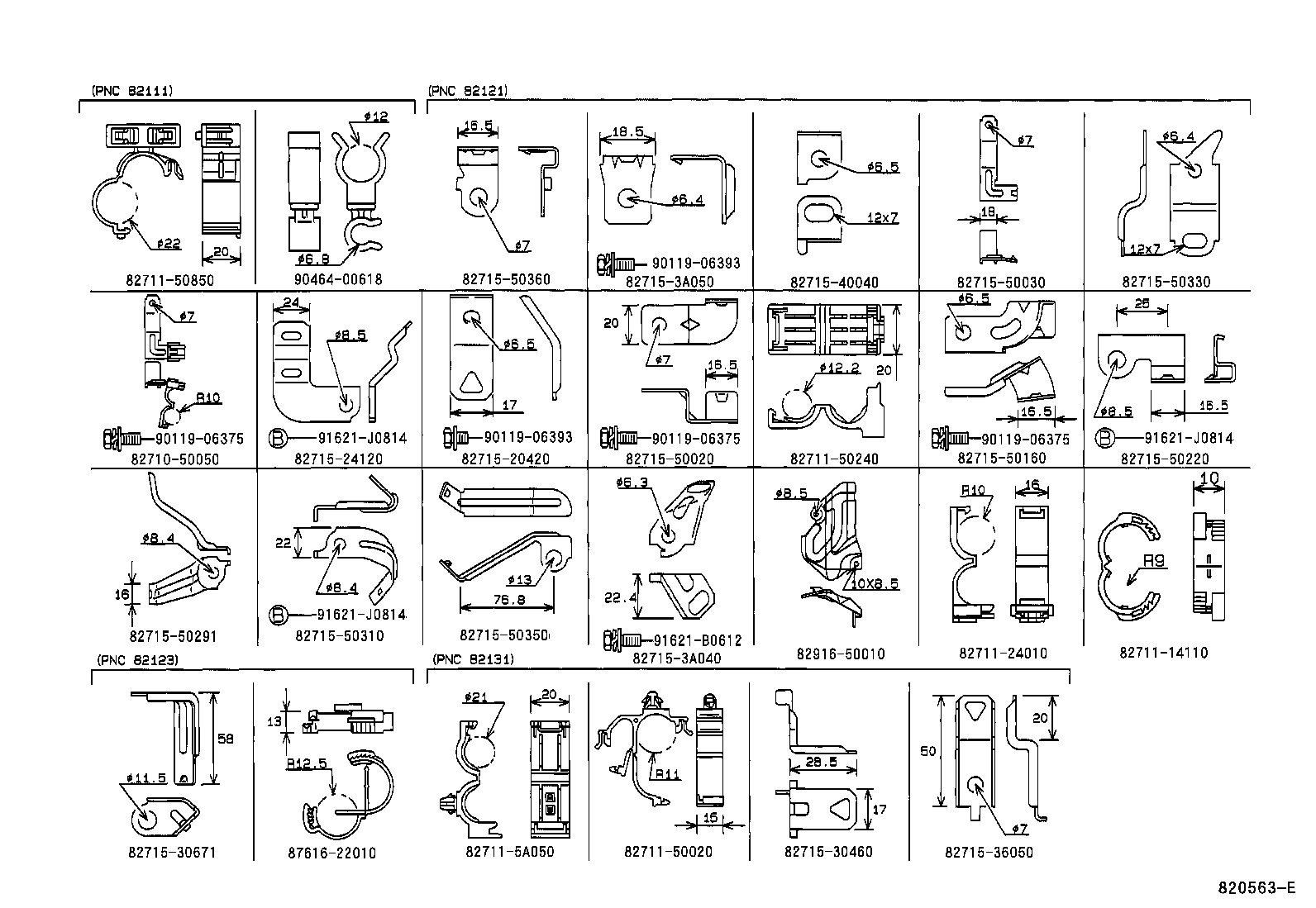

82111 Wire, Engine Room Main

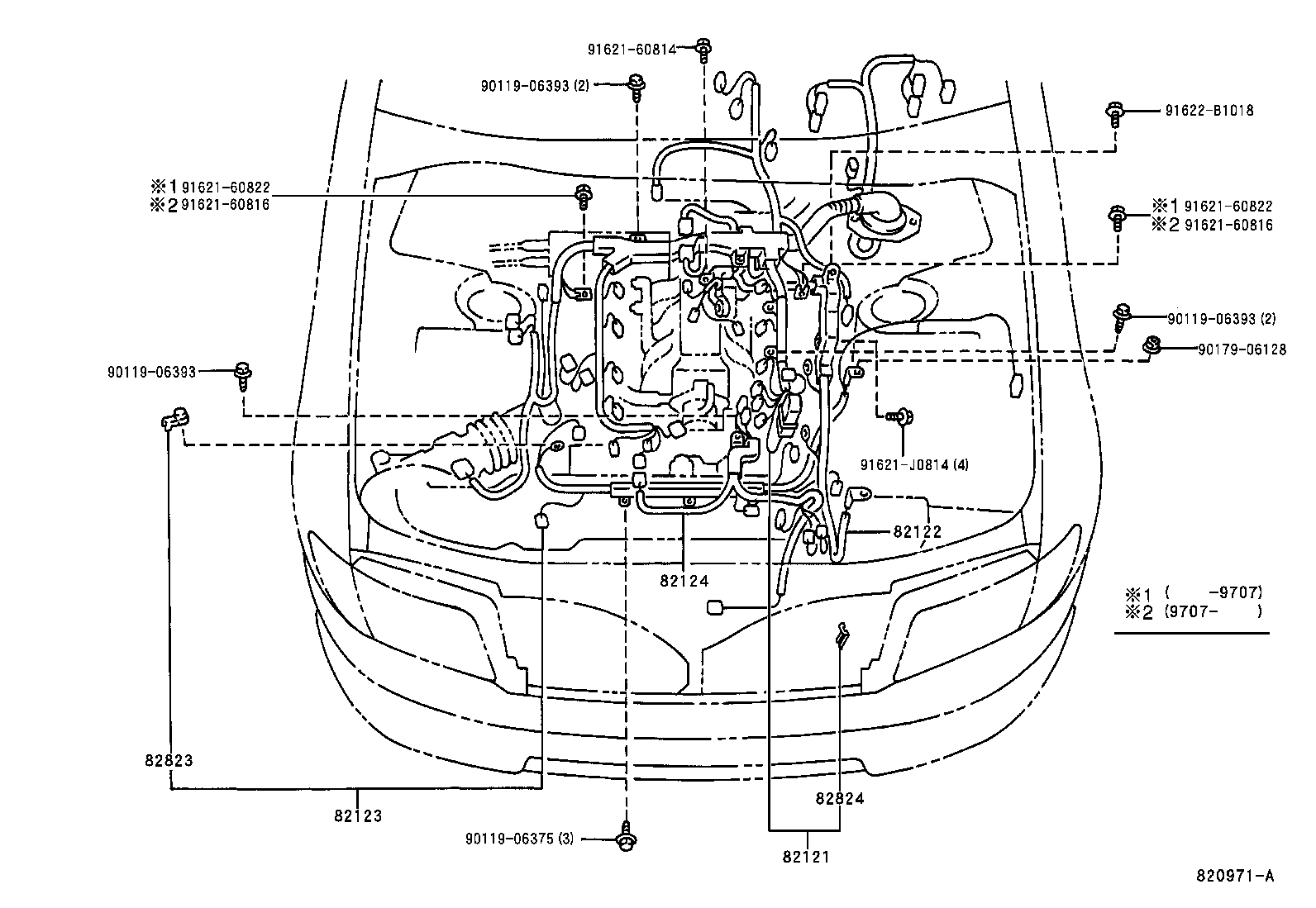

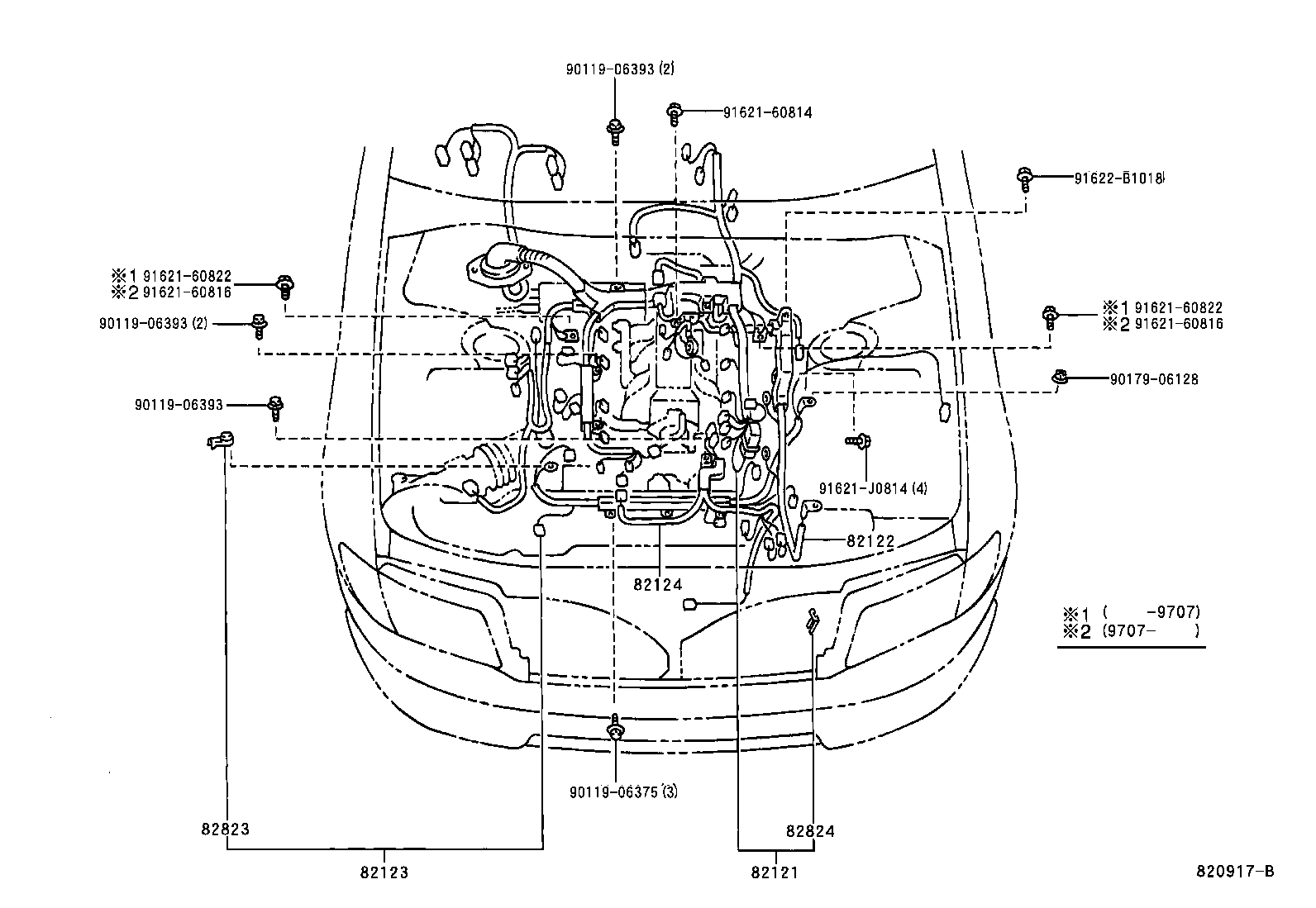

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4

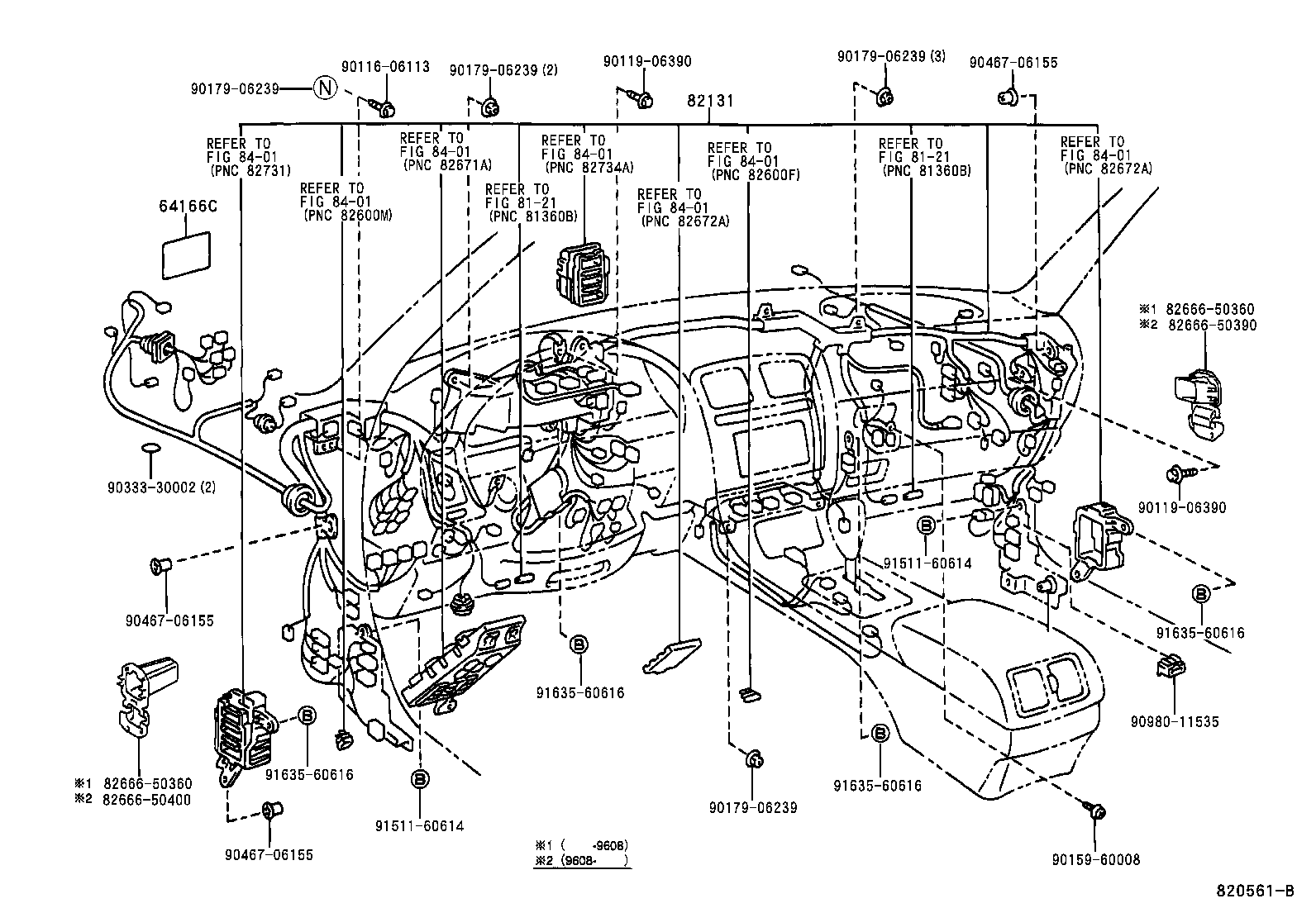

82131 Wire, Cowl

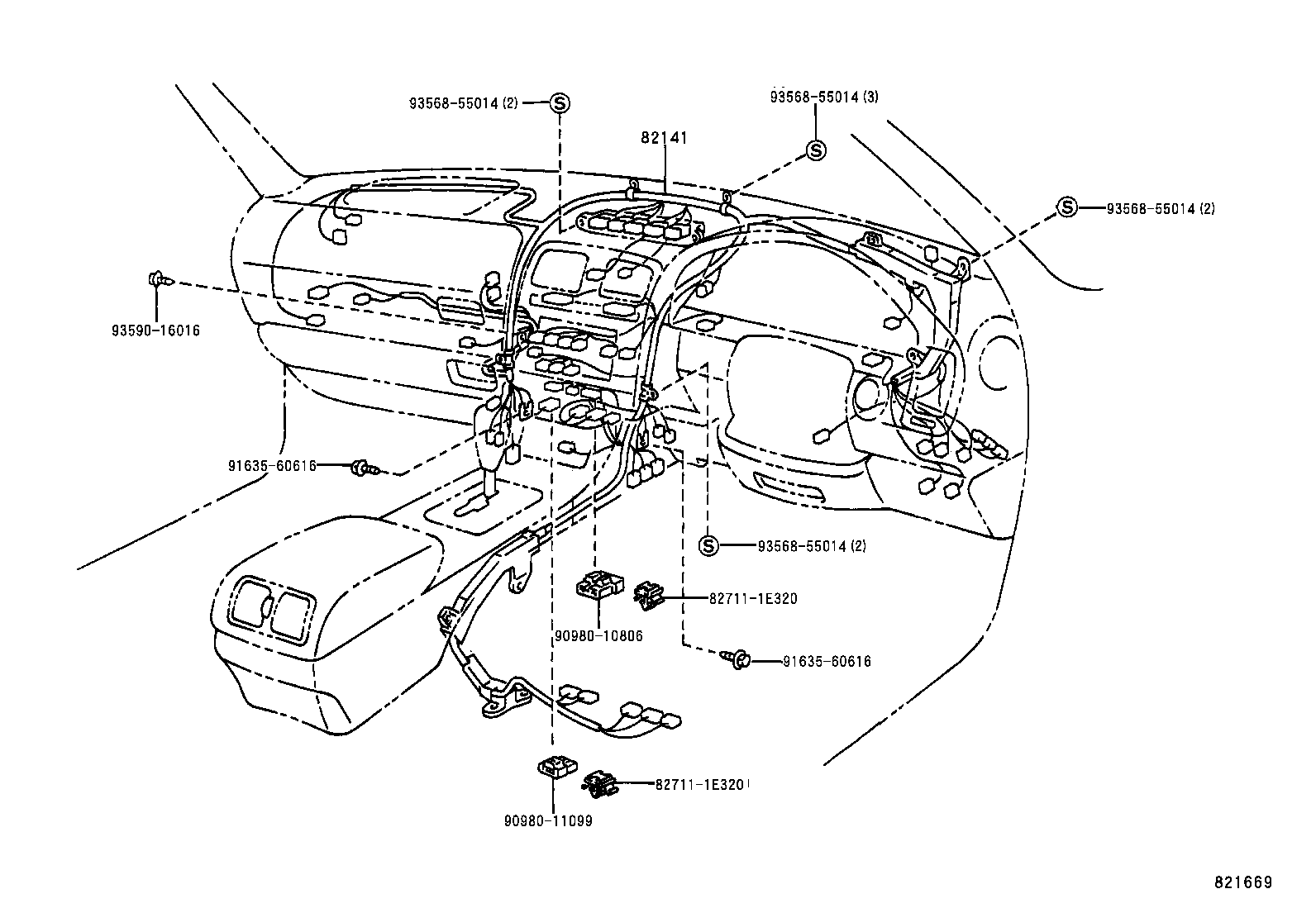

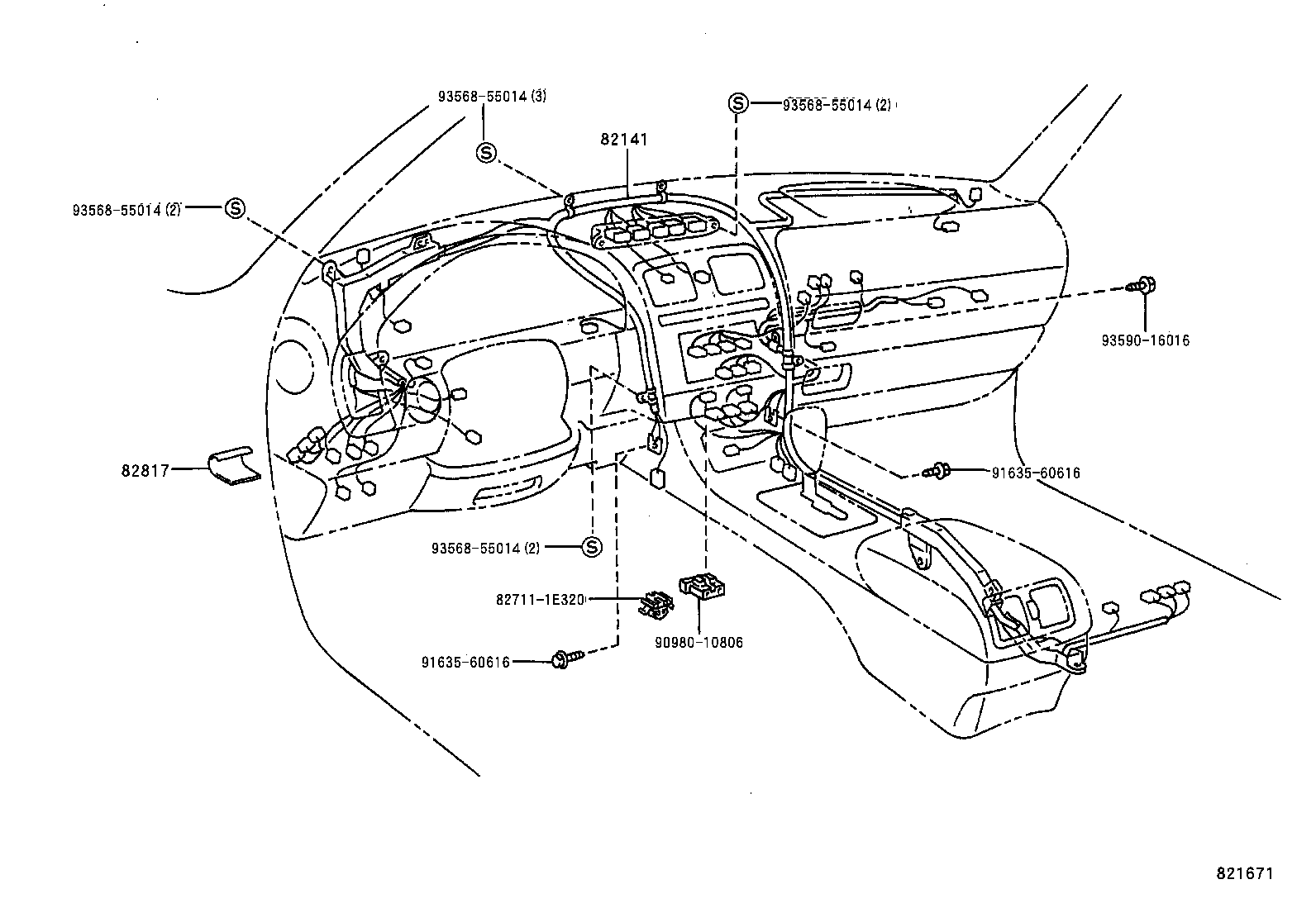

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

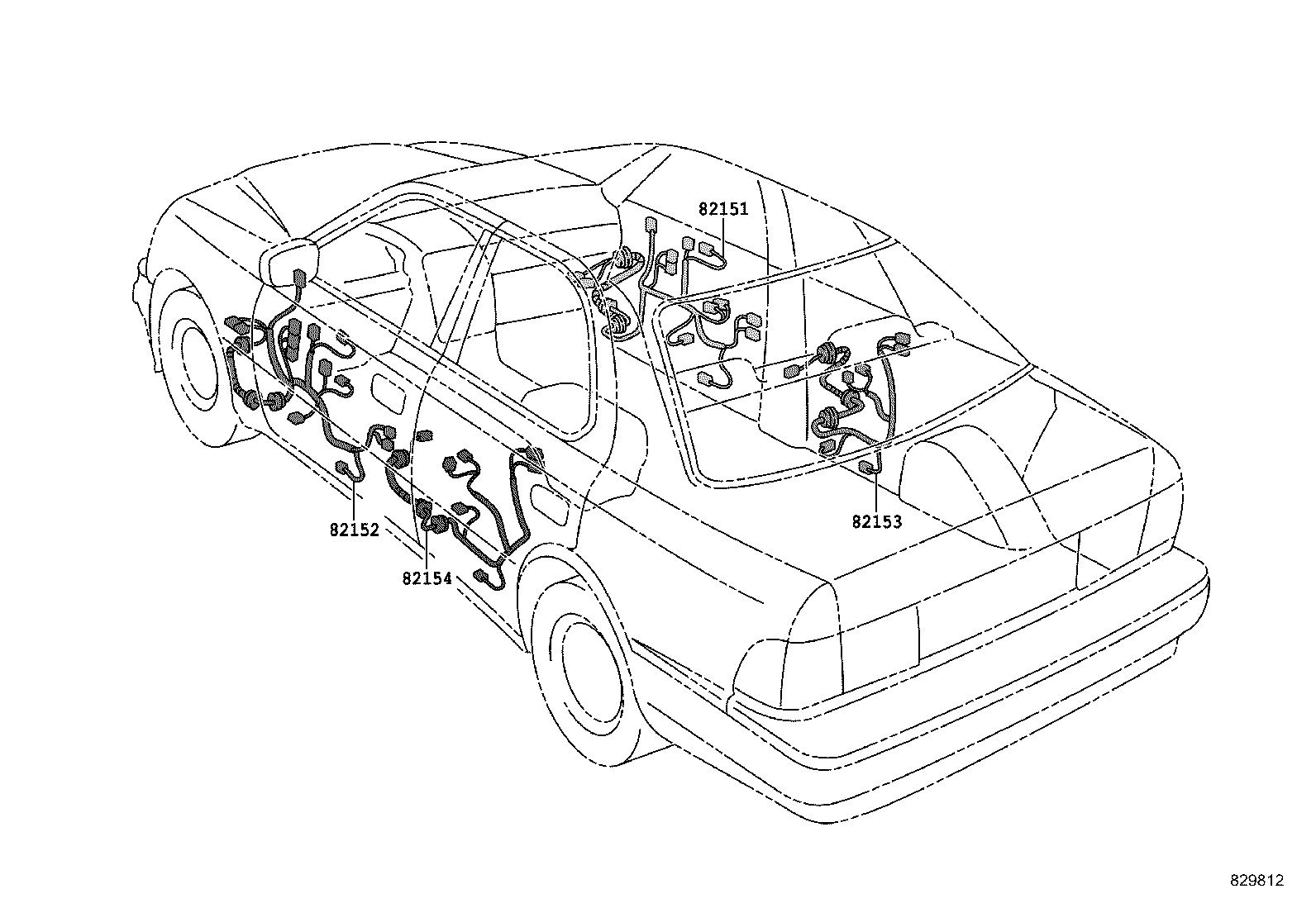

82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

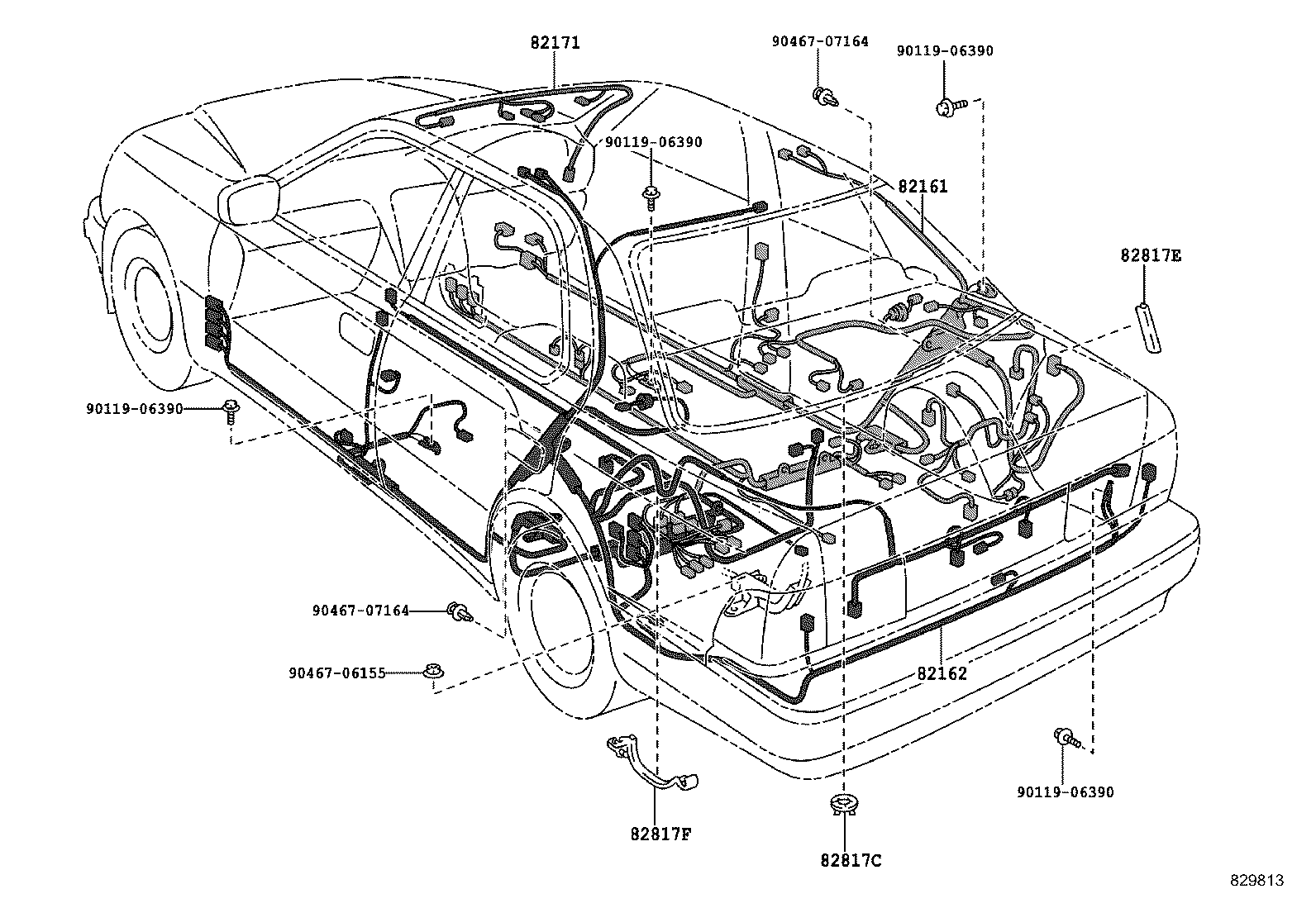

82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
