Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

9 part groups · 5 illustrations

Illustrations

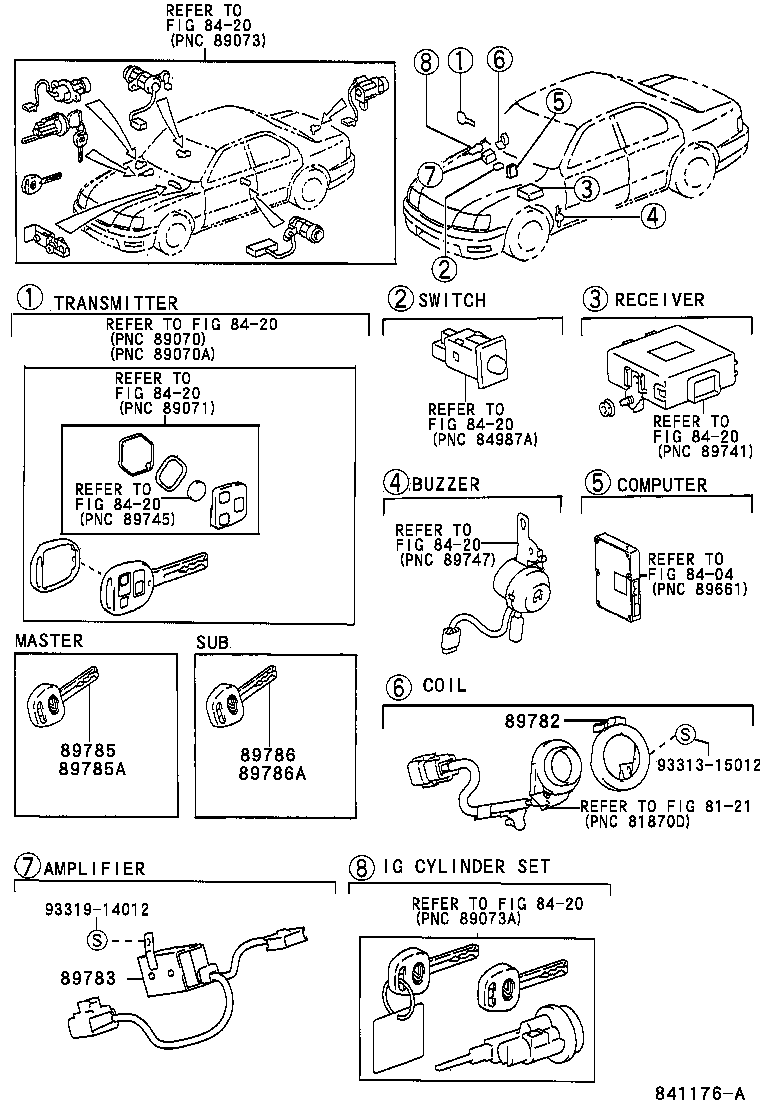

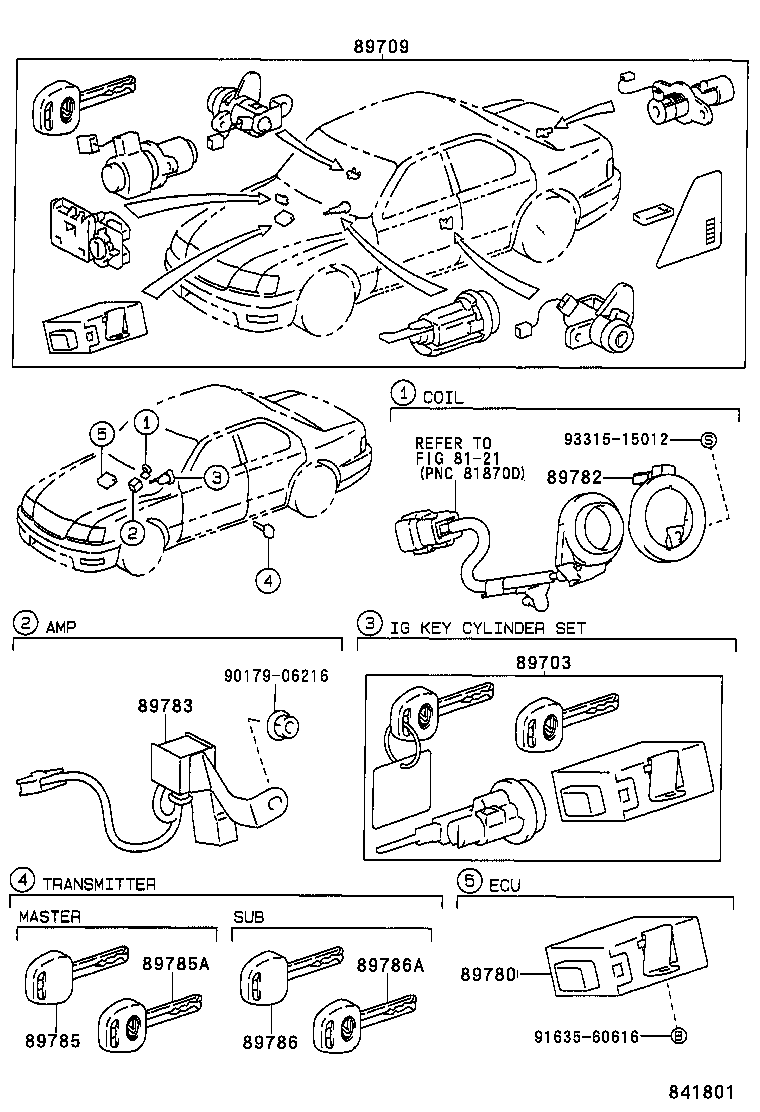

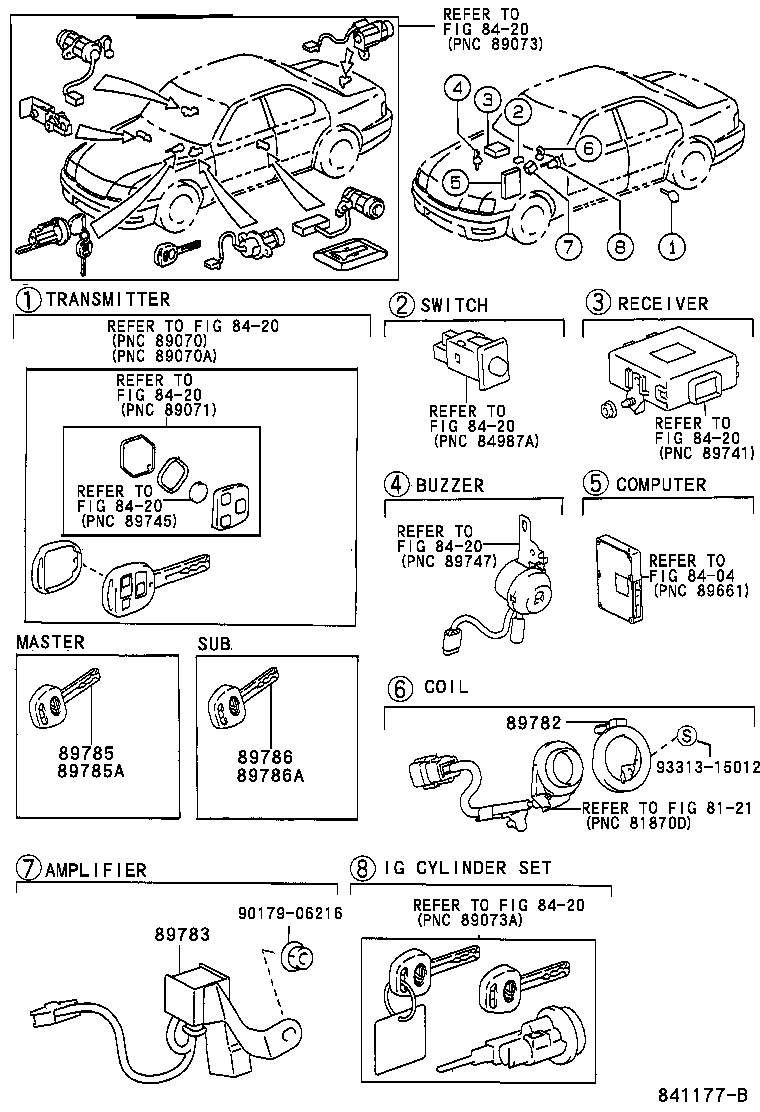

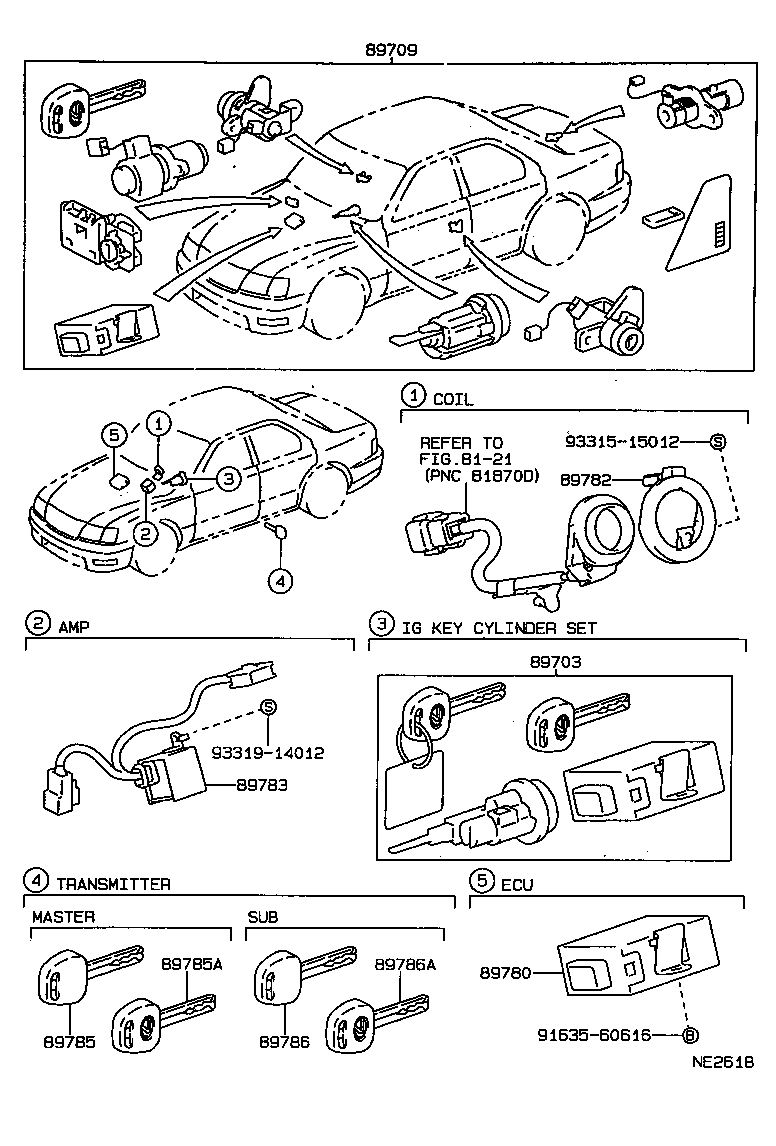

Figure MEZ591 MEZ591 1995-08 → 1997-07 Figure NE2618 NE2618 1995-08 → 1996-08 Figure 841801 841801 1996-08 → 1997-07 Figure 841176A 841176A 1997-07 → — Figure 841177B 841177B 1997-07 → —

Part groups

PNCDescription
89703 Cylinder & Key Set, Ignition W/Transponder
89709 Computer Set, Transponder Key
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89785A Transmitter, Transponder Cut Key Master
89786 Transmitter, Transponder Key Sub
89786A Transmitter, Transponder Cut Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
