Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

4 part groups · 2 illustrations

Illustrations

Figure 860572A

860572A 1997-07 → —

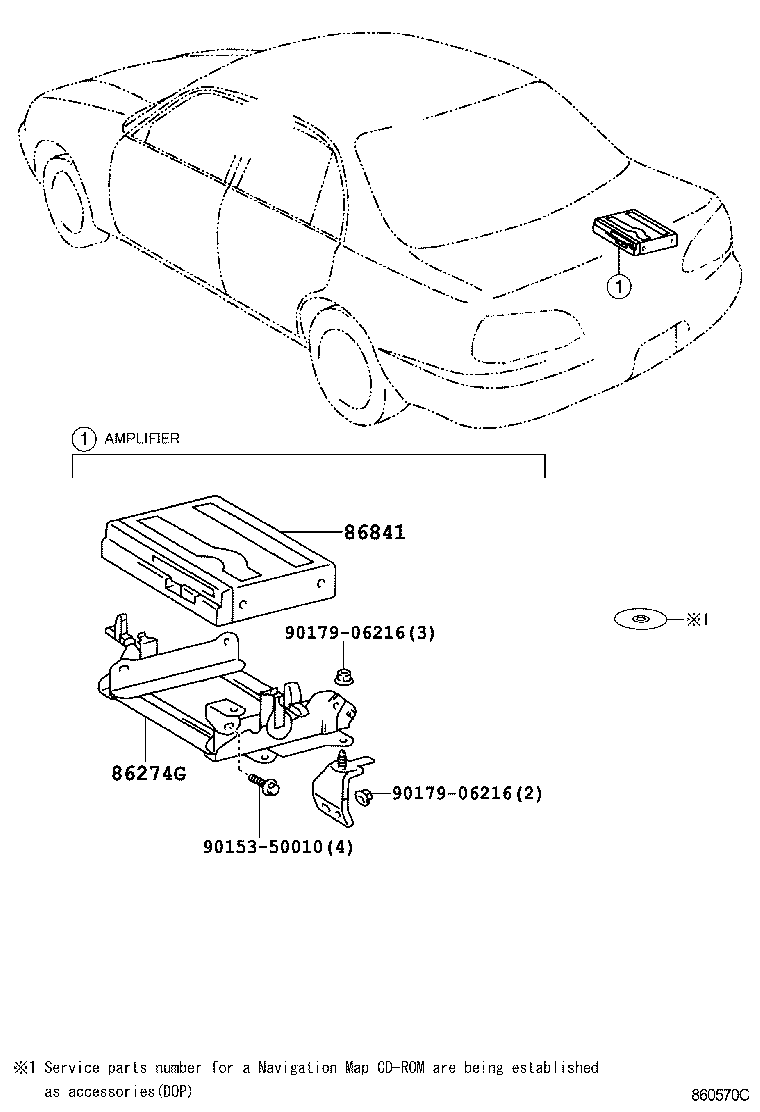

Figure 860570C

860570C 1997-07 → —

Part groups

PNC	Description
86111	Multi-display
86274G	Bracket, Disc Player, NO.3
86841	Computer, Navigation
86860	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
