Toyota Lexus LS400

1994-10 → 2000-08 · chassis UCF20 · catalogue 431220 · Europe

Discontinued model Data version 2001-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

32 part groups · 10 illustrations

Illustrations

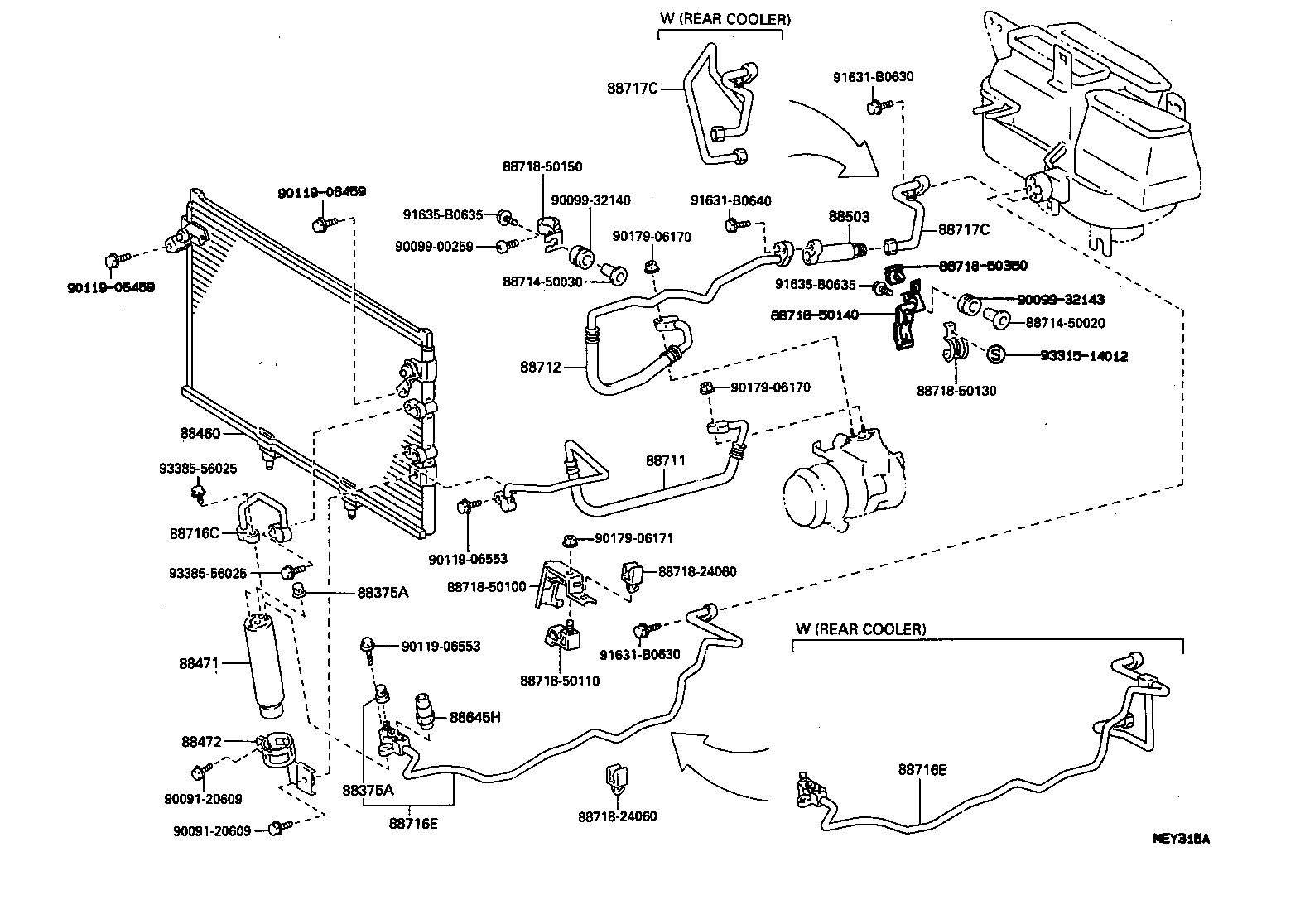

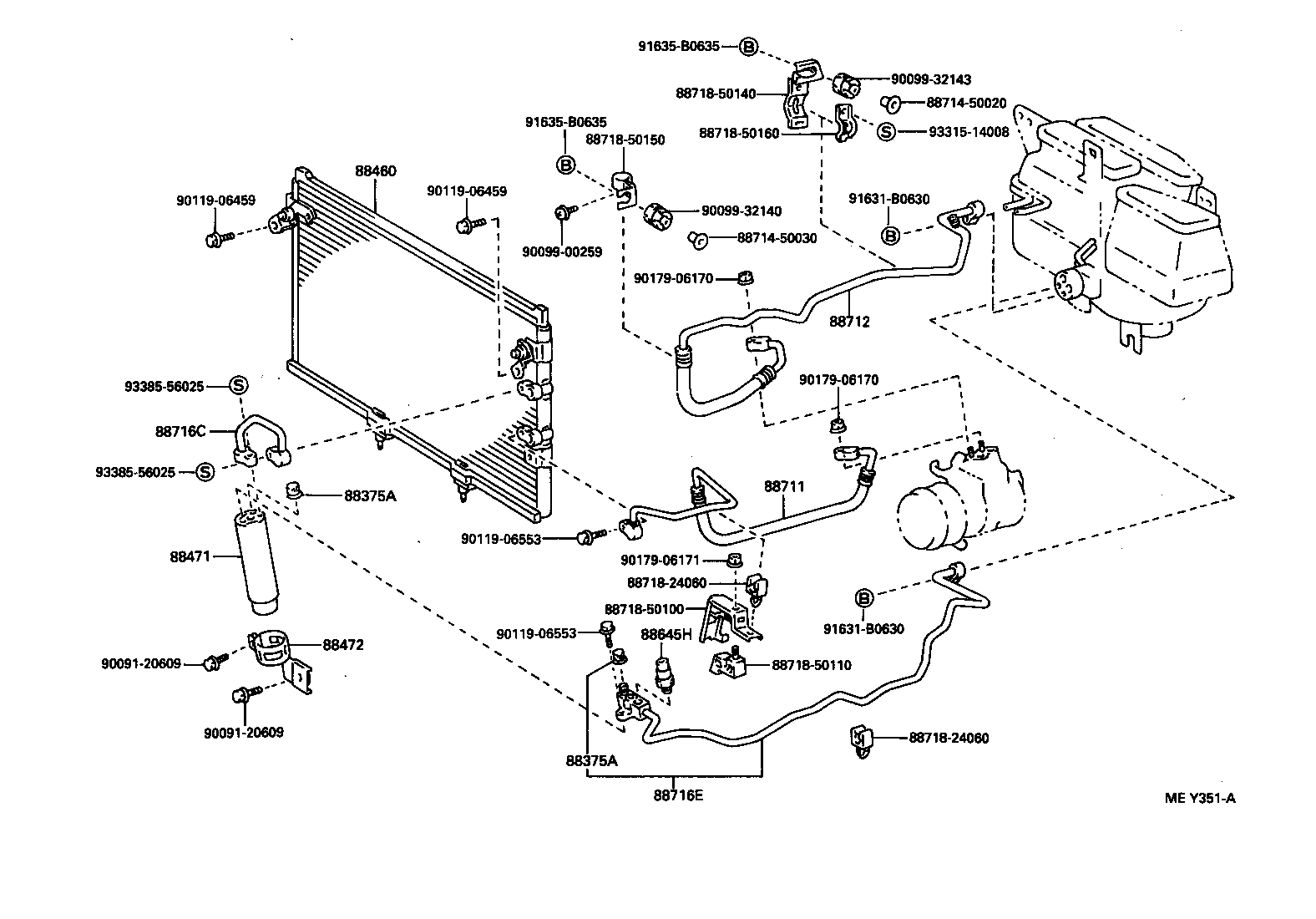

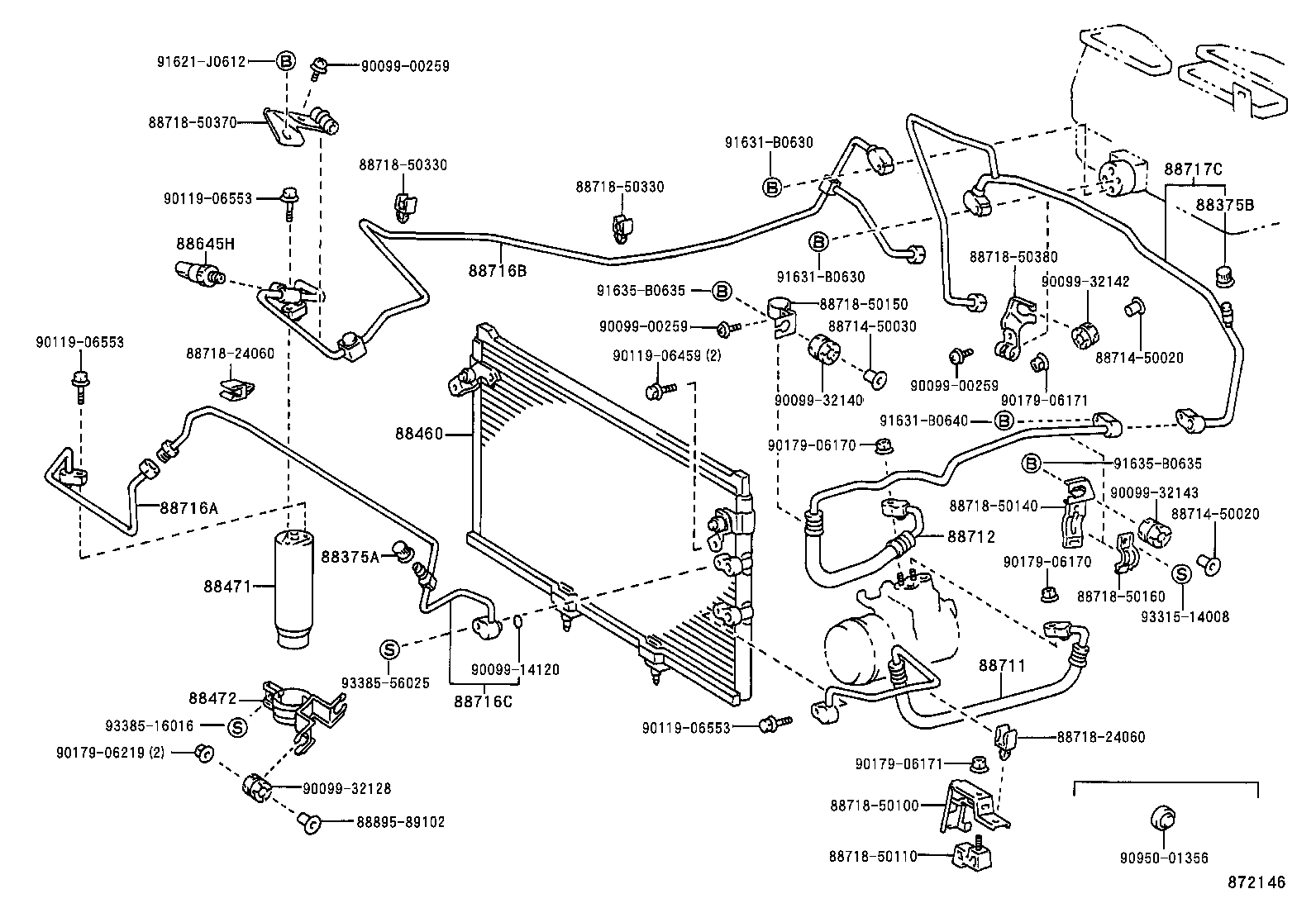

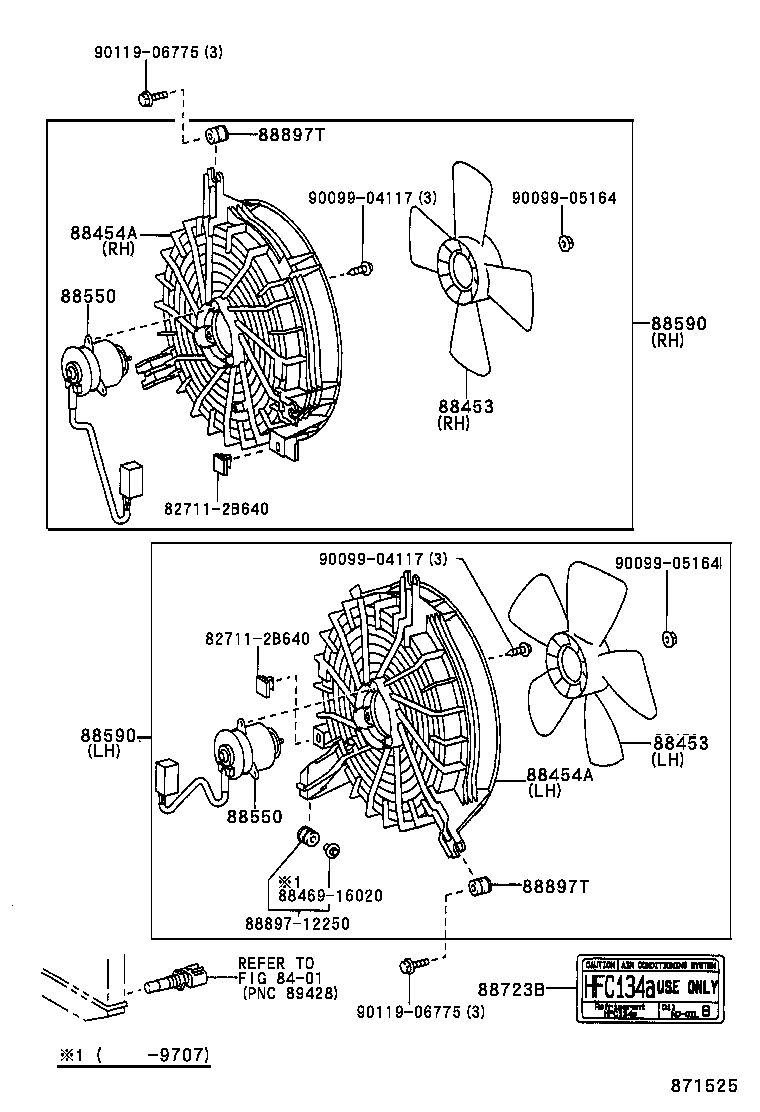

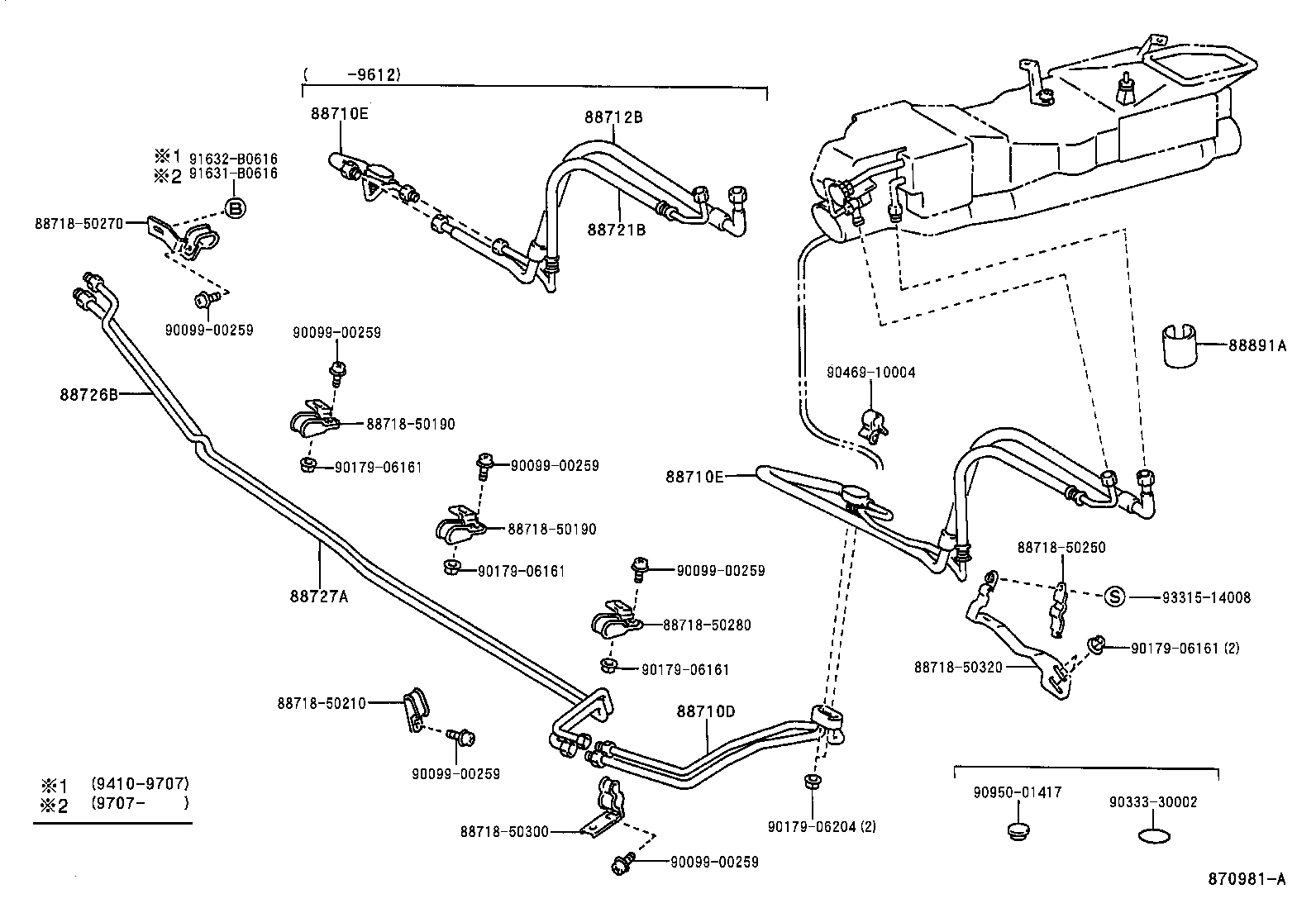

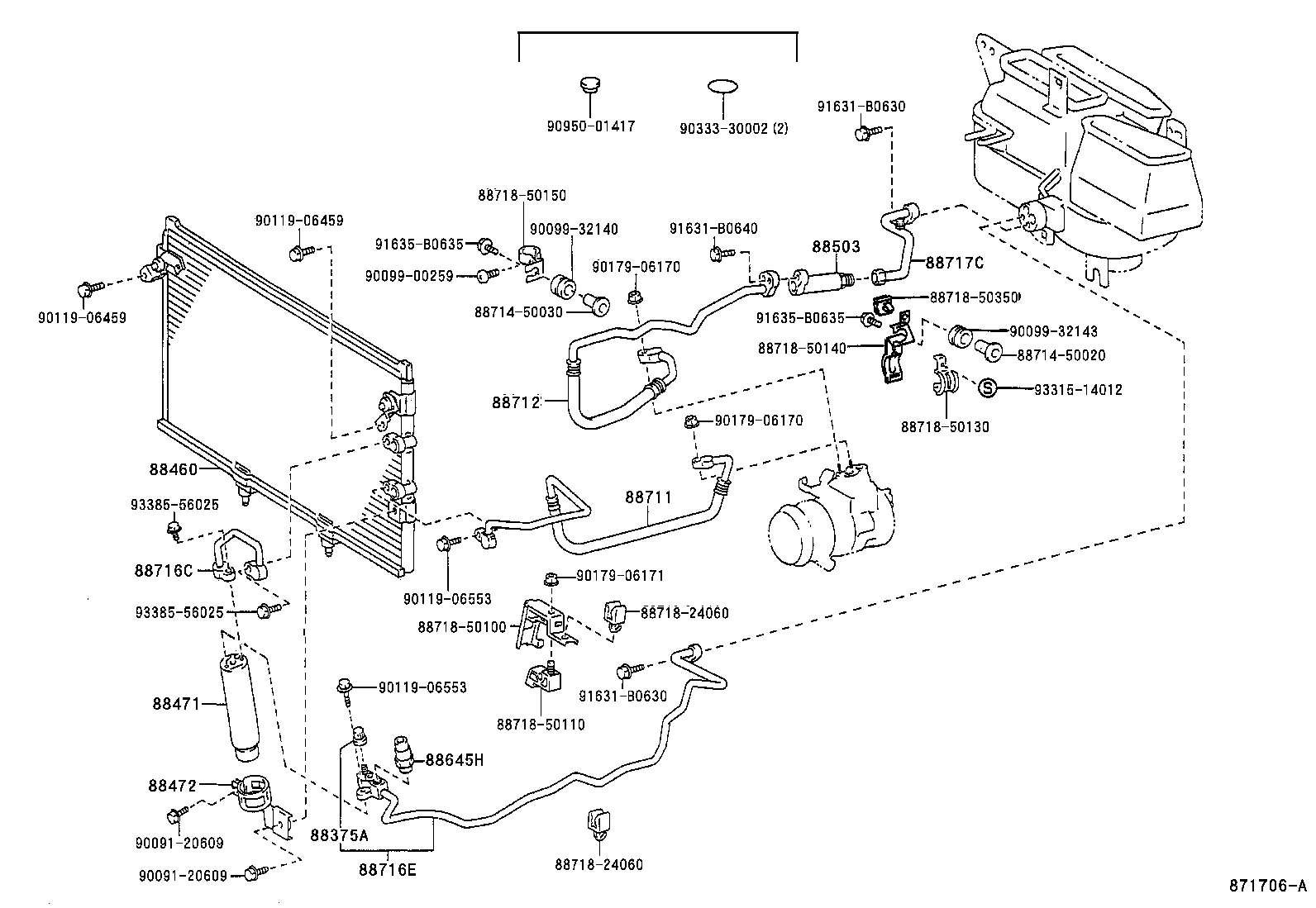

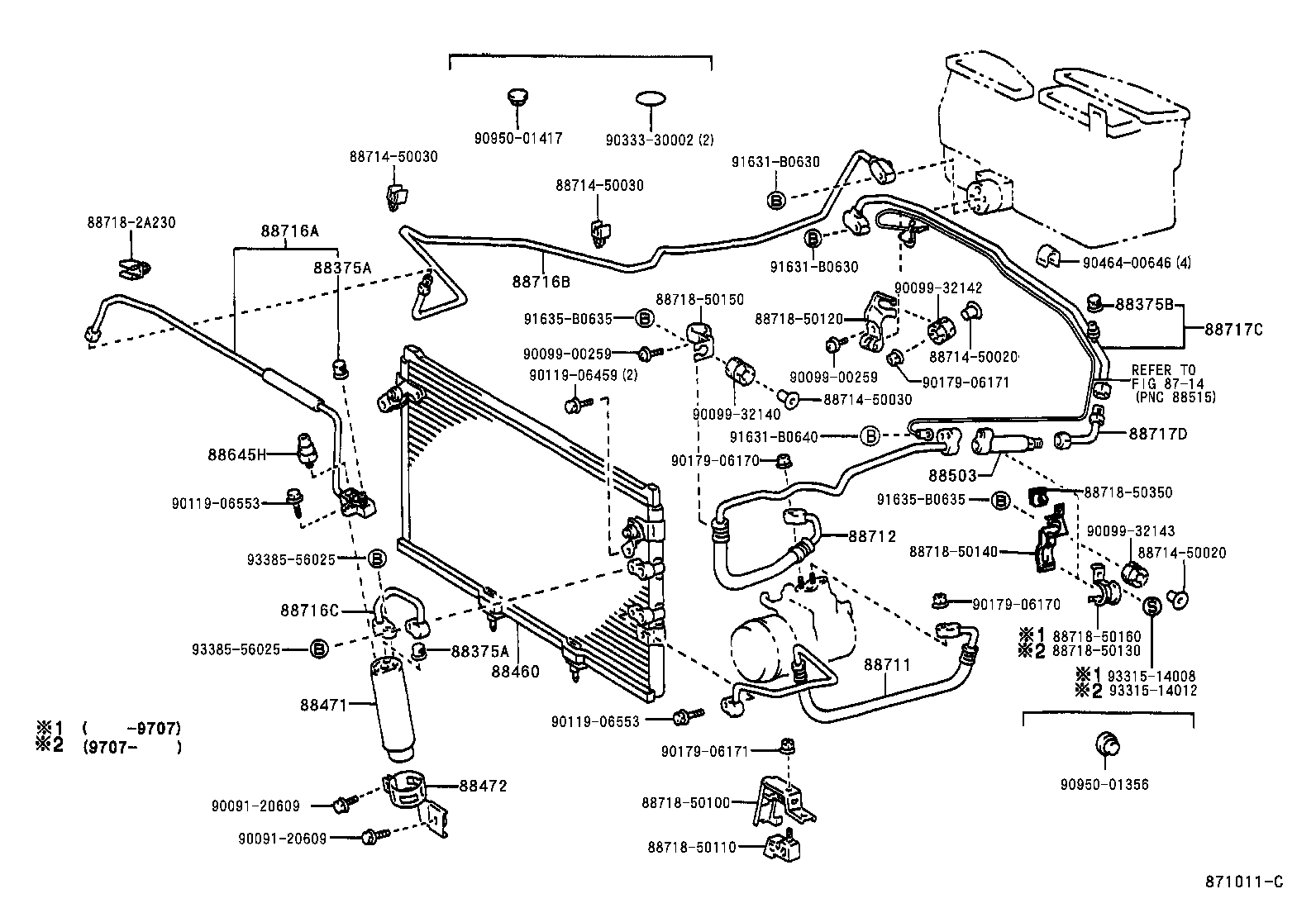

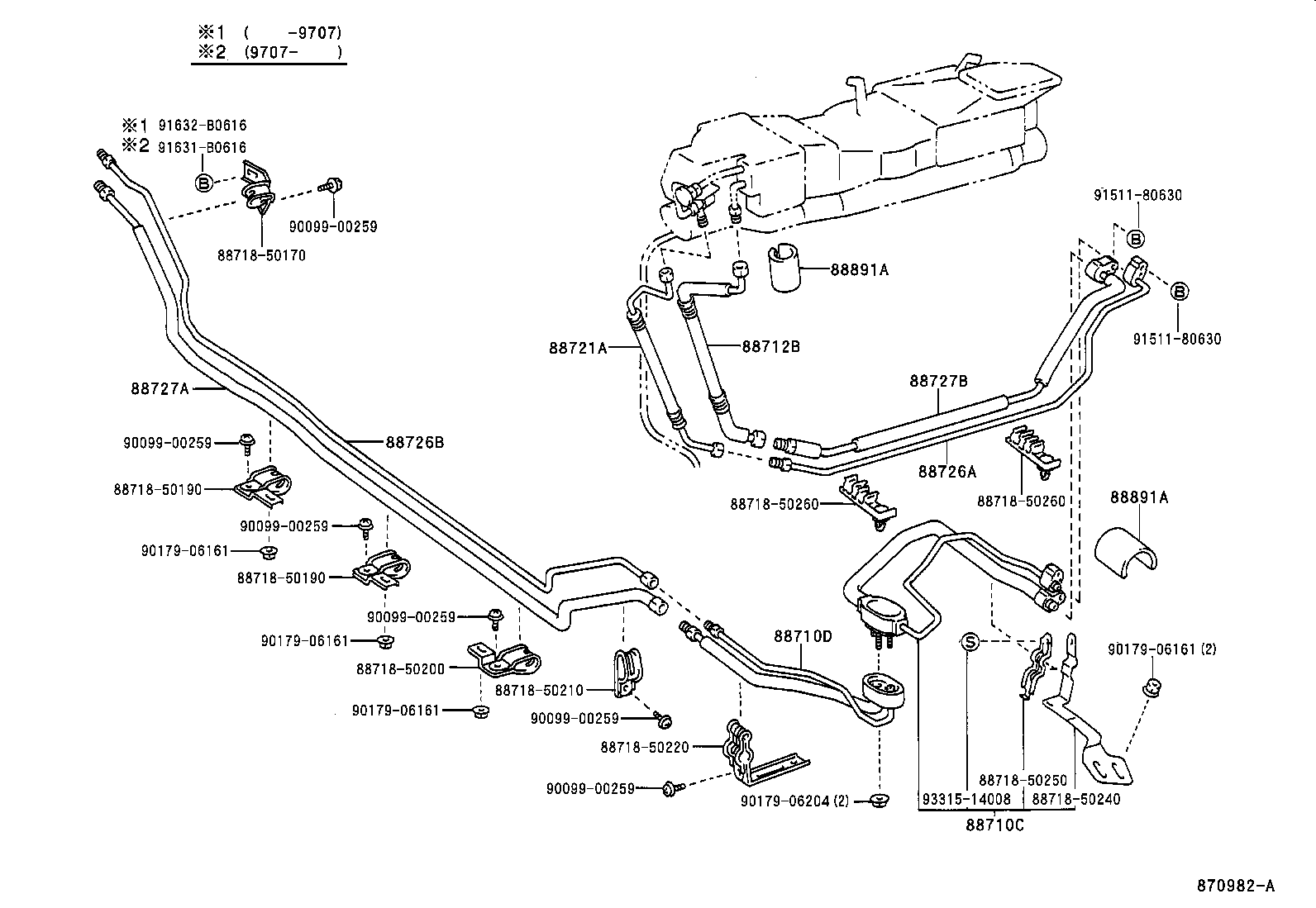

Figure MEY312 MEY312 1994-10 → — Figure 871525 871525 1994-10 → — Figure MEY315A MEY315A 1994-10 → — Figure MEY351A MEY351A 1994-10 → 1997-07 Figure 871706A 871706A 1997-07 → — Figure 871011C 871011C 1994-10 → — Figure 872146 872146 1994-10 → — Figure 870981A 870981A 1994-10 → — Figure 870982A 870982A 1994-10 → — Figure 870233 870233 1994-10 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88721A Hose, Liquid, A
88721B Hose, Liquid, B
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88891A Packing A (FOR COOLER)
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
