Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01

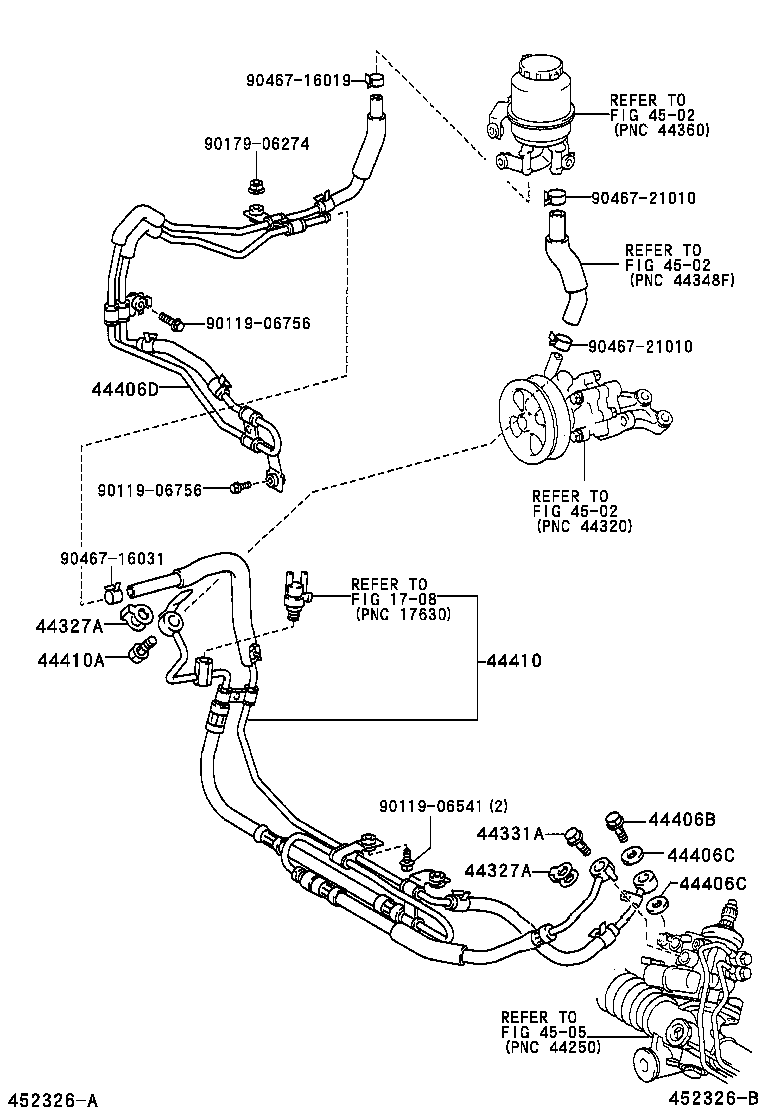

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44327A — Gasket, Pressure Port, NO.1 | ||||
| 44327-30030 |
Gasket, Pressure Port, NO.1
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 44327-30030 |
Gasket, Pressure Port, NO.1
2003-07 → —
|
UCF30 | — | |
| 44331A — Valve, Power Steering & Suspension Control Check | ||||
| 44331-50070 |
Valve, Power Steering & Suspension Control Check
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 44331-50070 |
Valve, Power Steering & Suspension Control Check
2003-07 → —
|
UCF30 | — | |
| 44406B — Bolt, Union(FOR RETURN TUBE) | ||||
| 90401-17004 |
Bolt, Union(FOR RETURN TUBE)
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 90401-17004 |
Bolt, Union(FOR RETURN TUBE)
2003-07 → —
|
UCF30 | — | |
| 44406C — Gasket(FOR RETURN TUBE) | ||||
| 90430-17008 |
Gasket(FOR RETURN TUBE)
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 90430-17008 |
Gasket(FOR RETURN TUBE)
2003-07 → —
|
UCF30 | — | |
| 44406D — Tube Sub-assy, Return, NO.1 | ||||
| 44406-50200 |
Tube Sub-assy, Return, NO.1
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 44406-50220 |
Tube Sub-assy, Return, NO.1
2003-07 → —
|
UCF30 | — | |
| 44410 — Tube Assy, Pressure Feed | ||||
| 44410-50080 |
Tube Assy, Pressure Feed
2000-08 → 2003-07
ended
|
UCF30 LHD | — | |
| 44410-50080 |
Tube Assy, Pressure Feed
2003-07 → —
|
UCF30 LHD | — | |
| 44410A — Bolt, Union(FOR PRESSURE FEED TUBE) | ||||
| 96341-41603 |
Bolt, Union(FOR PRESSURE FEED TUBE)
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 96341-41603 |
Bolt, Union(FOR PRESSURE FEED TUBE)
2003-07 → —
|
UCF30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
