Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

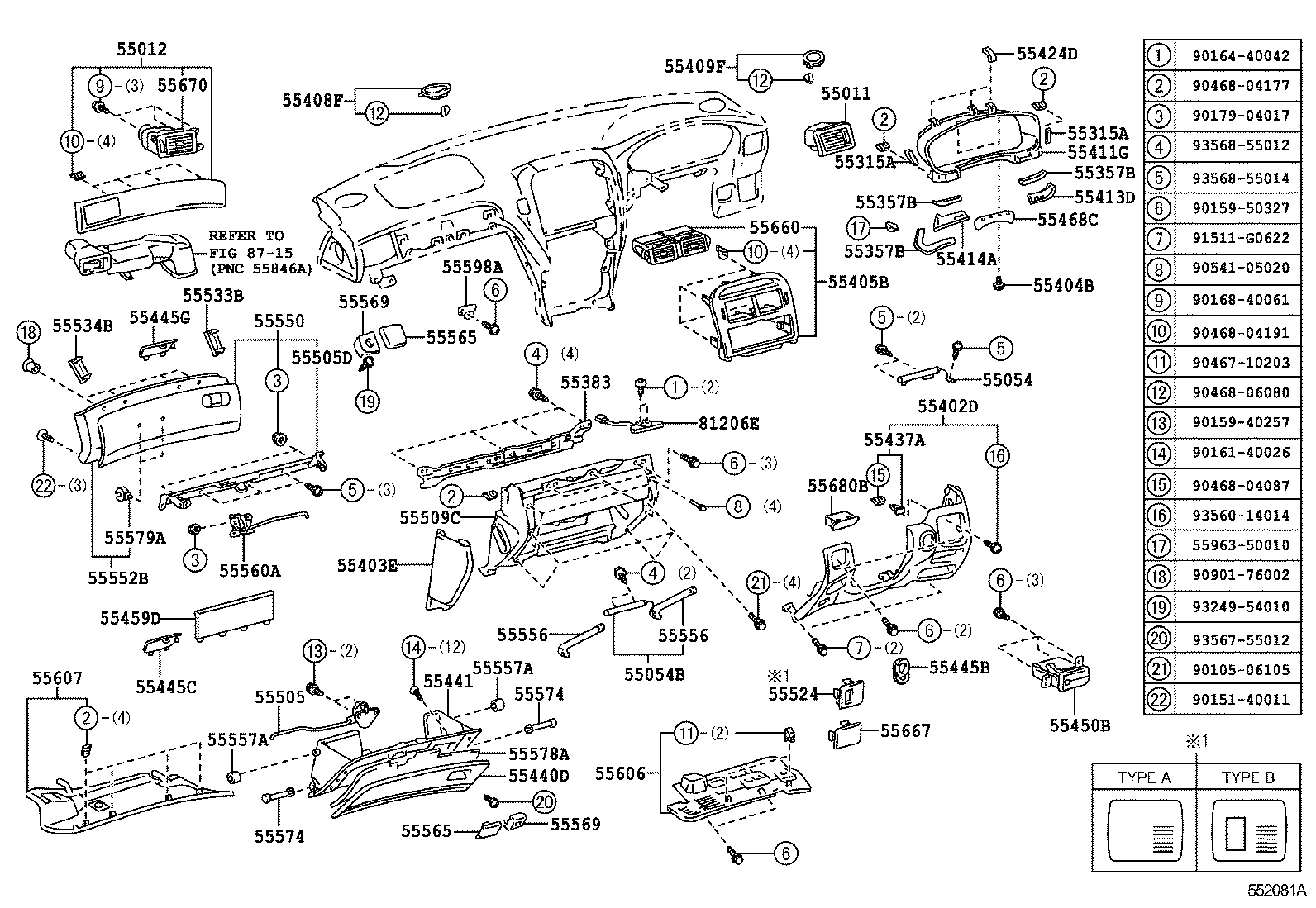

Exploded illustration 552081A 55409F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 (16 parts) 55408F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 (16 parts) 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (6 parts) 55012 — GARNISH SUB-ASSY, INSTRUMENT PANEL, LH (18 parts) 55011 — GARNISH SUB-ASSY, INSTRUMENT PANEL SAFETY PAD (10 parts) 55315A — SPACER, INSTRUMENT PANEL, NO.1 (2 parts) 55424D — CUSHION, CENTER CLUSTER, NO.2 (2 parts) 55315A — SPACER, INSTRUMENT PANEL, NO.1 (2 parts) 55411G — PANEL, INSTRUMENT CLUSTER FINISH, NO.1 (4 parts) 55357B — CUSHION, INSTRUMENT PANEL, NO.3 (2 parts) 55413D — PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER (40 parts) 55468C — SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 (3 parts) 55404B — CLIP, SAFETY PAD SET (3 parts) 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55414A — PANEL, INSTRUMENT CLUSTER FINISH, END (16 parts) 55357B — CUSHION, INSTRUMENT PANEL, NO.3 (2 parts) 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (11 parts) 55357B — CUSHION, INSTRUMENT PANEL, NO.3 (2 parts) 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (5 parts) 55598A — BRACKET, GLOVE COMPARTMENT DOOR HINGE (2 parts) 55383 — BRACKET, FINISH PANEL MOUNTING, NO.3 (2 parts) 55680B — REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 (4 parts) 55437A — RETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1 (4 parts) 55402D — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 (16 parts) 55569 — COVER, GLOVE COMPARTMENT DOOR LOCK (12 parts) 55505D — HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55579A — BAND, GLOVE COMPARTMENT BOX (2 parts) 55552B — DOOR, GLOVE COMPARTMENT, INNER (2 parts) 55445C — PLATE, INSTRUMENT PANEL BOX (1 parts) 55574 — SHAFT, GLOVE COMPARTMENT DOOR HINGE (1 parts) 55440D — BOX ASSY, INSTRUMENT PANEL (8 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55459D — COVER, INSTRUMENT, LOWER LH (2 parts) 55565 — HANDLE, GLOVE COMPARTMENT DOOR LOCK (12 parts) 55569 — COVER, GLOVE COMPARTMENT DOOR LOCK (12 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (6 parts) 55578A — SILENCER, GLOVE COMPARTMENT DOOR (2 parts) 55574 — SHAFT, GLOVE COMPARTMENT DOOR HINGE (1 parts) 55441 — BOX, INSTRUMENT PANEL (2 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (4 parts) 55505 — LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR (4 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55560A — LOCK ASSY, GLOVE COMPARTMENT DOOR (2 parts) 55403E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 (16 parts) 55556 — ARM, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55054B — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (1 parts) 55450B — BOX ASSY, COIN (16 parts) 55556 — ARM, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55509C — PANEL SUB-ASSY, GLOVE COMPARTMENT (2 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (16 parts) 55533B — PANEL, GLOVE COMPARTMENT SIDE, RH (1 parts) 55445G — PLATE, INSTRUMENT PANEL BOX (2 parts) 55534B — PANEL, GLOVE COMPARTMENT SIDE, LH (3 parts) 55565 — HANDLE, GLOVE COMPARTMENT DOOR LOCK (12 parts) 81206E — LAMP SUB-ASSY, CONSOLE BOX (2 parts) 55445B — PLATE, INSTRUMENT PANEL FINISH (16 parts) 55524 — COVER, SWITCH BACE HOLE (8 parts) 55667 — GARNISH, INSTRUMENT PANEL REGISTER BEZEL (4 parts) 8715 — not listed in this catalogue 9016440042 — not listed in this catalogue 9046804177 — not listed in this catalogue 9017904017 — not listed in this catalogue 9356855012 — not listed in this catalogue 9356855014 — not listed in this catalogue 9015950327 — not listed in this catalogue 91511G0622 — not listed in this catalogue 9054105020 — not listed in this catalogue 9016840061 — not listed in this catalogue 9046804191 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046806080 — not listed in this catalogue 9015940257 — not listed in this catalogue 9016140026 — not listed in this catalogue 9046804087 — not listed in this catalogue 9356014014 — not listed in this catalogue 5596350010 — not listed in this catalogue 9090176002 — not listed in this catalogue 9324954010 — not listed in this catalogue 9356755012 — not listed in this catalogue 9010506105 — not listed in this catalogue 9015140011 — not listed in this catalogue
552081A · 58 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
335 parts on this figure
Part number Description Fitment Price
55011 — Garnish Sub-assy, Instrument Panel Safety Pad
55011-50010-E0 note Garnish Sub-assy, Instrument Panel Safety Pad
2000-08 → 2003-07 ended
UCF30 LHD —
55011-50020-E0 note Garnish Sub-assy, Instrument Panel Safety Pad
2000-08 → 2003-07 ended
UCF30 RHD —
55011-50030-E1 note Garnish Sub-assy, Instrument Panel Safety Pad
2000-08 → 2003-07 ended
UCF30 LHD —
55011-50040-E1 note Garnish Sub-assy, Instrument Panel Safety Pad
2000-08 → 2003-07 ended
UCF30 RHD —
55011-50010-E0 note Garnish Sub-assy, Instrument Panel Safety Pad
2003-07 → 2006-08 ended
UCF30 LHD —
55011-50020-E0 note Garnish Sub-assy, Instrument Panel Safety Pad
2003-07 → 2006-08 ended
UCF30 RHD —
55011-50030-E1 note Garnish Sub-assy, Instrument Panel Safety Pad
2003-07 → 2006-08 ended
UCF30 LHD —
55011-50040-E1 note Garnish Sub-assy, Instrument Panel Safety Pad
2003-07 → 2006-08 ended
UCF30 RHD —
55011-50070-E2 note Garnish Sub-assy, Instrument Panel Safety Pad
2003-07 → 2006-08 ended
UCF30 LHD EUR —
55011-50080-E0 note Garnish Sub-assy, Instrument Panel Safety Pad
2003-07 → 2006-08 ended
UCF30 RHD EUR —
55012 — Garnish Sub-assy, Instrument Panel, LH
55012-50010-E0 note Garnish Sub-assy, Instrument Panel, LH
2000-08 → 2003-07 ended
UCF30 LHD EUR —
55012-50010-E1 note Garnish Sub-assy, Instrument Panel, LH
2000-08 → 2003-07 ended
UCF30 LHD EUR —
55012-50020-E0 note Garnish Sub-assy, Instrument Panel, LH
2000-08 → 2003-07 ended
UCF30 RHD EUR —
55012-50020-E1 note Garnish Sub-assy, Instrument Panel, LH
2000-08 → 2003-07 ended
UCF30 RHD EUR —
55012-50030-E0 note Garnish Sub-assy, Instrument Panel, LH
2000-08 → 2003-07 ended
UCF30 GCC —
55012-50040-E0 note Garnish Sub-assy, Instrument Panel, LH
2000-08 → 2003-07 ended
UCF30 ARL —
55012-50050-E1 note Garnish Sub-assy, Instrument Panel, LH
2000-08 → 2003-07 ended
UCF30 GCC —
55012-50060-E1 note Garnish Sub-assy, Instrument Panel, LH
2000-08 → 2003-07 ended
UCF30 ARL —
55012-50010-E0 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 LHD EUR —
55012-50010-E1 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 LHD EUR —
55012-50020-E0 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 RHD EUR —
55012-50020-E1 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 RHD EUR —
55012-50030-E0 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 GCC —
55012-50040-E0 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 ARL —
55012-50050-E1 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 GCC —
55012-50060-E1 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 ARL —
55012-50100-E0 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 LHD EUR —
55012-50110-E0 note Garnish Sub-assy, Instrument Panel, LH
2003-07 → 2006-08 ended
UCF30 RHD EUR —
55054 — Stopper Sub-assy, Glove Compartment Door
55054-50060 Stopper Sub-assy, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 —
55054-50080 Stopper Sub-assy, Glove Compartment Door
2003-07 → 2004-06 ended
UCF30 —
55054B — Stopper Sub-assy, Glove Compartment Door
55054-50070 Stopper Sub-assy, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 —
55315A — Spacer, Instrument Panel, NO.1
55315-12020 Spacer, Instrument Panel, NO.1
2000-08 → 2003-07 ended
UCF30 —
55315-12020 Spacer, Instrument Panel, NO.1
2003-07 → —
UCF30 —
55357B — Cushion, Instrument Panel, NO.3
55357-20020 Cushion, Instrument Panel, NO.3
2000-08 → 2003-07 ended
UCF30 —
55357-20020 Cushion, Instrument Panel, NO.3
2003-07 → —
UCF30 —
55383 — Bracket, Finish Panel Mounting, NO.3
55383-50050 Bracket, Finish Panel Mounting, NO.3
2000-08 → 2003-07 ended
UCF30 LHD —
55383-50060 Bracket, Finish Panel Mounting, NO.3
2000-08 → 2003-07 ended
UCF30 RHD —
55402D — Pad Sub-assy, Instrument Panel Safety, NO.1
55402-50900-A0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55402-50900-A1 note Pad Sub-assy, Instrument Panel Safety, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55402-50900-B0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55402-50900-C0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55402-50901-A0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55402-50901-A1 note Pad Sub-assy, Instrument Panel Safety, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55402-50901-B0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55402-50901-C0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55402-50110-A0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2003-07 → 2006-08 ended
UCF30 LHD —
55402-50110-A1 note Pad Sub-assy, Instrument Panel Safety, NO.1
2003-07 → 2006-08 ended
UCF30 LHD —
55402-50110-B0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2003-07 → 2006-08 ended
UCF30 LHD —
55402-50110-C0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2003-07 → 2006-08 ended
UCF30 LHD —
55402-50120-A0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2003-07 → 2006-08 ended
UCF30 RHD —
55402-50120-A1 note Pad Sub-assy, Instrument Panel Safety, NO.1
2003-07 → 2006-08 ended
UCF30 RHD —
55402-50120-B0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2003-07 → 2006-08 ended
UCF30 RHD —
55402-50120-C0 note Pad Sub-assy, Instrument Panel Safety, NO.1
2003-07 → 2006-08 ended
UCF30 RHD —
55403E — Pad Sub-assy, Instrument Panel Safety, NO.2
55403-50060-A0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55403-50060-A1 note Pad Sub-assy, Instrument Panel Safety, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55403-50060-B0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55403-50060-C0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55403-50070-A0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55403-50070-A1 note Pad Sub-assy, Instrument Panel Safety, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55403-50070-B0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55403-50070-C0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55403-50090-A0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2003-07 → 2006-08 ended
UCF30 LHD —
55403-50090-A1 note Pad Sub-assy, Instrument Panel Safety, NO.2
2003-07 → 2006-08 ended
UCF30 LHD —
55403-50090-B0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2003-07 → 2006-08 ended
UCF30 LHD —
55403-50090-C0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2003-07 → 2006-08 ended
UCF30 LHD —
55403-50100-A0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2003-07 → 2006-08 ended
UCF30 RHD —
55403-50100-A1 note Pad Sub-assy, Instrument Panel Safety, NO.2
2003-07 → 2006-08 ended
UCF30 RHD —
55403-50100-B0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2003-07 → 2006-08 ended
UCF30 RHD —
55403-50100-C0 note Pad Sub-assy, Instrument Panel Safety, NO.2
2003-07 → 2006-08 ended
UCF30 RHD —
55404B — Clip, Safety Pad Set
90467-05056-22 note Clip, Safety Pad Set
2000-08 → 2000-11 ended
UCF30 —
90467-05158 Clip, Safety Pad Set
2000-11 → 2003-07 ended
UCF30 —
90467-05158 Clip, Safety Pad Set
2003-07 → —
UCF30 —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-50040 note Panel Sub-assy, Instrument Cluster Finish, Center
2000-08 → 2003-07 ended
UCF30 ARL,EUR —
55405-50050 note Panel Sub-assy, Instrument Cluster Finish, Center
2000-08 → 2001-07 ended
UCF30 LHD EUR —
55405-50060 note Panel Sub-assy, Instrument Cluster Finish, Center
2000-08 → 2003-07 ended
UCF30 LHD —
55405-50070 note Panel Sub-assy, Instrument Cluster Finish, Center
2000-08 → 2001-07 ended
UCF30 RHD —
55405-50080 note Panel Sub-assy, Instrument Cluster Finish, Center
2000-08 → 2003-07 ended
UCF30 RHD —
55405-50090 note Panel Sub-assy, Instrument Cluster Finish, Center
2000-08 → 2001-07 ended
UCF30 EUR —
55405-50090 note Panel Sub-assy, Instrument Cluster Finish, Center
2001-07 → 2003-07 ended
UCF30 ARL,EUR —
55405-50040 note Panel Sub-assy, Instrument Cluster Finish, Center
2003-07 → 2006-08 ended
UCF30 ARL,EUR —
55405-50060 note Panel Sub-assy, Instrument Cluster Finish, Center
2003-07 → 2006-08 ended
UCF30 LHD EUR —
55405-50080 note Panel Sub-assy, Instrument Cluster Finish, Center
2003-07 → 2006-08 ended
UCF30 RHD —
55405-50090 note Panel Sub-assy, Instrument Cluster Finish, Center
2003-07 → 2006-08 ended
UCF30 —
55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1
55408-50090-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55408-50090-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55408-50090-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55408-50090-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55408-50100-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55408-50100-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55408-50100-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55408-50100-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55408-50090-B1 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2003-07 → 2006-08 ended
UCF30 LHD —
55408-50090-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2003-07 → 2006-08 ended
UCF30 LHD —
55408-50090-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2003-07 → 2006-08 ended
UCF30 LHD —
55408-50090-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2003-07 → 2006-08 ended
UCF30 LHD —
55408-50100-B1 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2003-07 → 2006-08 ended
UCF30 RHD —
55408-50100-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2003-07 → 2006-08 ended
UCF30 RHD —
55408-50100-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2003-07 → 2006-08 ended
UCF30 RHD —
55408-50100-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2003-07 → 2006-08 ended
UCF30 RHD —
55409F — Panel Sub-assy, Instrument Panel Speaker, NO.2
55409-50030-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55409-50030-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55409-50030-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55409-50030-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55409-50040-B0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55409-50040-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55409-50040-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55409-50040-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55409-50030-B1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2003-07 → 2006-08 ended
UCF30 LHD —
55409-50030-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2003-07 → 2006-08 ended
UCF30 LHD —
55409-50030-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2003-07 → 2006-08 ended
UCF30 LHD —
55409-50030-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2003-07 → 2006-08 ended
UCF30 LHD —
55409-50040-B1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2003-07 → 2006-08 ended
UCF30 RHD —
55409-50040-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2003-07 → 2006-08 ended
UCF30 RHD —
55409-50040-E0 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2003-07 → 2006-08 ended
UCF30 RHD —
55409-50040-E1 note Panel Sub-assy, Instrument Panel Speaker, NO.2
2003-07 → 2006-08 ended
UCF30 RHD —
55411G — Panel, Instrument Cluster Finish, NO.1
55411-50100 Panel, Instrument Cluster Finish, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55411-50110 Panel, Instrument Cluster Finish, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55411-50100 Panel, Instrument Cluster Finish, NO.1
2003-07 → —
UCF30 LHD —
55411-50110 Panel, Instrument Cluster Finish, NO.1
2003-07 → —
UCF30 RHD —
55413D — Panel, Instrument Cluster Finish, Center Lower
55413-50010-B0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 LHD —
55413-50010-C0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 LHD —
55413-50010-E0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 LHD —
55413-50010-E1 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 LHD —
55413-50020-B0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 LHD —
55413-50020-C0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 LHD —
55413-50020-E0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 LHD —
55413-50020-E1 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 LHD —
55413-50030-B0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 RHD —
55413-50030-C0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 RHD —
55413-50030-E0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 RHD —
55413-50030-E1 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 RHD —
55413-50040-B0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 RHD —
55413-50040-C0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 RHD —
55413-50040-E0 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 RHD —
55413-50040-E1 note Panel, Instrument Cluster Finish, Center Lower
2000-08 → 2003-07 ended
UCF30 RHD —
55413-50010-B1 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2006-08 ended
UCF30 LHD —
55413-50010-C0 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2006-08 ended
UCF30 LHD —
55413-50010-E0 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2006-08 ended
UCF30 LHD —
55413-50010-E1 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2006-08 ended
UCF30 LHD —
55413-50020-B1 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2004-05 ended
UCF30 LHD —
55413-50020-C0 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2004-05 ended
UCF30 LHD —
55413-50020-E0 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2004-05 ended
UCF30 LHD —
55413-50020-E1 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2004-05 ended
UCF30 LHD —
55413-50021-B1 note Panel, Instrument Cluster Finish, Center Lower
2004-06 → 2006-08 ended
UCF30 LHD —
55413-50021-C0 note Panel, Instrument Cluster Finish, Center Lower
2004-06 → 2006-08 ended
UCF30 LHD —
55413-50021-E0 note Panel, Instrument Cluster Finish, Center Lower
2004-06 → 2006-08 ended
UCF30 LHD —
55413-50021-E1 note Panel, Instrument Cluster Finish, Center Lower
2004-06 → 2006-08 ended
UCF30 LHD —
55413-50030-B1 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2006-08 ended
UCF30 RHD —
55413-50030-C0 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2006-08 ended
UCF30 RHD —
55413-50030-E0 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2006-08 ended
UCF30 RHD —
55413-50030-E1 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2006-08 ended
UCF30 RHD —
55413-50040-B1 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2004-05 ended
UCF30 RHD —
55413-50040-C0 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2004-05 ended
UCF30 RHD —
55413-50040-E0 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2004-05 ended
UCF30 RHD —
55413-50040-E1 note Panel, Instrument Cluster Finish, Center Lower
2003-07 → 2004-05 ended
UCF30 RHD —
55413-50041-B1 note Panel, Instrument Cluster Finish, Center Lower
2004-06 → 2006-08 ended
UCF30 RHD —
55413-50041-C0 note Panel, Instrument Cluster Finish, Center Lower
2004-06 → 2006-08 ended
UCF30 RHD —
55413-50041-E0 note Panel, Instrument Cluster Finish, Center Lower
2004-06 → 2006-08 ended
UCF30 RHD —
55413-50041-E1 note Panel, Instrument Cluster Finish, Center Lower
2004-06 → 2006-08 ended
UCF30 RHD —
55414A — Panel, Instrument Cluster Finish, End
55414-50900-B0 note Panel, Instrument Cluster Finish, End
2000-08 → 2003-07 ended
UCF30 LHD —
55414-50900-C0 note Panel, Instrument Cluster Finish, End
2000-08 → 2003-07 ended
UCF30 LHD —
55414-50900-E0 note Panel, Instrument Cluster Finish, End
2000-08 → 2003-07 ended
UCF30 LHD —
55414-50900-E1 note Panel, Instrument Cluster Finish, End
2000-08 → 2003-07 ended
UCF30 LHD —
55414-50901-B0 note Panel, Instrument Cluster Finish, End
2000-08 → 2003-07 ended
UCF30 RHD —
55414-50901-C0 note Panel, Instrument Cluster Finish, End
2000-08 → 2003-07 ended
UCF30 RHD —
55414-50901-E0 note Panel, Instrument Cluster Finish, End
2000-08 → 2003-07 ended
UCF30 RHD —
55414-50901-E1 note Panel, Instrument Cluster Finish, End
2000-08 → 2003-07 ended
UCF30 RHD —
55414-50900-B1 note Panel, Instrument Cluster Finish, End
2003-07 → 2006-08 ended
UCF30 LHD —
55414-50900-C0 note Panel, Instrument Cluster Finish, End
2003-07 → 2006-08 ended
UCF30 LHD —
55414-50900-E0 note Panel, Instrument Cluster Finish, End
2003-07 → 2006-08 ended
UCF30 LHD —
55414-50900-E1 note Panel, Instrument Cluster Finish, End
2003-07 → 2006-08 ended
UCF30 LHD —
55414-50901-B1 note Panel, Instrument Cluster Finish, End
2003-07 → 2006-08 ended
UCF30 RHD —
55414-50901-C0 note Panel, Instrument Cluster Finish, End
2003-07 → 2006-08 ended
UCF30 RHD —
55414-50901-E0 note Panel, Instrument Cluster Finish, End
2003-07 → 2006-08 ended
UCF30 RHD —
55414-50901-E1 note Panel, Instrument Cluster Finish, End
2003-07 → 2006-08 ended
UCF30 RHD —
55424D — Cushion, Center Cluster, NO.2
55424-50010 Cushion, Center Cluster, NO.2
2000-08 → 2003-07 ended
UCF30 —
55424-50010 Cushion, Center Cluster, NO.2
2003-07 → —
UCF30 —
55437A — Retainer, Instrument Panel Finish Panel, NO.1
55437-50010 Retainer, Instrument Panel Finish Panel, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55437-50010 Retainer, Instrument Panel Finish Panel, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55437-50010 Retainer, Instrument Panel Finish Panel, NO.1
2003-07 → —
UCF30 RHD —
55437-50010 Retainer, Instrument Panel Finish Panel, NO.1
2003-07 → —
UCF30 LHD —
55440D — Box Assy, Instrument Panel
55406-50060-A0 note Box Assy, Instrument Panel
2000-08 → 2003-07 ended
UCF30 LHD —
55406-50060-A1 note Box Assy, Instrument Panel
2000-08 → 2003-07 ended
UCF30 LHD —
55406-50060-B0 note Box Assy, Instrument Panel
2000-08 → 2003-07 ended
UCF30 LHD —
55406-50060-C0 note Box Assy, Instrument Panel
2000-08 → 2003-07 ended
UCF30 LHD —
55406-50080-A0 note Box Assy, Instrument Panel
2000-08 → 2003-07 ended
UCF30 RHD —
55406-50080-A1 note Box Assy, Instrument Panel
2000-08 → 2003-07 ended
UCF30 RHD —
55406-50080-B0 note Box Assy, Instrument Panel
2000-08 → 2003-07 ended
UCF30 RHD —
55406-50080-C0 note Box Assy, Instrument Panel
2000-08 → 2003-07 ended
UCF30 RHD —
55441 — Box, Instrument Panel
55441-50060 Box, Instrument Panel
2000-08 → 2003-07 ended
UCF30 LHD —
55441-50070 Box, Instrument Panel
2000-08 → 2003-07 ended
UCF30 RHD —
55445B — Plate, Instrument Panel Finish
55445-50030-A0 note Plate, Instrument Panel Finish
2000-08 → 2003-07 ended
UCF30 —
55445-50030-A1 note Plate, Instrument Panel Finish
2000-08 → 2003-07 ended
UCF30 —
55445-50030-B0 note Plate, Instrument Panel Finish
2000-08 → 2003-07 ended
UCF30 —
55445-50030-C0 note Plate, Instrument Panel Finish
2000-08 → 2003-07 ended
UCF30 —
55445-50040-A0 note Plate, Instrument Panel Finish
2000-08 → 2003-07 ended
UCF30 —
55445-50040-A1 note Plate, Instrument Panel Finish
2000-08 → 2003-07 ended
UCF30 —
55445-50040-B0 note Plate, Instrument Panel Finish
2000-08 → 2003-07 ended
UCF30 —
55445-50040-C0 note Plate, Instrument Panel Finish
2000-08 → 2003-07 ended
UCF30 —
55445-50030-A1 note Plate, Instrument Panel Finish
2003-07 → 2006-08 ended
UCF30 —
55445-50030-A2 note Plate, Instrument Panel Finish
2003-07 → 2006-08 ended
UCF30 —
55445-50030-B1 note Plate, Instrument Panel Finish
2003-07 → 2006-08 ended
UCF30 —
55445-50030-C0 note Plate, Instrument Panel Finish
2003-07 → 2006-08 ended
UCF30 —
55445-50040-A1 note Plate, Instrument Panel Finish
2003-07 → 2006-08 ended
UCF30 —
55445-50040-A2 note Plate, Instrument Panel Finish
2003-07 → 2006-08 ended
UCF30 —
55445-50040-B1 note Plate, Instrument Panel Finish
2003-07 → 2006-08 ended
UCF30 —
55445-50040-C0 note Plate, Instrument Panel Finish
2003-07 → 2006-08 ended
UCF30 —
55445C — Plate, Instrument Panel Box
55445-50010 Plate, Instrument Panel Box
2000-08 → 2003-07 ended
UCF30 —
55445G — Plate, Instrument Panel Box
55445-30210 Plate, Instrument Panel Box
2000-08 → 2003-07 ended
UCF30 —
55445-30210 Plate, Instrument Panel Box
2003-07 → —
UCF30 —
55450B — Box Assy, Coin
55450-50060-A0 note Box Assy, Coin
2000-08 → 2003-07 ended
UCF30 LHD —
55450-50060-A1 note Box Assy, Coin
2000-08 → 2003-07 ended
UCF30 LHD —
55450-50060-B0 note Box Assy, Coin
2000-08 → 2003-07 ended
UCF30 LHD —
55450-50060-C0 note Box Assy, Coin
2000-08 → 2003-07 ended
UCF30 LHD —
55450-50070-A0 note Box Assy, Coin
2000-08 → 2003-07 ended
UCF30 RHD —
55450-50070-A1 note Box Assy, Coin
2000-08 → 2003-07 ended
UCF30 RHD —
55450-50070-B0 note Box Assy, Coin
2000-08 → 2003-07 ended
UCF30 RHD —
55450-50070-C0 note Box Assy, Coin
2000-08 → 2003-07 ended
UCF30 RHD —
55450-50060-A1 note Box Assy, Coin
2003-07 → 2006-08 ended
UCF30 LHD —
55450-50060-A2 note Box Assy, Coin
2003-07 → 2006-08 ended
UCF30 LHD —
55450-50060-B1 note Box Assy, Coin
2003-07 → 2006-08 ended
UCF30 LHD —
55450-50060-C0 note Box Assy, Coin
2003-07 → 2006-08 ended
UCF30 LHD —
55450-50070-A1 note Box Assy, Coin
2003-07 → 2006-08 ended
UCF30 RHD —
55450-50070-A2 note Box Assy, Coin
2003-07 → 2006-08 ended
UCF30 RHD —
55450-50070-B1 note Box Assy, Coin
2003-07 → 2006-08 ended
UCF30 RHD —
55450-50070-C0 note Box Assy, Coin
2003-07 → 2006-08 ended
UCF30 RHD —
55459D — Cover, Instrument, Lower LH
55459-50060 Cover, Instrument, Lower LH
2000-08 → 2003-07 ended
UCF30 —
55459-50080 Cover, Instrument, Lower LH
2003-07 → —
UCF30 —
55468C — Seal, Instrument Cluster Finish Panel, NO.1
55468-50040 Seal, Instrument Cluster Finish Panel, NO.1
2000-08 → 2003-07 ended
UCF30 —
55468-30080 note Seal, Instrument Cluster Finish Panel, NO.1
2003-07 → —
UCF30 —
55468-50040 note Seal, Instrument Cluster Finish Panel, NO.1
2003-07 → —
UCF30 —
55505 — Lock Sub-assy, Glove Compartment Door
55560-50090 Lock Sub-assy, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 RHD —
55560-50110 Lock Sub-assy, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 LHD —
55560-50130 Lock Sub-assy, Glove Compartment Door
2003-07 → 2006-08 ended
UCF30 RHD —
55560-50140 Lock Sub-assy, Glove Compartment Door
2003-07 → 2006-08 ended
UCF30 LHD —
55505D — Hinge Sub-assy, Glove Compartment Door
55505-50060 Hinge Sub-assy, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 LHD —
55505-50070 Hinge Sub-assy, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 RHD —
55509C — Panel Sub-assy, Glove Compartment
55509-50030 Panel Sub-assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 RHD —
55509-50050 Panel Sub-assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 LHD —
55524 — Cover, Switch Bace Hole
55524-50030-A0 note Cover, Switch Bace Hole
2000-08 → 2003-07 ended
UCF30 RHD —
55524-50030-A1 note Cover, Switch Bace Hole
2000-08 → 2003-07 ended
UCF30 RHD —
55524-50030-B0 note Cover, Switch Bace Hole
2000-08 → 2003-07 ended
UCF30 RHD —
55524-50030-C0 note Cover, Switch Bace Hole
2000-08 → 2003-07 ended
UCF30 RHD —
55524-50030-A1 note Cover, Switch Bace Hole
2003-07 → 2006-08 ended
UCF30 RHD —
55524-50030-A2 note Cover, Switch Bace Hole
2003-07 → 2006-08 ended
UCF30 RHD —
55524-50030-B1 note Cover, Switch Bace Hole
2003-07 → 2006-08 ended
UCF30 RHD —
55524-50030-C0 note Cover, Switch Bace Hole
2003-07 → 2006-08 ended
UCF30 RHD —
55533B — Panel, Glove Compartment Side, RH
55533-24010 Panel, Glove Compartment Side, RH
2000-08 → 2003-07 ended
UCF30 —
55534B — Panel, Glove Compartment Side, LH
55534-24010 Panel, Glove Compartment Side, LH
2000-08 → 2003-07 ended
UCF30 —
55534-50020 Panel, Glove Compartment Side, LH
2003-07 → —
UCF30 LHD —
55534-50030 Panel, Glove Compartment Side, LH
2003-07 → —
UCF30 RHD —
55550 — Door Assy, Glove Compartment
55550-50900-A0 note Door Assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 LHD —
55550-50900-A1 note Door Assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 LHD —
55550-50900-B0 note Door Assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 LHD —
55550-50900-C0 note Door Assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 LHD —
55550-50901-A0 note Door Assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 RHD —
55550-50901-A1 note Door Assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 RHD —
55550-50901-B0 note Door Assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 RHD —
55550-50901-C0 note Door Assy, Glove Compartment
2000-08 → 2003-07 ended
UCF30 RHD —
55550-50080-A0 note Door Assy, Glove Compartment
2003-07 → 2006-08 ended
UCF30 LHD —
55550-50080-A1 note Door Assy, Glove Compartment
2003-07 → 2006-08 ended
UCF30 LHD —
55550-50080-B0 note Door Assy, Glove Compartment
2003-07 → 2006-08 ended
UCF30 LHD —
55550-50080-C0 note Door Assy, Glove Compartment
2003-07 → 2006-08 ended
UCF30 LHD —
55550-50090-A0 note Door Assy, Glove Compartment
2003-07 → 2006-08 ended
UCF30 RHD —
55550-50090-A1 note Door Assy, Glove Compartment
2003-07 → 2006-08 ended
UCF30 RHD —
55550-50090-B0 note Door Assy, Glove Compartment
2003-07 → 2006-08 ended
UCF30 RHD —
55550-50090-C0 note Door Assy, Glove Compartment
2003-07 → 2006-08 ended
UCF30 RHD —
55552B — Door, Glove Compartment, Inner
55552-50070 Door, Glove Compartment, Inner
2000-08 → 2003-07 ended
UCF30 LHD —
55552-50080 Door, Glove Compartment, Inner
2000-08 → 2003-07 ended
UCF30 RHD —
55556 — Arm, Glove Compartment Door Check
55556-50070 Arm, Glove Compartment Door Check
2000-08 → 2003-07 ended
UCF30 —
55557A — Cushion, Glove Compartment Door Check
55557-50020 Cushion, Glove Compartment Door Check
2000-08 → 2003-07 ended
UCF30 —
55560A — Lock Assy, Glove Compartment Door
55560-50100 Lock Assy, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 RHD —
55560-50120 Lock Assy, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 LHD —
55565 — Handle, Glove Compartment Door Lock
55565-50010-22 note Handle, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55565-50010-A1 note Handle, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55565-50010-A2 note Handle, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55565-50010-B5 note Handle, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55565-50030-A0 note Handle, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55565-50030-A1 note Handle, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55565-50030-B0 note Handle, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55565-50030-C0 note Handle, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55565-50030-A1 note Handle, Glove Compartment Door Lock
2003-07 → 2006-08 ended
UCF30 —
55565-50030-A2 note Handle, Glove Compartment Door Lock
2003-07 → 2006-08 ended
UCF30 —
55565-50030-B1 note Handle, Glove Compartment Door Lock
2003-07 → 2006-08 ended
UCF30 —
55565-50030-C0 note Handle, Glove Compartment Door Lock
2003-07 → 2006-08 ended
UCF30 —
55569 — Cover, Glove Compartment Door Lock
55569-50010-22 note Cover, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55569-50010-A1 note Cover, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55569-50010-A2 note Cover, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55569-50010-B5 note Cover, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55569-50030-A0 note Cover, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55569-50030-A1 note Cover, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55569-50030-B0 note Cover, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55569-50030-C0 note Cover, Glove Compartment Door Lock
2000-08 → 2003-07 ended
UCF30 —
55569-50030-A1 note Cover, Glove Compartment Door Lock
2003-07 → 2006-08 ended
UCF30 —
55569-50030-A2 note Cover, Glove Compartment Door Lock
2003-07 → 2006-08 ended
UCF30 —
55569-50030-B1 note Cover, Glove Compartment Door Lock
2003-07 → 2006-08 ended
UCF30 —
55569-50030-C0 note Cover, Glove Compartment Door Lock
2003-07 → 2006-08 ended
UCF30 —
55574 — Shaft, Glove Compartment Door Hinge
55574-10010 Shaft, Glove Compartment Door Hinge
2000-08 → 2003-07 ended
UCF30 —
55578A — Silencer, Glove Compartment Door
55578-50010 Silencer, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 LHD —
55578-50020 Silencer, Glove Compartment Door
2000-08 → 2003-07 ended
UCF30 RHD —
55579A — Band, Glove Compartment Box
55579-50010 Band, Glove Compartment Box
2000-08 → 2003-07 ended
UCF30 —
55579-50010 Band, Glove Compartment Box
2003-07 → —
UCF30 —
55598A — Bracket, Glove Compartment Door Hinge
55598-50020 Bracket, Glove Compartment Door Hinge
2000-08 → 2003-07 ended
UCF30 LHD —
55598-50030 Bracket, Glove Compartment Door Hinge
2000-08 → 2003-07 ended
UCF30 RHD —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-50100 Cover Sub-assy, Instrument Panel Under, NO.1
2000-08 → 2003-07 ended
UCF30 LHD —
55606-50110 Cover Sub-assy, Instrument Panel Under, NO.1
2000-08 → 2003-07 ended
UCF30 RHD —
55606-50120 Cover Sub-assy, Instrument Panel Under, NO.1
2003-07 → 2004-06 ended
UCF30 LHD —
55606-50121 Cover Sub-assy, Instrument Panel Under, NO.1
2004-06 → —
UCF30 LHD —
55606-50130 Cover Sub-assy, Instrument Panel Under, NO.1
2003-07 → 2004-06 ended
UCF30 RHD —
55606-50131 Cover Sub-assy, Instrument Panel Under, NO.1
2004-06 → —
UCF30 RHD —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-50100 Cover Sub-assy, Instrument Panel Under, NO.2
2000-08 → 2003-07 ended
UCF30 LHD —
55607-50110 Cover Sub-assy, Instrument Panel Under, NO.2
2000-08 → 2003-07 ended
UCF30 RHD —
55607-50120 Cover Sub-assy, Instrument Panel Under, NO.2
2003-07 → —
UCF30 LHD —
55607-50130 Cover Sub-assy, Instrument Panel Under, NO.2
2003-07 → —
UCF30 RHD —
55660 — Register Assy, Instrument Panel, NO.2
55660-50110 Register Assy, Instrument Panel, NO.2
2000-08 → 2003-07 ended
UCF30 —
55660-50120 note Register Assy, Instrument Panel, NO.2
2000-08 → 2001-07 ended
UCF30 EUR —
55660-50120 note Register Assy, Instrument Panel, NO.2
2001-07 → 2003-07 ended
UCF30 ARL,EUR —
55660-50110 Register Assy, Instrument Panel, NO.2
2003-07 → —
UCF30 ARL,EUR —
55660-50120 note Register Assy, Instrument Panel, NO.2
2003-07 → —
UCF30 —
55667 — Garnish, Instrument Panel Register Bezel
55667-50010-A0 note Garnish, Instrument Panel Register Bezel
2000-08 → 2003-07 ended
UCF30 RHD —
55667-50010-A1 note Garnish, Instrument Panel Register Bezel
2000-08 → 2003-07 ended
UCF30 RHD —
55667-50010-B0 note Garnish, Instrument Panel Register Bezel
2000-08 → 2003-07 ended
UCF30 RHD —
55667-50010-C0 note Garnish, Instrument Panel Register Bezel
2000-08 → 2003-07 ended
UCF30 RHD —
55670 — Register Assy, Instrument Panel, NO.3
55670-50050 Register Assy, Instrument Panel, NO.3
2000-08 → 2003-07 ended
UCF30 LHD —
55670-50060 Register Assy, Instrument Panel, NO.3
2000-08 → 2003-07 ended
UCF30 RHD —
55670-50050 Register Assy, Instrument Panel, NO.3
2003-07 → —
UCF30 LHD EUR —
55670-50050 Register Assy, Instrument Panel, NO.3
2003-07 → —
UCF30 GCC —
55670-50060 Register Assy, Instrument Panel, NO.3
2003-07 → —
UCF30 RHD EUR —
55670-50060 Register Assy, Instrument Panel, NO.3
2003-07 → —
UCF30 ARL —
55680B — Register Assy, Instrument Panel, Lower NO.1
55680-22020-A1 note Register Assy, Instrument Panel, Lower NO.1
2000-08 → 2003-07 ended
UCF30 —
55680-22020-B3 note Register Assy, Instrument Panel, Lower NO.1
2000-08 → 2003-07 ended
UCF30 —
55680-50010-C0 note Register Assy, Instrument Panel, Lower NO.1
2000-08 → 2003-07 ended
UCF30 —
55680-50020-A1 note Register Assy, Instrument Panel, Lower NO.1
2000-08 → 2003-07 ended
UCF30 —
81206E — Lamp Sub-assy, Console Box
81206-50020 Lamp Sub-assy, Console Box
2000-08 → 2003-07 ended
UCF30 —
81206-50040 Lamp Sub-assy, Console Box
2003-07 → —
UCF30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
