Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01

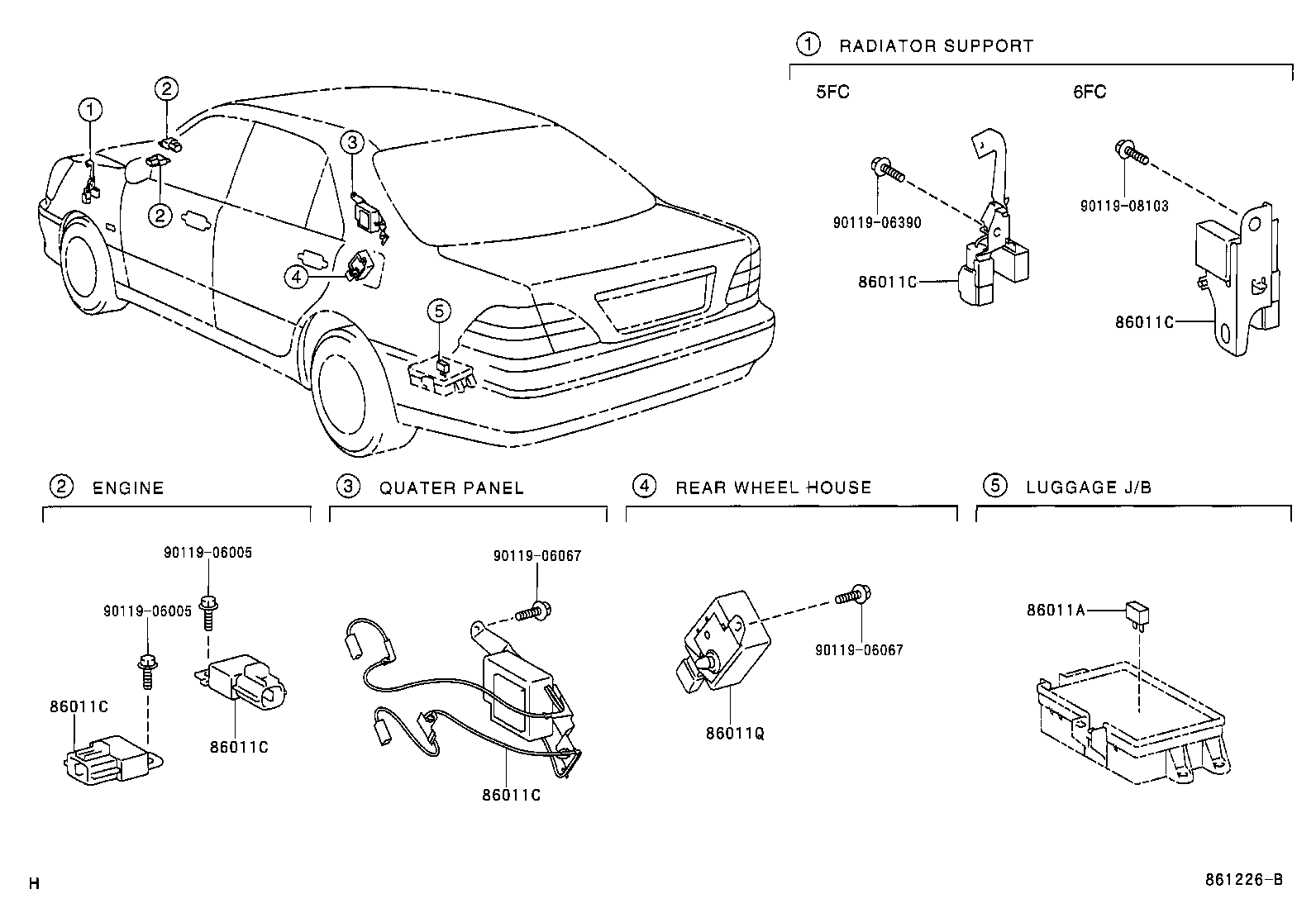

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04066 note |
Condenser, Radio Setting
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 90980-04066 note |
Condenser, Radio Setting
2003-07 → 2006-08
ended
|
UCF30 | — | |
| 86011C — Filter, Noise | ||||
| 90980-05313 note |
Filter, Noise
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 90980-05340 note |
Filter, Noise
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 90980-05341 note |
Filter, Noise
2000-08 → 2001-08
ended
|
UCF30 ARL,EUR | — | |
| 90980-05341 note |
Filter, Noise
2001-08 → 2003-07
ended
|
UCF30 ARL | — | |
| 90980-05342 note |
Filter, Noise
2000-08 → 2003-07
ended
|
UCF30 GCC | — | |
| 90980-04176 note |
Filter, Noise
2003-07 → 2006-08
ended
|
UCF30 | — | |
| 90980-05313 note |
Filter, Noise
2003-07 → 2006-08
ended
|
UCF30 | — | |
| 90980-05341 note |
Filter, Noise
2003-07 → 2006-08
ended
|
UCF30 ARL,EUR | — | |
| 90980-05342 note |
Filter, Noise
2003-07 → 2006-08
ended
|
UCF30 GCC | — | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-05354 note |
Condenser, Radio Setting
2000-08 → 2001-08
ended
|
UCF30 | — | |
| 90980-05354 note |
Condenser, Radio Setting
2001-08 → 2003-07
ended
|
UCF30 ARL,GCC | — | |
| 90980-05208 |
Condenser, Radio Setting
2003-07 → —
|
UCF30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
