Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01

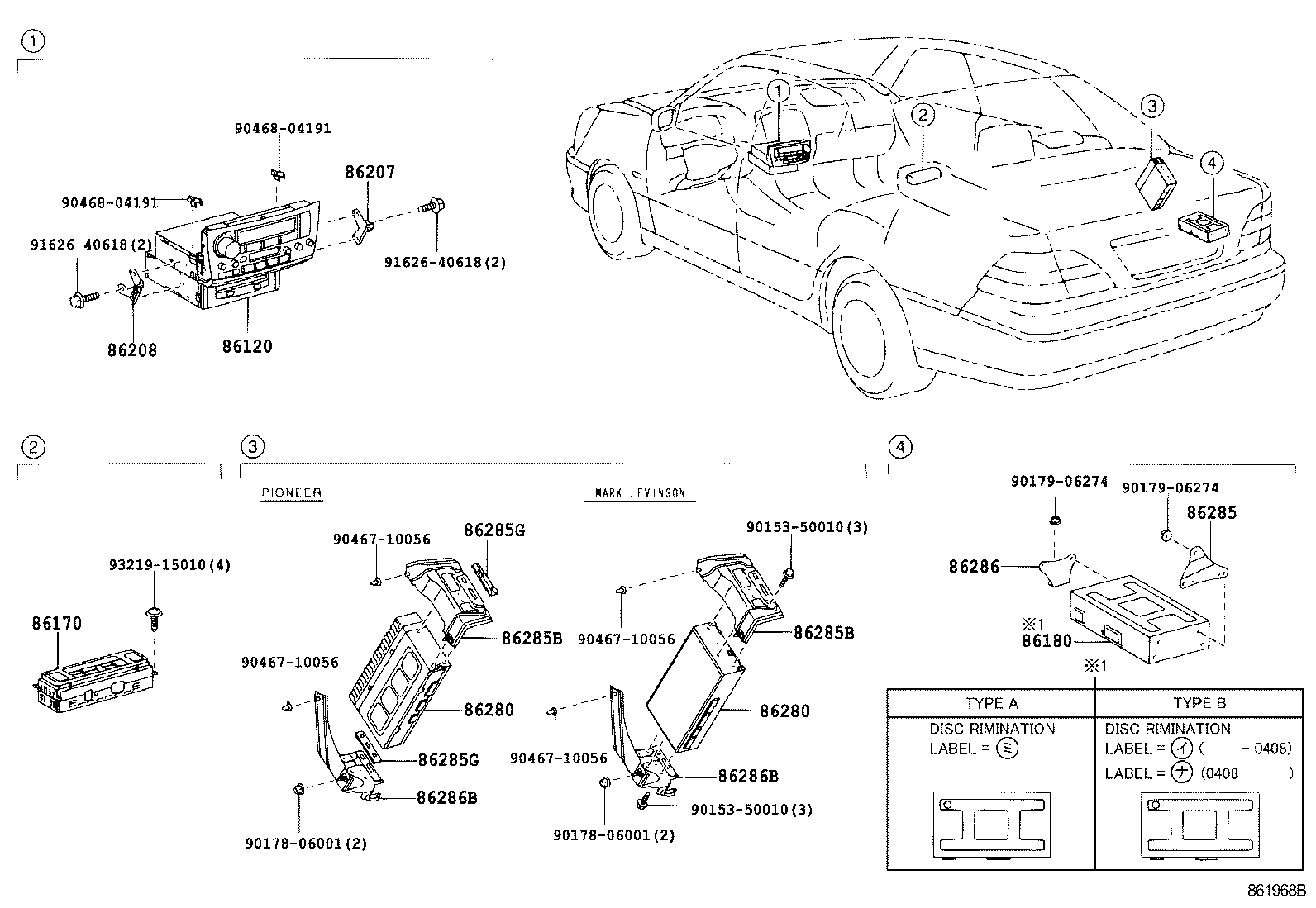

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120 — Receiver Assy, Radio | ||||
| 86120-50770 note |
Receiver Assy, Radio
2000-08 → 2001-07
ended
|
UCF30 LHD EUR | — | |
| 86120-50771 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 LHD EUR | — | |
| 86120-50780 note |
Receiver Assy, Radio
2000-08 → 2001-07
ended
|
UCF30 RHD EUR | — | |
| 86120-50781 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 RHD | — | |
| 86120-50820 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 LHD EUR | — | |
| 86120-50830 note |
Receiver Assy, Radio
2000-08 → 2003-07
ended
|
UCF30 LHD EUR | — | |
| 86120-50840 note |
Receiver Assy, Radio
2000-08 → 2003-07
ended
|
UCF30 LHD EUR | — | |
| 86120-50850 note |
Receiver Assy, Radio
2000-08 → 2003-07
ended
|
UCF30 RHD EUR | — | |
| 86120-50860 note |
Receiver Assy, Radio
2000-08 → 2003-07
ended
|
UCF30 GCC | — | |
| 86120-50880 note |
Receiver Assy, Radio
2000-08 → 2003-07
ended
|
UCF30 ARL,EUR | — | |
| 86120-5A060 note |
Receiver Assy, Radio
2001-01 → 2001-07
ended
|
UCF30 LHD EUR | — | |
| 86120-5A061 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 LHD EUR | — | |
| 86120-5A080 note |
Receiver Assy, Radio
2001-01 → 2001-07
ended
|
UCF30 RHD EUR | — | |
| 86120-5A081 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 RHD | — | |
| 86120-5A100 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 EUR | — | |
| 86120-5A120 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 LHD EUR | — | |
| 86120-5A140 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 RHD EUR | — | |
| 86120-5A160 note |
Receiver Assy, Radio
2001-07 → 2003-07
ended
|
UCF30 GCC | — | |
| 86120-50B30 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86120-50B50 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86120-50C10 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 RHD | — | |
| 86120-50C30 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86120-50C50 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 RHD EUR | — | |
| 86120-50C70 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86120-50C90 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86120-50D10 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 ARL | — | |
| 86120-50D30 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86120-50D50 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 RHD | — | |
| 86120-50D70 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 GCC | — | |
| 86120-50D90 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 GCC | — | |
| 86120-50E10 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86120-50E30 note |
Receiver Assy, Radio
2003-07 → —
|
UCF30 RHD EUR | — | |
| 86120-50E50 note |
Receiver Assy, Radio
2004-08 → —
|
UCF30 LHD EUR | — | |
| 86120-50E70 note |
Receiver Assy, Radio
2004-08 → —
|
UCF30 LHD EUR | — | |
| 86170 — Switch And Volume Assy, Radio | ||||
| 86170-50110 |
Switch And Volume Assy, Radio
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 86170-50160 |
Switch And Volume Assy, Radio
2003-07 → 2006-08
ended
|
UCF30 | — | |
| 86180 — Tuner Assy, Stereo Component | ||||
| 86180-50110 note |
Tuner Assy, Stereo Component
2000-08 → 2001-07
ended
|
UCF30 LHD EUR | — | |
| 86180-50111 note |
Tuner Assy, Stereo Component
2001-07 → 2002-08
ended
|
UCF30 LHD EUR | — | |
| 86180-50112 note |
Tuner Assy, Stereo Component
2002-08 → 2003-07
ended
|
UCF30 LHD EUR | — | |
| 86180-50120 |
Tuner Assy, Stereo Component
2000-08 → 2001-07
ended
|
UCF30 EUR | — | |
| 86180-50121 |
Tuner Assy, Stereo Component
2001-07 → 2003-07
ended
|
UCF30 EUR | — | |
| 86180-50121 note |
Tuner Assy, Stereo Component
2001-07 → 2003-07
ended
|
UCF30 ARL | — | |
| 86180-50130 |
Tuner Assy, Stereo Component
2000-08 → 2003-07
ended
|
UCF30 GCC | — | |
| 86180-50150 note |
Tuner Assy, Stereo Component
2000-08 → 2001-01
ended
|
UCF30 EUR | — | |
| 86180-50150 |
Tuner Assy, Stereo Component
2000-08 → 2003-07
ended
|
UCF30 ARL | — | |
| 86180-50150 note |
Tuner Assy, Stereo Component
2001-01 → 2003-07
ended
|
UCF30 EUR | — | |
| 86180-50122 note |
Tuner Assy, Stereo Component
2003-07 → —
|
UCF30 EUR | — | |
| 86180-50151 note |
Tuner Assy, Stereo Component
2003-07 → 2004-08
ended
|
UCF30 ARL,EUR | — | |
| 86180-50152 note |
Tuner Assy, Stereo Component
2004-08 → —
|
UCF30 ARL,EUR | — | |
| 86180-50200 note |
Tuner Assy, Stereo Component
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86180-50220 note |
Tuner Assy, Stereo Component
2003-07 → —
|
UCF30 LHD EUR | — | |
| 86180-50220 note |
Tuner Assy, Stereo Component
2003-07 → —
|
UCF30 RHD | — | |
| 86180-50240 |
Tuner Assy, Stereo Component
2003-07 → —
|
UCF30 GCC | — | |
| 86207 — Bracket Sub-assy, Radio Receiver, RH | ||||
| 86207-50010 |
Bracket Sub-assy, Radio Receiver, RH
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 86207-50010 |
Bracket Sub-assy, Radio Receiver, RH
2003-07 → —
|
UCF30 | — | |
| 86208 — Bracket Sub-assy, Radio Receiver, LH | ||||
| 86208-50010 |
Bracket Sub-assy, Radio Receiver, LH
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 86208-50010 |
Bracket Sub-assy, Radio Receiver, LH
2003-07 → —
|
UCF30 | — | |
| 86280 — Amplifier Assy, Stereo Component | ||||
| 86280-0W040 note |
Amplifier Assy, Stereo Component
2000-08 → 2001-07
ended
|
UCF30 EUR | — | |
| 86280-0W040 note |
Amplifier Assy, Stereo Component
2001-07 → 2001-08
ended
|
UCF30 | — | |
| 86280-0W041 note |
Amplifier Assy, Stereo Component
2001-08 → 2003-07
ended
|
UCF30 | — | |
| 86280-50260 note |
Amplifier Assy, Stereo Component
2000-08 → 2001-07
ended
|
UCF30 | — | |
| 86280-50261 note |
Amplifier Assy, Stereo Component
2001-07 → 2003-07
ended
|
UCF30 | — | |
| 86280-0W250 note |
Amplifier Assy, Stereo Component
2003-07 → —
|
UCF30 | — | |
| 86280-50330 note |
Amplifier Assy, Stereo Component
2003-07 → —
|
UCF30 | — | |
| 86285 — Bracket, Amplifier, NO.1 | ||||
| 86285-50100 |
Bracket, Amplifier, NO.1
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 86285-50100 |
Bracket, Amplifier, NO.1
2003-07 → —
|
UCF30 | — | |
| 86285B — Bracket, Amplifier, NO.1 | ||||
| 86285-50090 note |
Bracket, Amplifier, NO.1
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 86285-50110 note |
Bracket, Amplifier, NO.1
2000-08 → 2001-07
ended
|
UCF30 EUR | — | |
| 86285-50110 note |
Bracket, Amplifier, NO.1
2001-07 → 2003-07
ended
|
UCF30 | — | |
| 86285-50110 note |
Bracket, Amplifier, NO.1
2003-07 → —
|
UCF30 | — | |
| 86285G — Guide, Amplifier Bracket, NO.1 | ||||
| 82876-22010 |
Guide, Amplifier Bracket, NO.1
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 82876-22010 |
Guide, Amplifier Bracket, NO.1
2003-07 → —
|
UCF30 | — | |
| 86286 — Bracket, Amplifier, NO.2 | ||||
| 86286-50030 |
Bracket, Amplifier, NO.2
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 86286-50030 |
Bracket, Amplifier, NO.2
2003-07 → —
|
UCF30 | — | |
| 86286B — Bracket, Amplifier, NO.2 | ||||
| 86286-50020 note |
Bracket, Amplifier, NO.2
2000-08 → 2003-07
ended
|
UCF30 | — | |
| 86286-50040 note |
Bracket, Amplifier, NO.2
2000-08 → 2001-07
ended
|
UCF30 EUR | — | |
| 86286-50040 note |
Bracket, Amplifier, NO.2
2001-07 → 2003-07
ended
|
UCF30 | — | |
| 86286-50040 note |
Bracket, Amplifier, NO.2
2003-07 → —
|
UCF30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
