Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01

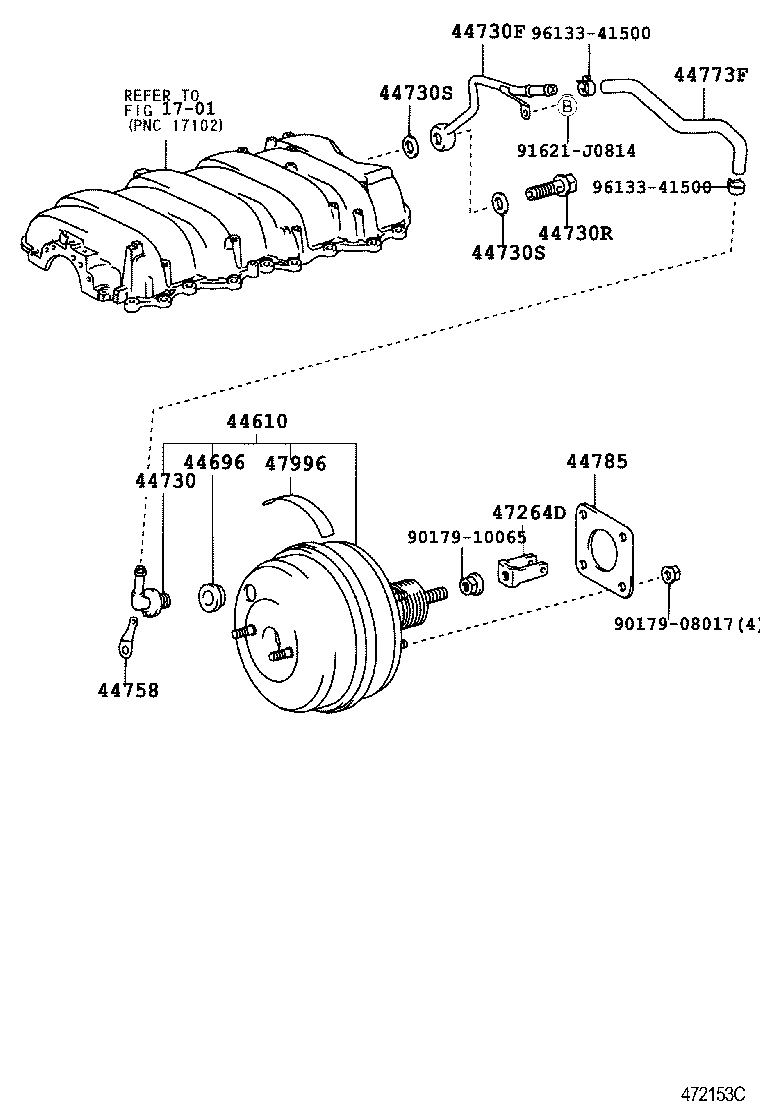

Brake Booster & Vacuum Tube
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730R | Bolt, Union(FOR VACUUM HOSE UNION) |
| 44730S | Gasket(FOR VACUUM HOSE UNION) |
| 44758 | Bracket, Vacuum Check Valve |
| 44773F | Hose, Union TO Check Valve |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 47996 | Label, Brake Bleed Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
