Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01
Height Control (AUTO-LEVELER)

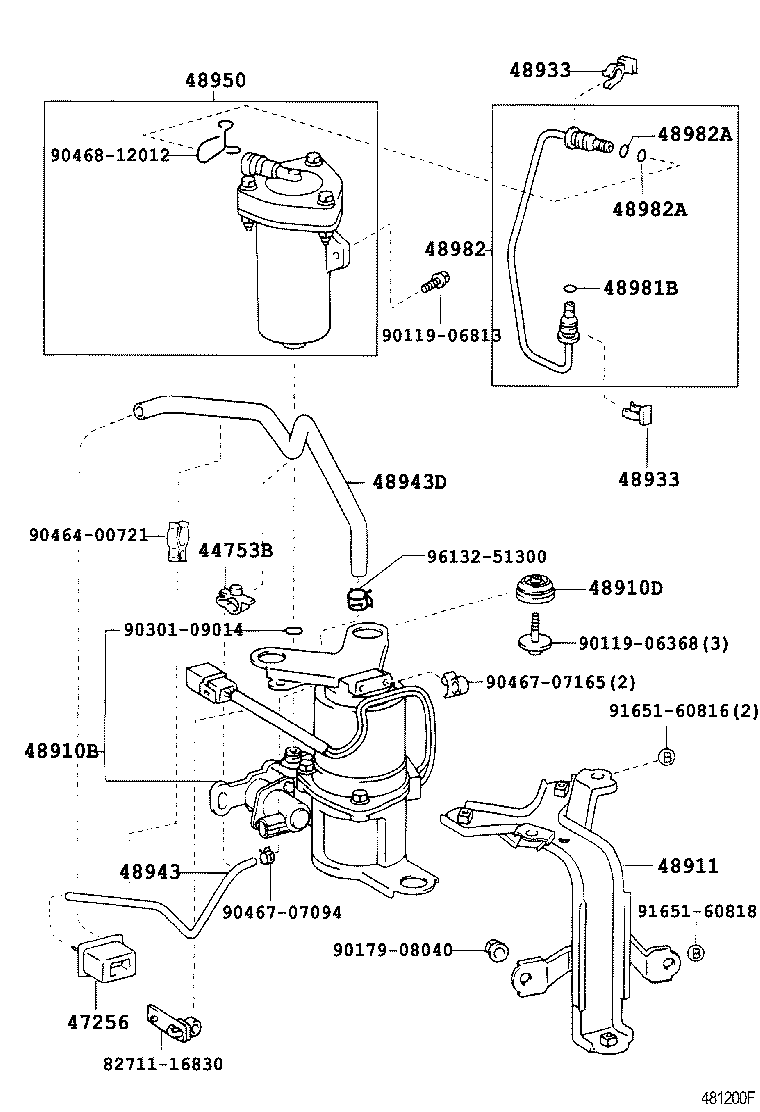

35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44753B | Clamp, Height Control Tube, NO.1 |
| 44753C | Clamp, Height Control Tube, NO.2 |
| 44753E | Clamp, Height Control Tube, NO.3 |
| 44753F | Clamp, Height Control Tube, NO.4 |
| 44753G | Clamp, Height Control Tube NO.5 |
| 44753H | Clamp, Height Control Tube NO.6 |
| 44753J | Clamp, Height Control Tube NO.7 |
| 44753K | Clamp, Height Control Tube NO.8 |
| 44753L | Clamp, Height Control Tube NO.9 |
| 44753M | Clamp, Height Control Tube NO.10 |
| 47256 | Grommet, Cap |
| 48095 | Valve Sub-assy, Height Control, NO.1 |
| 48095D | Ring, O(FOR HEIGHT CONTROL VALVE) |
| 48096 | Valve Sub-assy, Height Control, NO.2 |
| 48096A | Bush, NO.2(FOR HEIGHT CONTROL VALVE) |
| 48096B | Cushion, NO.2(FOR HEIGHT CONTROL VALVE) |
| 48906A | Link Sub-assy, Height Control Sensor, Rear |
| 48907B | Link Sub-assy, Height Control Sensor, Front |
| 48910B | Compressor Assy, Height Control |
| 48910D | Bush, NO.2(FOR HEIGHT CONTROL COMPRESSOR) |
| 48911 | Bracket, Height Control Compressor |
| 48932A | Plate, Height Control Tube |
| 48933 | Holder, Air Connector Clip |
| 48934B | Connector, Height Control Tube |
| 48943 | Hose, Height Control, NO.1 |
| 48943D | Hose, Rear Height Control, NO.1 |
| 48950 | Dryer Assy, Height Control |
| 48981B | Ring, O(FOR HEIGHT CONTROL TUBE NO.1) |
| 48982 | Tube, Height Control, NO.2 |
| 48982A | Ring, O(FOR HEIGHT CONTROL TUBE NO.2) |
| 48983 | Tube, Height Control, NO.3 |
| 48984 | Tube, Height Control, NO.4 |
| 48986 | Tube, Height Control, NO.6 |
| 48987 | Tube, Height Control, NO.7 |
| 48988 | Tube, Height Control, NO.8 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
