Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01

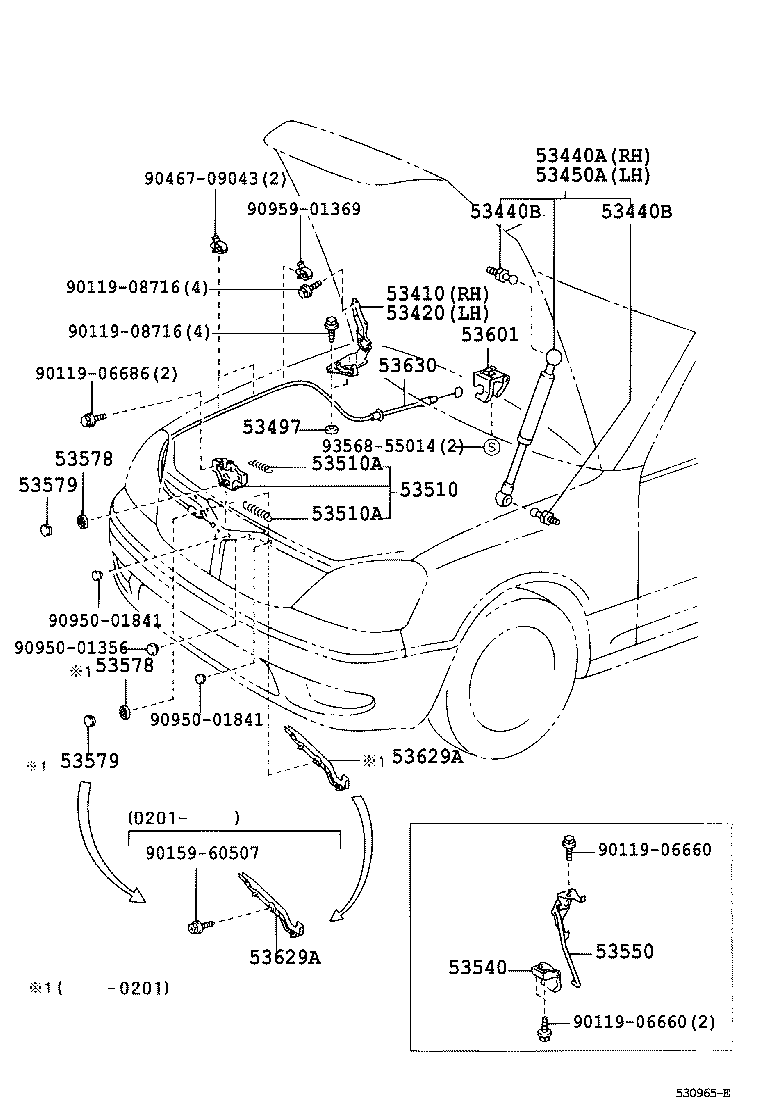

Hood Lock & Hinge
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440A | Support Assy, Hood, RH |
| 53440B | Bolt, Hood Support, NO.1 |
| 53450A | Support Assy, Hood, LH |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53540 | Lever Assy, Auxiliary Catch Release |
| 53550 | Hook Assy, Hood Auxiliary Catch |
| 53578 | Nut, Hood Lock |
| 53579 | Cap, Hood Lock Nut |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53629A | Cover, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
