Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01

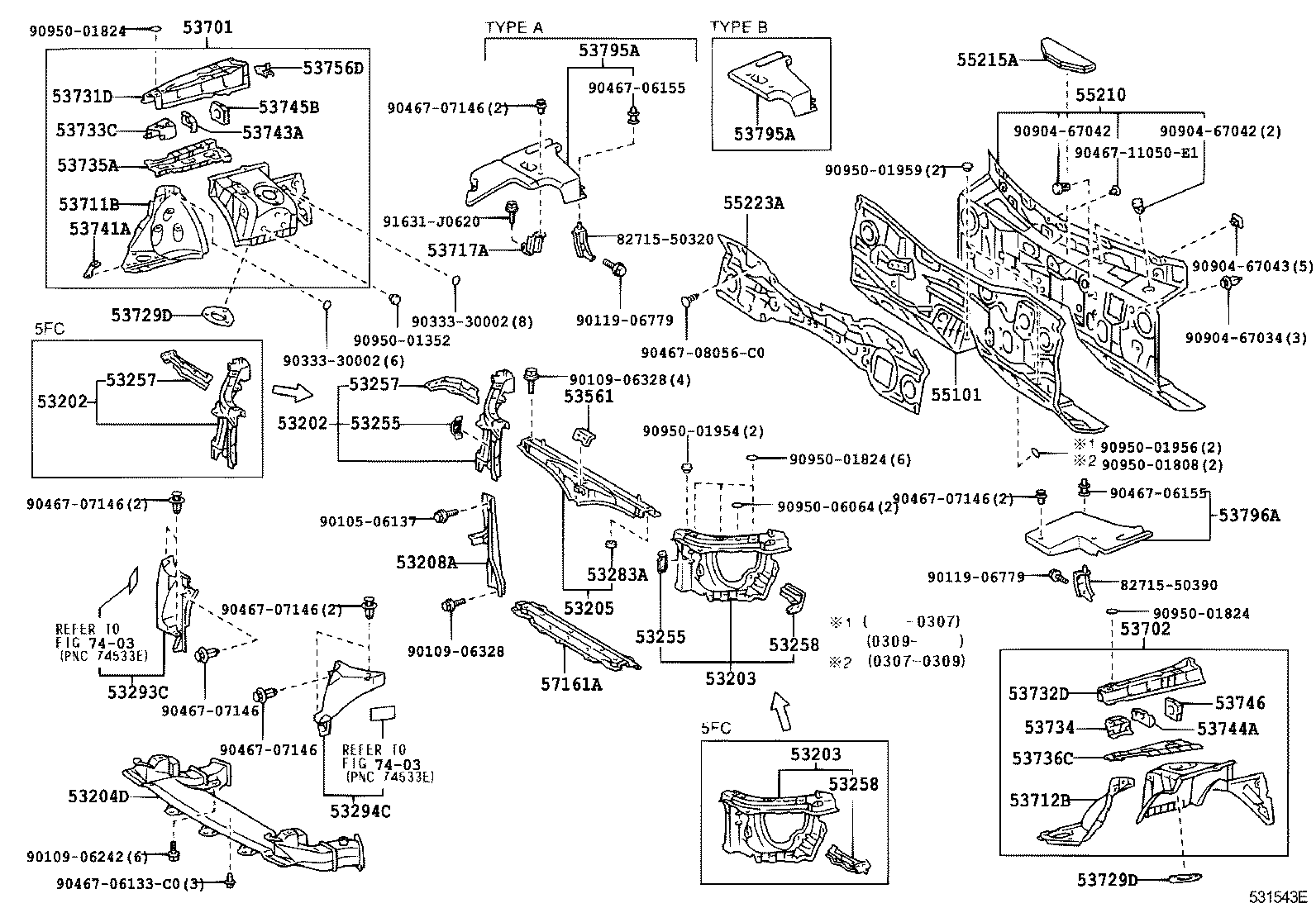

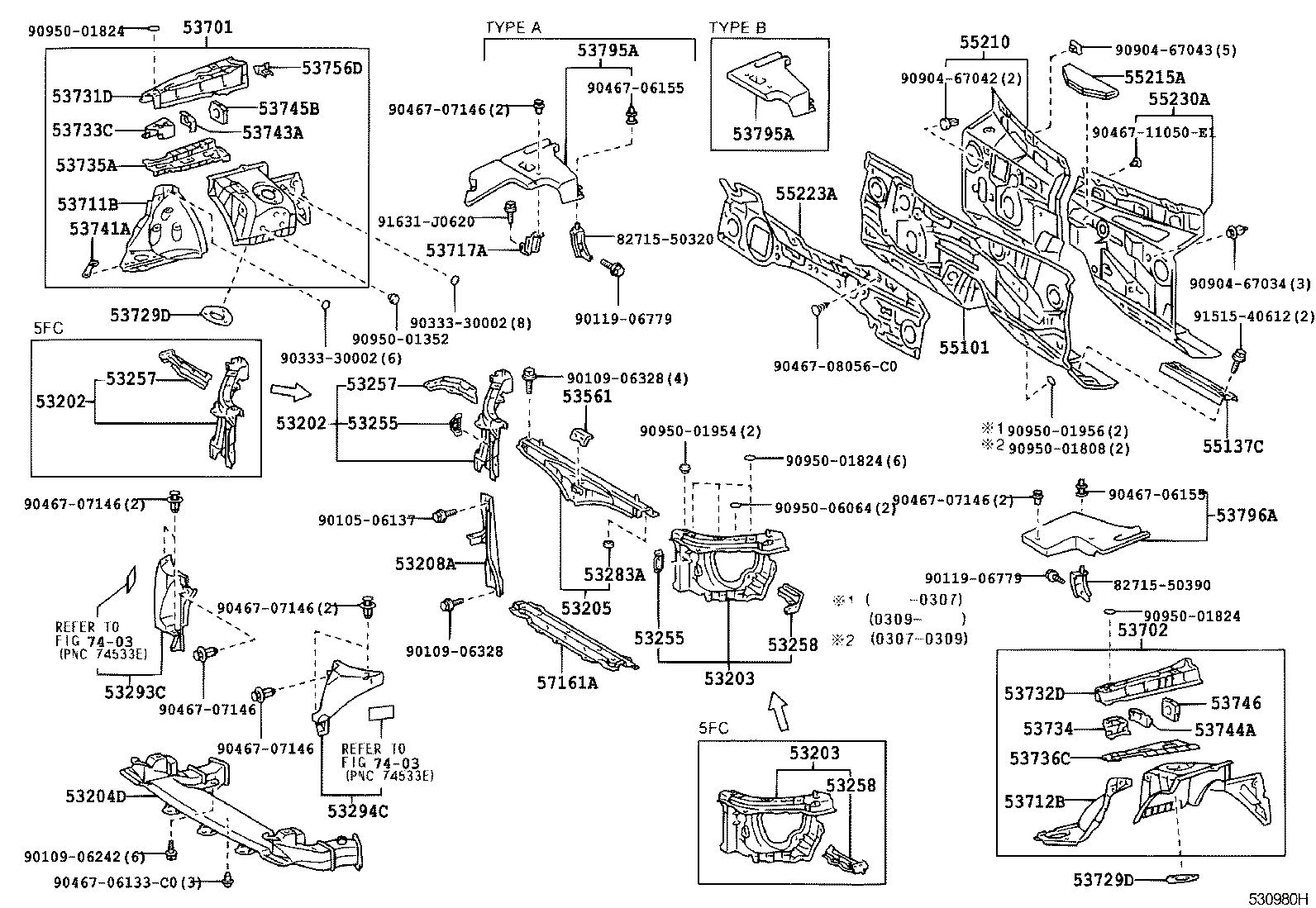

Front Fender Apron & Dash Panel

39 part groups · 3 illustrations

PNC	Description
53202	Support Sub-assy, Radiator, RH
53203	Support Sub-assy, Radiator, LH
53204D	Guide Sub-assy, Lower Wind
53205	Support Sub-assy, Radiator, Upper
53208A	Support Sub-assy, Hood Lock
53255	Bracket, Relay Box Mounting
53257	Bracket, Front End Panel Mounting, RH
53258	Bracket, Front End Panel Mounting, LH
53283A	Reinforcement, Radiator Support, Lower
53293C	Deflector, Radiator Side, RH
53294C	Deflector, Radiator Side, LH
53561	Guide, Hood Auxiliary Catch Hook
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53711B	Apron, Front Fender, Front RH
53712B	Apron, Front Fender, Front LH
53717A	Plate, Fender Apron
53729D	Reinforcement, Front Spring Support, NO.3
53731D	Member, Front Apron TO Cowl Side, Upper RH
53732D	Member, Front Apron TO Cowl Side, Upper LH
53733C	Patch, Front Fender Apron
53734	Patch, Front Fender Apron, NO.4
53735A	Member, Front Apron TO Cowl Side, Lower RH
53736C	Member, Front Apron TO Cowl Side, Lower LH
53741A	Plate, Fender Apron Reinforce, RH
53743A	Reinforcement, Front Fender Apron, Front RH
53744A	Reinforcement, Front Fender Apron, Front LH
53745B	Reinforcement, Front Fender Apron, Rear RH
53746	Reinforcement, Front Fender Apron, Rear LH
53756D	Bracket, Brake Actuator Mounting
53795A	Cover, Engine Room, Side
53796A	Cover, Engine Room Side, LH
55101	Panel Sub-assy, Dash
55137C	Bracket, Toe Board, NO.2
55210	Insulator Assy, Dash Panel
55215A	Pad, Dash Panel Insulator, NO.3
55223A	Insulator, Dash Panel, Outer
55230A	Insulator Assy, Dash Panel, NO.4
57161A	Member, Front Cross, Front W/Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
