Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

32 part groups · 3 illustrations

Illustrations

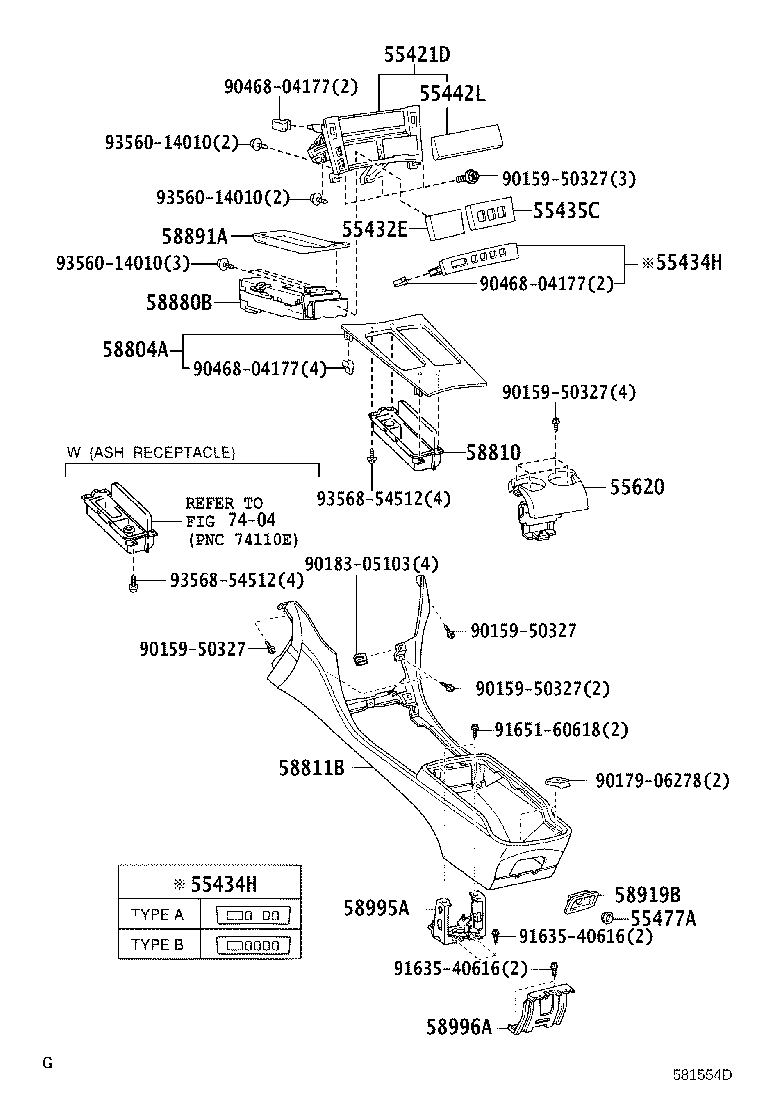

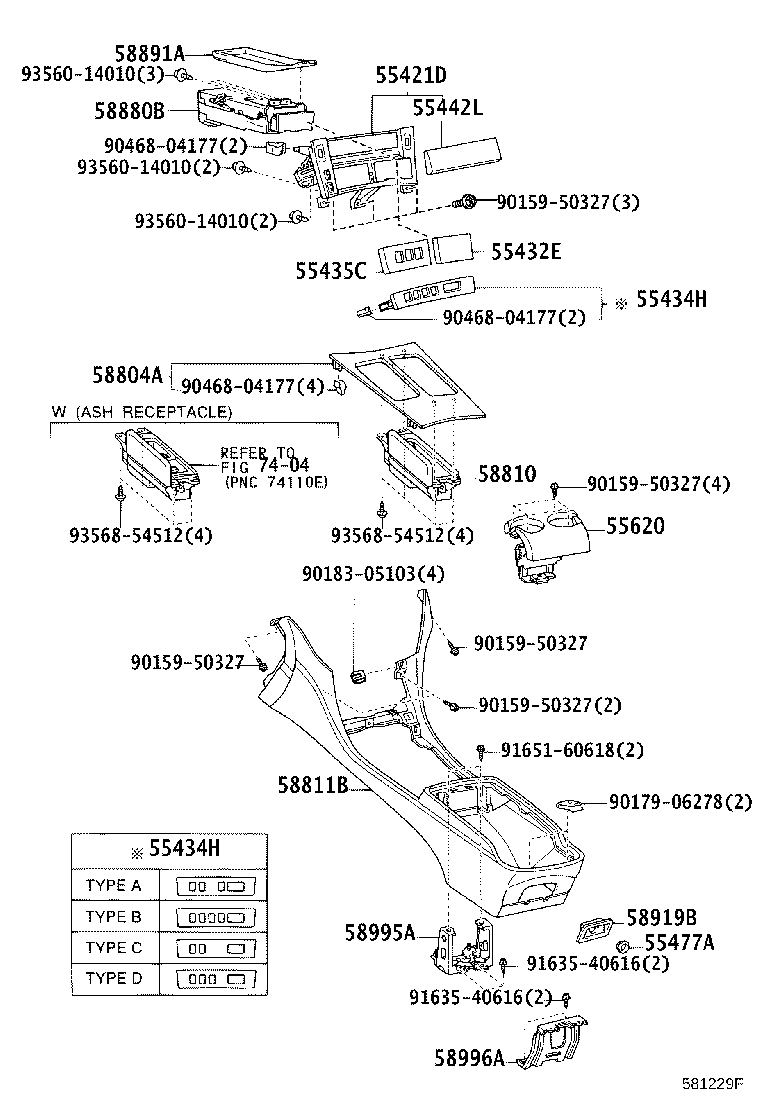

Figure 581209D 581209D 2000-08 → — Figure 581554D 581554D 2000-08 → — Figure 581229F 581229F 2000-08 → —

Part groups

PNCDescription
55421D Panel, Instrument Cluster Finish, Upper
55432E Panel, Instrument Panel Finish, Lower NO.1
55434H Panel, Instrument Panel Finish, Lower Center
55435C Panel, Instrument Panel Finish, End RH
55442L Door, Instrument Panel
55477A Bezel, Cigarette Lighter Hole
55620 Holder Assy, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58810 Console Assy
58811B Box, Console
58815A Carpet, Console Box
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58860A Register Assy, Console Box
58871 Cushion, Console Box
58880B Box Assy, Equipment Set
58891A Panel, Equipment Set, NO.1
58901A Box Sub-assy, Console, Rear
58902B Bracket Sub-assy, Console Box Hinge, NO.1
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58915B Cover, Console Compartment Door Box, Rear
58919B Plate, Console Box
58920A Armrest Assy, Rear Console
58952A Door, Console Compartment, Inner
58971 Lock, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
81206B Lamp Sub-assy, Console Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
