Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

42 part groups · 6 illustrations

Illustrations

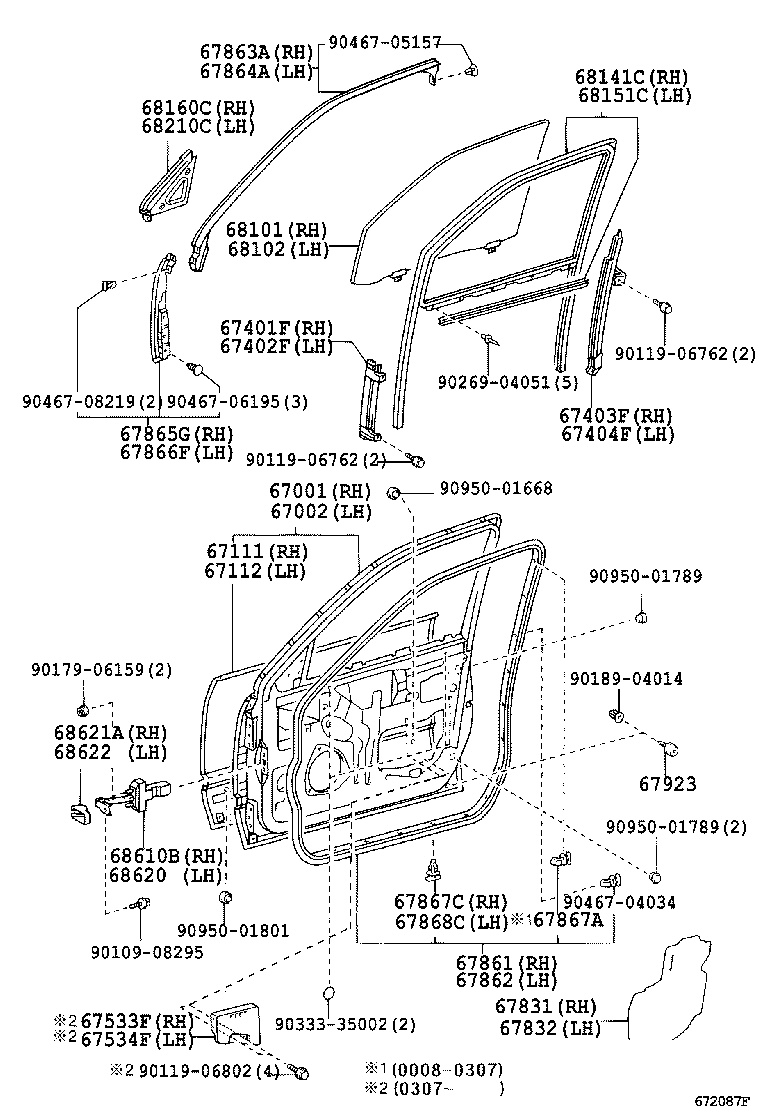

Figure 672053F 672053F 2000-08 → — Figure 672087F 672087F 2000-08 → — Figure 672096B 672096B 2000-08 → 2001-03 Figure 673178D 673178D 2001-03 → 2003-07 Figure 673231 673231 2003-07 → — Figure 672098 672098 2000-08 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67533F Pad, Front Door Lower Frame Garnish, RH
67534F Pad, Front Door Lower Frame Garnish, LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67663D Garnish, Door Frame, RH
67664C Garnish, Door Frame, LH
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67837B Seal, Front Door Dust Proof
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67863A Weatherstrip, Front Door, Upper RH
67864A Weatherstrip, Front Door, Upper, LH
67865G Weatherstrip, Front Door, NO.3 RH
67866F Weatherstrip, Front Door, NO.3 LH
67867A Clip, Door Weatherstrip(FOR FRONT DOOR)
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67923 Cushion, Front Door Stiffener, NO.1
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
68621A Cover, Front Door Check, RH
68622 Cover, Front Door Check, LH
81080 Lamp Assy, Interior Illumination, NO.1
81080A Lamp Assy, Interior Illumination, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
