Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01

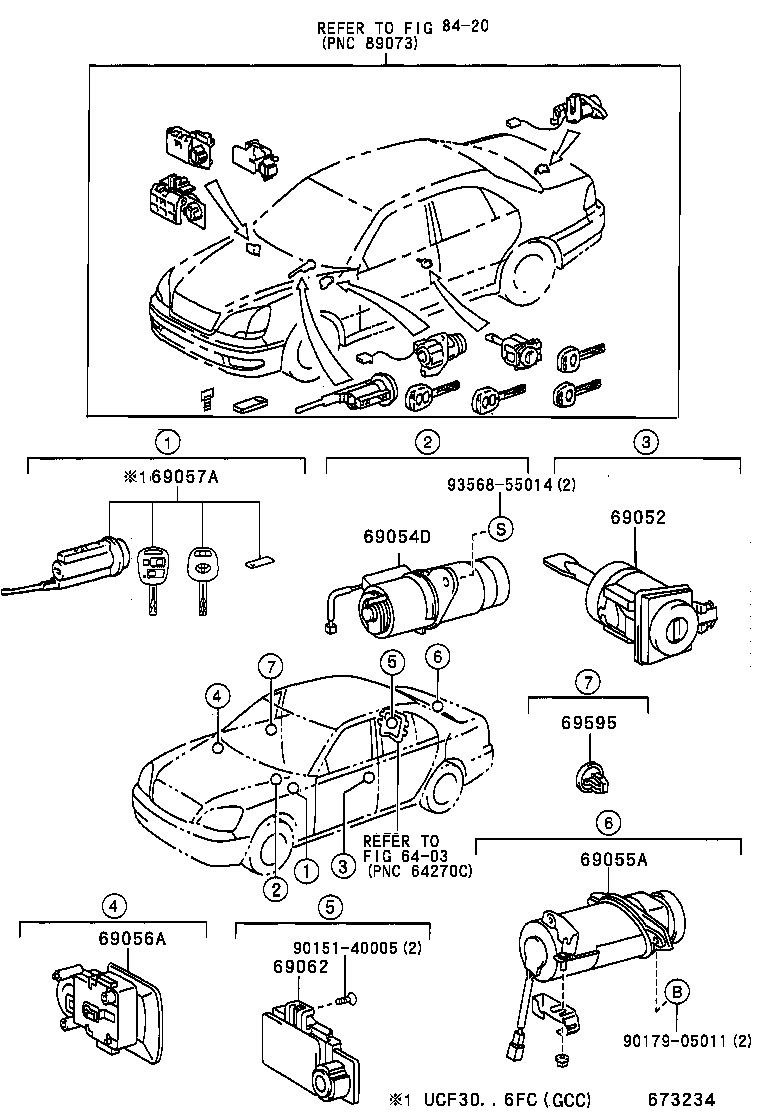

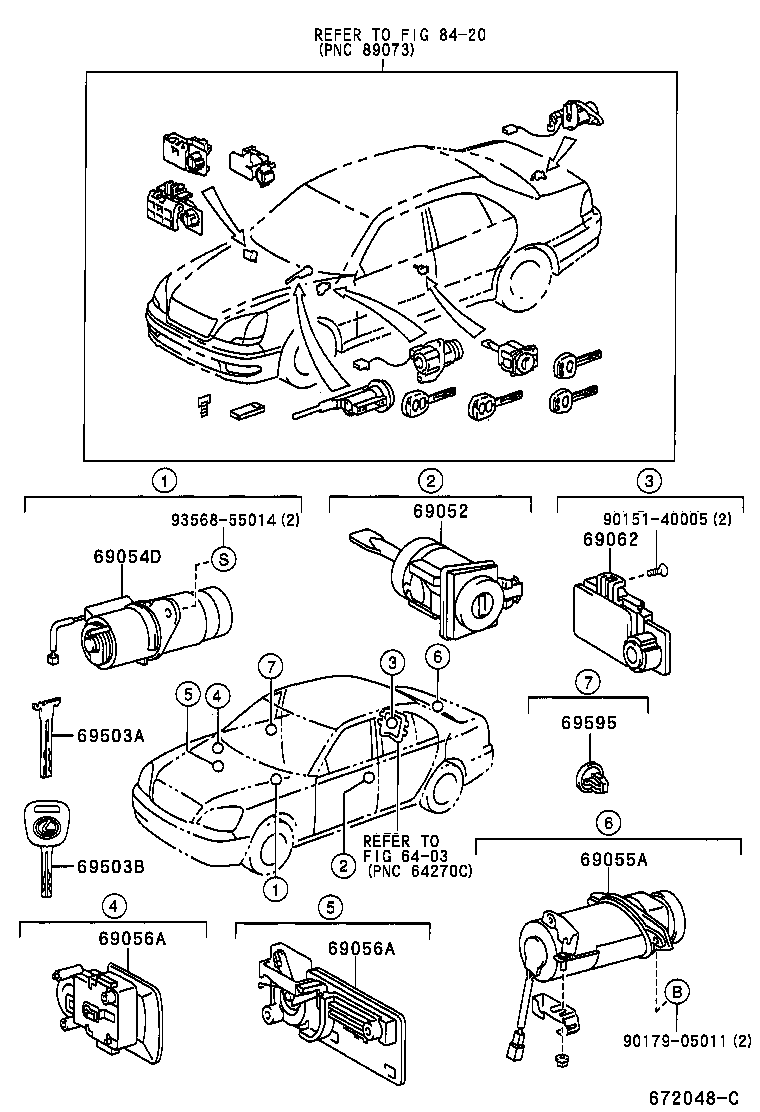

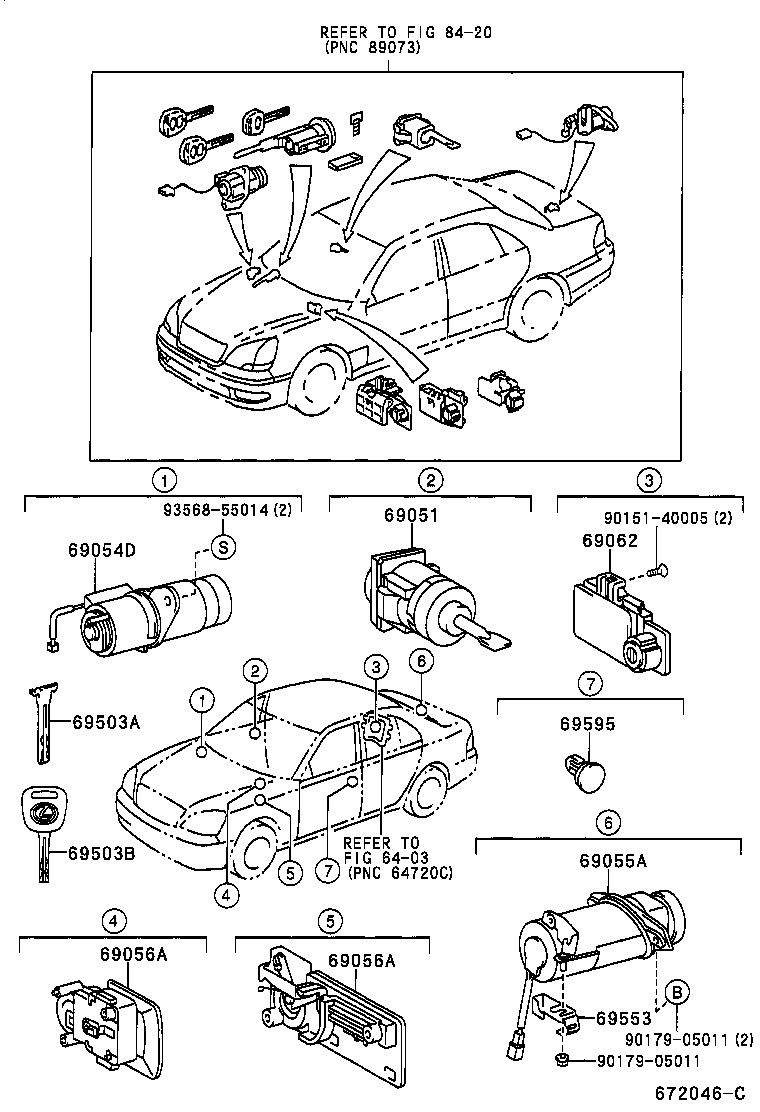

Lock Cylinder Set
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69054D | Cylinder & Key Set, Luggage Opener Cancel |
| 69055A | Cylinder & Key Set, Luggage Compartment Lock |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69503A | Key, Blank |
| 69503B | Key, Cut |
| 69553 | Protector, Luggage Compartment Key Cylinder |
| 69595 | Protector, Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
