Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01

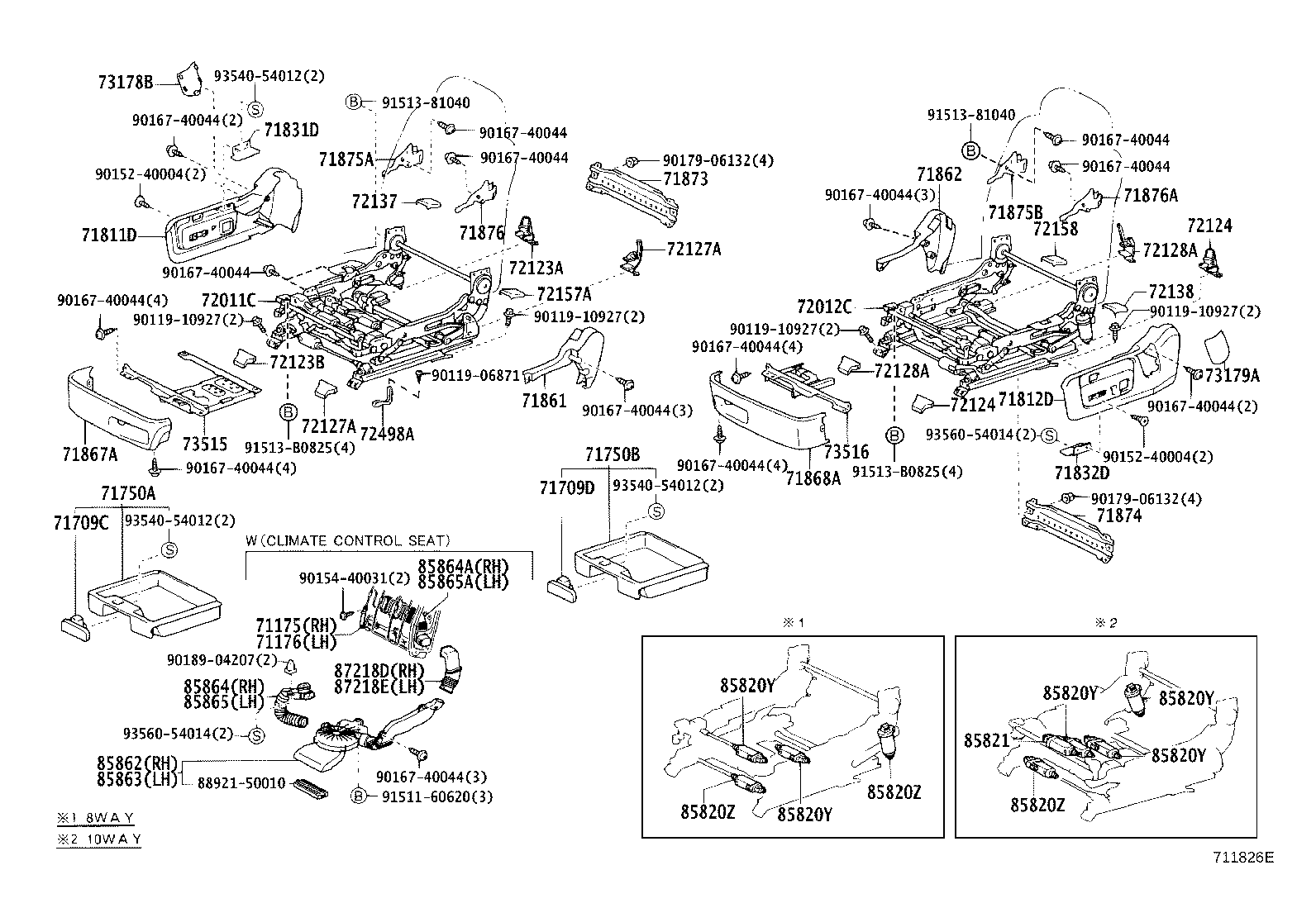

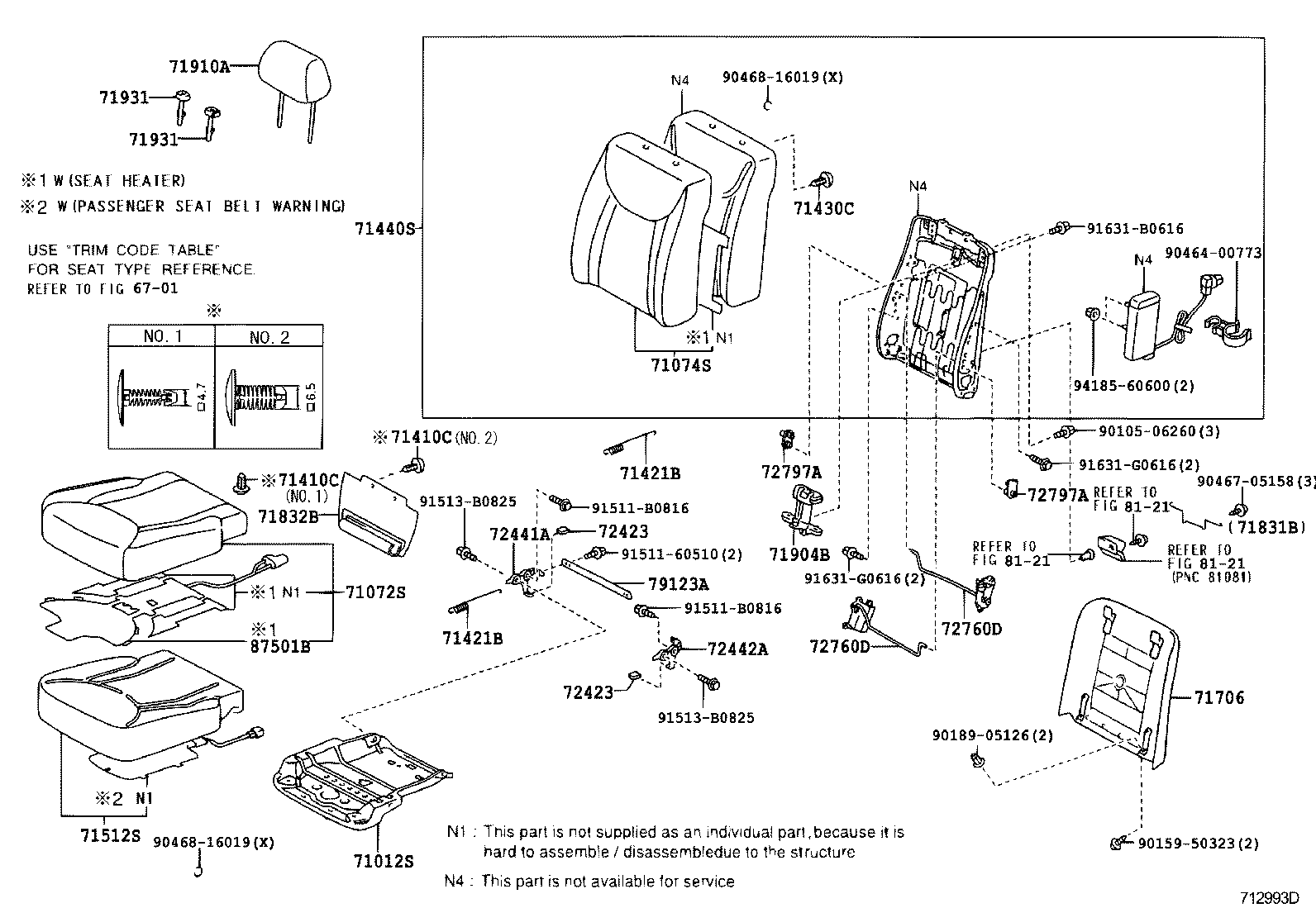

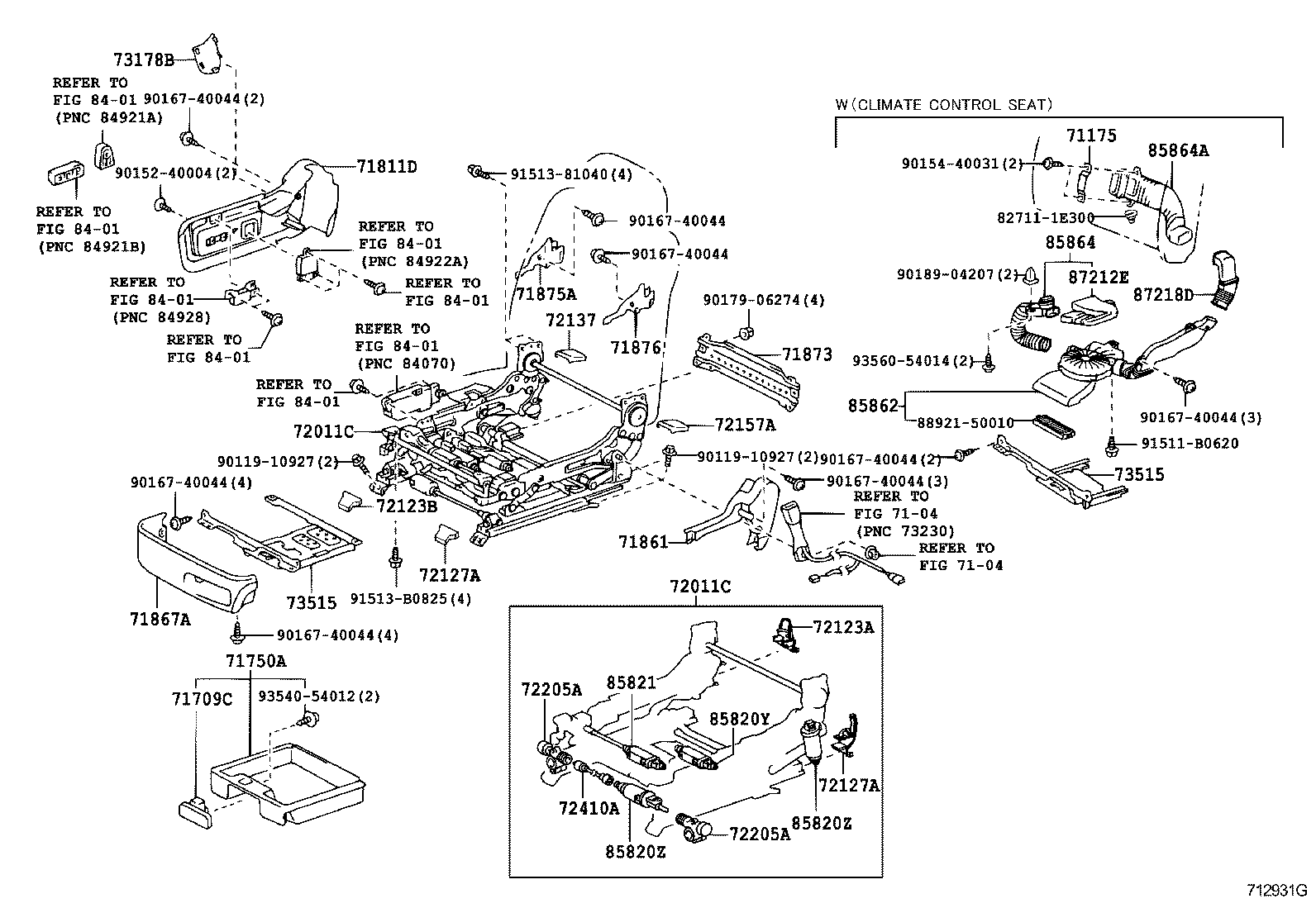

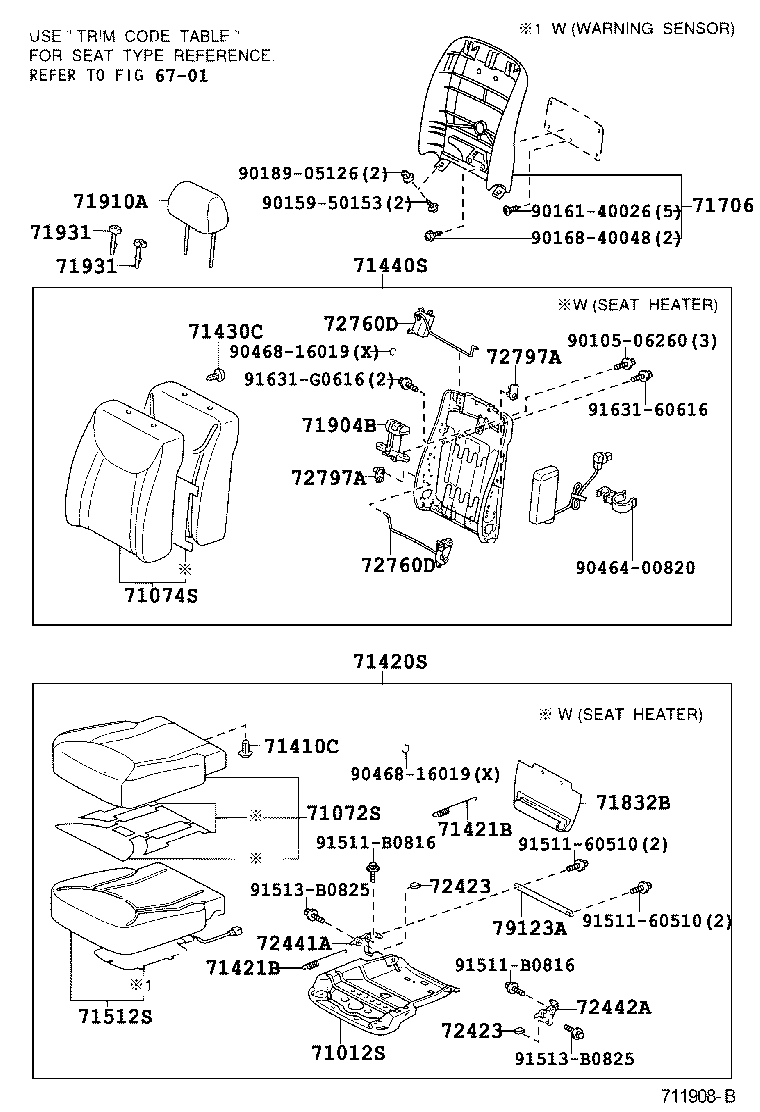

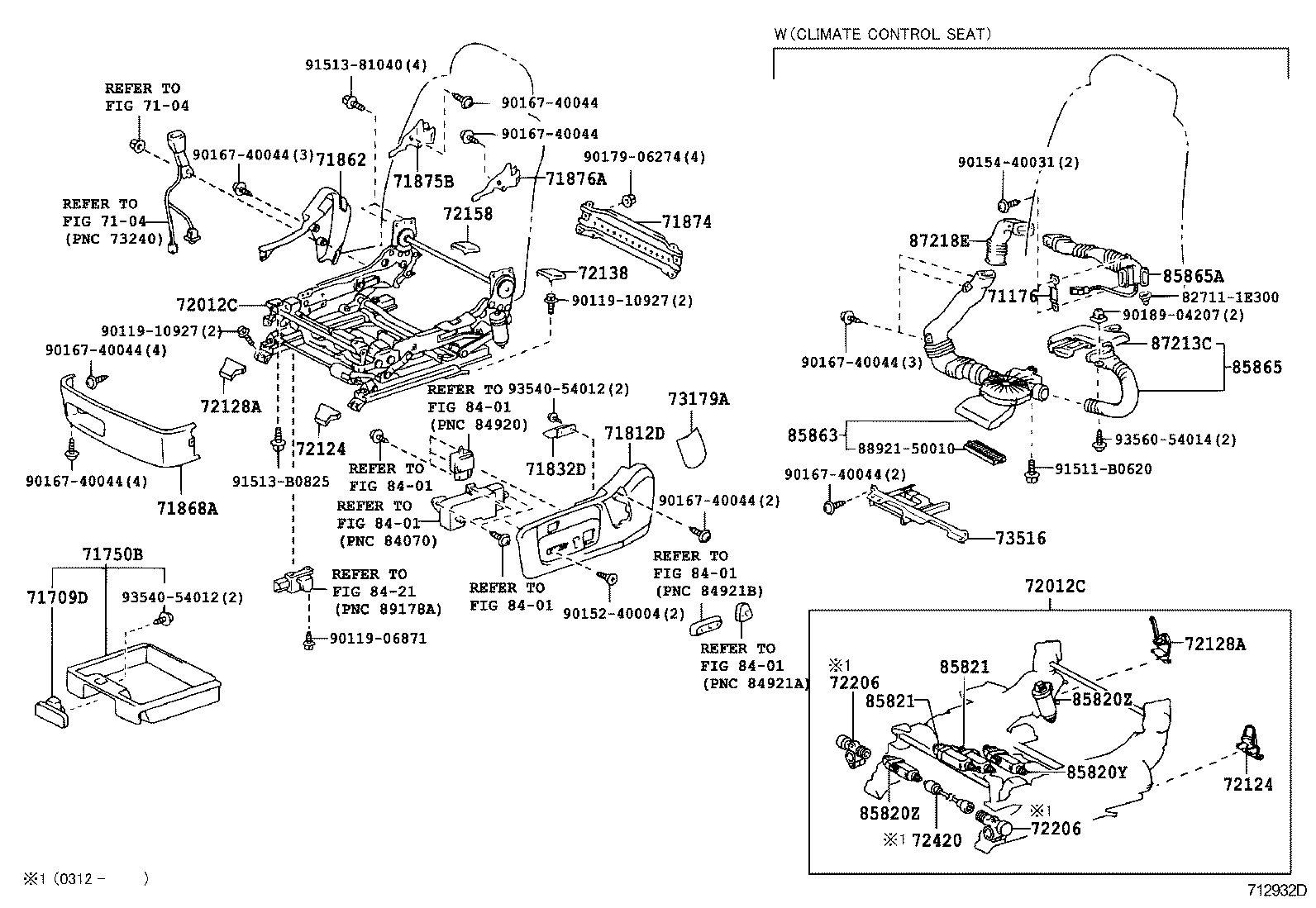

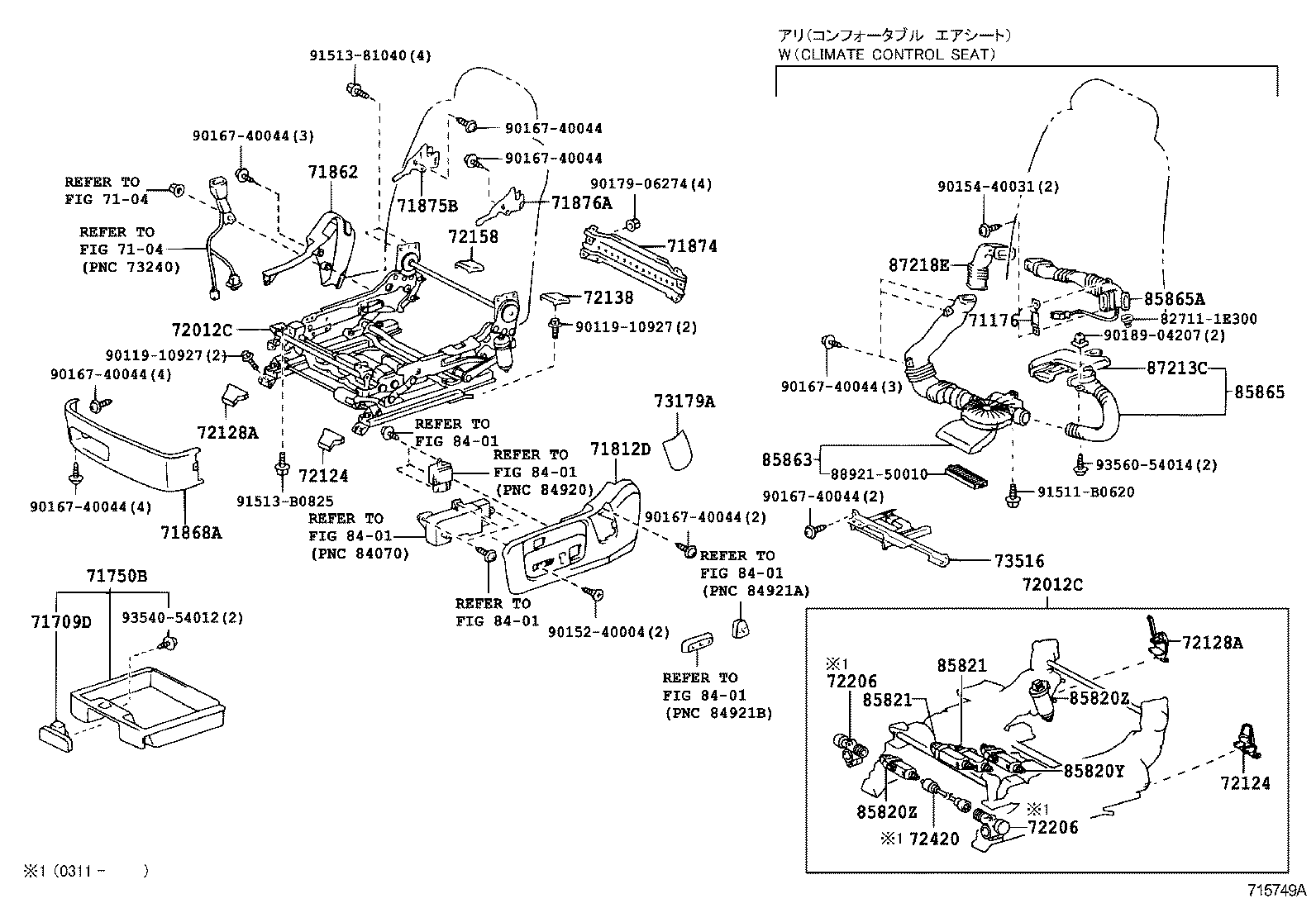

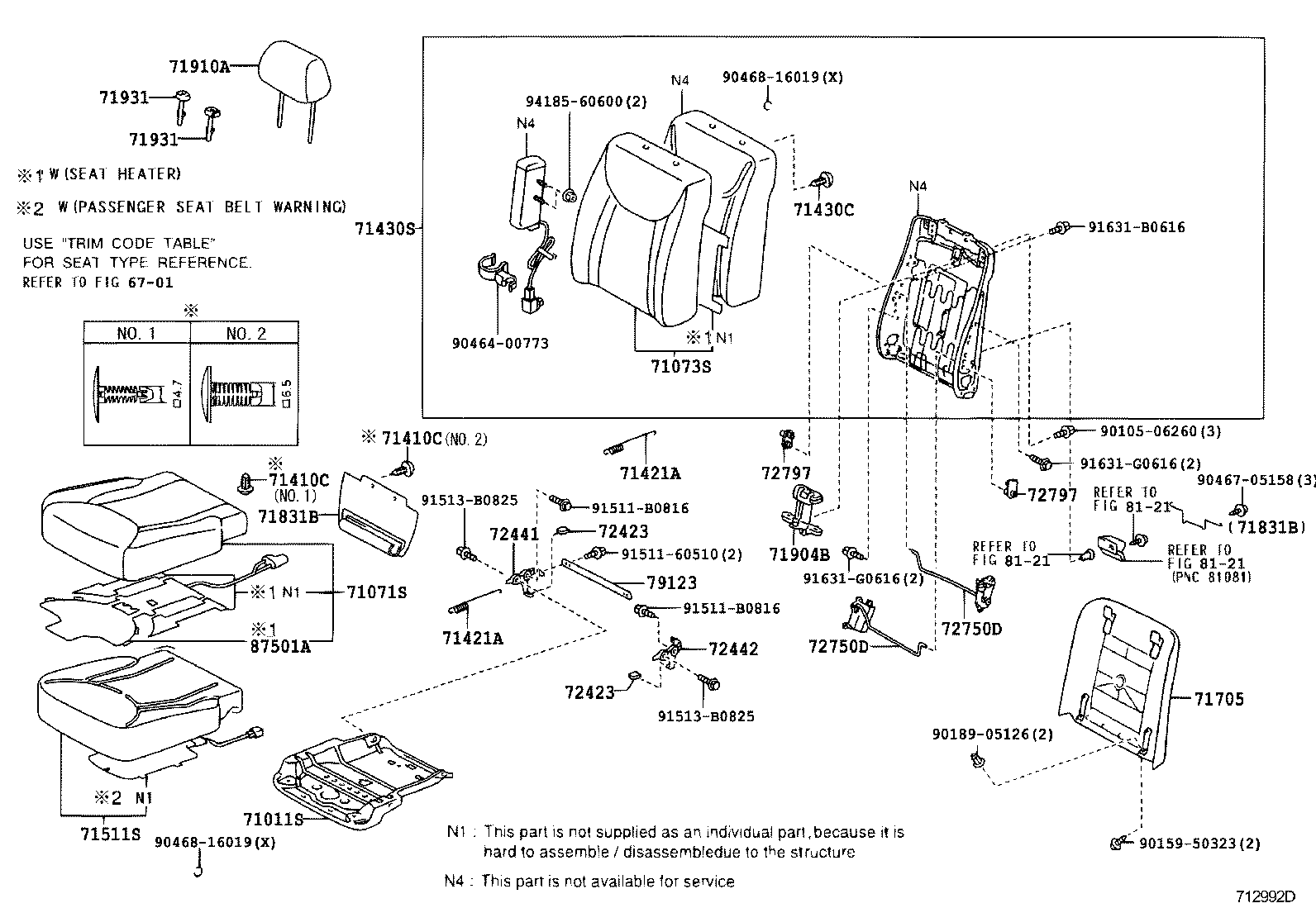

Front Seat & Seat Track
89 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71175 | Plate, Front Seatback Spring Set, Inside RH |
| 71176 | Plate, Front Seatback Spring Set, Inside LH |
| 71410C | Clip(FOR FRONT SEAT CUSHION) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71421A | Spring, Front Seat Cushion |
| 71421B | Spring, Front Seat Cushion |
| 71430C | Clip |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71705 | Board Sub-assy, Front Seatback, RH |
| 71706 | Board Sub-assy, Front Seatback, LH |
| 71709C | Lock Sub-assy, Seat Under Tray |
| 71709D | Lock Sub-assy, Seat Under Tray |
| 71750A | Tray Assy, Front Seat Under |
| 71750B | Tray Assy, Front Seat Under |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831B | Cover, Front Seat Hinge, RH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71904B | Adjuster Sub-assy, Front Seat Headrest |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72123B | Cover, Seat Track Bracket, Outer Front |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72205A | Housing Sub-assy, Power Seat, NO.1 |
| 72206 | Housing Sub-assy, Power Seat, NO.2 |
| 72410A | Cable Assy, Seat Adjuster Drive, NO.1 |
| 72420 | Cable Assy, Seat Adjuster Drive, NO.2 |
| 72423 | Hook, Vertical Adjuster Spring |
| 72441 | Link, Vertical Travel |
| 72441A | Link, Front Seat Travel, NO.1 |
| 72442 | Link, Front Seat Travel, NO.2 |
| 72442A | Link, Front Seat Travel, NO.2 |
| 72498A | Cover, Vertical Adjuster Bracket, LH |
| 72750D | Adjuster Assy, Lumbar Support, RH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 72797 | Spacer, Lumbar Support |
| 72797A | Spacer, Lumbar Support |
| 73178B | Cap, Seat Belt Anchor Cover |
| 73179A | Cap, Seat Belt Anchor Cover, LH |
| 73515 | Rail, Front Seat Under Tray, NO.1 |
| 73516 | Rail, Front Seat Under Tray, NO.2 |
| 79123 | Plate, NO.1 Seat Cushion |
| 79123A | Plate, NO.1 Seat Cushion |
| 85820Y | Motor Assy, Power Seat |
| 85820Z | Motor Assy, Power Seat |
| 85821 | Motor Assy, Power Seat |
| 85862 | Blower, Seat Climate Control, RH |
| 85863 | Blower, Seat Climate Control, LH |
| 85864 | Controller, Seat Climate Control,RH |
| 85864A | Controller, Seat Climate Control, RH |
| 85865 | Controller, Seat Climate Control,LH |
| 85865A | Controller, Seat Climate Control, LH |
| 87212E | Duct, Air, Rear RH |
| 87213C | Duct, Air, Rear LH |
| 87218D | Duct, Air, RR NO.6 |
| 87218E | Duct, Air, RR NO.6 |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
