Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

25 part groups · 3 illustrations

Illustrations

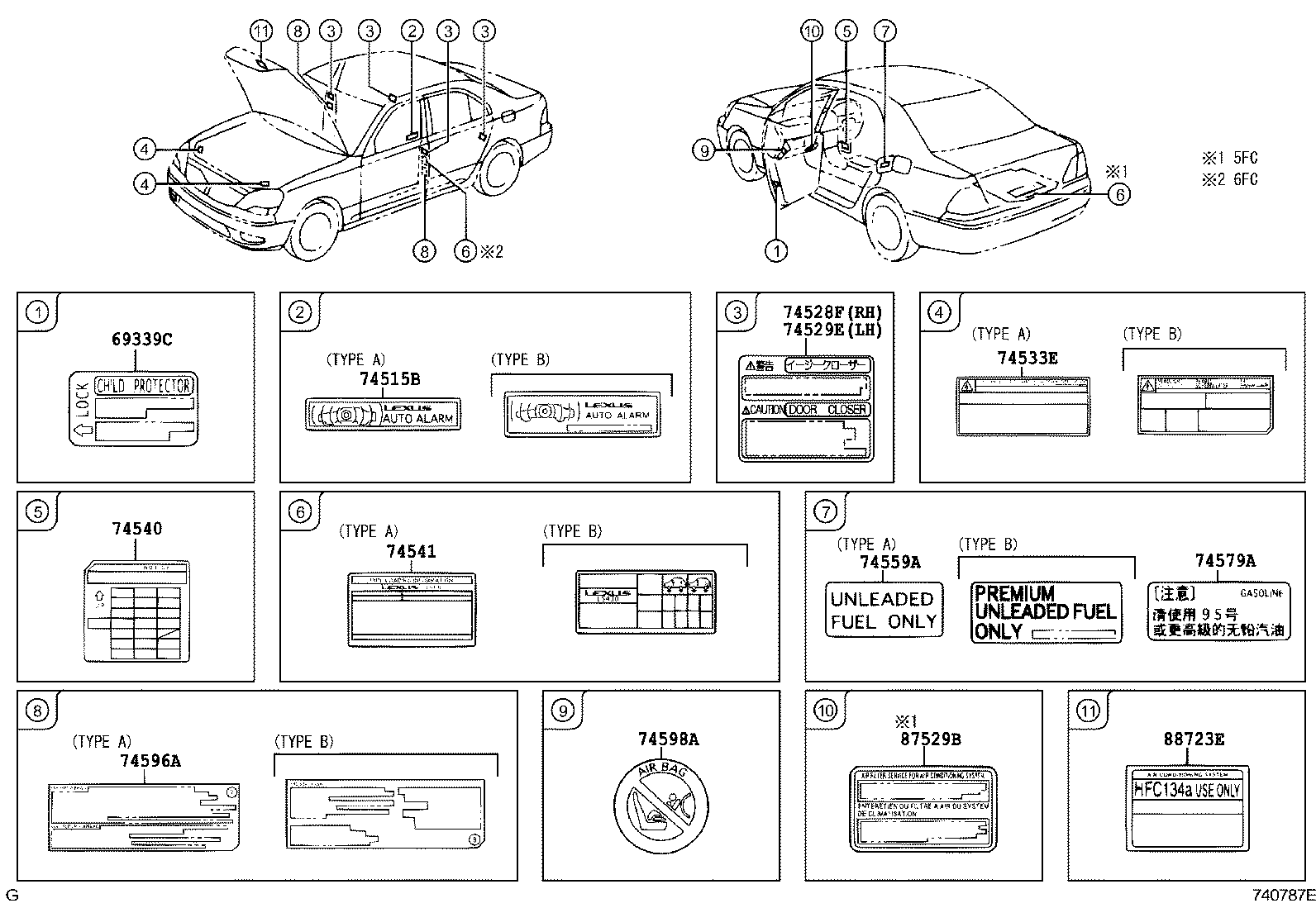

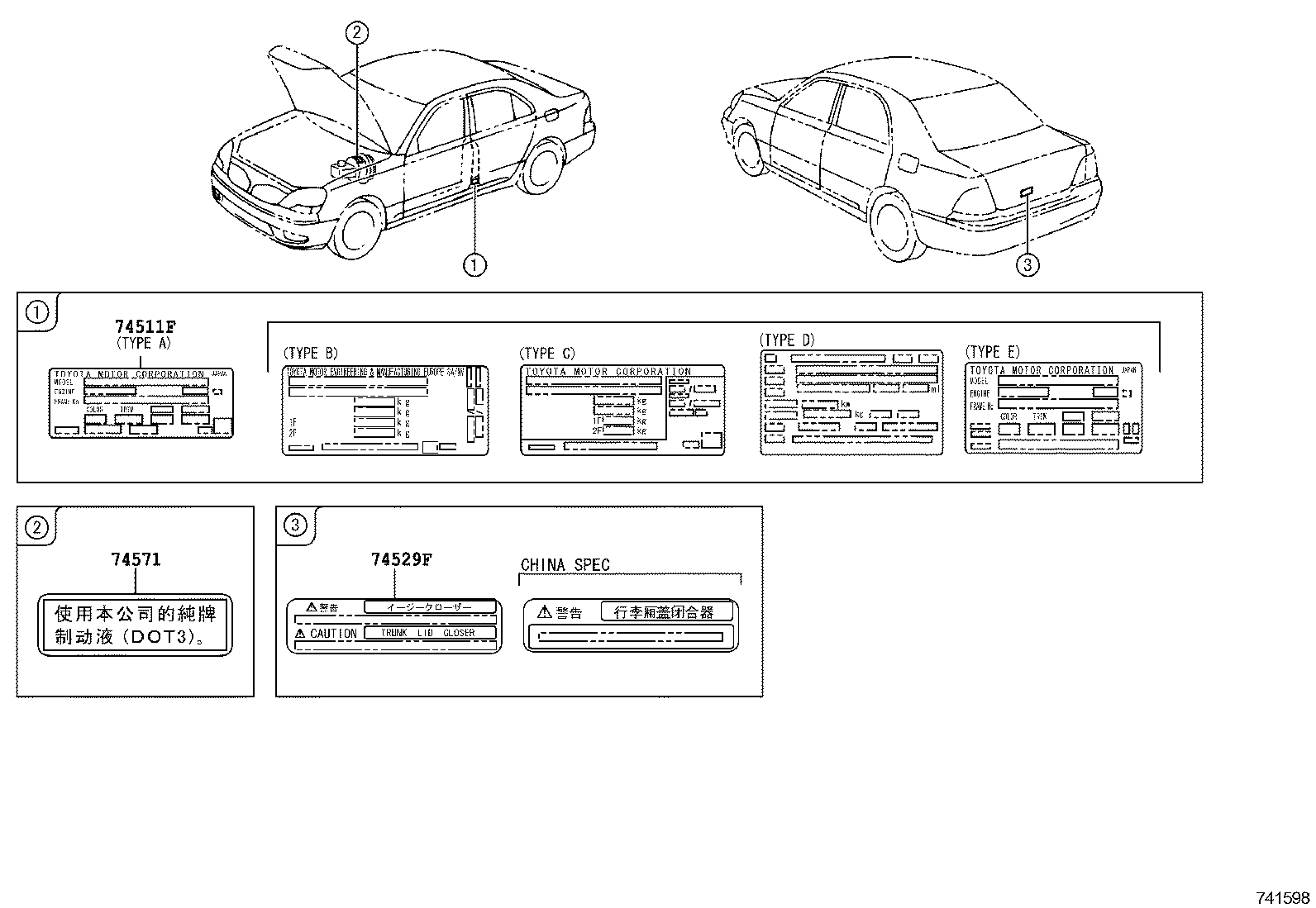

Figure 745876 745876 2000-08 → — Figure 740787E 740787E 2000-08 → — Figure 741598F 741598F 2000-08 → —

Part groups

PNCDescription
11278B Label, Engine Emission Compliance Information
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
11298B Label, Emission Control Information
13564 Label, Timing Belt Replacement Information
16448A Plate, Radiator Caution
16793E Label, Cooling Fan Caution
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74528F Label, Door Closer Caution, RH
74529E Label, Door Closer Caution, LH
74529F Label, Luggage Compartment Door
74533E Label, Headlamp Voltage Caution
74540 Plate, Fuse Block Caution
74541 Plate, Tire Pressure Caution
74559A Plate, Fuel Caution
74571 Plate, Brake Fluid Caution
74579A Label, Unleaded Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
86995E Label, Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
