Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01

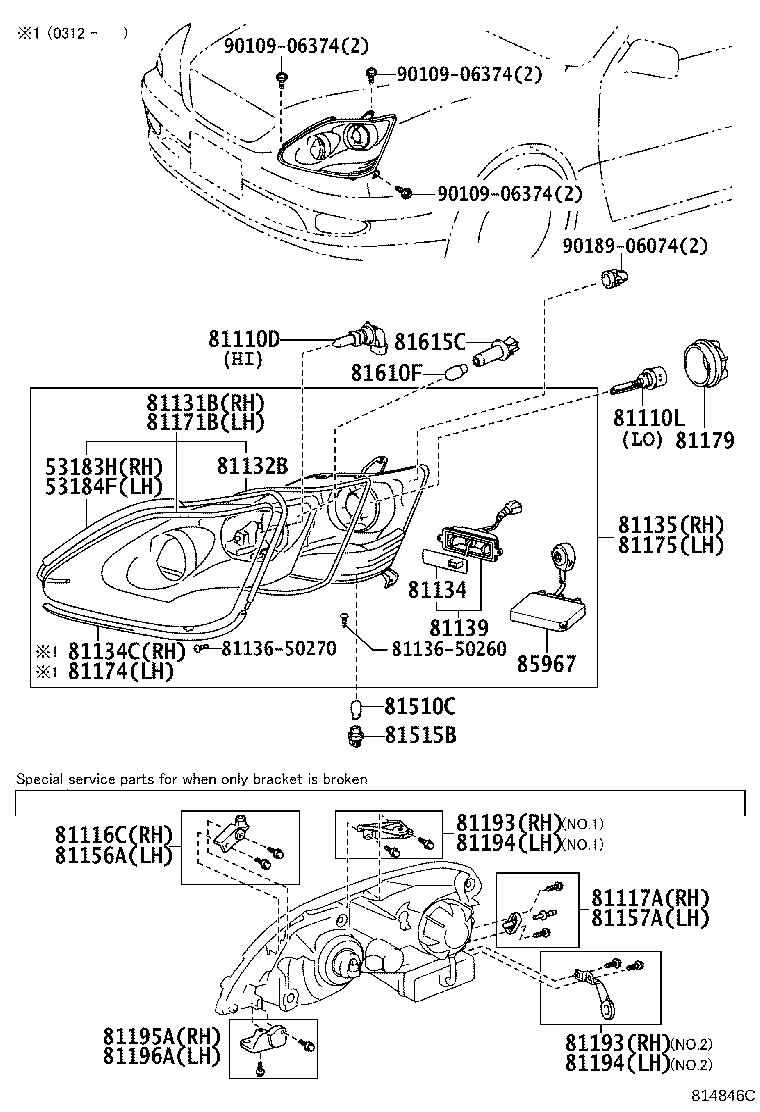

Headlamp
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183H | Seal, Headlamp Cover, RH |
| 53184F | Seal, Headlamp Cover, LH |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81116C | Bracket, Headlamp, RH |
| 81117A | Bracket, Headlamp, RH |
| 81131B | Head Lamp Lens, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81134C | Gasket, Headlamp Body, RH |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81156A | Bracket, Headlamp, LH |
| 81157A | Bracket, Headlamp, LH |
| 81171B | Head Lamp Lens, LH |
| 81174 | Gasket, Headlamp Body, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81179 | Cover, Headlamp Socket |
| 81189 | Cover, Headlamp |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615C | Socket & Wire, Clearance Lamp |
| 85967 | Computer, Light Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
