Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01
Interior Lamp

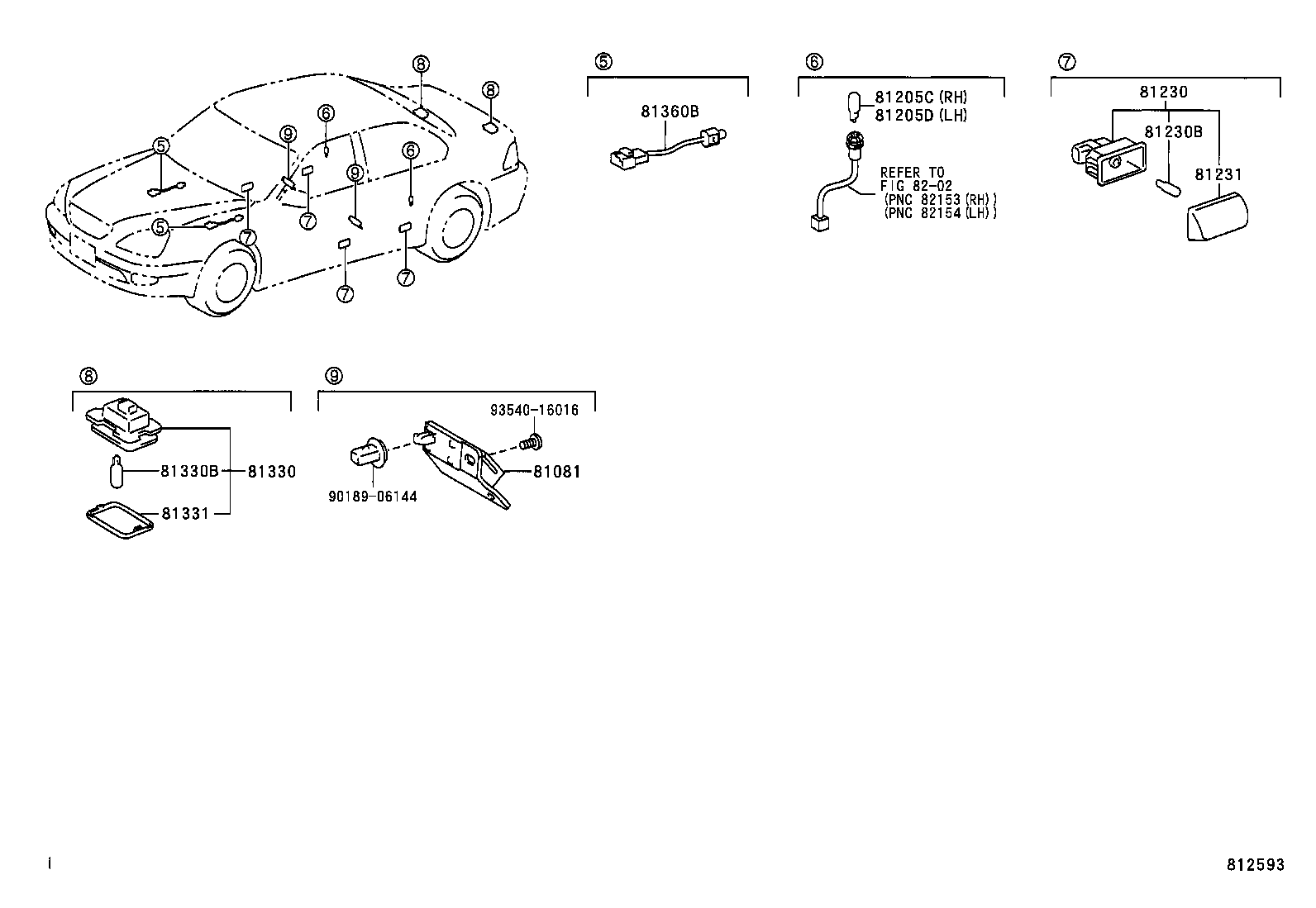

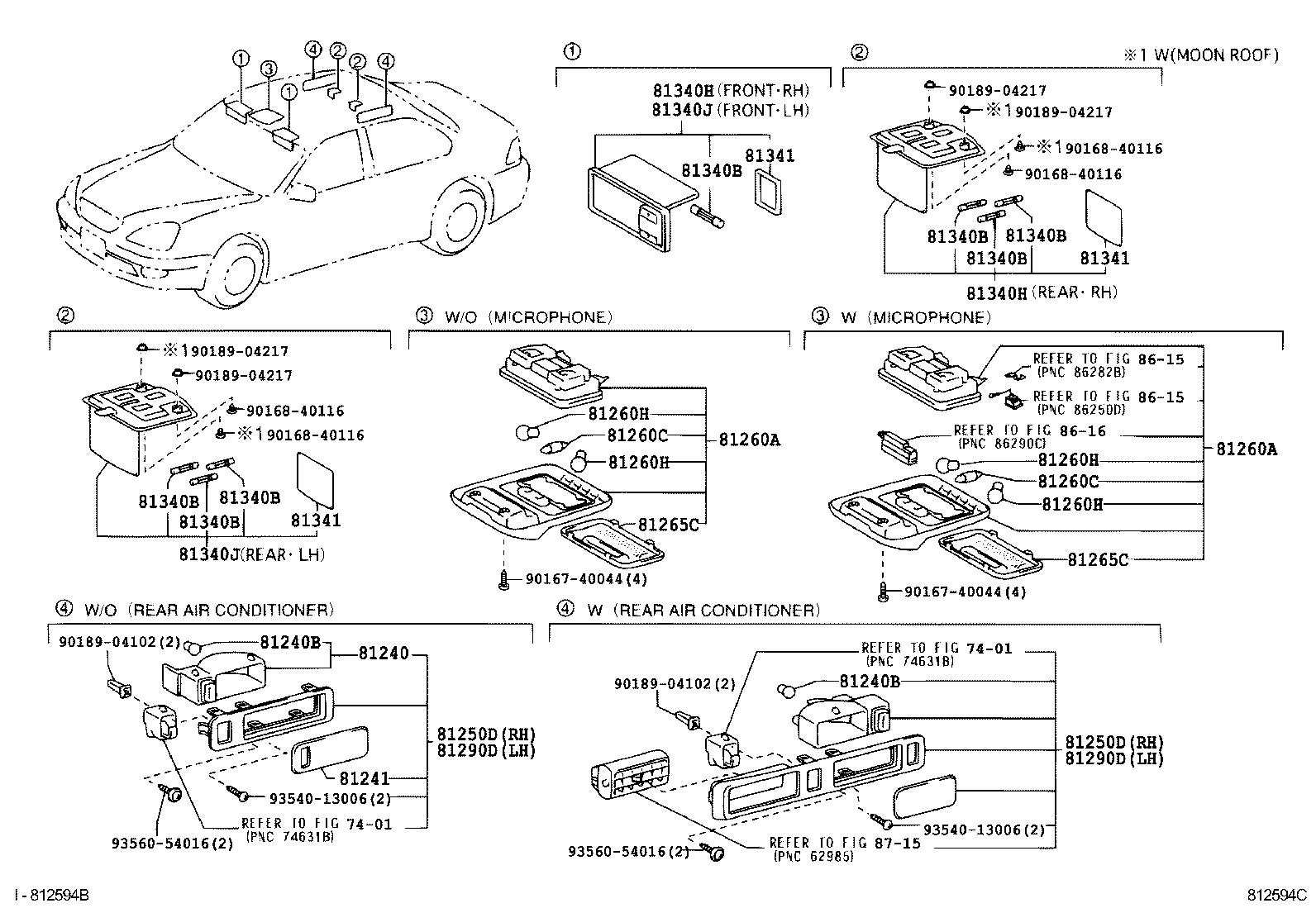

23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81081 | Lamp Sub-assy, Interior Illumination |
| 81205C | Bulb, Ash Receptacle Lamp, Rear RH |
| 81205D | Bulb, Ash Receptacle Lamp, Rear LH |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81231 | Lens, Courtesy Lamp |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81241 | Lens, Room Lamp, NO.1 |
| 81250D | Lamp Assy, Rear Room, RH |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81260H | Bulb(FOR MAP LAMP), NO.2 |
| 81265C | Lens, Map Lamp, NO.1 |
| 81290D | Lamp Assy, Rear Room, LH |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331 | Lens, Luggage Compartment Lamp |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81340H | Lamp Assy, Vanity, RH |
| 81340J | Lamp Assy, Vanity, LH |
| 81341 | Lens, Vanity Lamp |
| 81360B | Bulb, Step OR Spot Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
