Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 19 illustrations

Illustrations

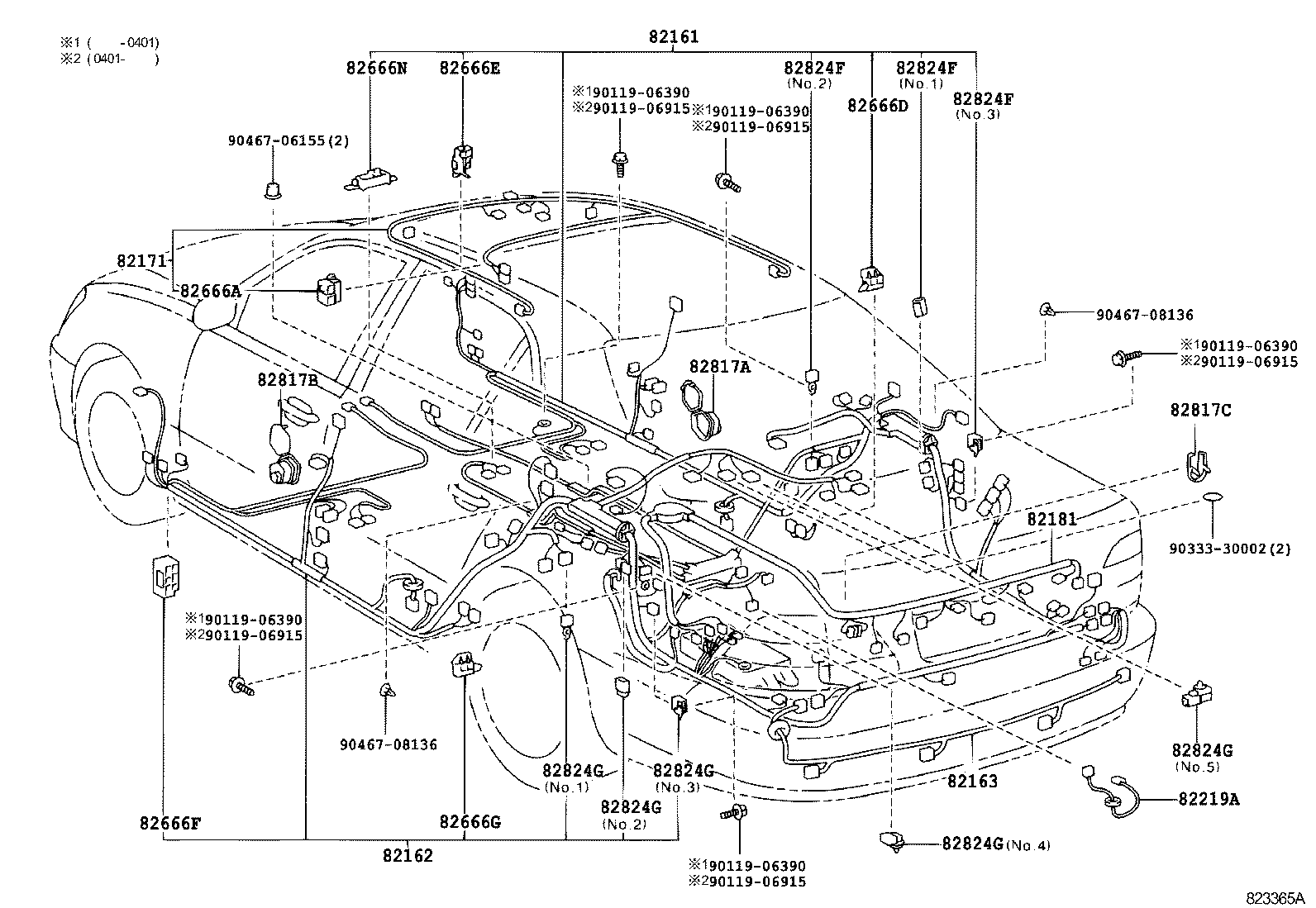

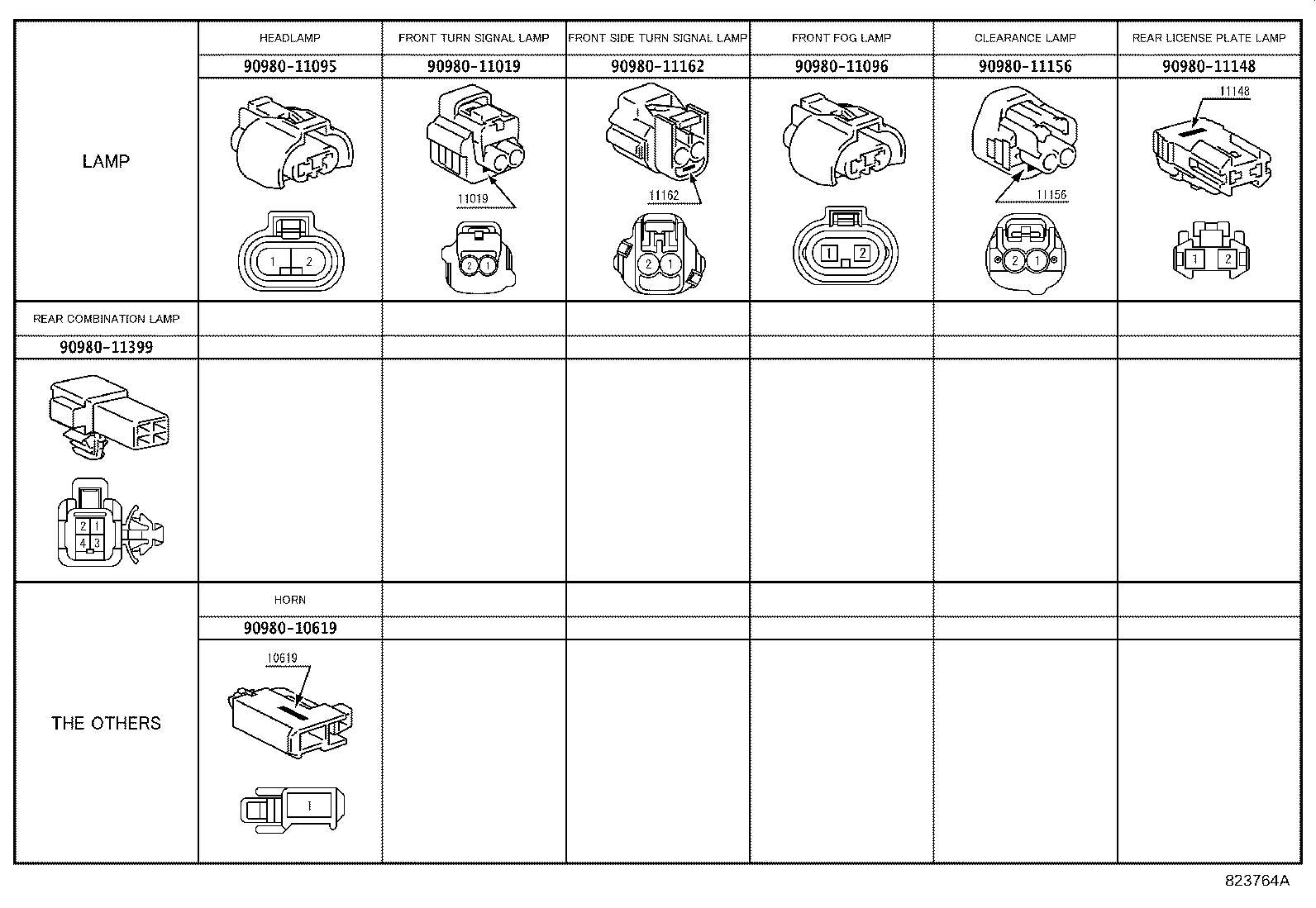

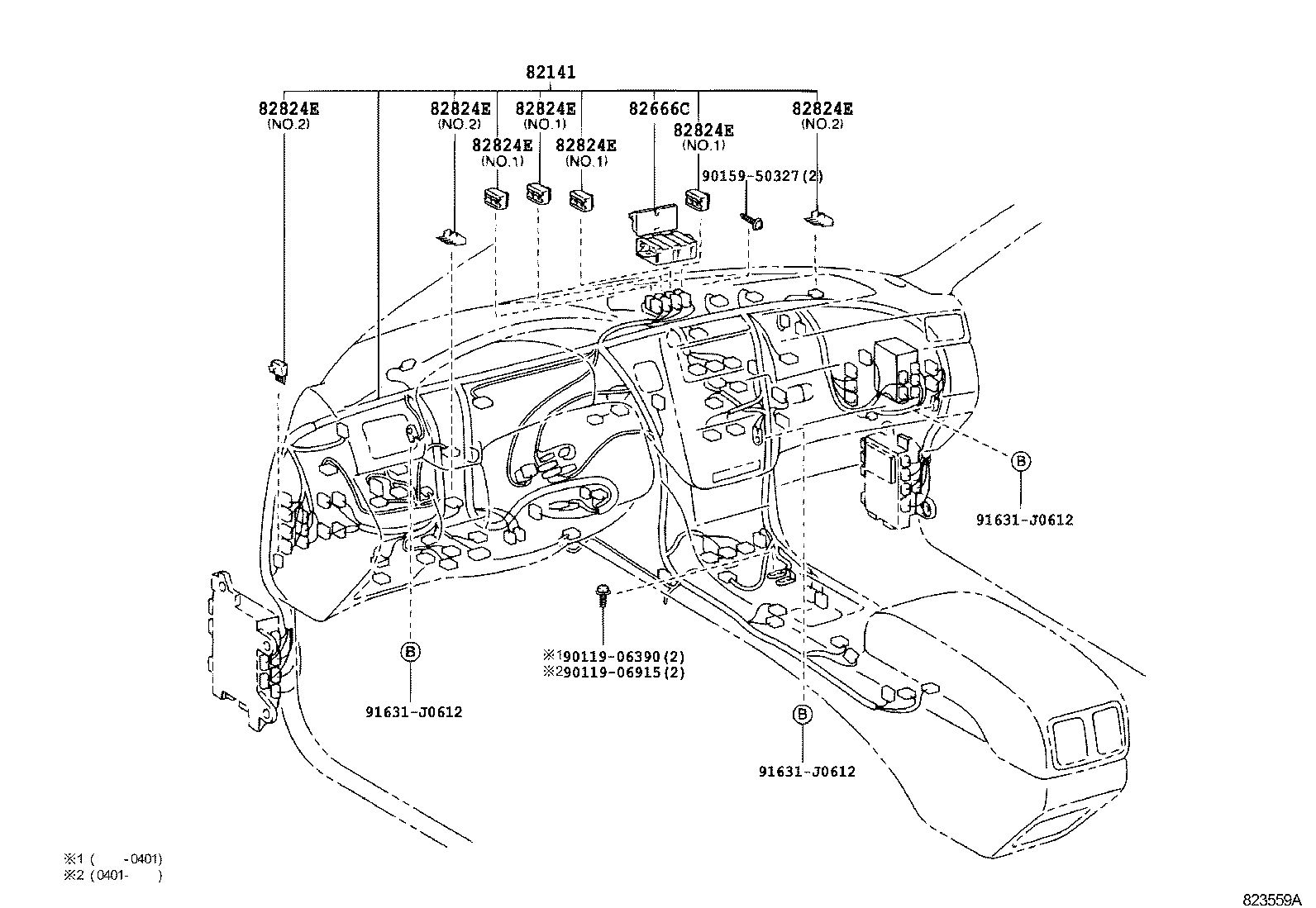

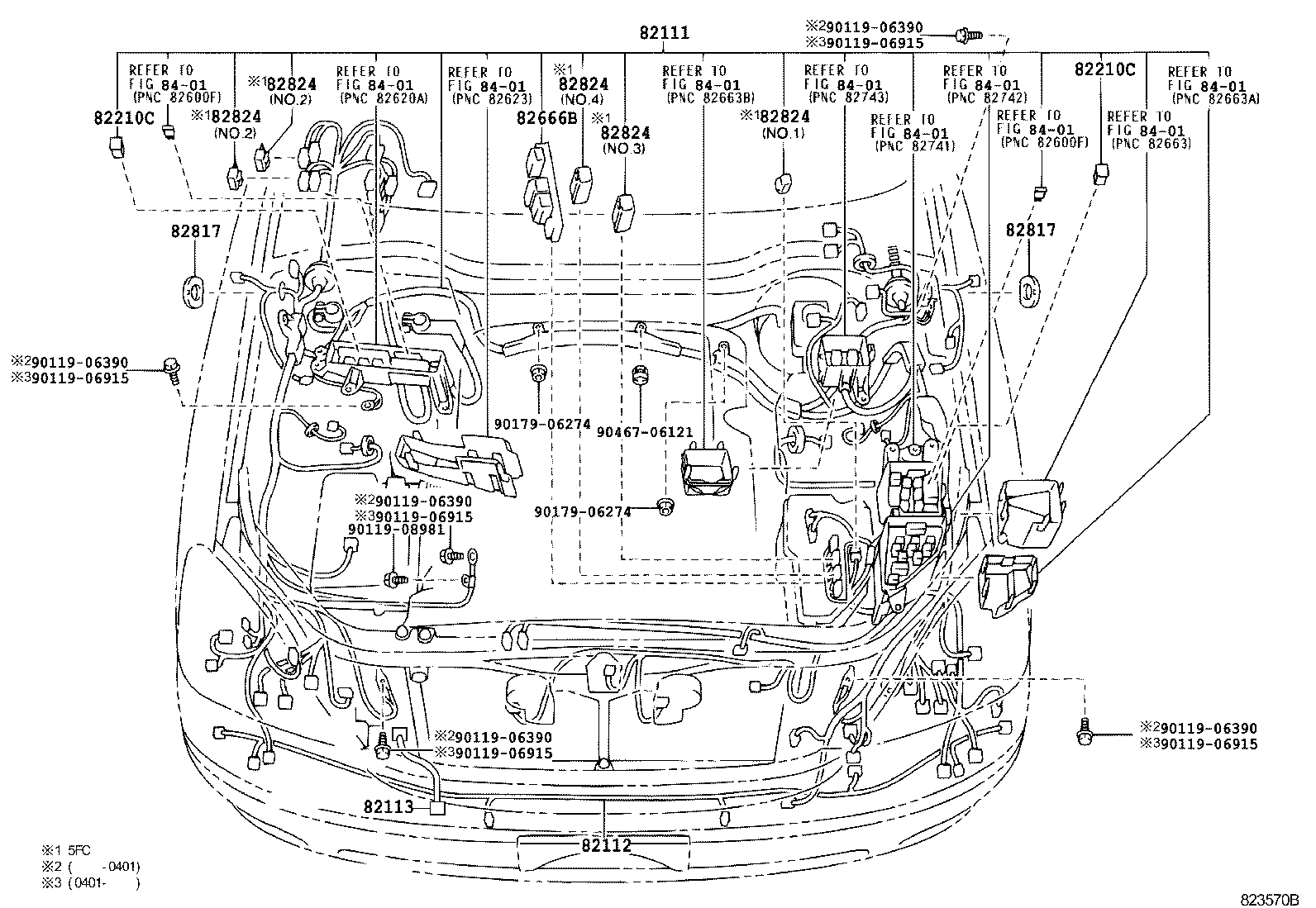

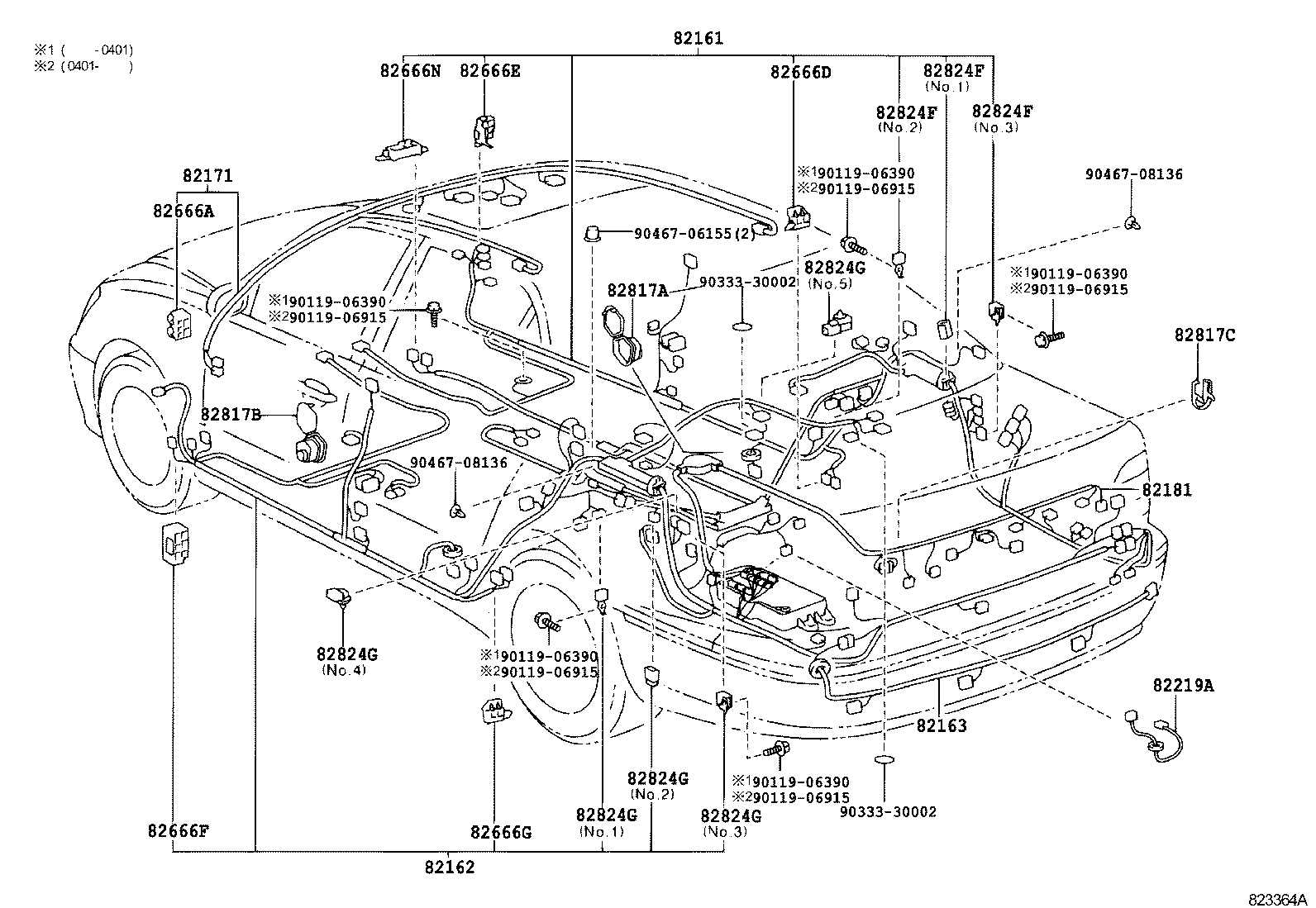

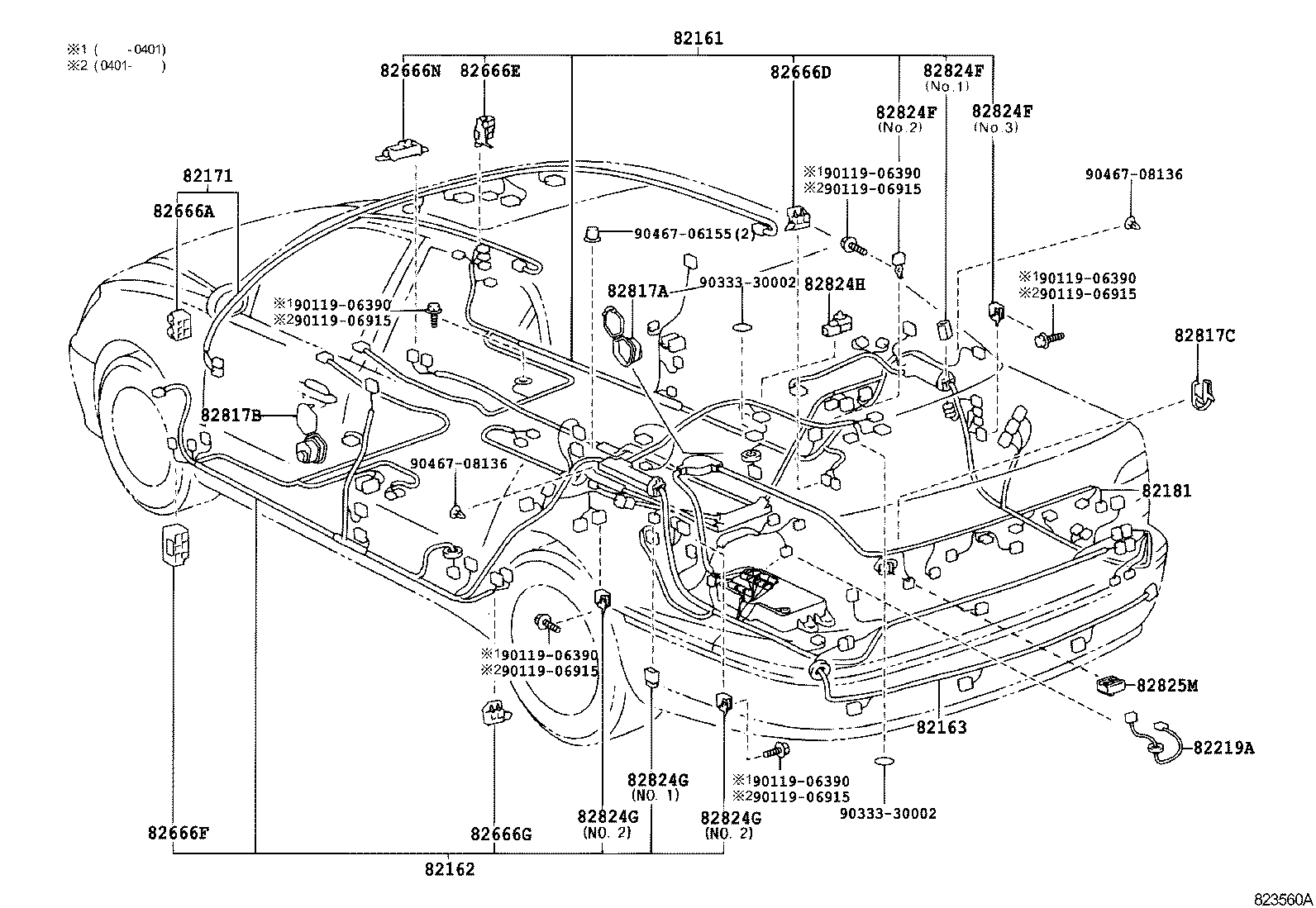

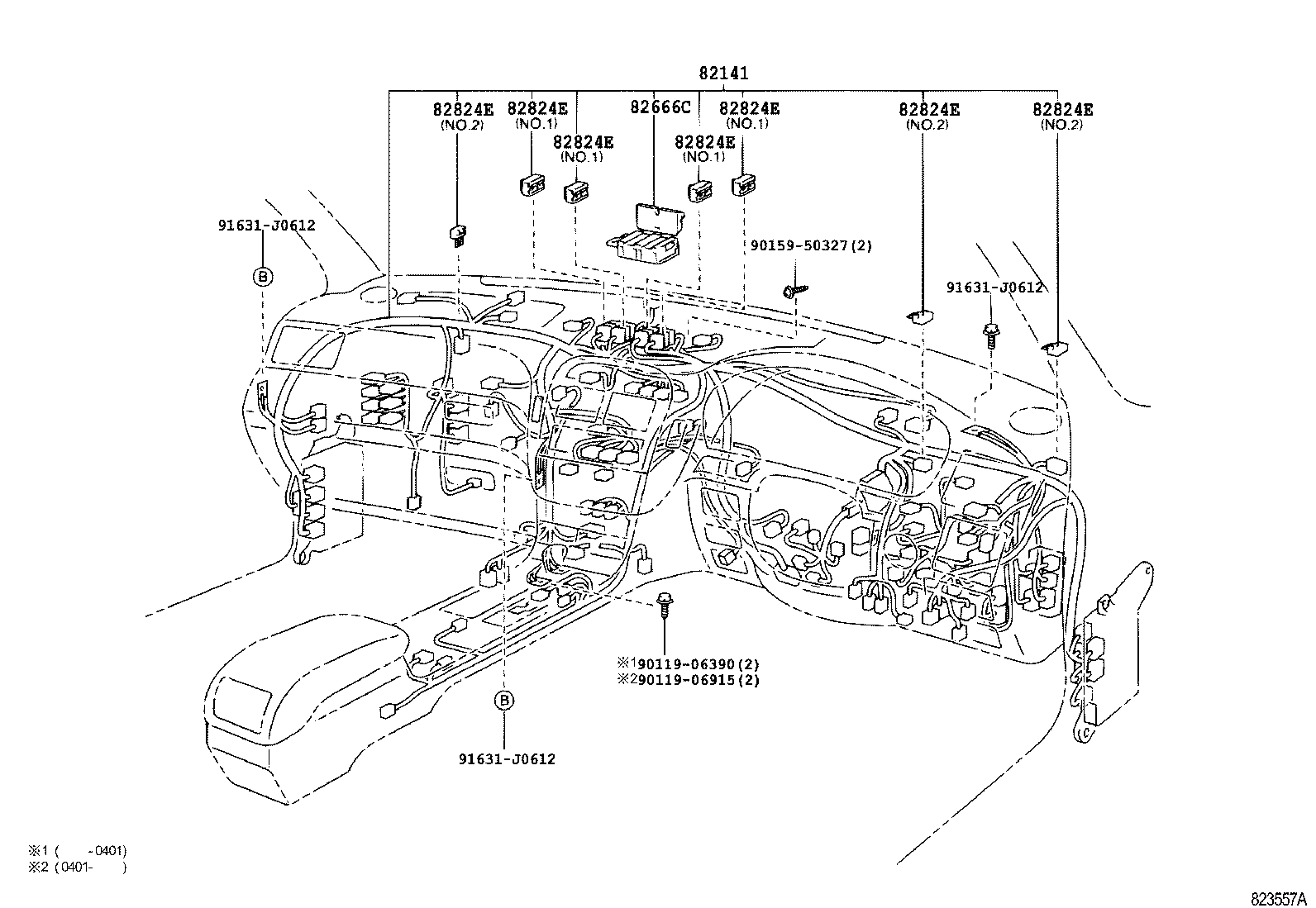

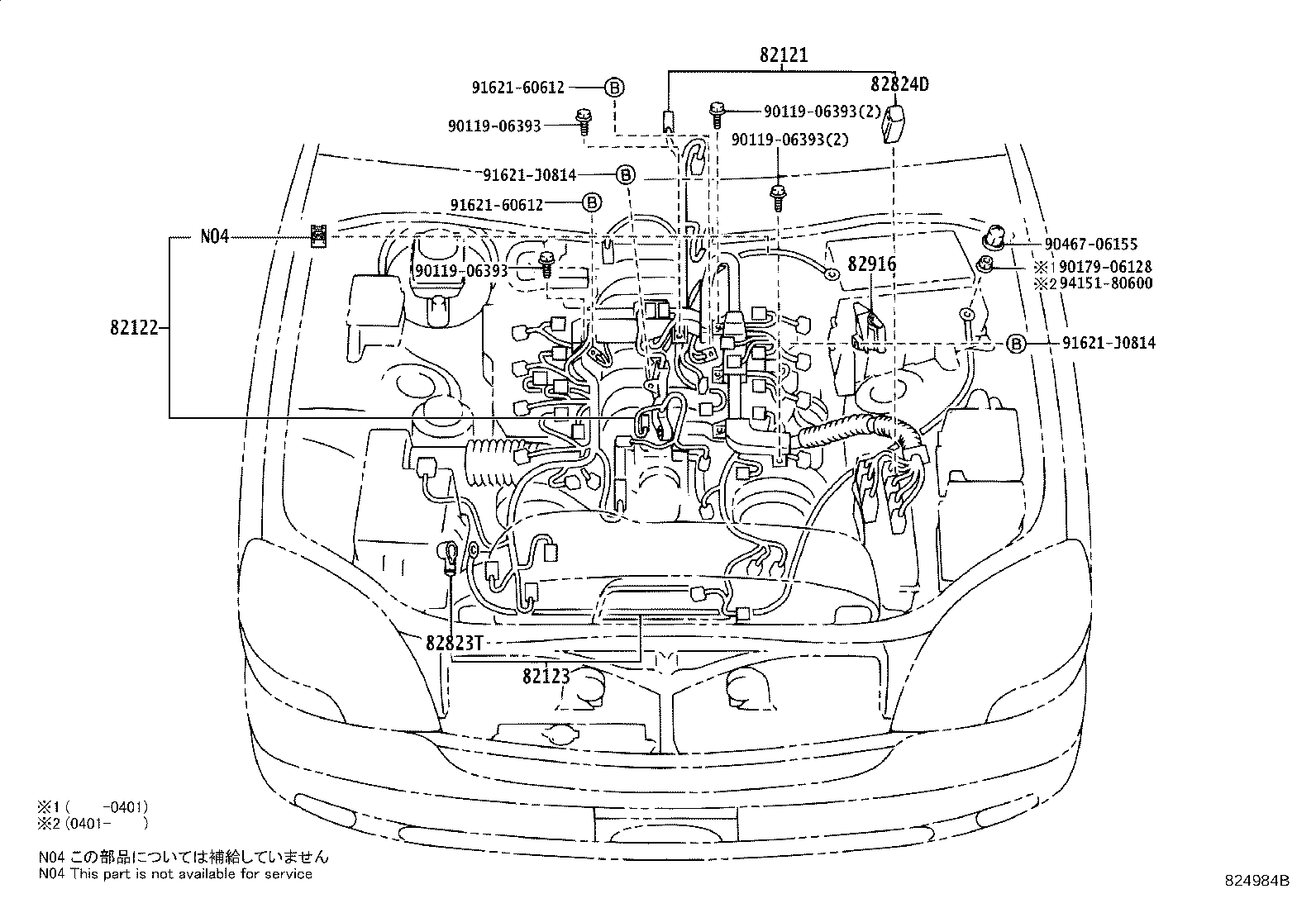

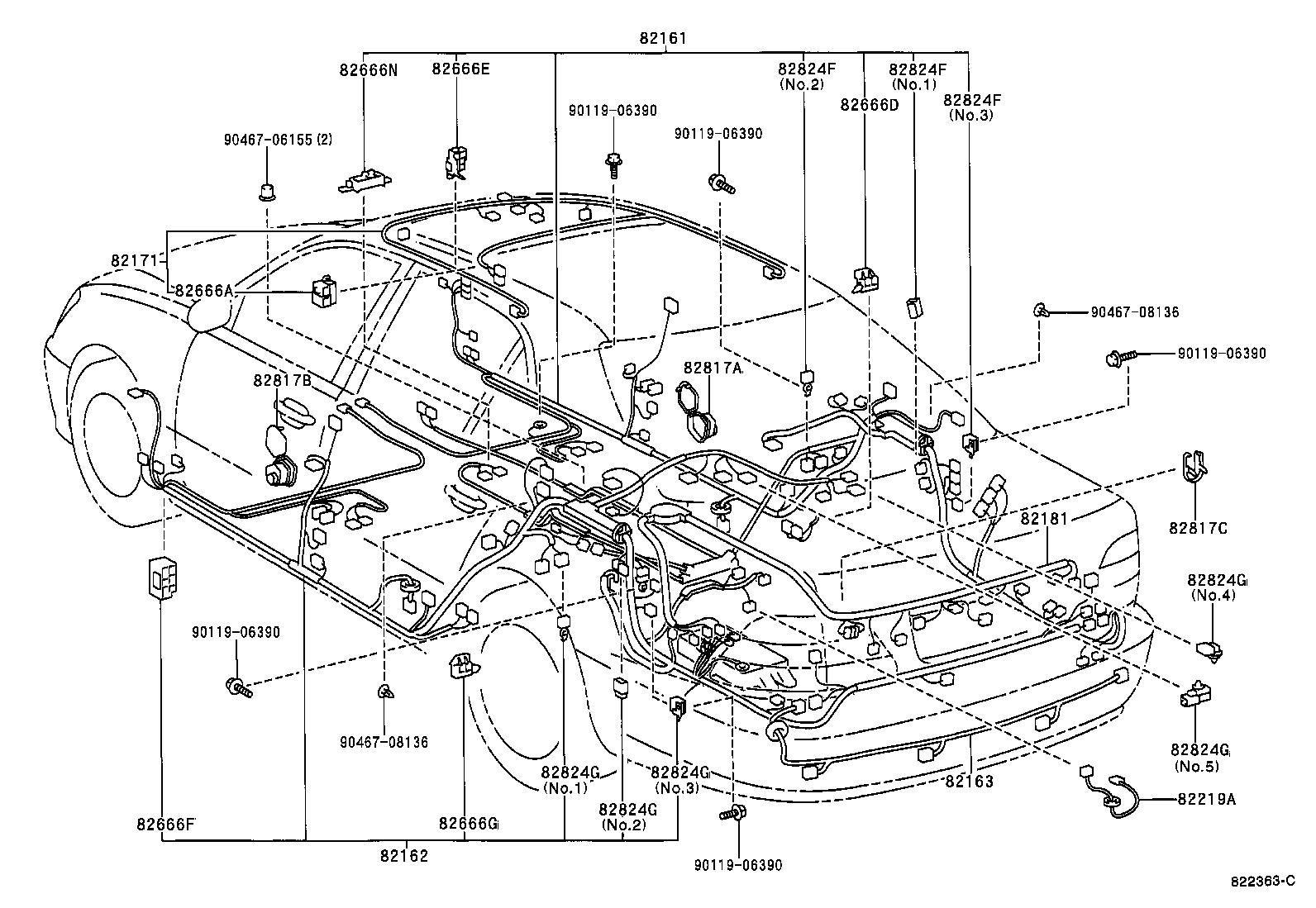

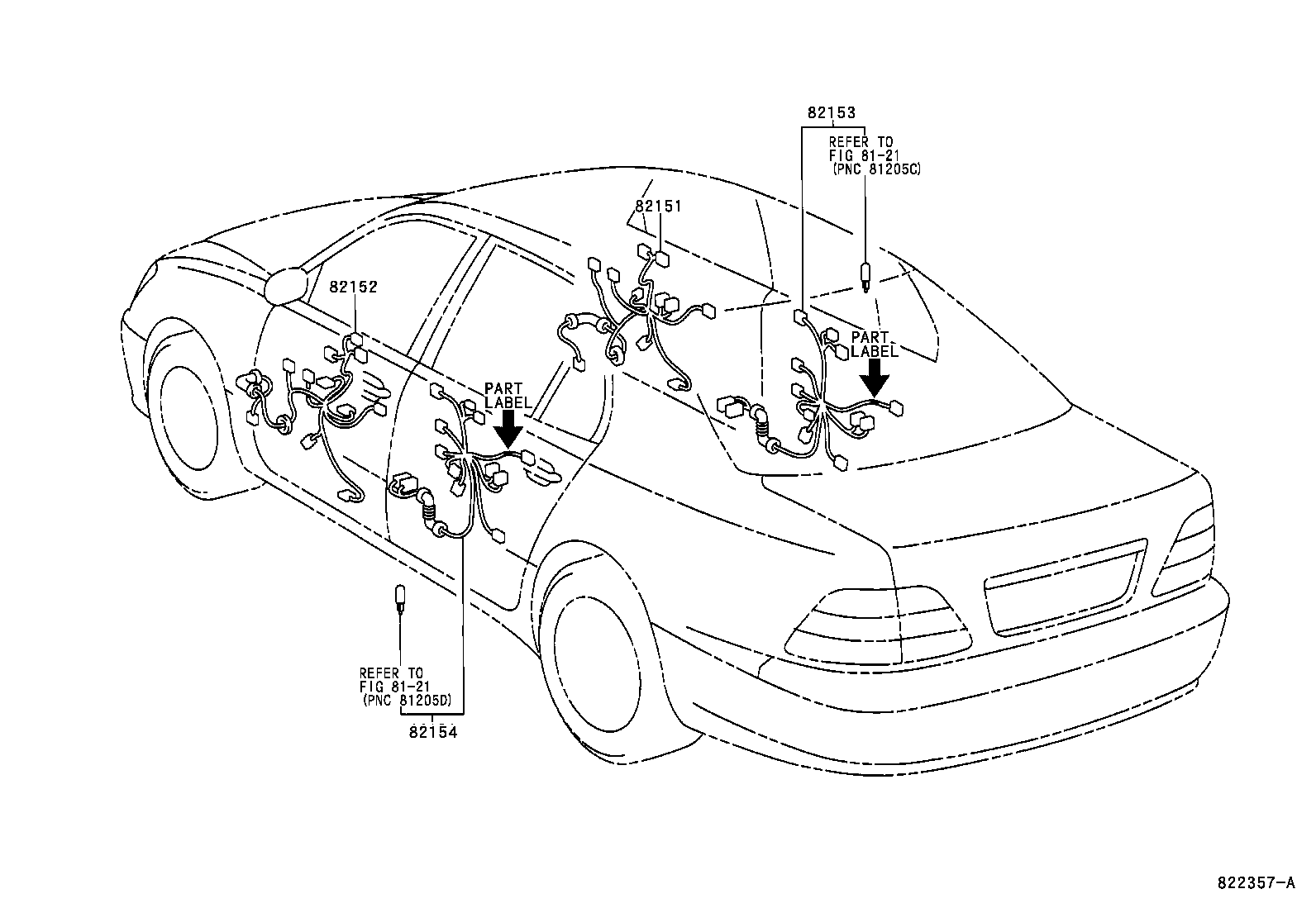

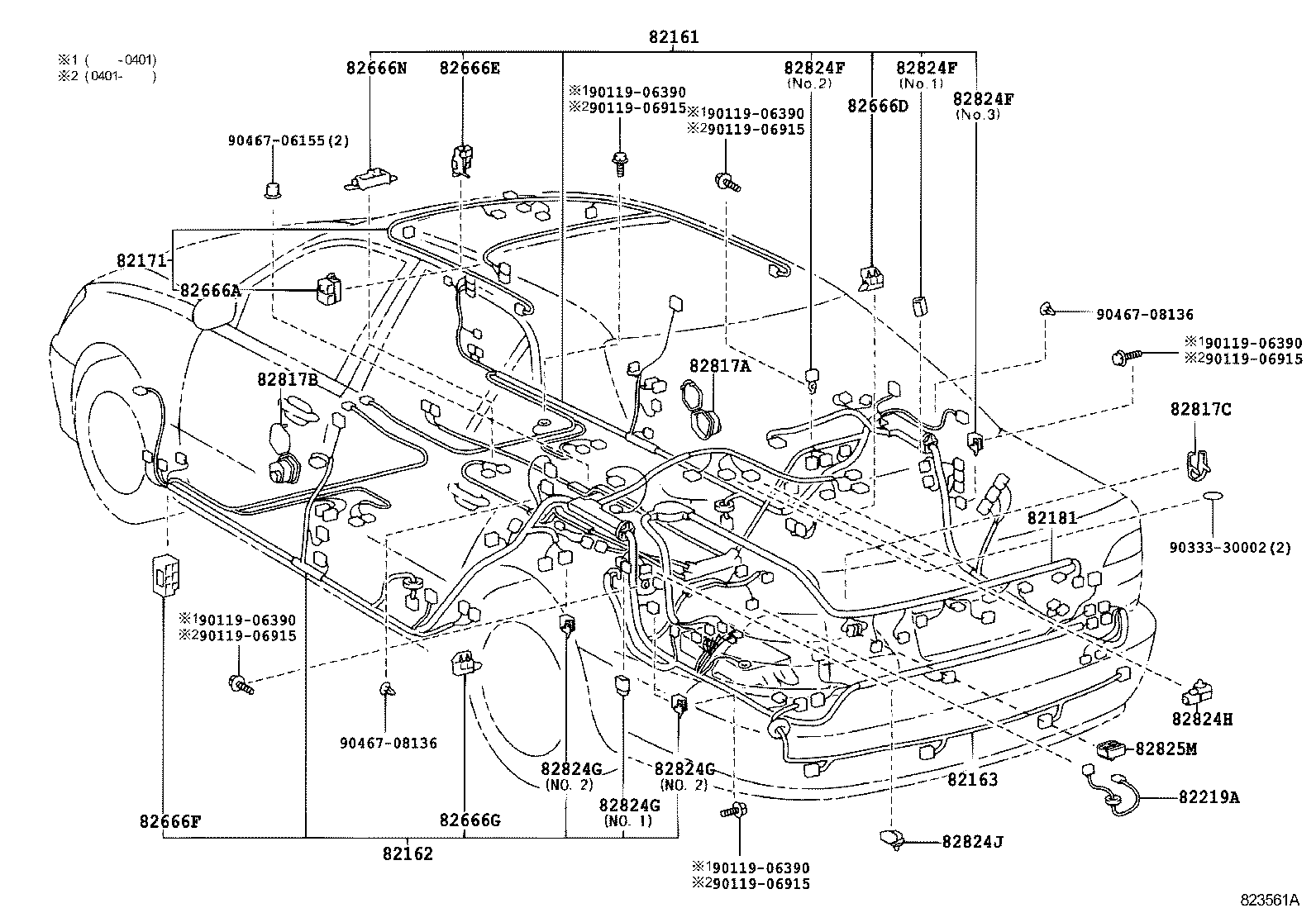

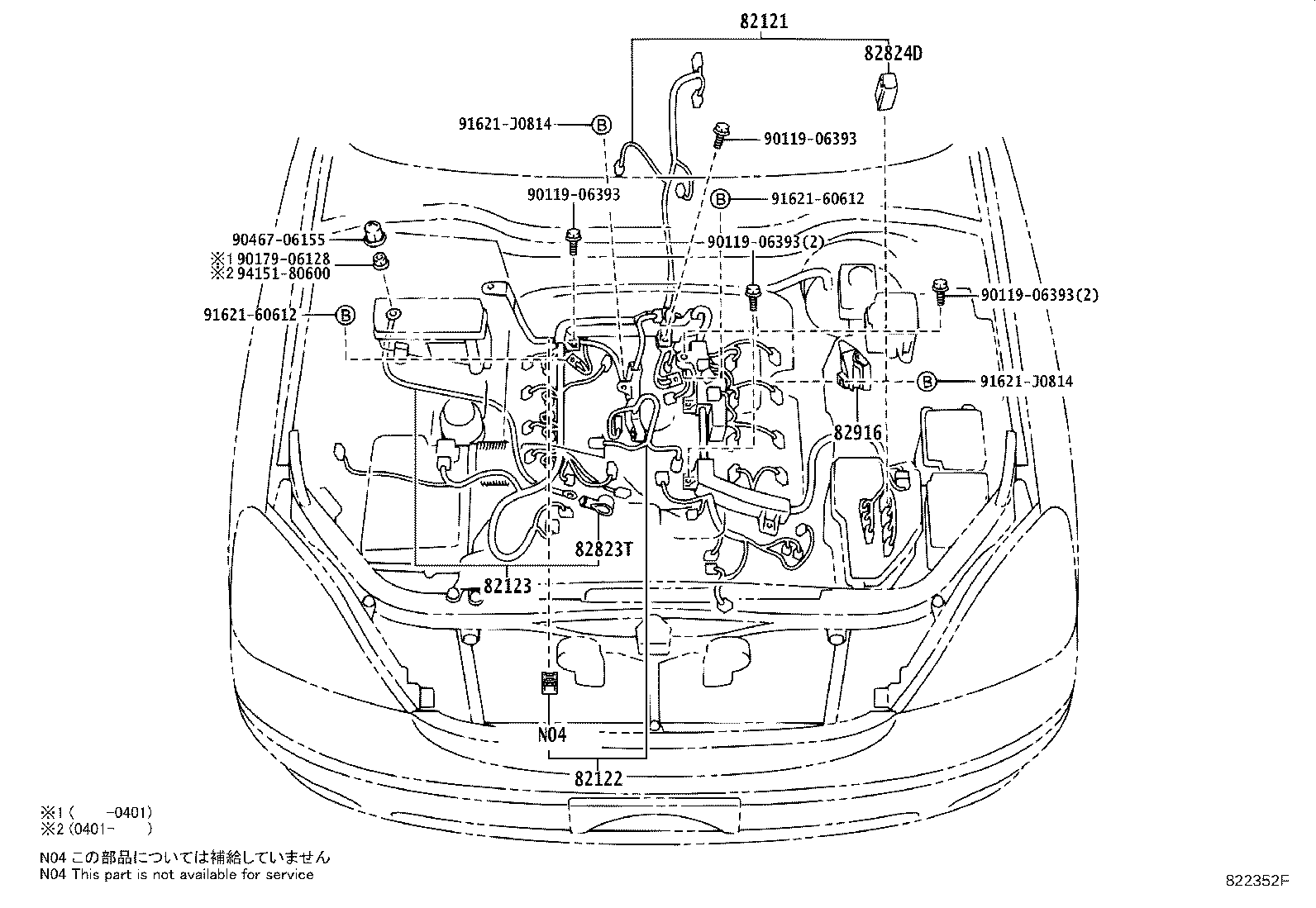

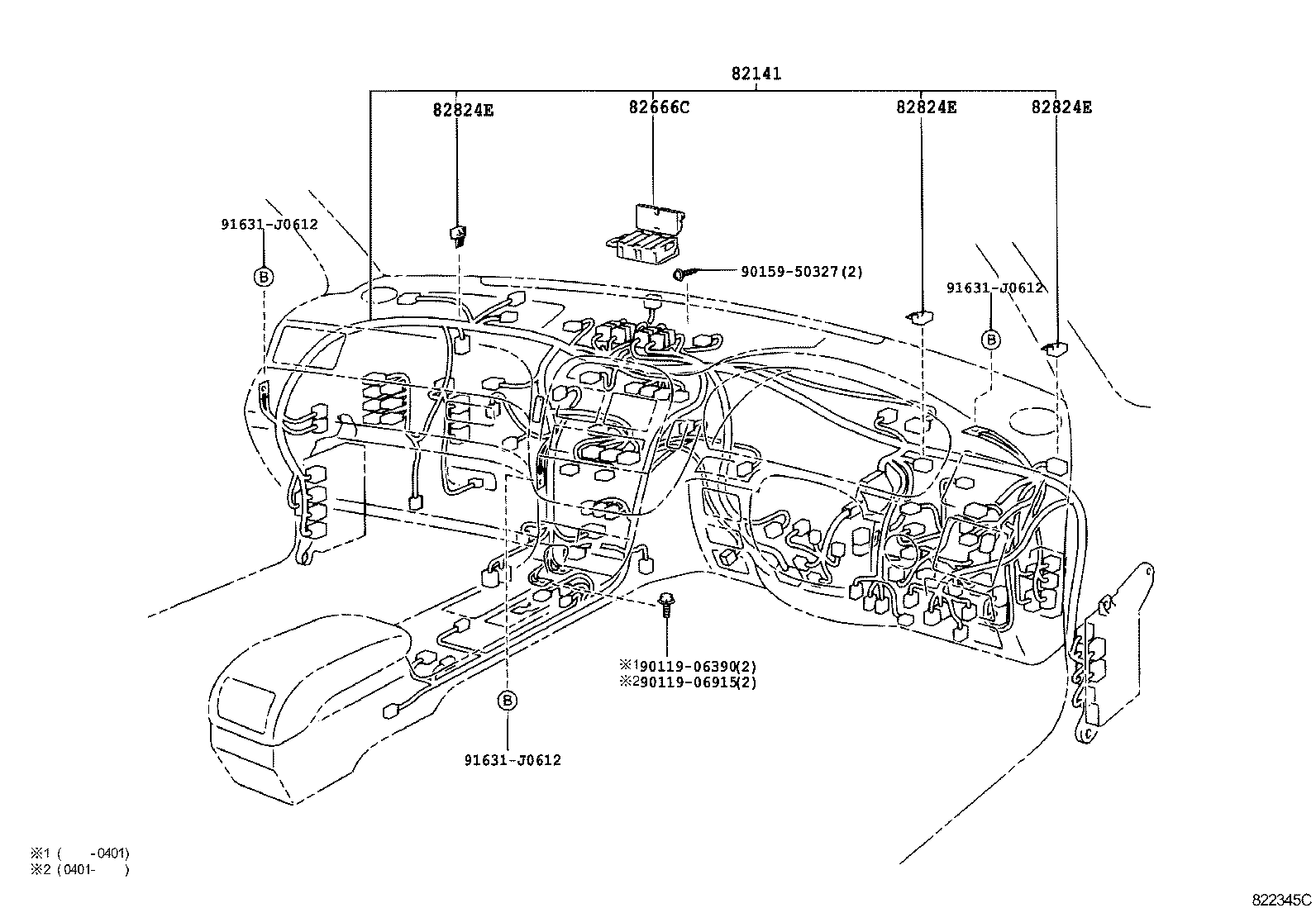

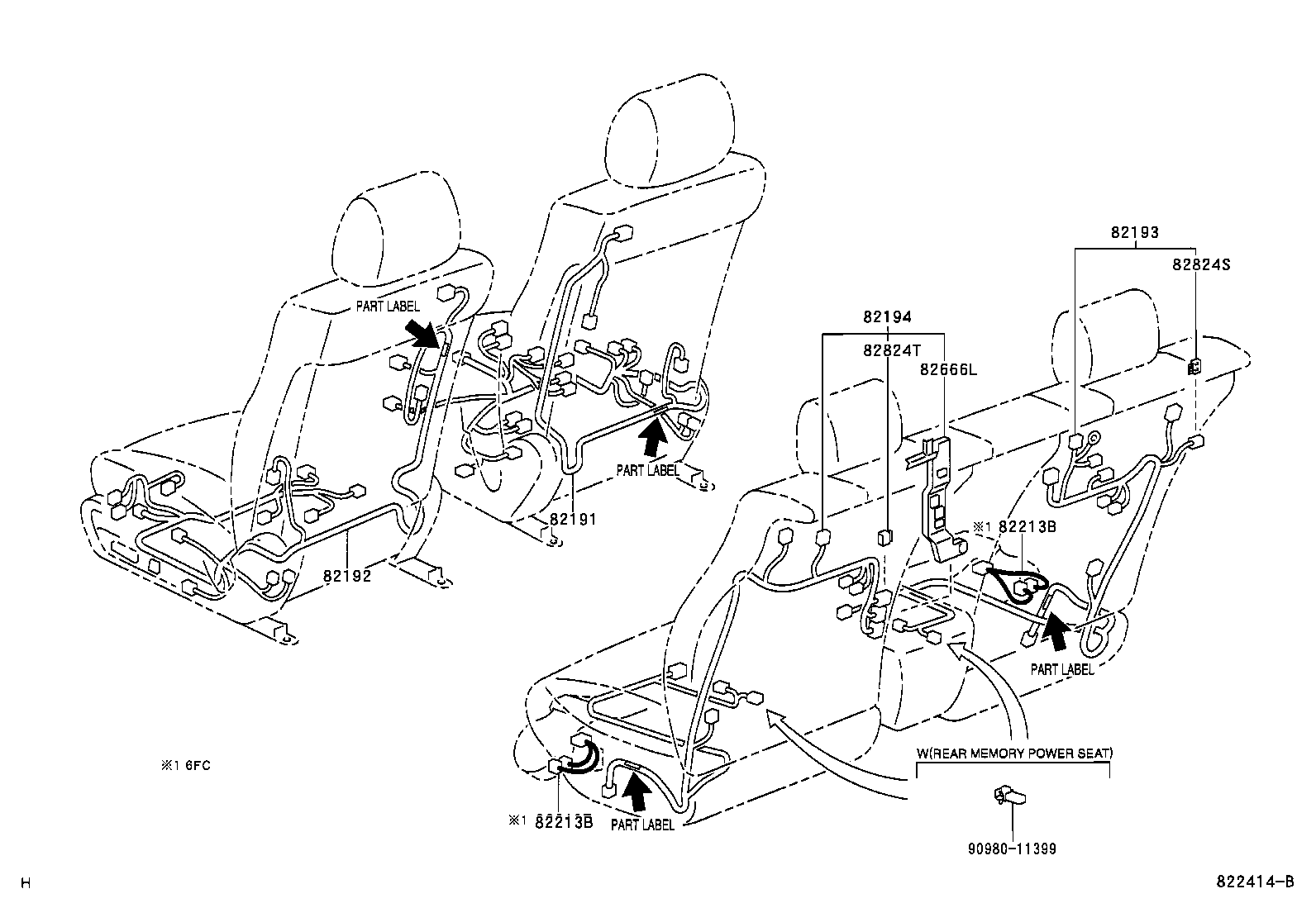

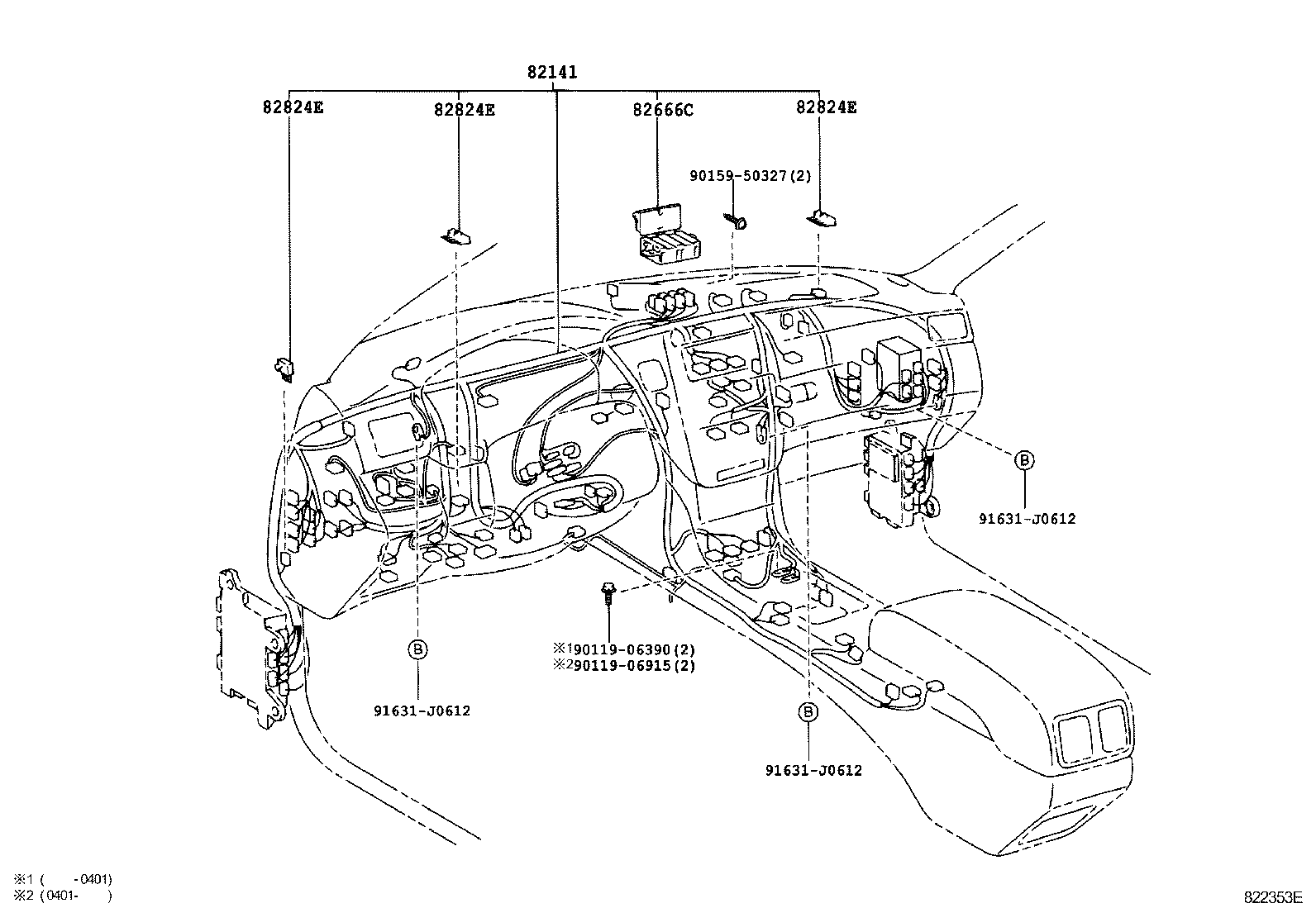

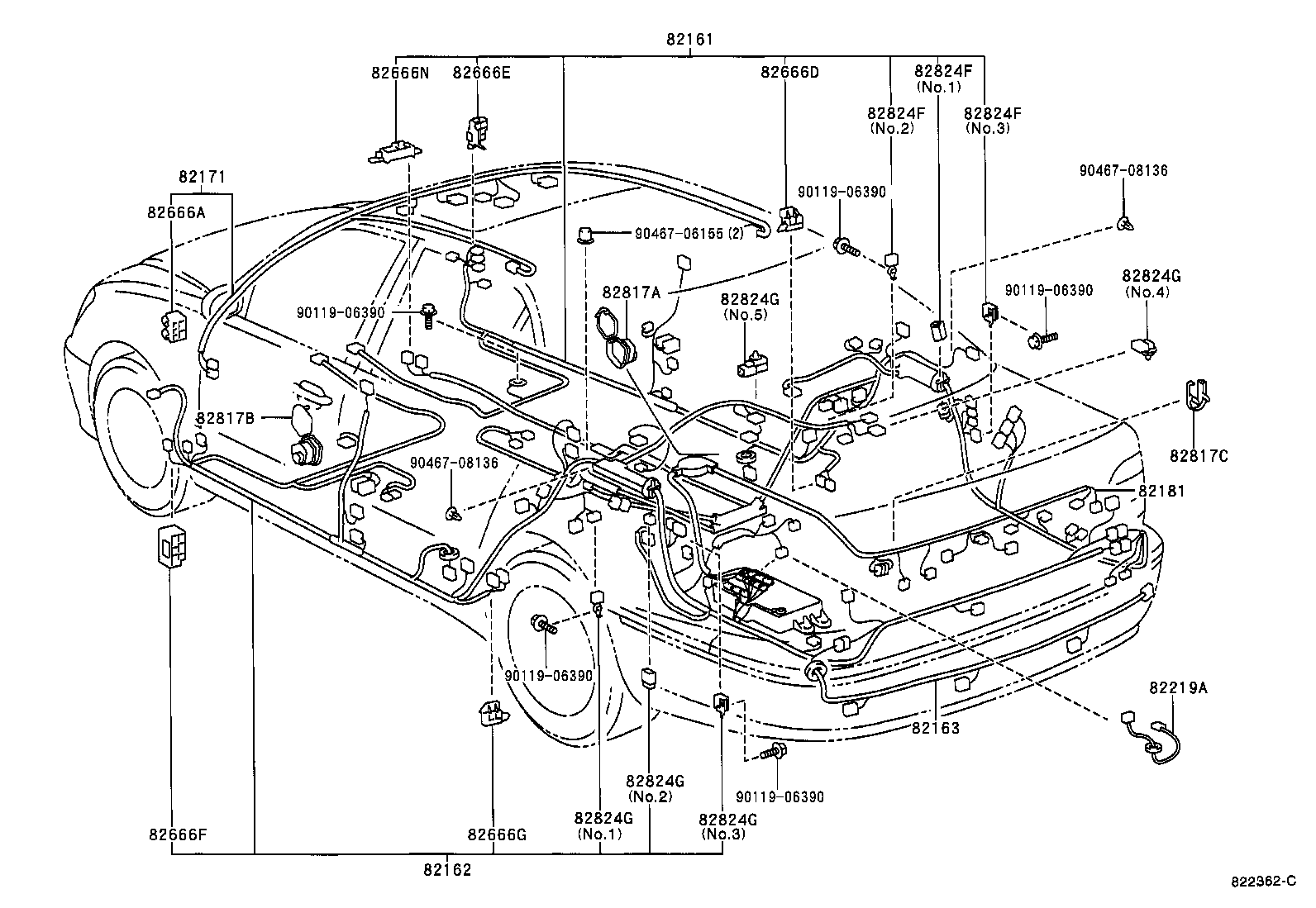

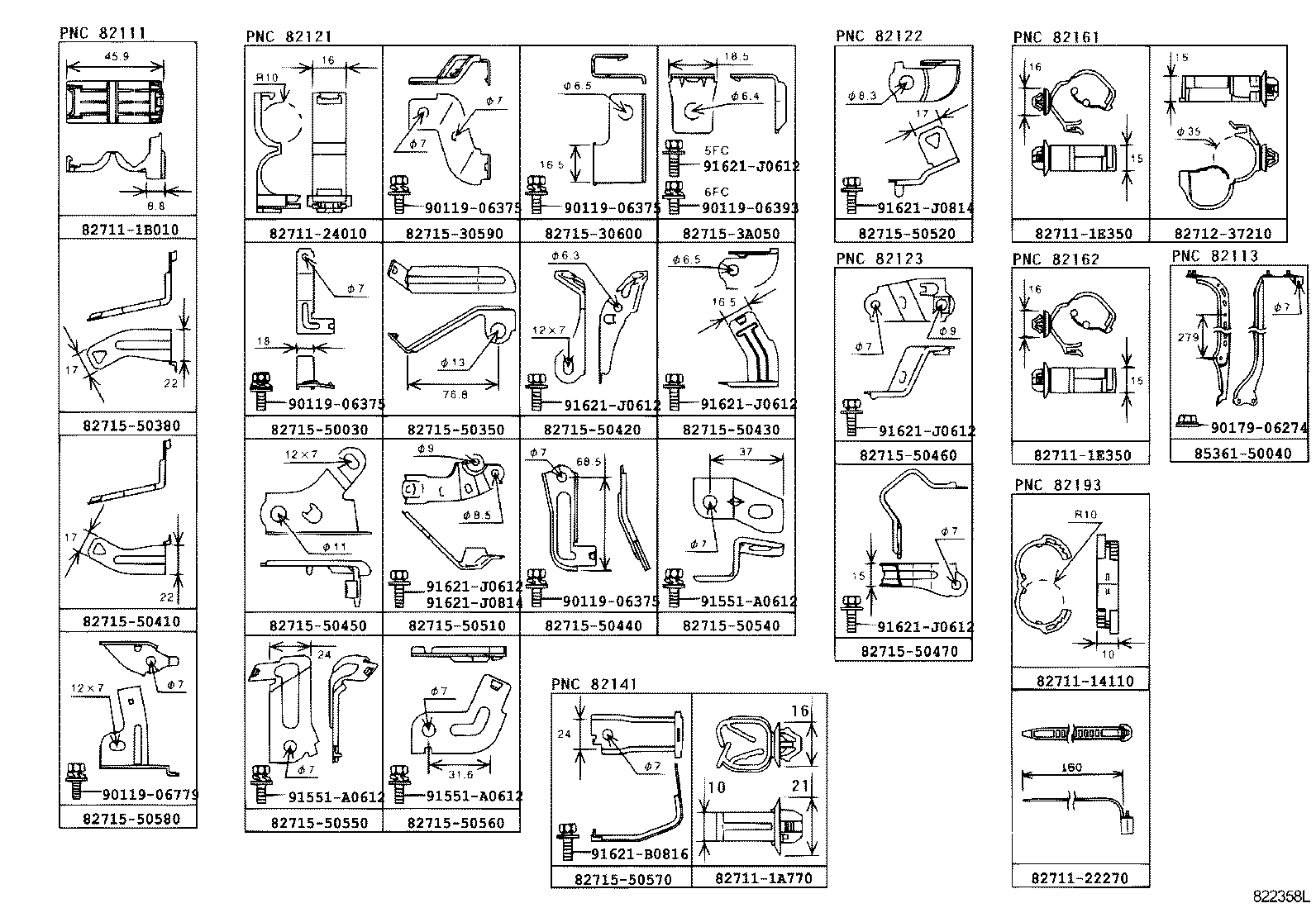

Figure 824985 824985 2000-08 → — Figure 823570B 823570B 2000-08 → — Figure 824984B 824984B 2000-08 → — Figure 822352F 822352F 2000-08 → — Figure 822345C 822345C 2000-08 → — Figure 823557A 823557A 2003-07 → — Figure 822353E 822353E 2000-08 → — Figure 823559A 823559A 2003-07 → — Figure 822357A 822357A 2000-08 → — Figure 822362C 822362C 2000-08 → 2001-07 Figure 822363C 822363C 2000-08 → 2001-07 Figure 823364A 823364A 2001-07 → — Figure 823560A 823560A 2003-07 → — Figure 823365A 823365A 2001-07 → — Figure 823561A 823561A 2003-07 → — Figure 822414B 822414B 2000-08 → — Figure 822358L 822358L 2000-08 → — Figure 822350A 822350A 2000-08 → — Figure 823764A 823764A 2003-07 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82210C Fusible Link
82213B Wire, Heater
82219A Wire, Sensor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82825M Connector, Wiring Harness
82916 Insulator, Wiring Harness Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
