Toyota Lexus LS430
2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe
Discontinued model
Data version 2007-01
Meter

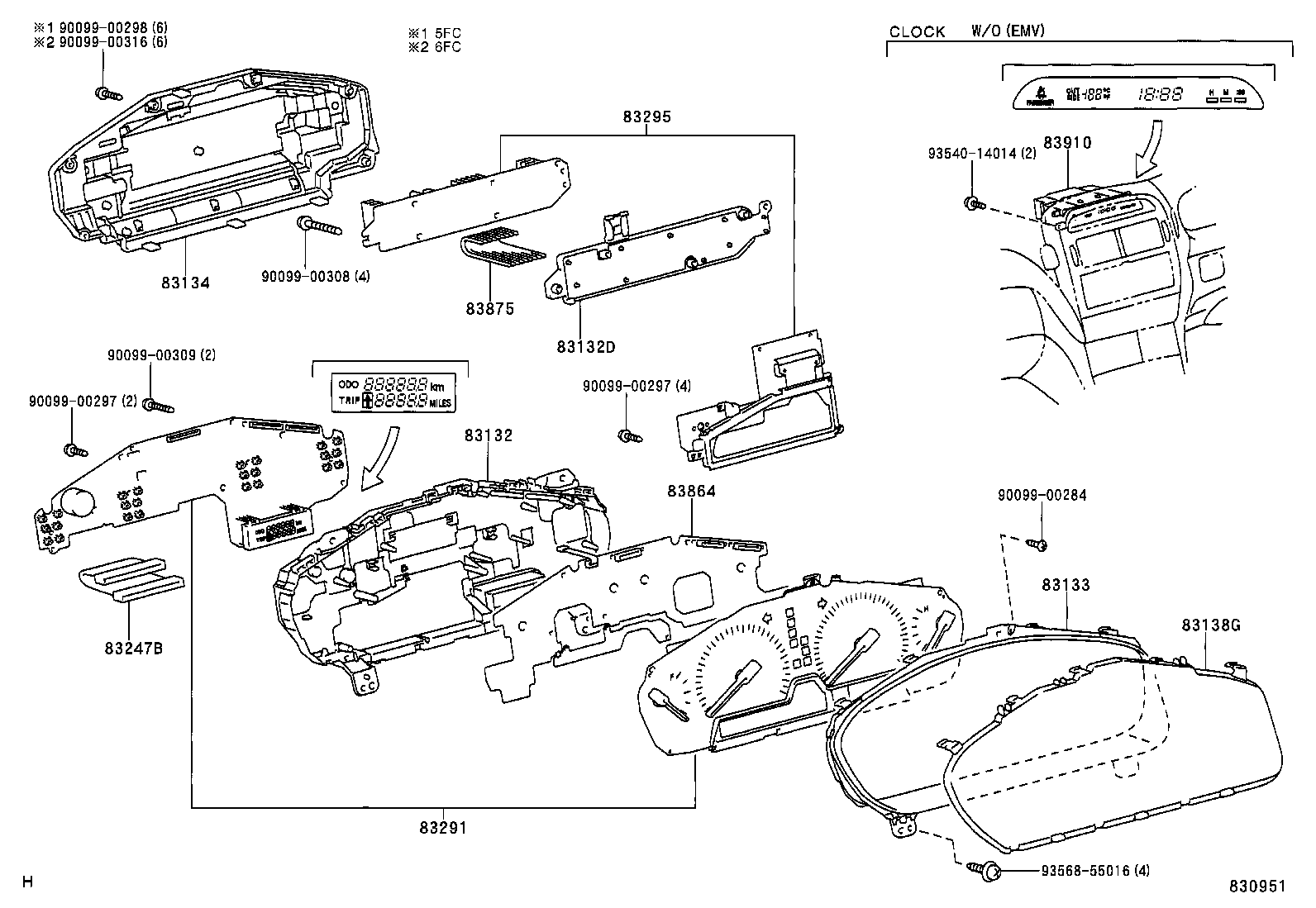

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83132 | Case, Combination Meter |
| 83132D | Case, Combination Meter, NO.2 |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83248 | Chime, Speed Warning |
| 83291 | Computer, Combination Meter |
| 83295 | Panel, Meter Display |
| 83864 | Plate, Meter Circuit, NO.4 (FOR COMPUTER) |
| 83875 | Wire, Combination Meter, NO.1 |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
