Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

4 part groups · 2 illustrations

Illustrations

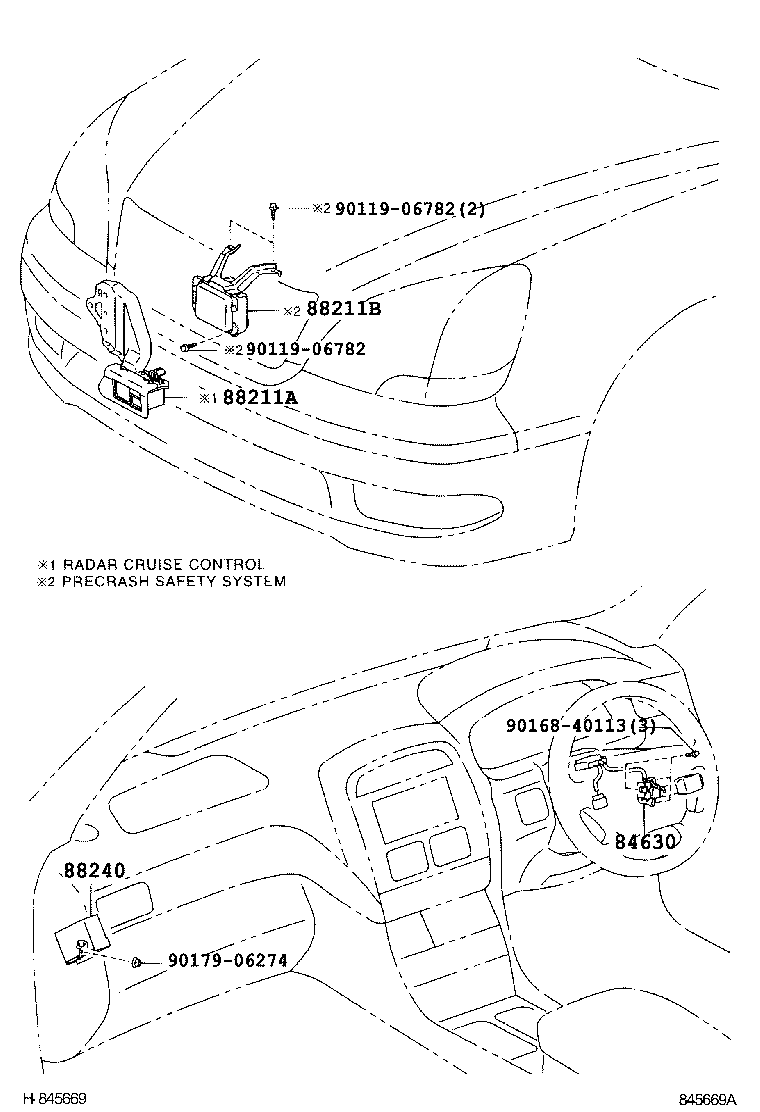

Figure 843946 843946 2000-08 → — Figure 845669A 845669A 2003-07 → —

Part groups

PNCDescription
84630 Switch Assy, Cruise Control Main
88211A Sensor, Laser Radar
88211B Sensor Assy, Millimeter Wave Radar
88240 Computer Assy, Cruise Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
