Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 2 illustrations

Illustrations

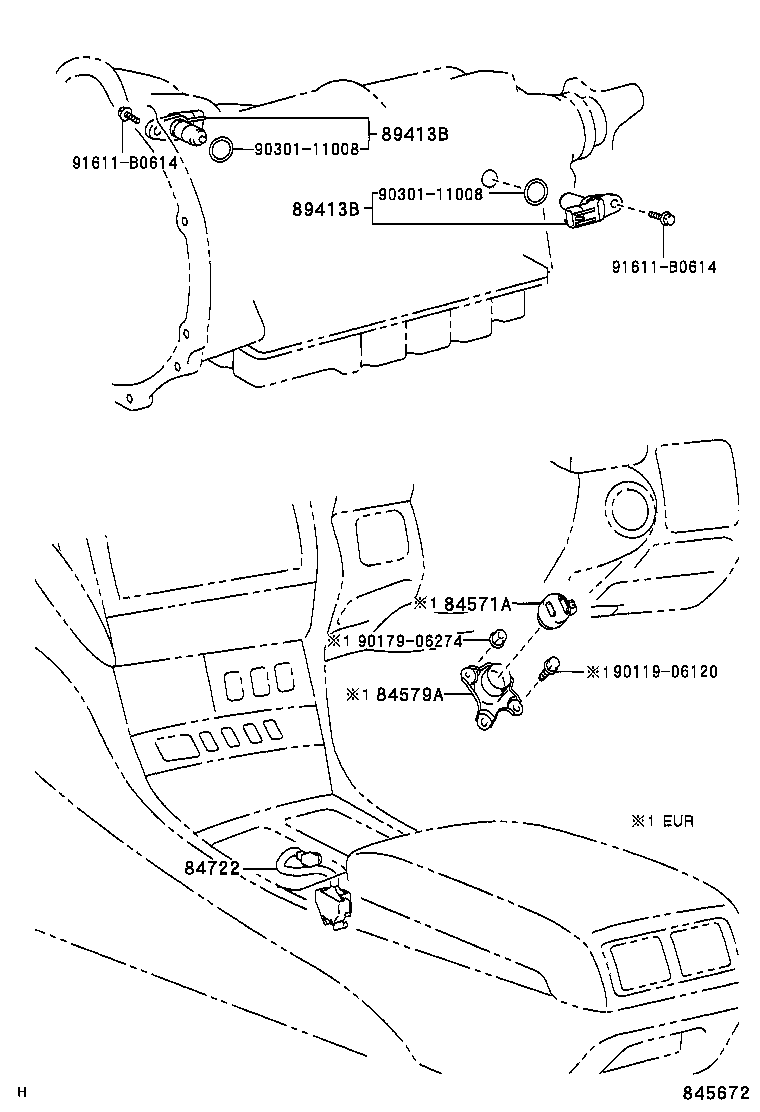

Figure 843639C 843639C 2000-08 → — Figure 845672 845672 2003-07 → —

Part groups

PNCDescription
84571A Switch, Kick Down
84579A Bracket, Kick Down Switch
84722 Switch, Transmission Control
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
