Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 4 illustrations

Illustrations

Figure 843643C

843643C 2000-08 → —

Figure 843642C

843642C 2000-08 → —

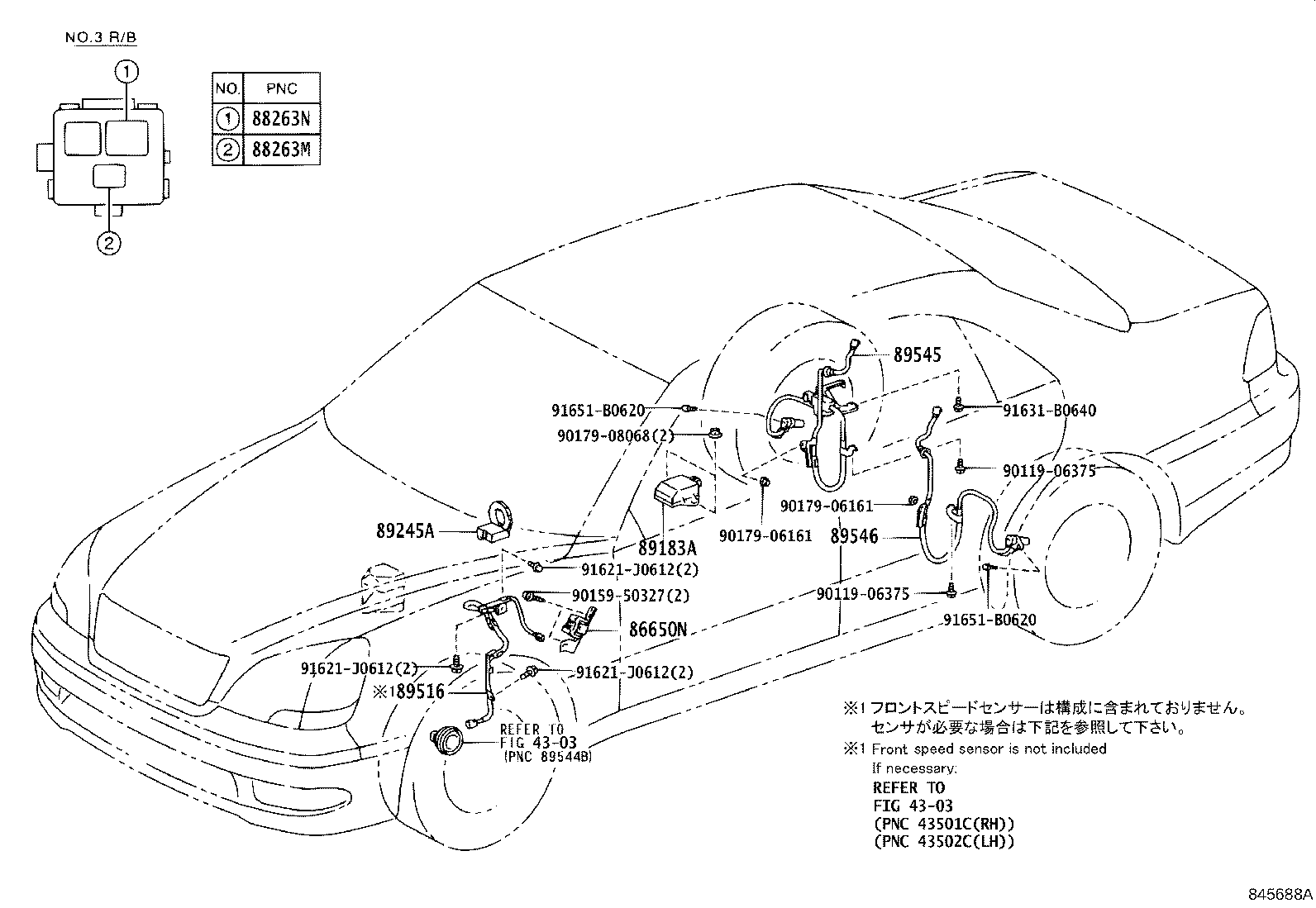

Figure 845688A

845688A 2003-07 → —

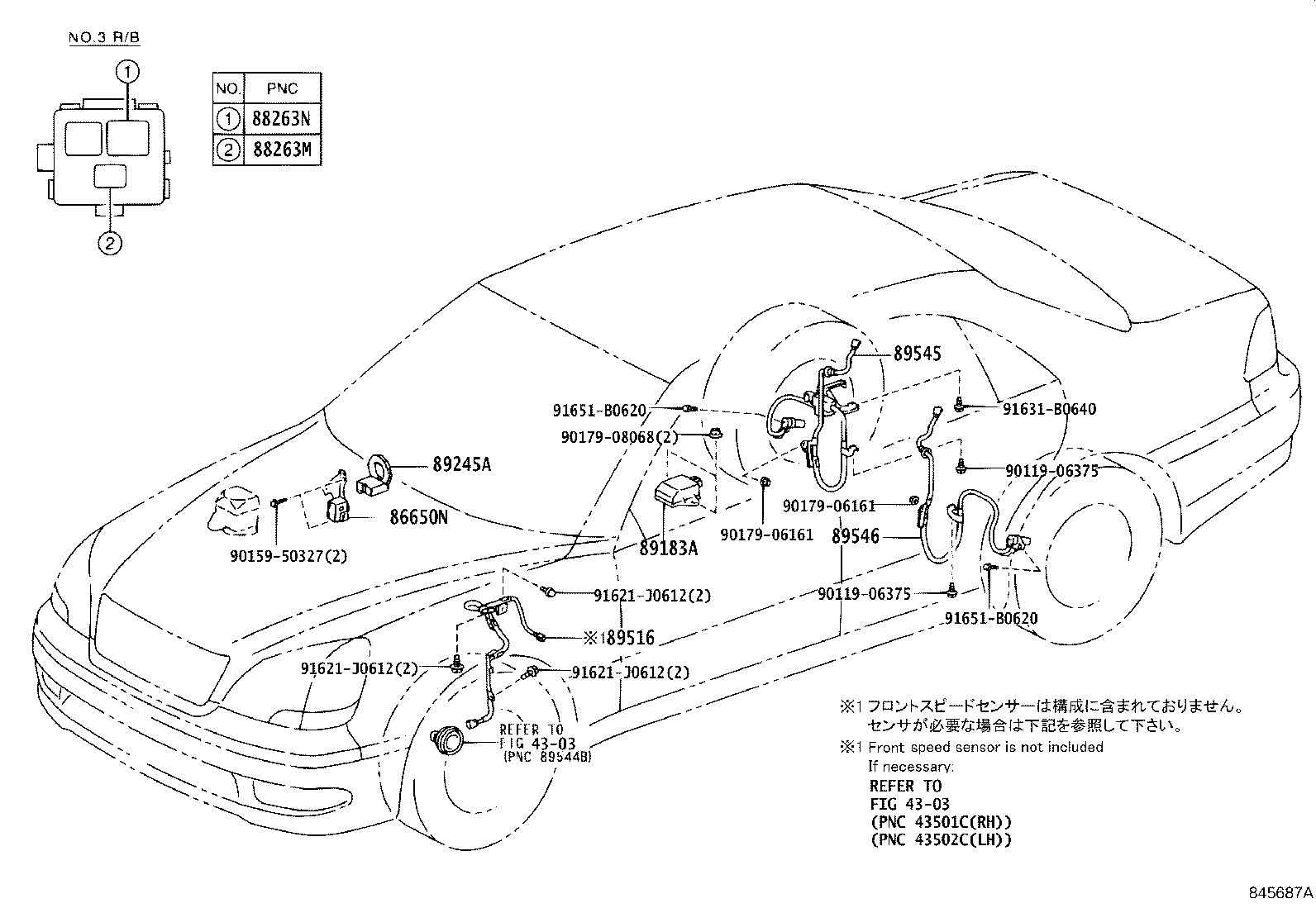

Figure 845687A

845687A 2003-07 → —

Part groups

PNC	Description
86650N	Buzzer Assy
88263M	Relay, Abs Solenoid
88263N	Relay, Abs Motor
89183A	Sensor, Yawrate
89245A	Sensor, Steering
89516	Wire, Skid Control Sensor
89540	Computer Assy, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
