Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Modulated Suspension

13 part groups · 2 illustrations

Illustrations

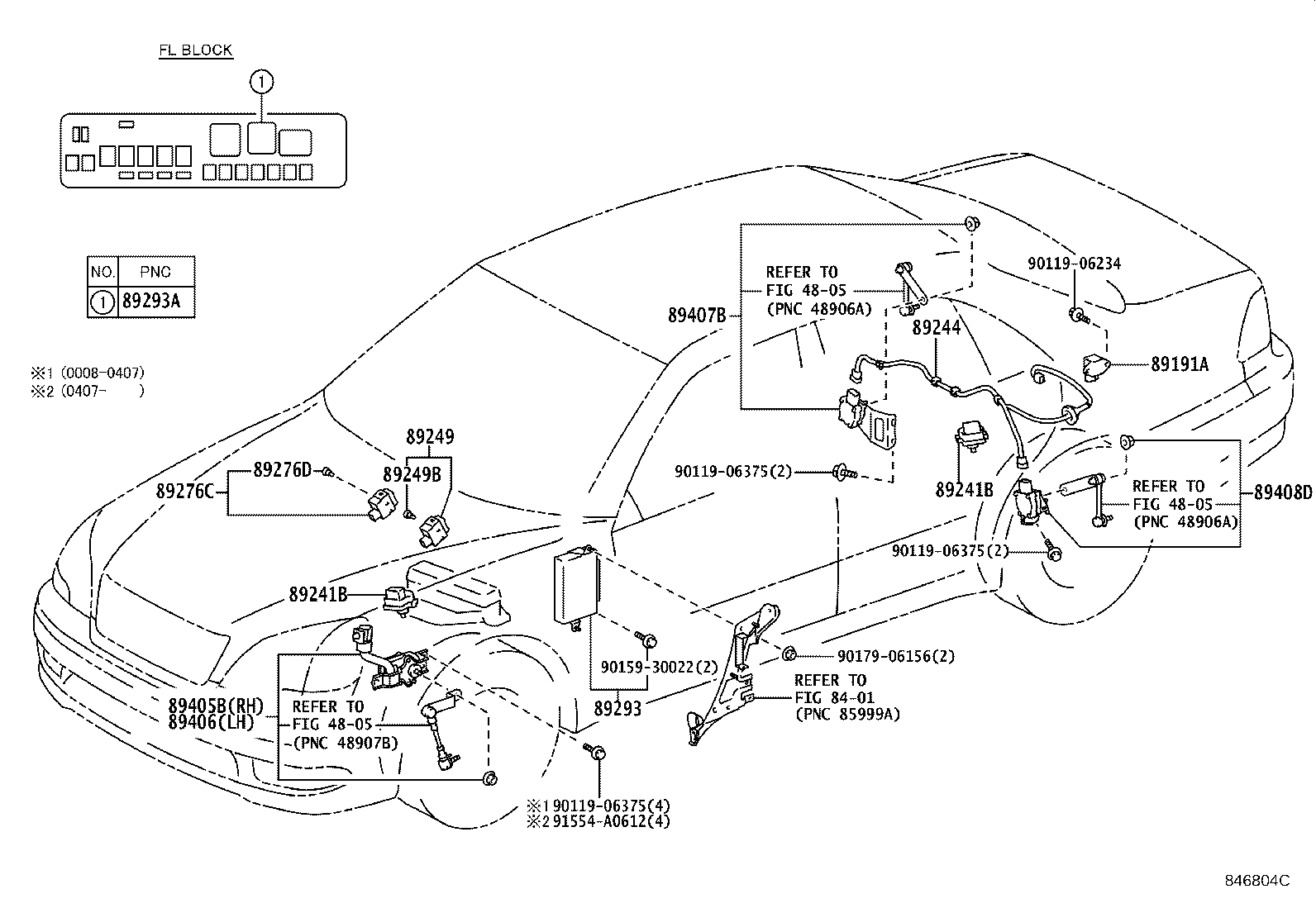

Figure 843648E 843648E 2000-08 → — Figure 846804C 846804C 2000-08 → —

Part groups

PNCDescription
89191A Sensor, Acceleration
89241B Actuator, Absorber Control
89244 Wire, Absorber Control, Rear
89249 Switch, Absorber Control
89249B Bulb, Absorber Control Switch
89276C Switch, Height Control
89276D Bulb, (FOR HEIGHT CONTROL SWITCH)
89293 Computer, Suspension Control
89293A Relay, Suspension Control
89405B Sensor Sub-assy, Height Control, Front RH
89406 Sensor Sub-assy, Height Control, Front LH
89407B Sensor Sub-assy, Height Control, Rear RH
89408D Sensor Sub-assy, Height Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
