Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

12 part groups · 9 illustrations

Illustrations

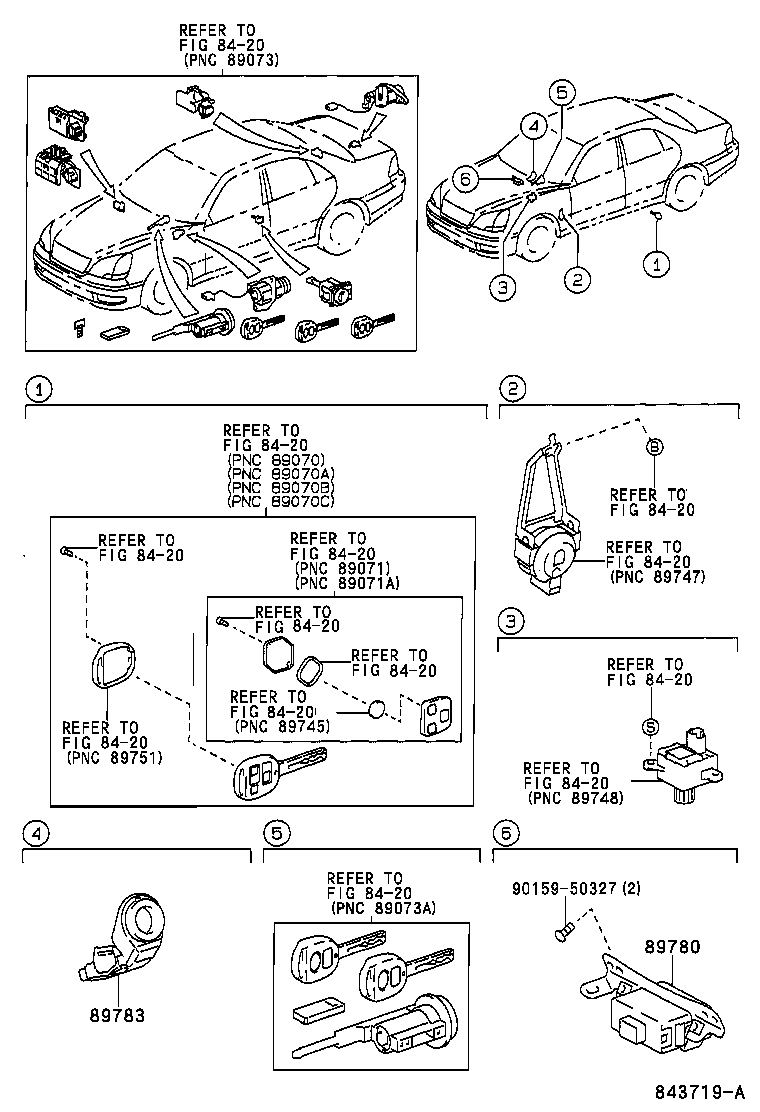

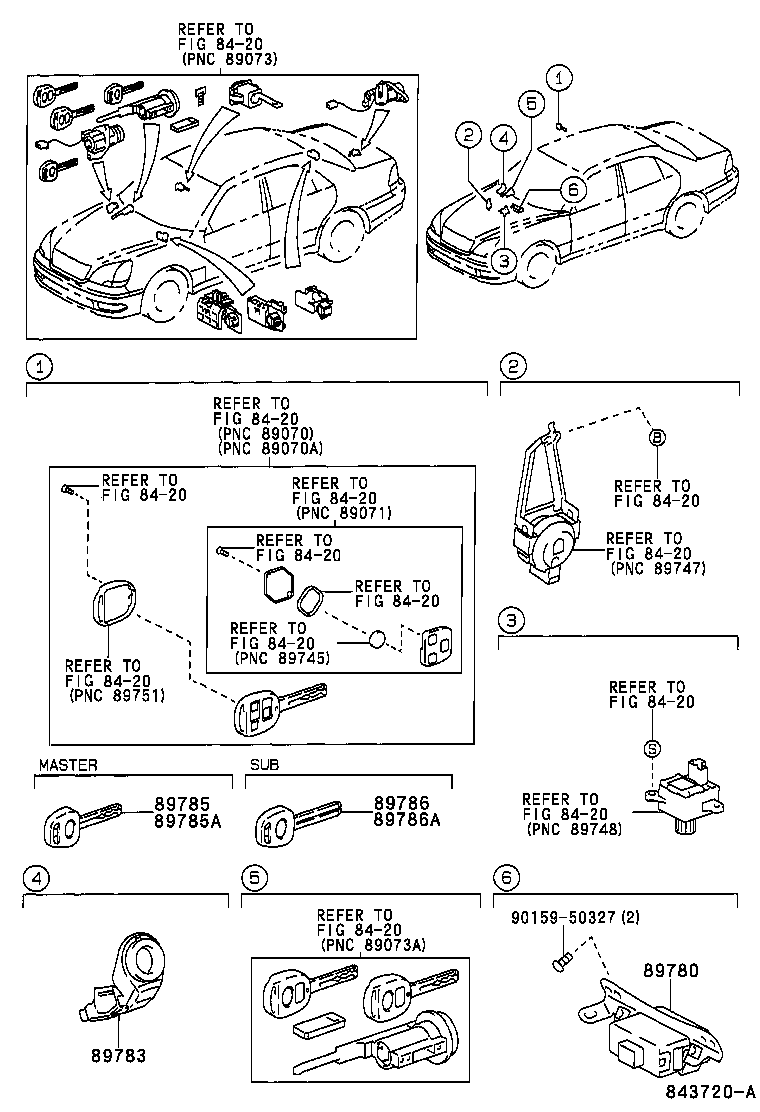

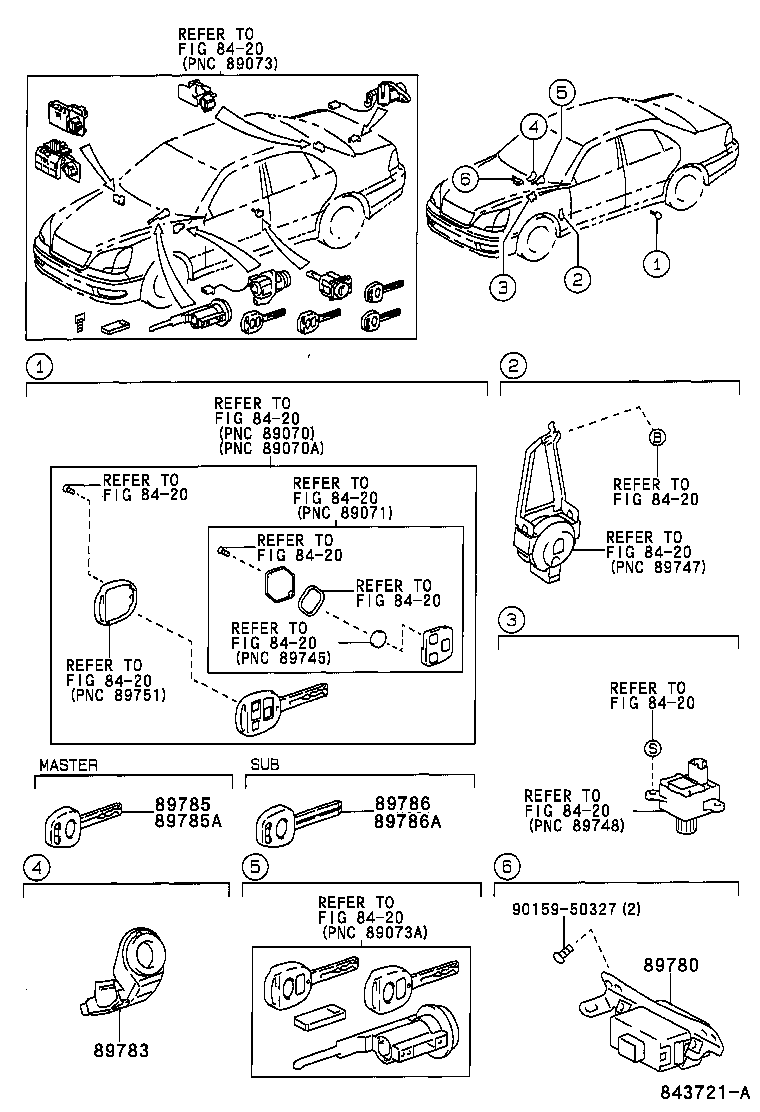

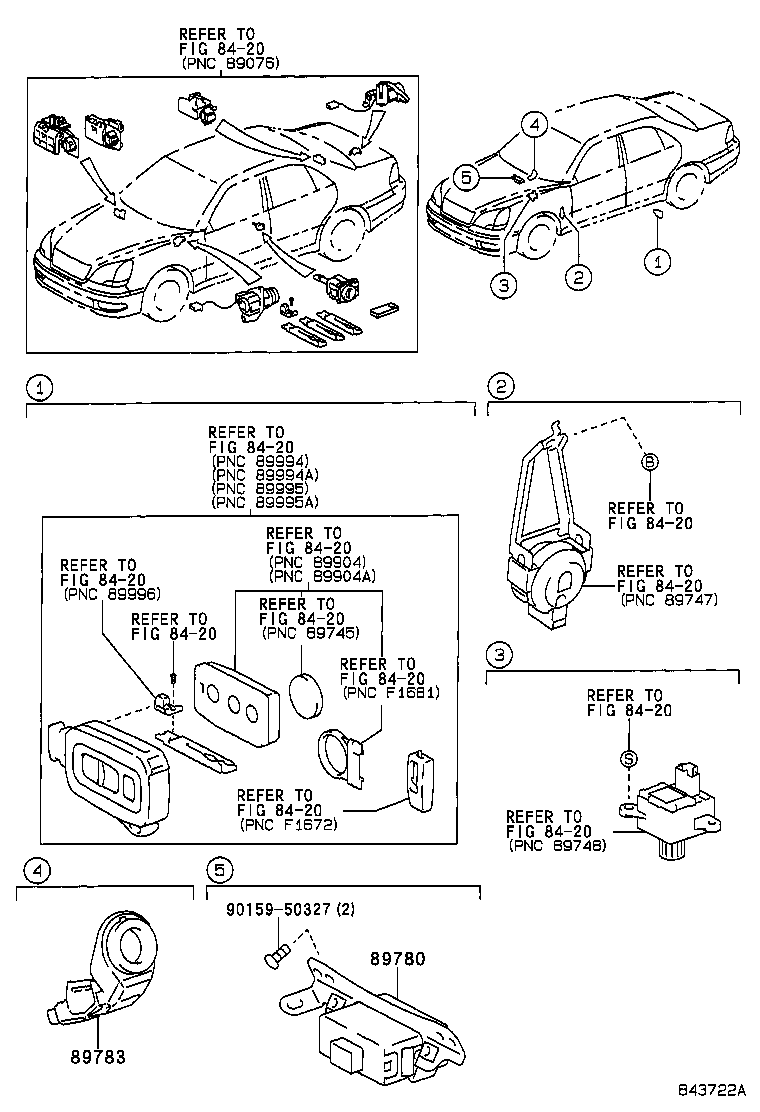

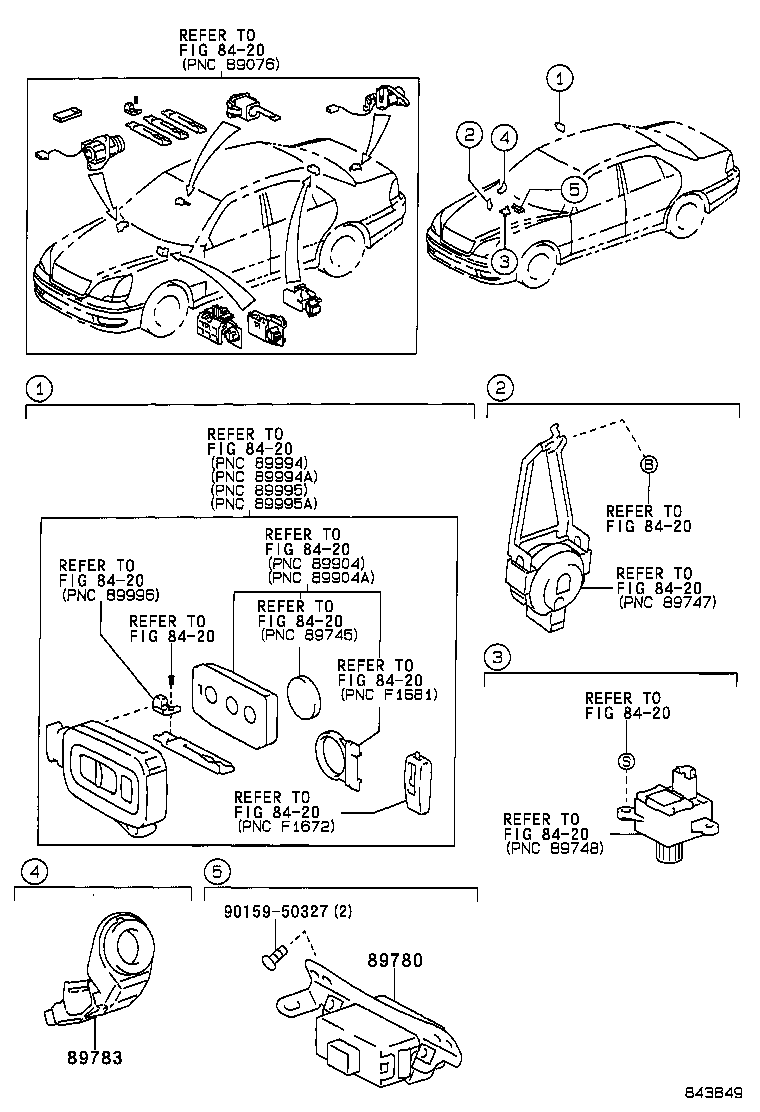

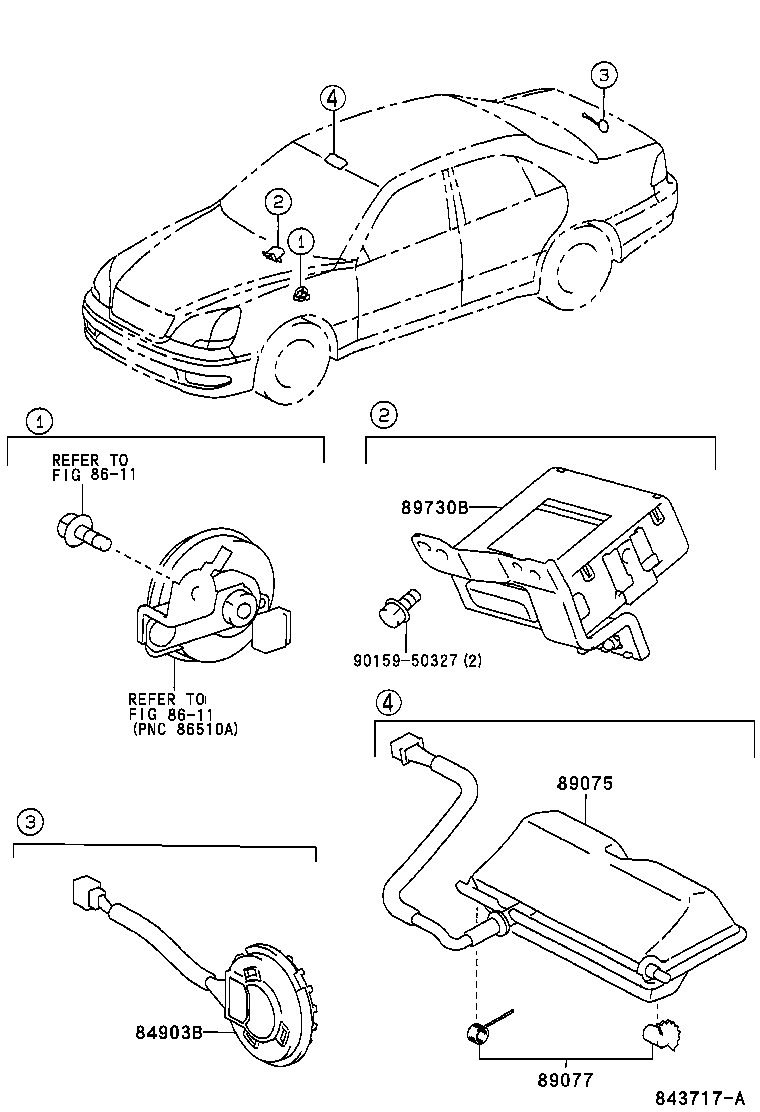

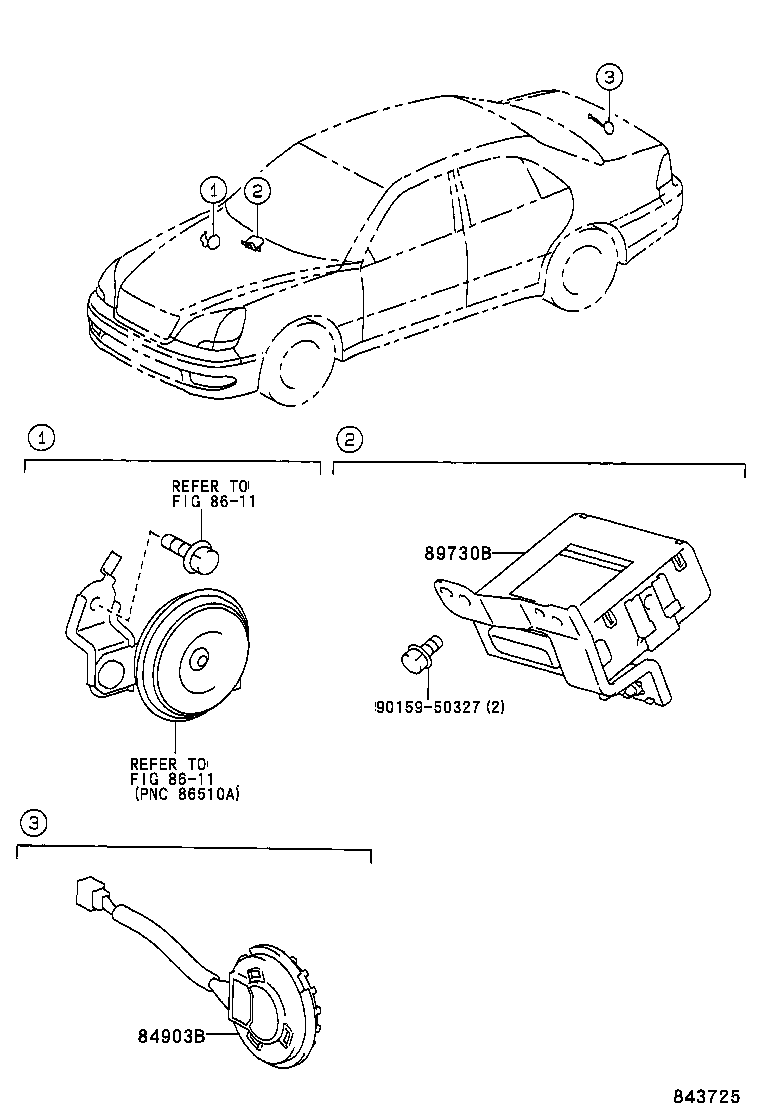

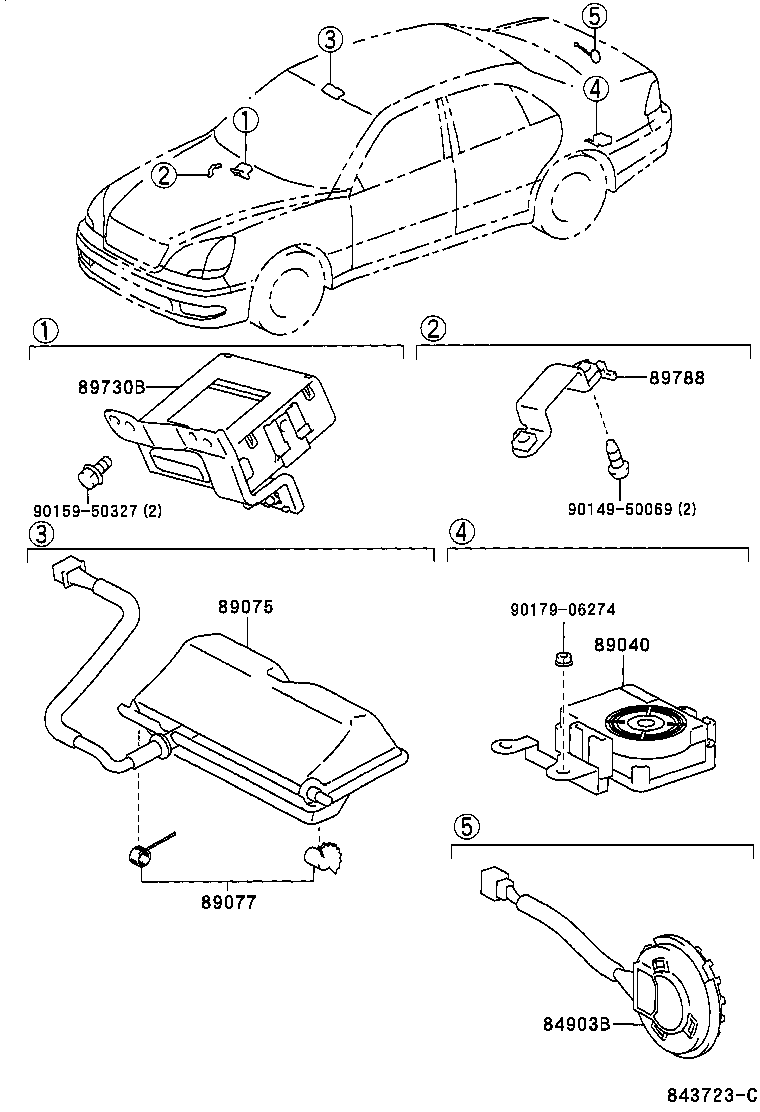

Figure 843718A 843718A 2000-08 → — Figure 843719A 843719A 2000-08 → — Figure 843720A 843720A 2000-08 → — Figure 843721A 843721A 2000-08 → — Figure 843849 843849 2000-08 → — Figure 843722A 843722A 2000-08 → — Figure 843723C 843723C 2000-08 → — Figure 843717A 843717A 2000-08 → — Figure 843725 843725 2000-08 → —

Part groups

PNCDescription
84903B Switch Sub-assy, Door Unlock
89040 Siren Assy, Theft Warning
89075 Sensor Sub-assy, Theft Warning
89077 Parts Kit, Security
89730B Computer Assy, Theft Warning
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89785A Transmitter, Transponder Cut Key Master
89786 Transmitter, Transponder Key Sub
89786A Transmitter, Transponder Cut Key Sub
89788 Bracket, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
