Toyota Lexus LS430

2000-08 → 2006-08 · chassis UCF30 · catalogue 431230 · Europe

Discontinued model Data version 2007-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

18 part groups · 6 illustrations

Illustrations

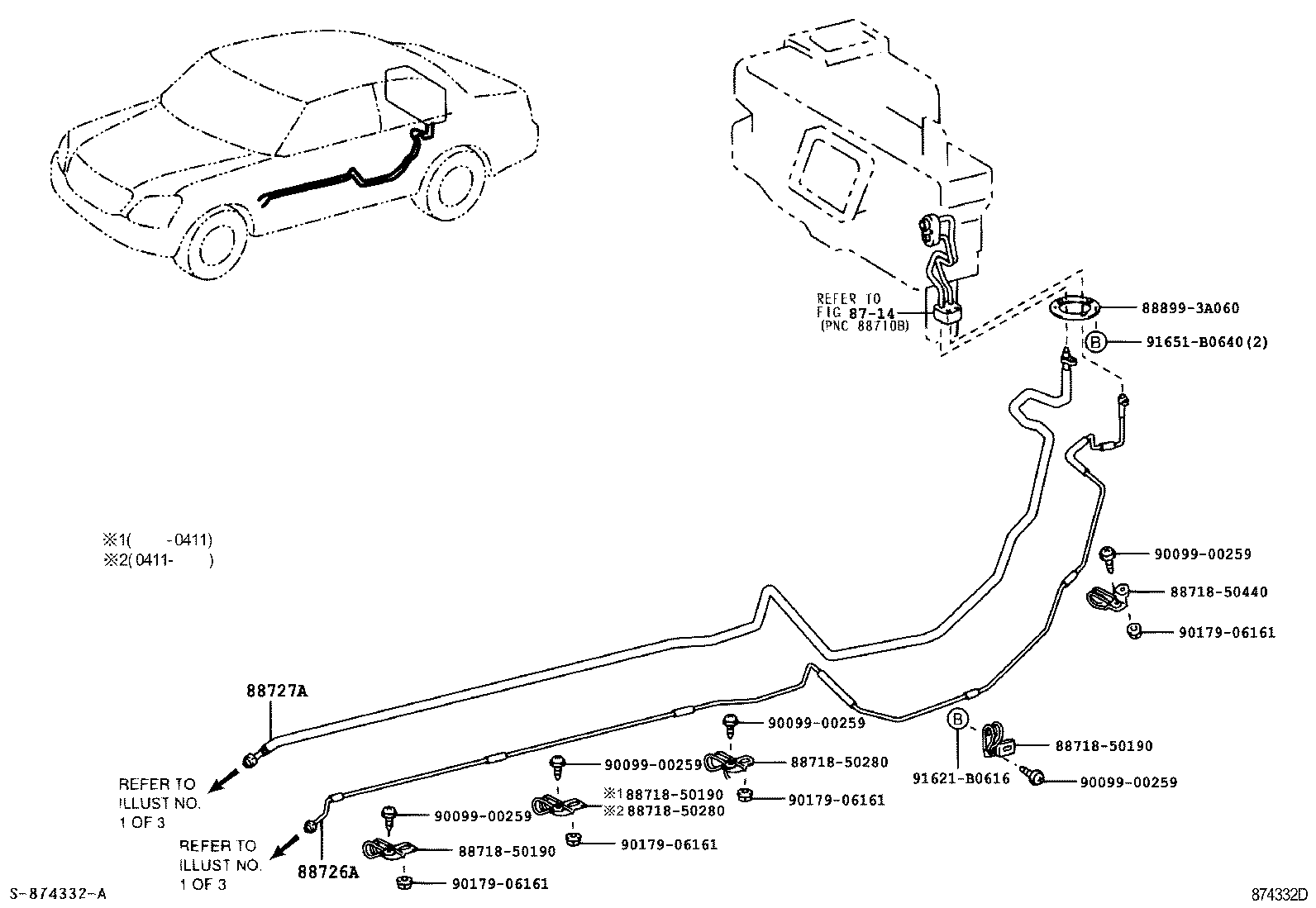

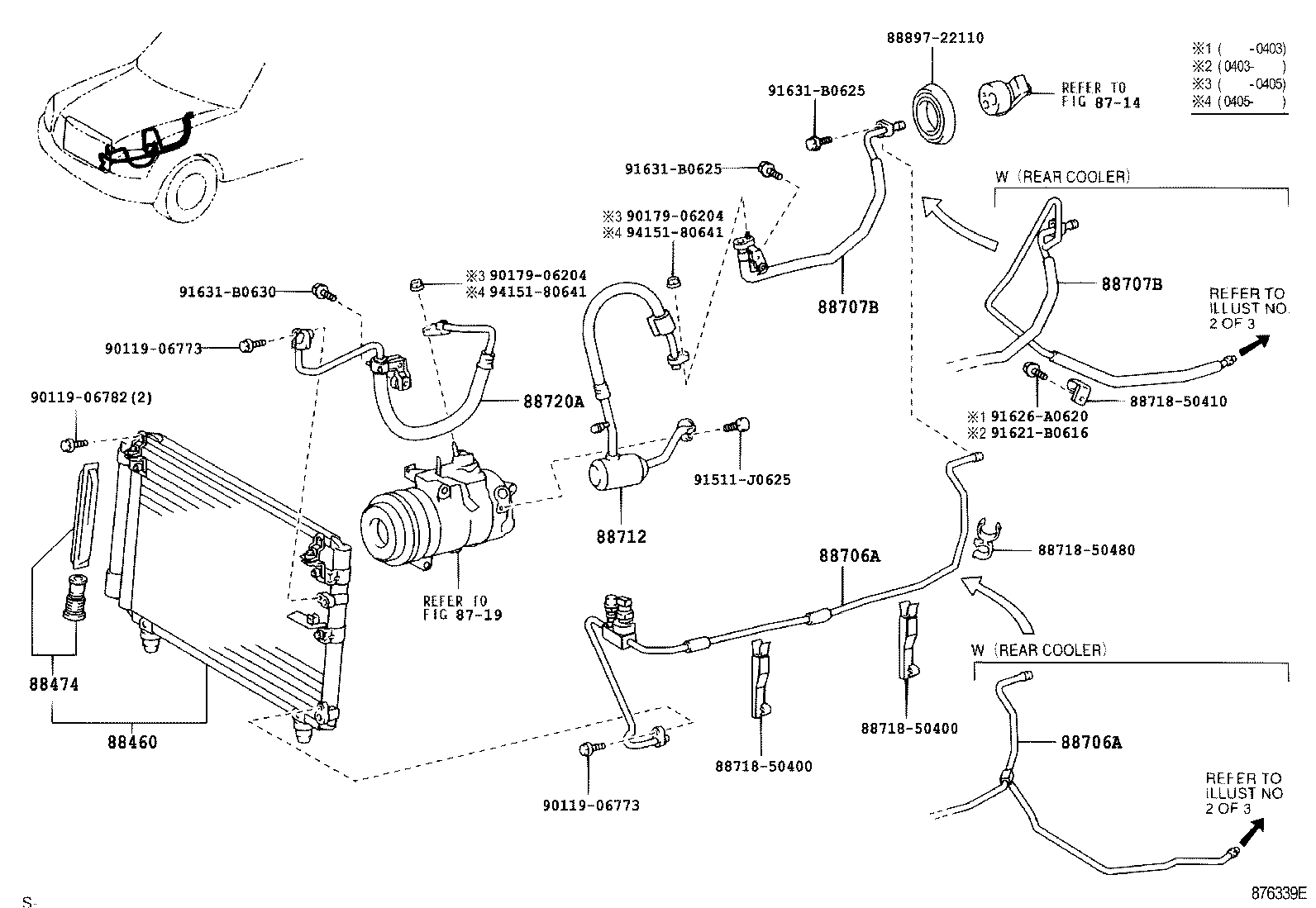

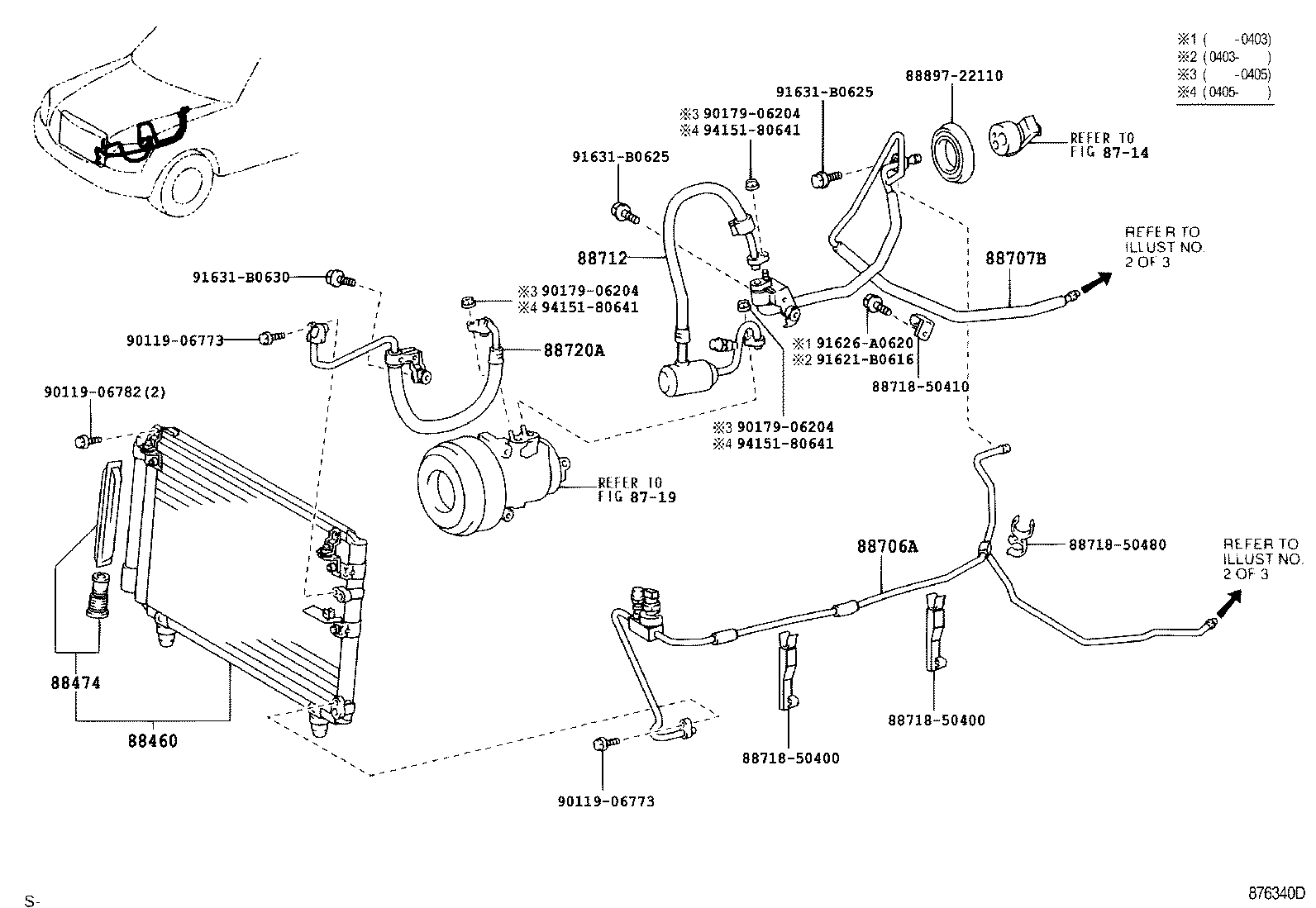

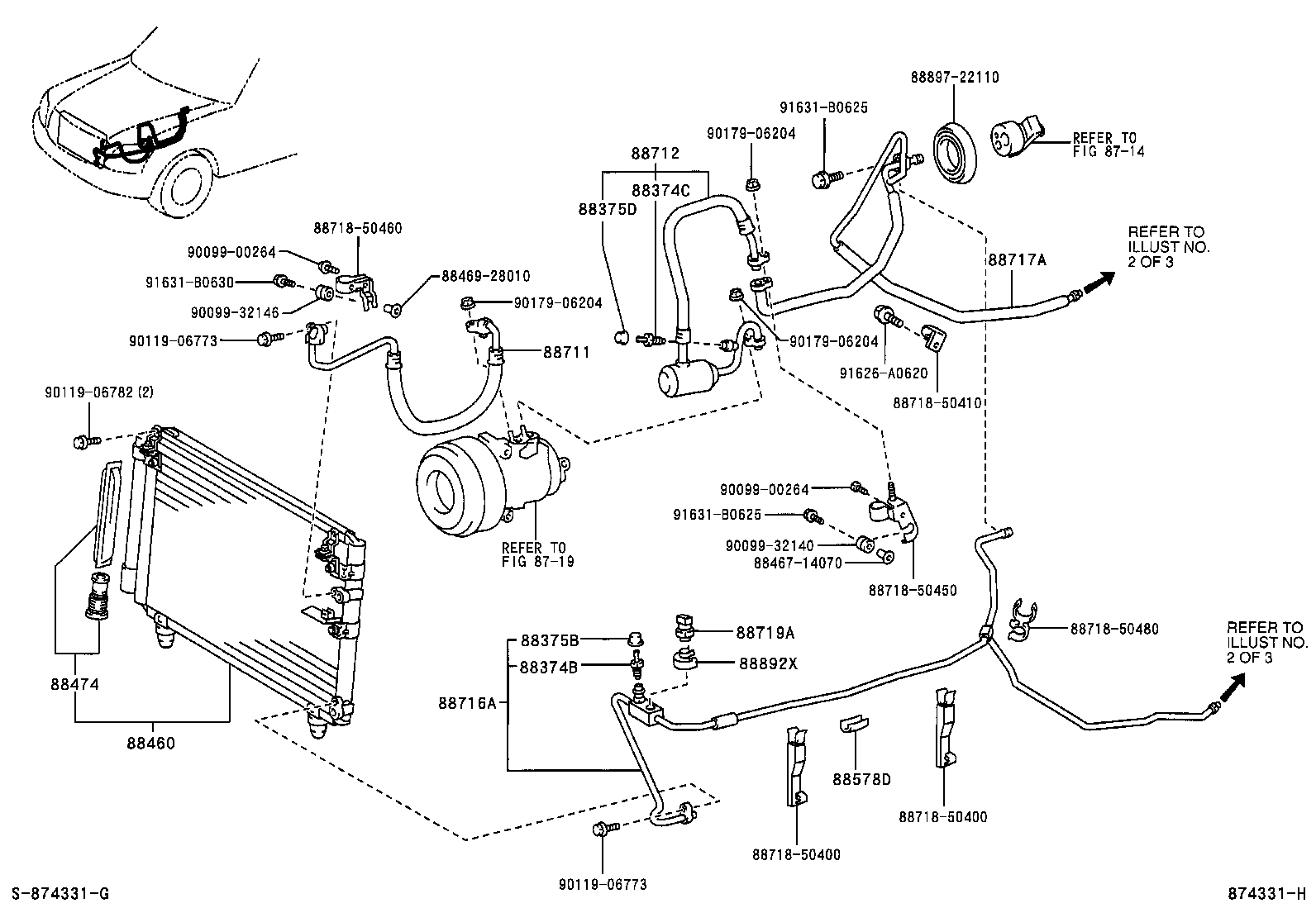

Figure 874375H 874375H 2000-08 → 2003-07 Figure 874331H 874331H 2000-08 → 2003-07 Figure 876339E 876339E 2003-07 → — Figure 876340D 876340D 2003-07 → — Figure 874332D 874332D 2000-08 → — Figure 874333A 874333A 2000-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88578D Packing, Cooler Pipe, NO.1
88706A Tube Sub-assy, Liquid, A
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88717A Pipe, Cooler Refrigerant Suction, A
88719A Sensor, Air Conditioner Pressure
88720A Hose & Accessory, Air Conditioner
88726A Pipe, Cooler Refrigerant Liquid, A
88727A Pipe, Cooler Refrigerant Suction, A
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
