Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

14 part groups · 4 illustrations

Illustrations

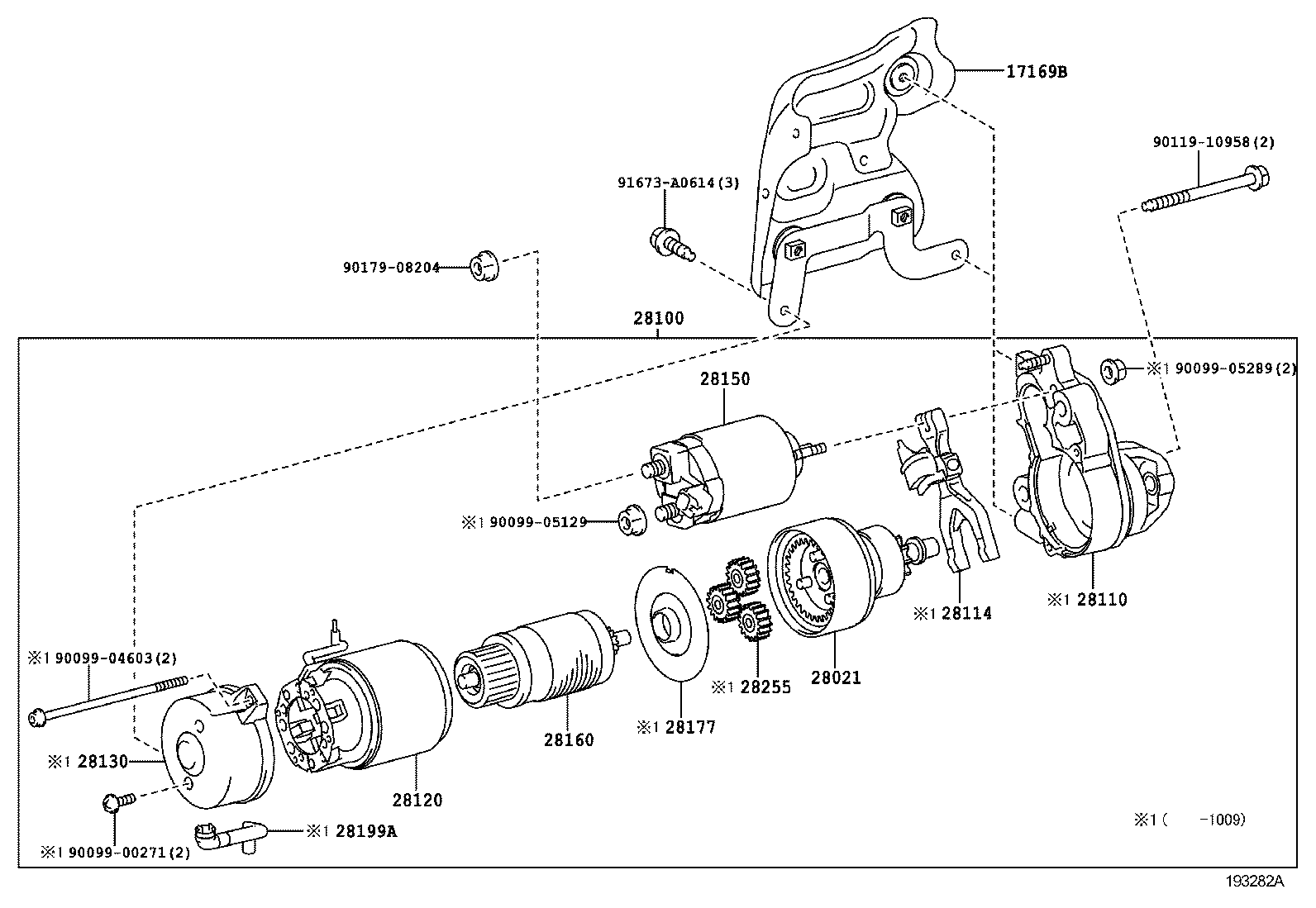

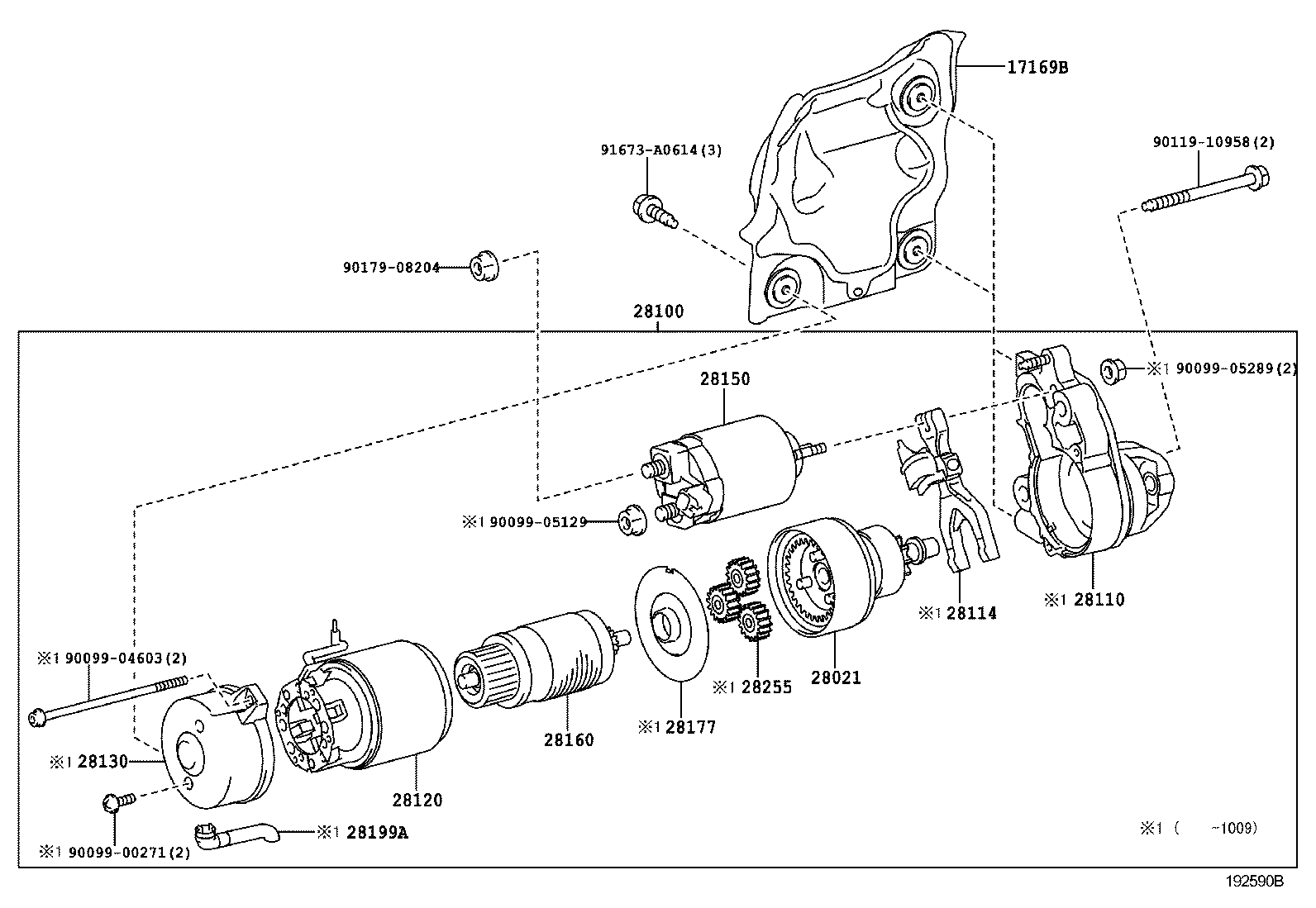

Figure 192589A 192589A 2006-08 → 2008-09 Figure 192590B 192590B 2006-08 → 2008-09 Figure 192590B 192590B 2008-09 → — Figure 193282A 193282A 2008-09 → —

Part groups

PNCDescription
17169B Insulator, Exhaust Manifold Heat, NO.3
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28114 Pin, Starter Drive Lever Set
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28177 Plate(FOR STARTER ARMATURE)
28199A Protector, Dust Starter
28226B Starter Kit, Repair Service
28255 Gear, Planet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
