Shift Lever & Retainer

16 part groups · 4 illustrations

Illustrations

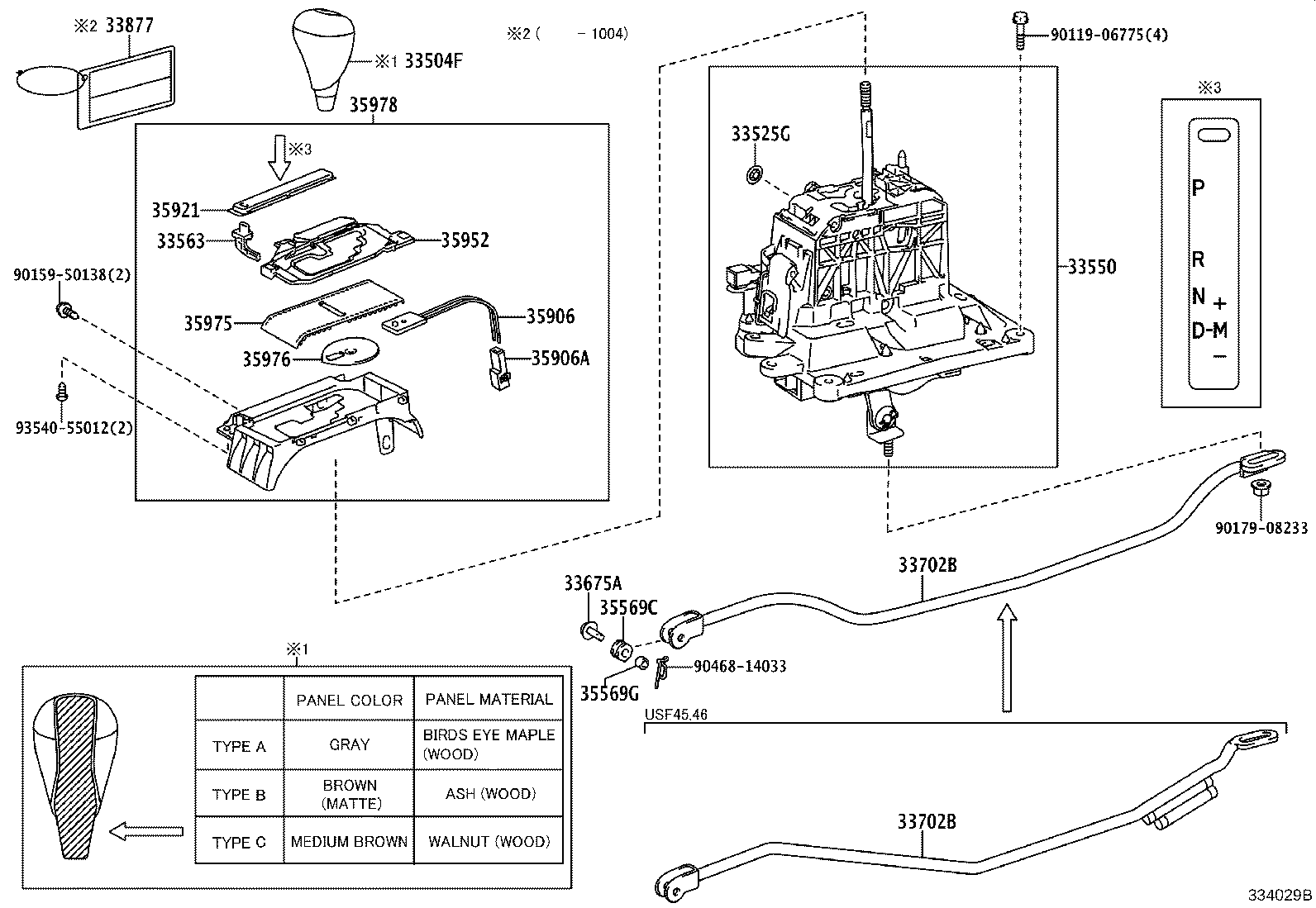

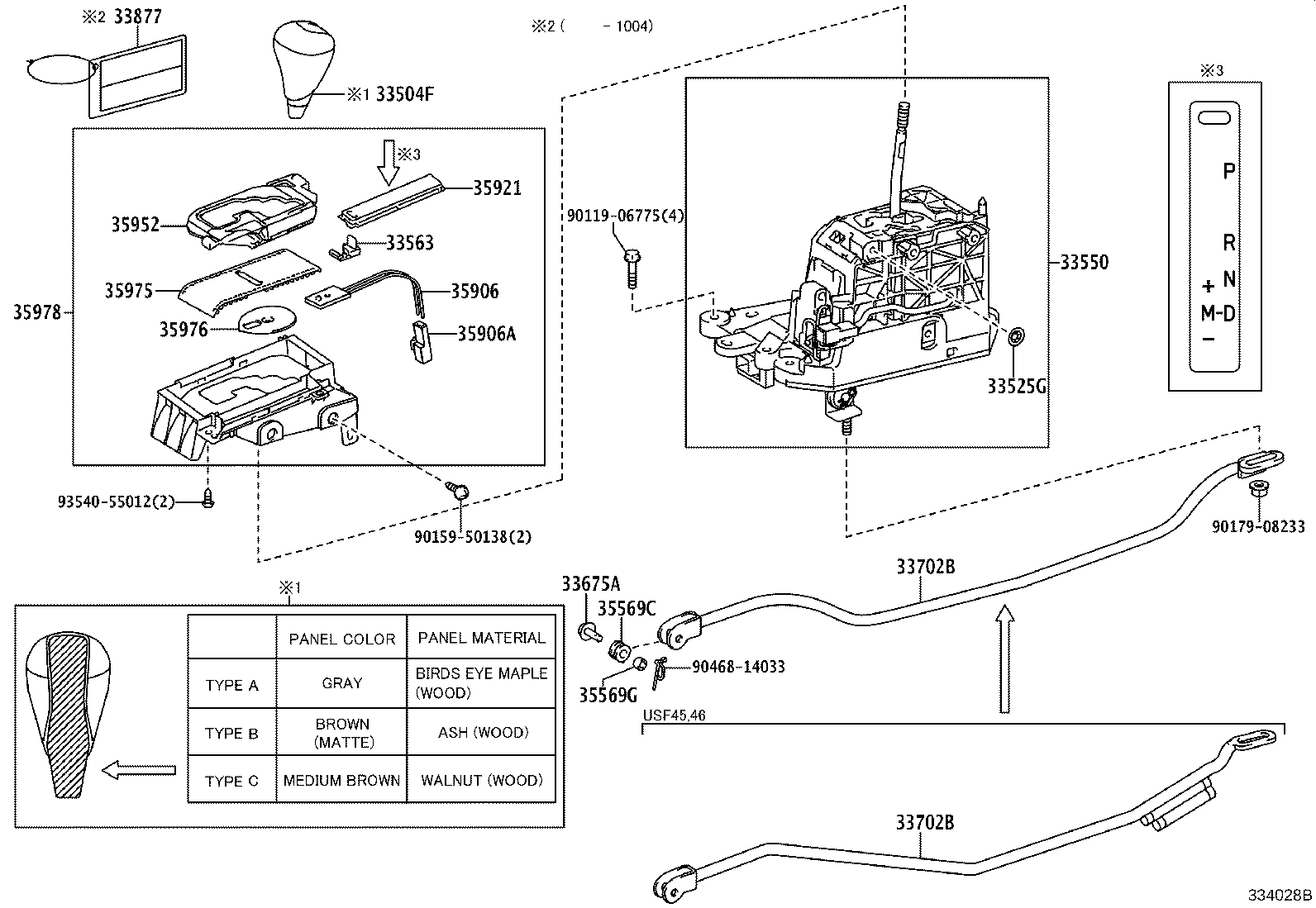

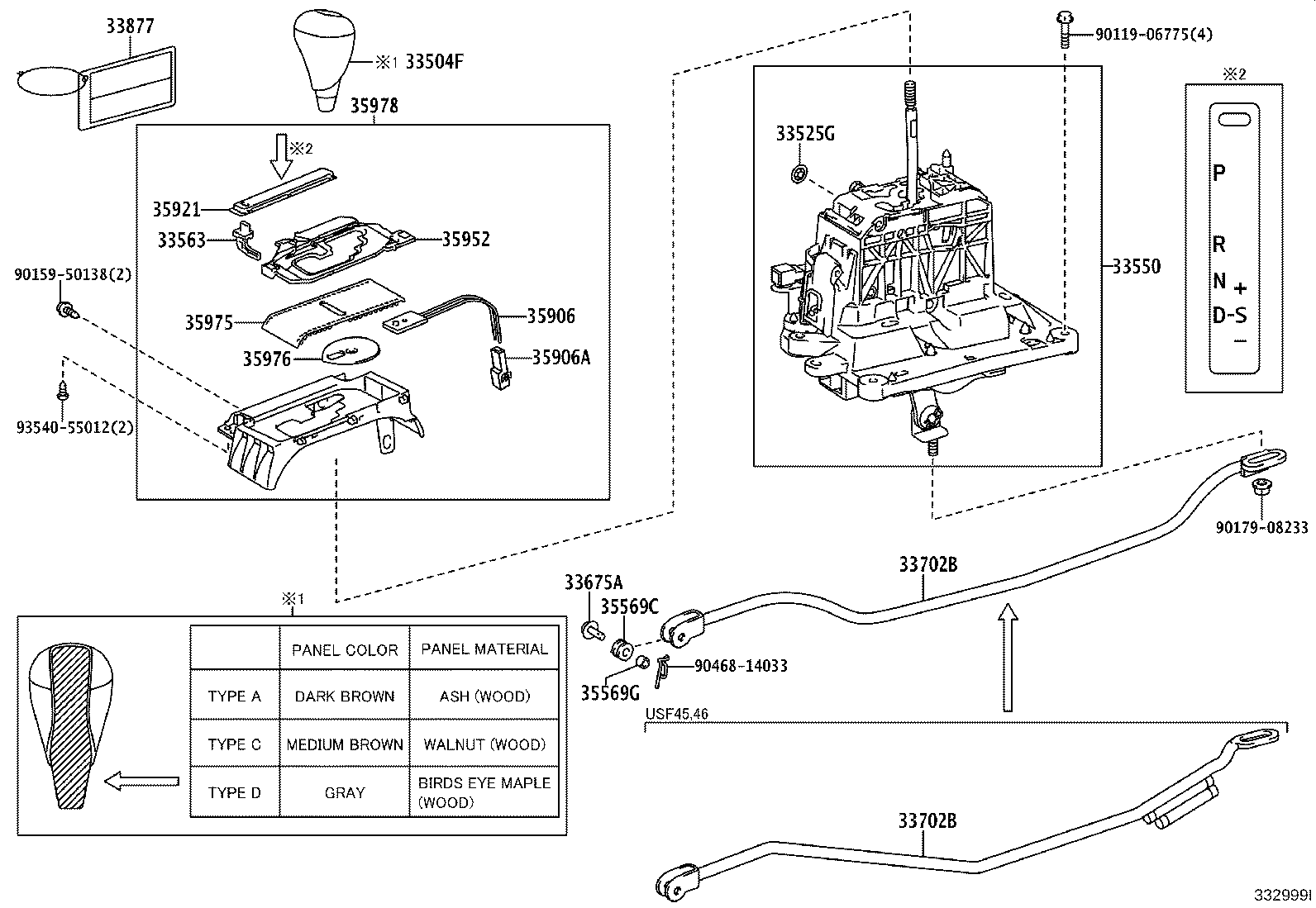

Figure 332998I 332998I 2006-08 → 2009-09 Figure 332999I 332999I 2006-08 → 2009-09 Figure 334028B 334028B 2009-09 → — Figure 334029B 334029B 2009-09 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525G Ring, Shift Lever
33550 Floor Shift Assy, Transmission
33563 Button, Shift Lock Release
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
33877 Label, Shift Lock Information, NO.1
35569C Grommet (FOR TRANSMISSION CONTROL ROD)
35569G Bush (FOR TRANSMISSION CONTROL ROD)
35906 Wire Sub-assy, Indicator Lamp
35906A Housing, Connector Male (FOR INDICATOR LAMP WIRE)
35921 Plate, Control Position Indicator
35952 Lens, Position Indicator
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
