Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 4 illustrations

Illustrations

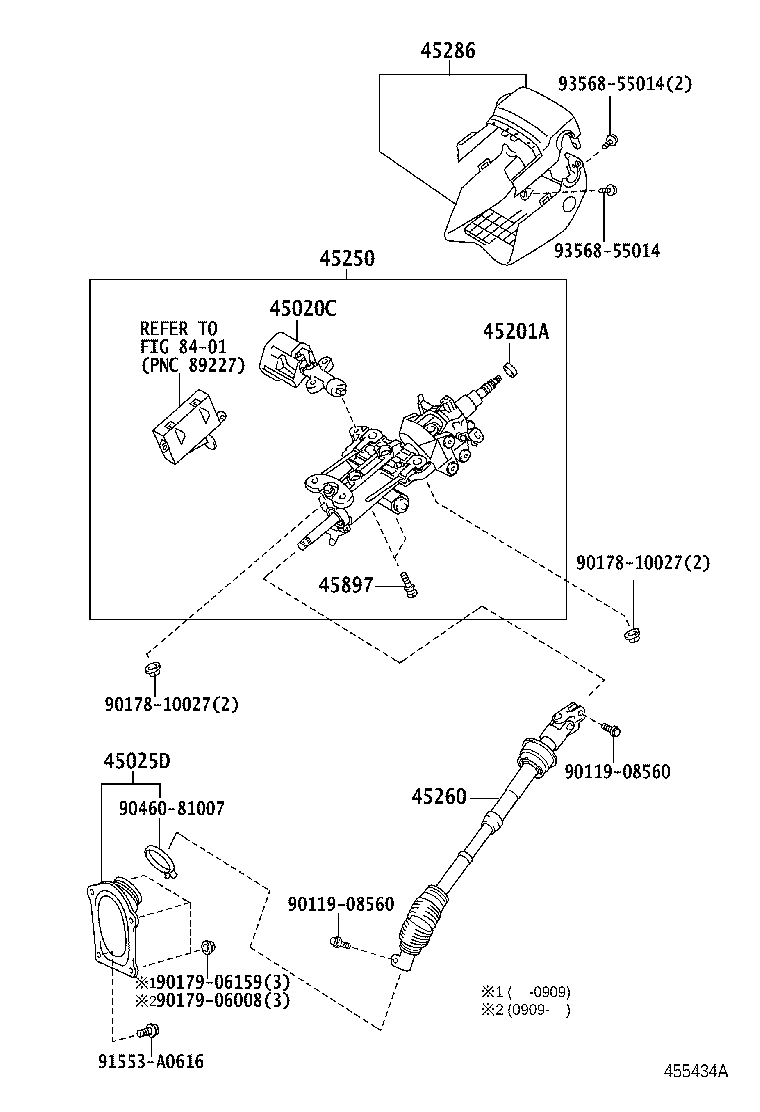

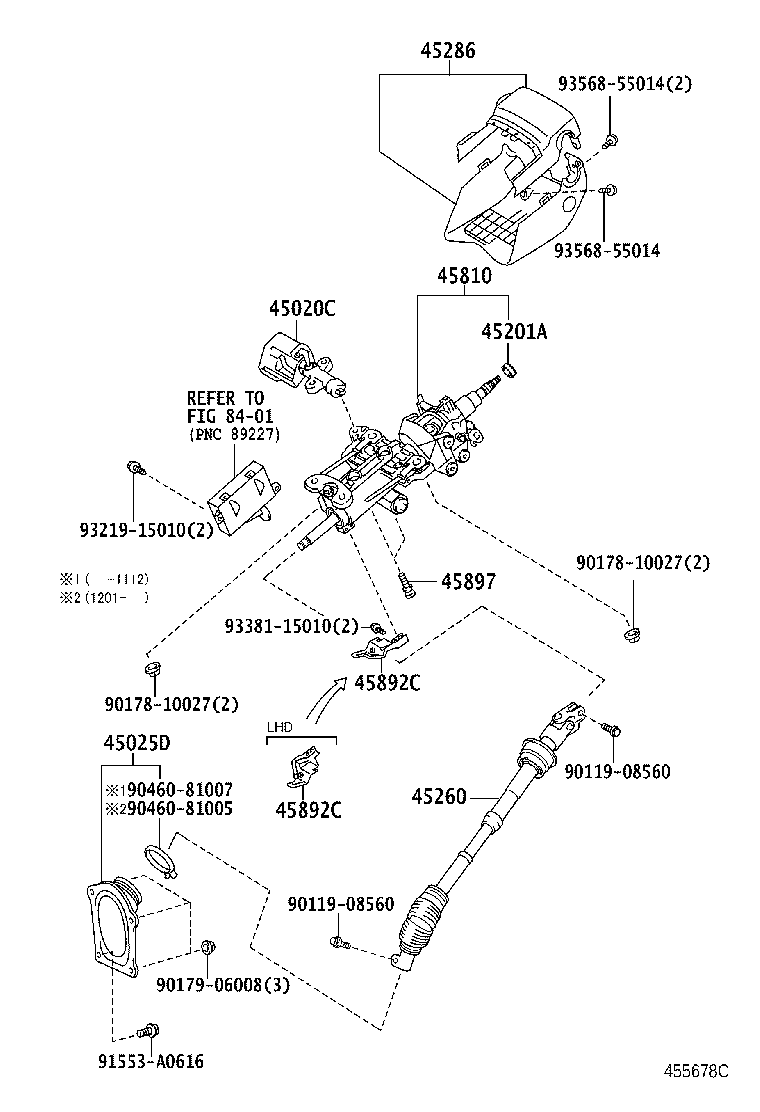

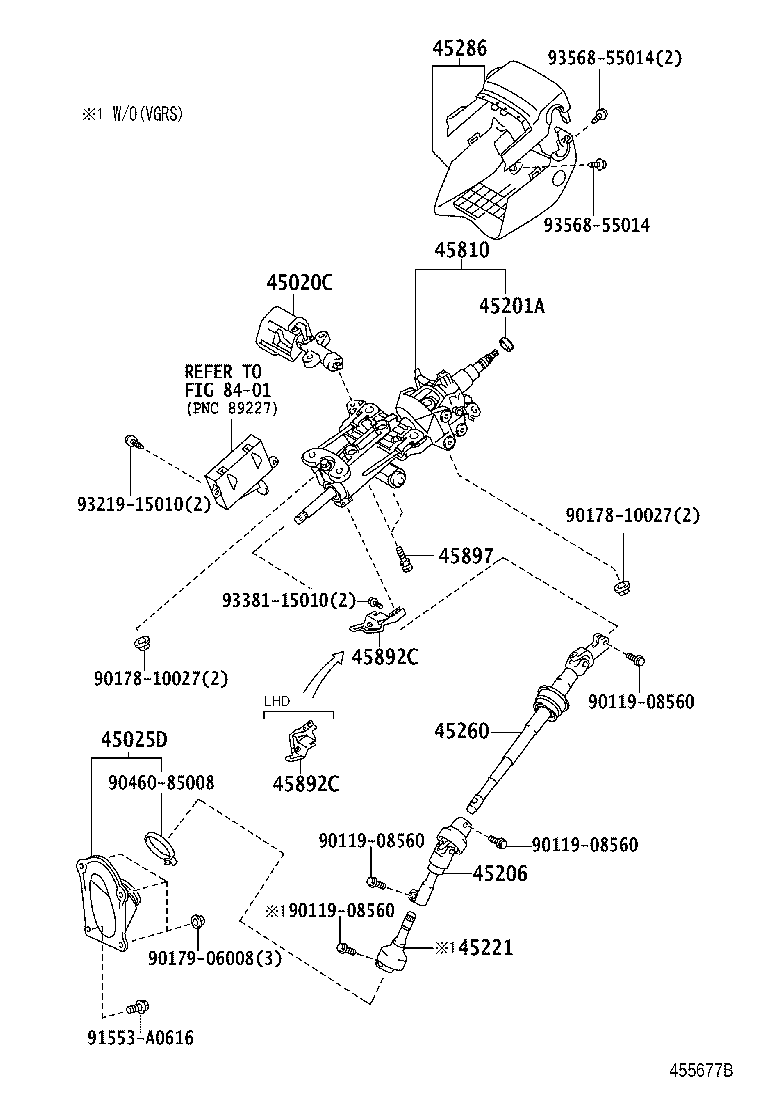

Figure 454631C 454631C 2006-08 → 2010-11 Figure 455677D 455677D 2010-11 → — Figure 455434A 455434A 2008-09 → 2010-11 Figure 455678C 455678C 2010-11 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45201A Bearing(FOR STEERING MAIN SHAFT)
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45810 Gear Assy, Tilt Steering, W/Motor
45892C Bracket, Return Spring
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
