Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

75 part groups · 23 illustrations

Illustrations

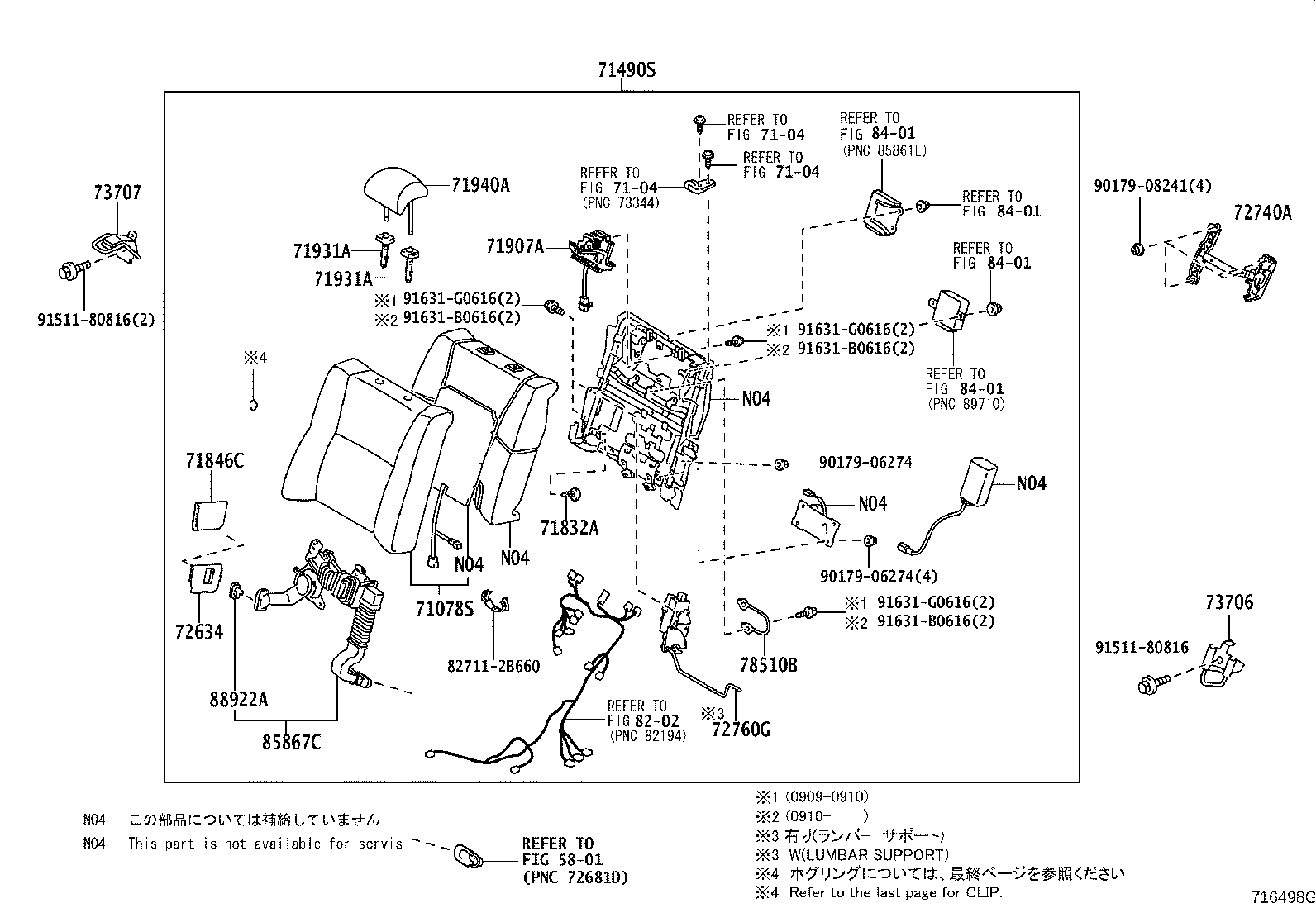

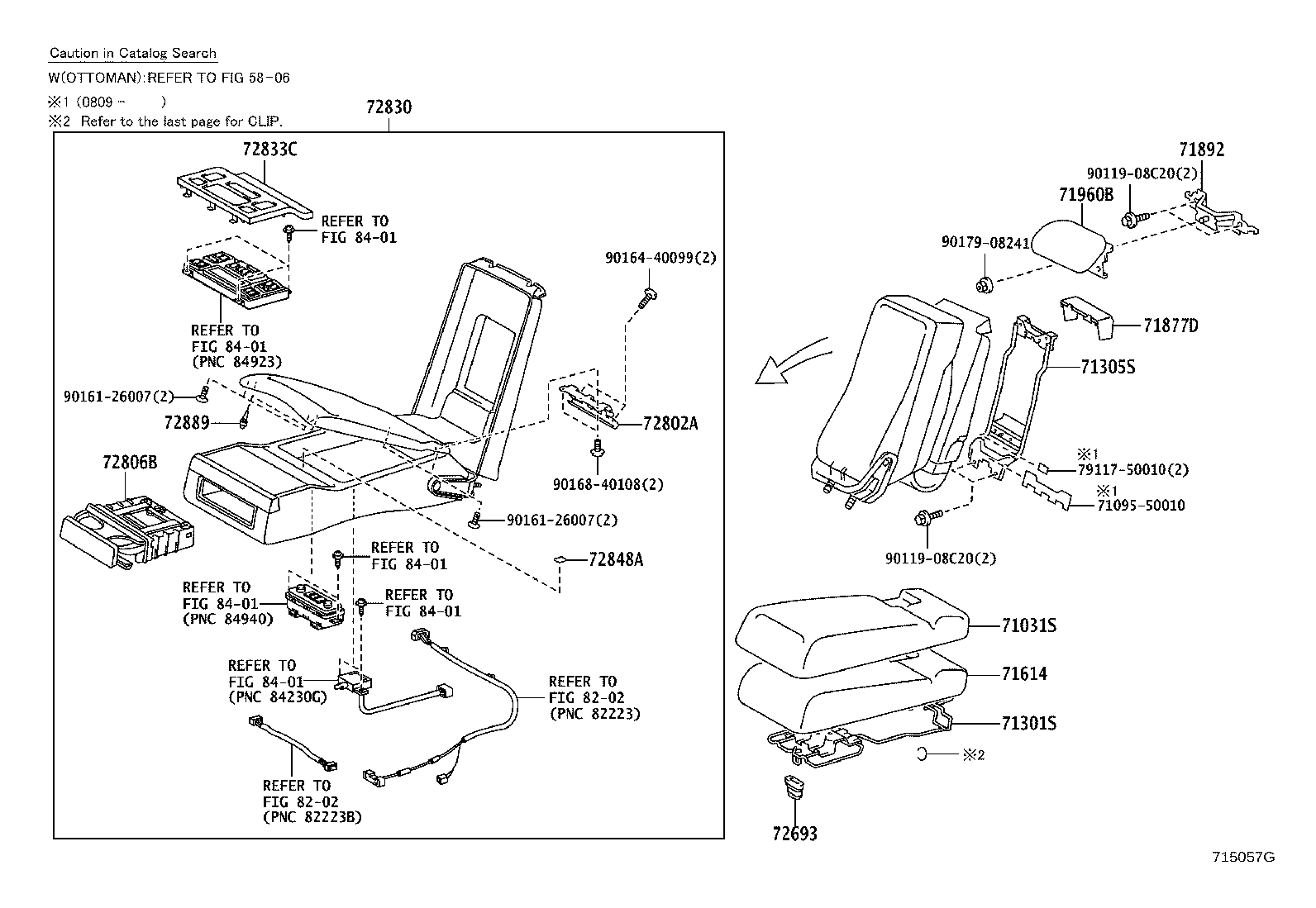

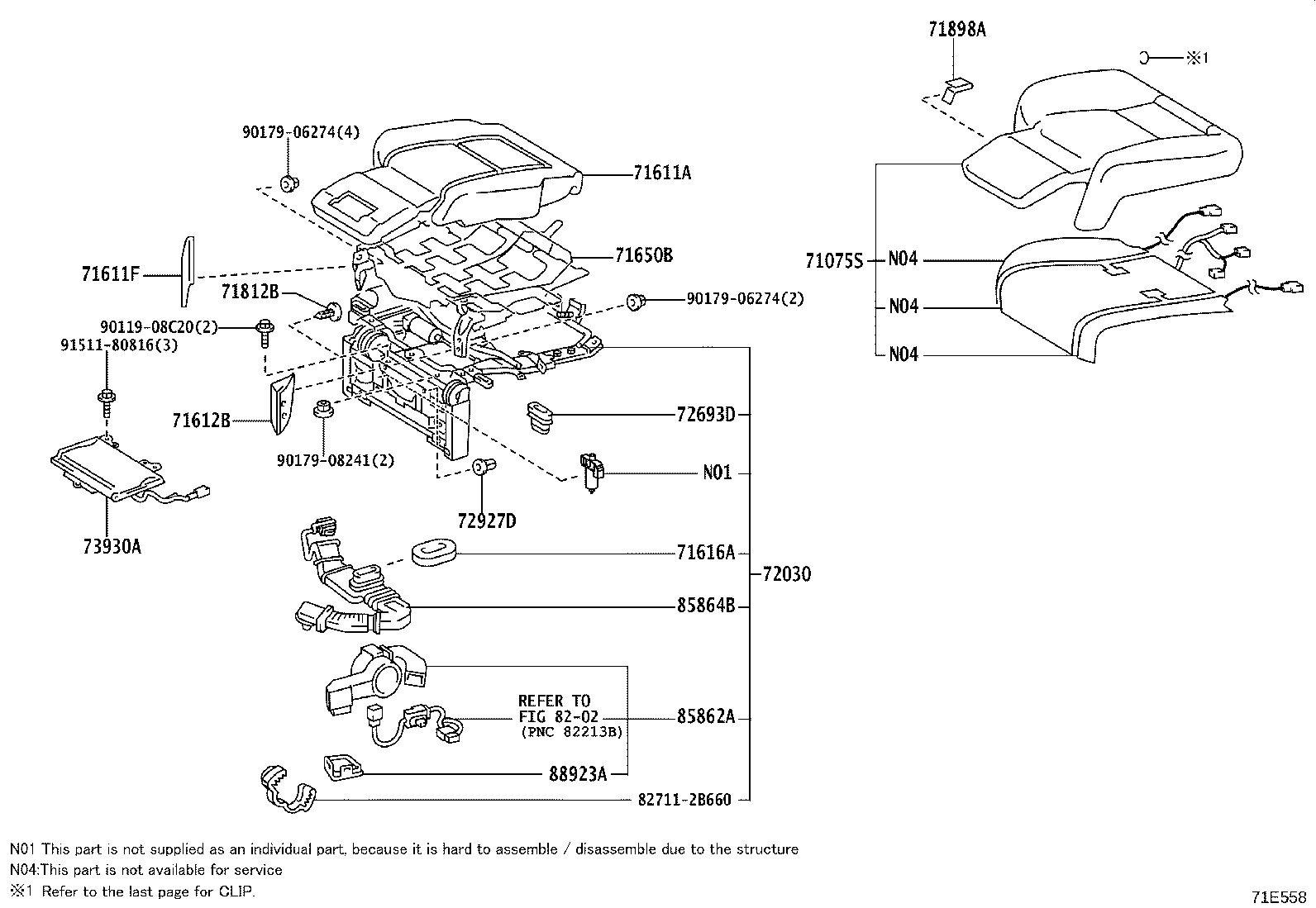

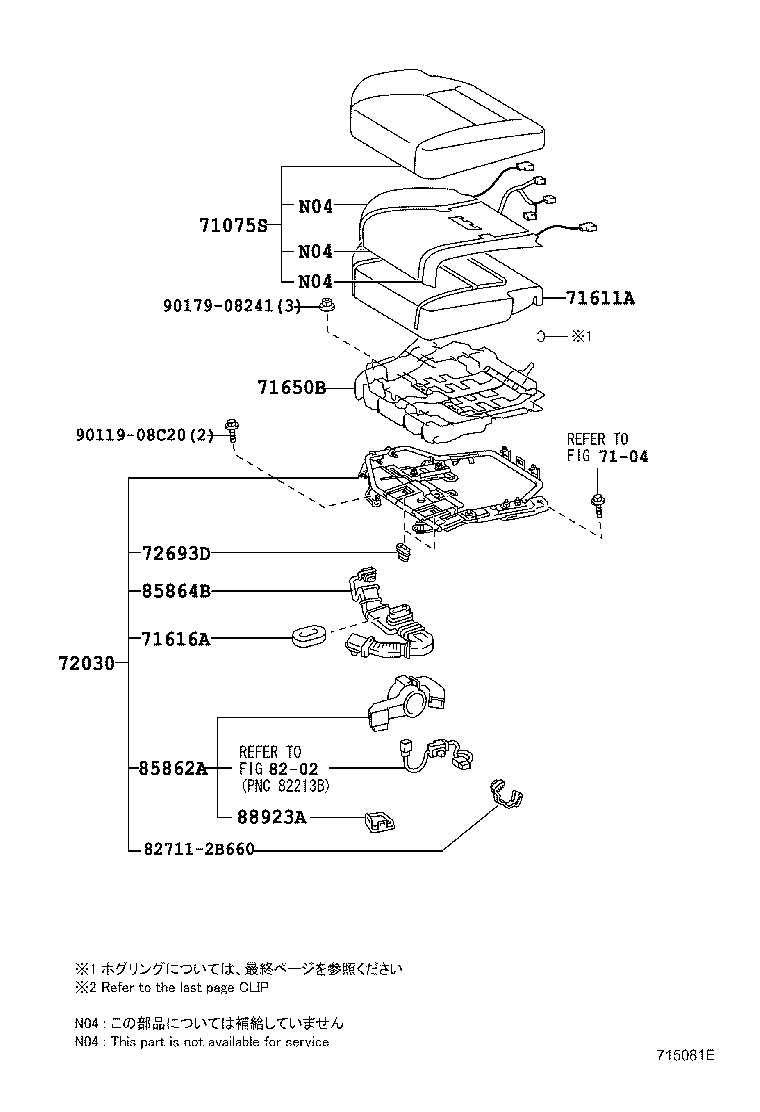

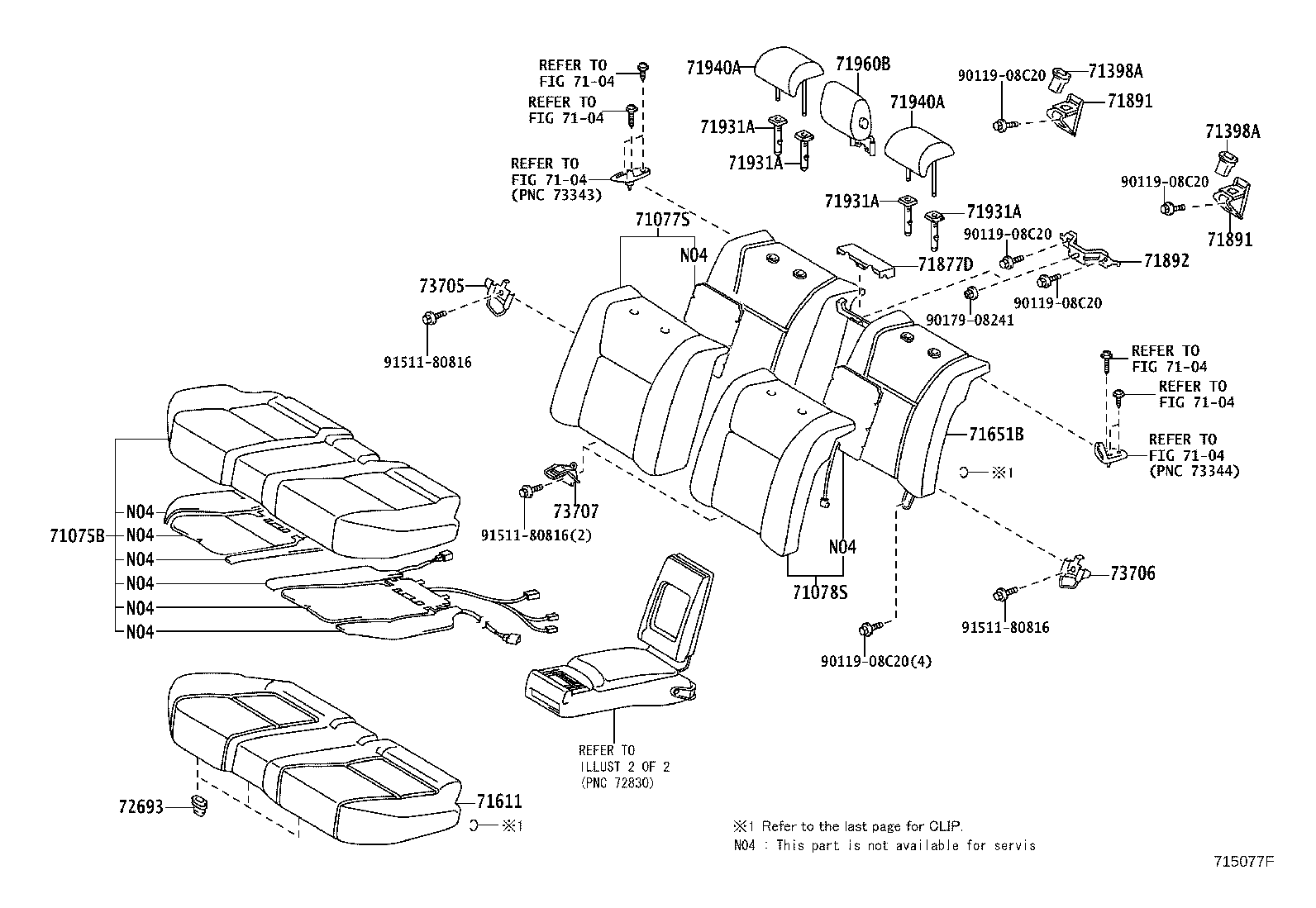

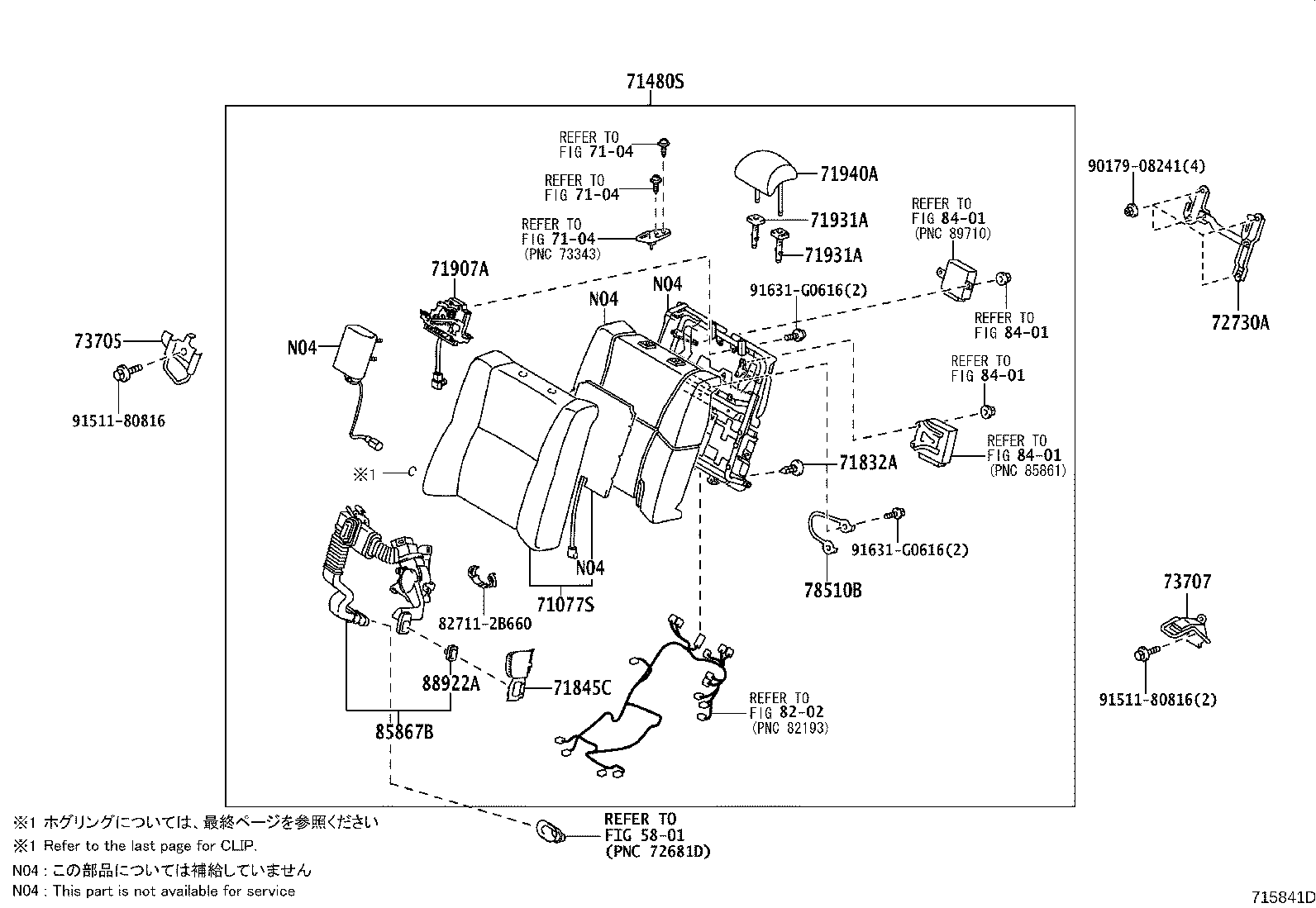

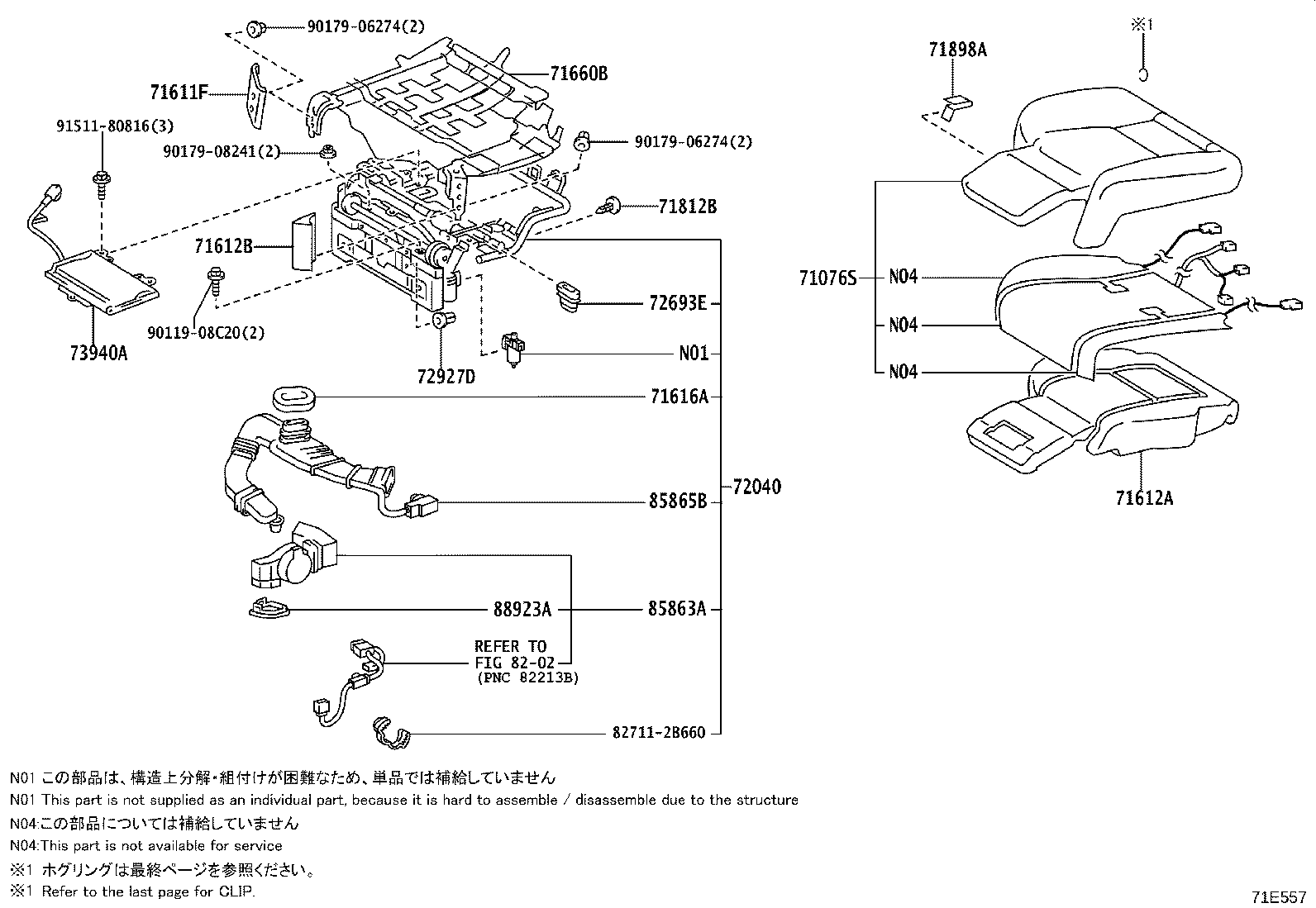

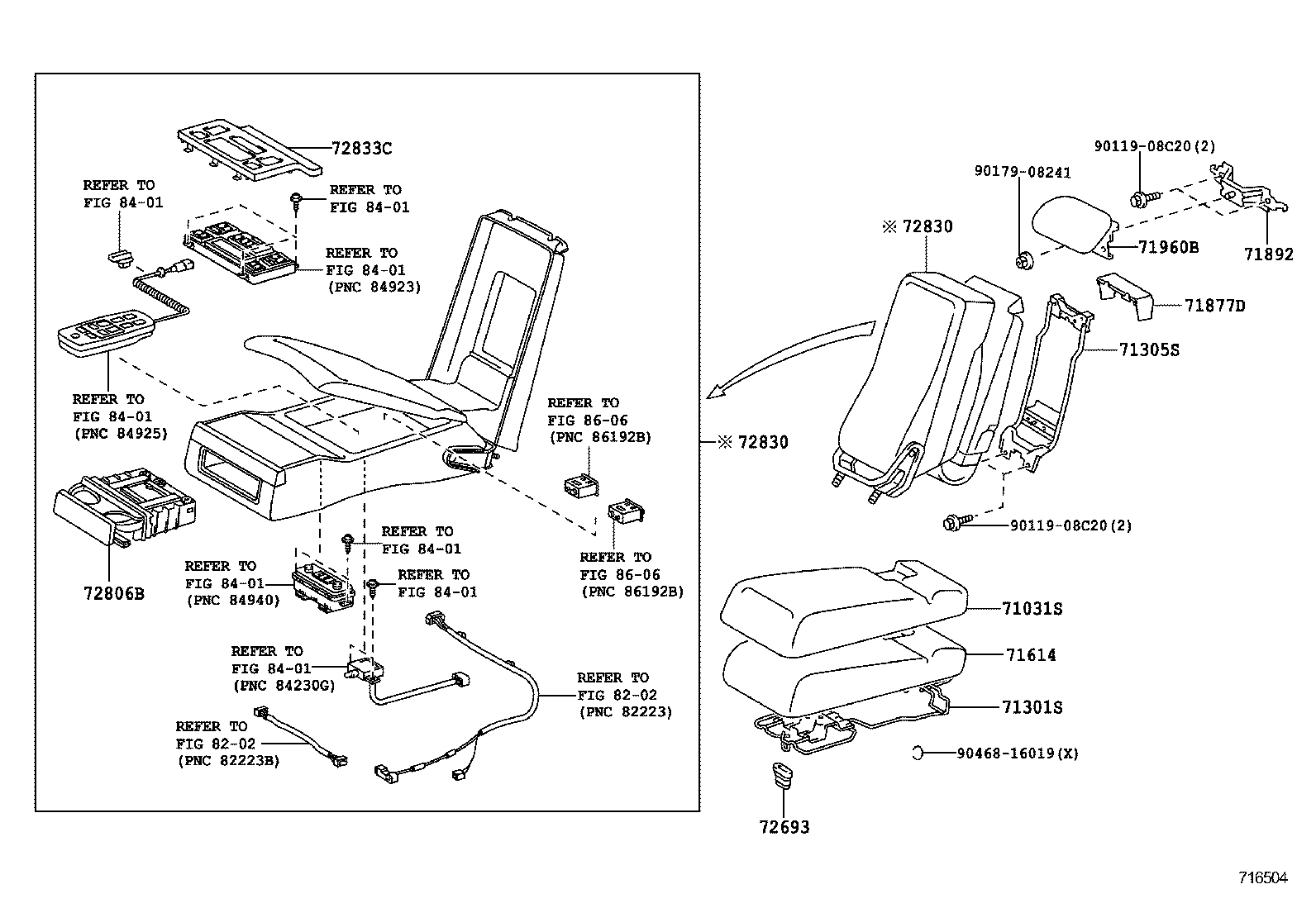

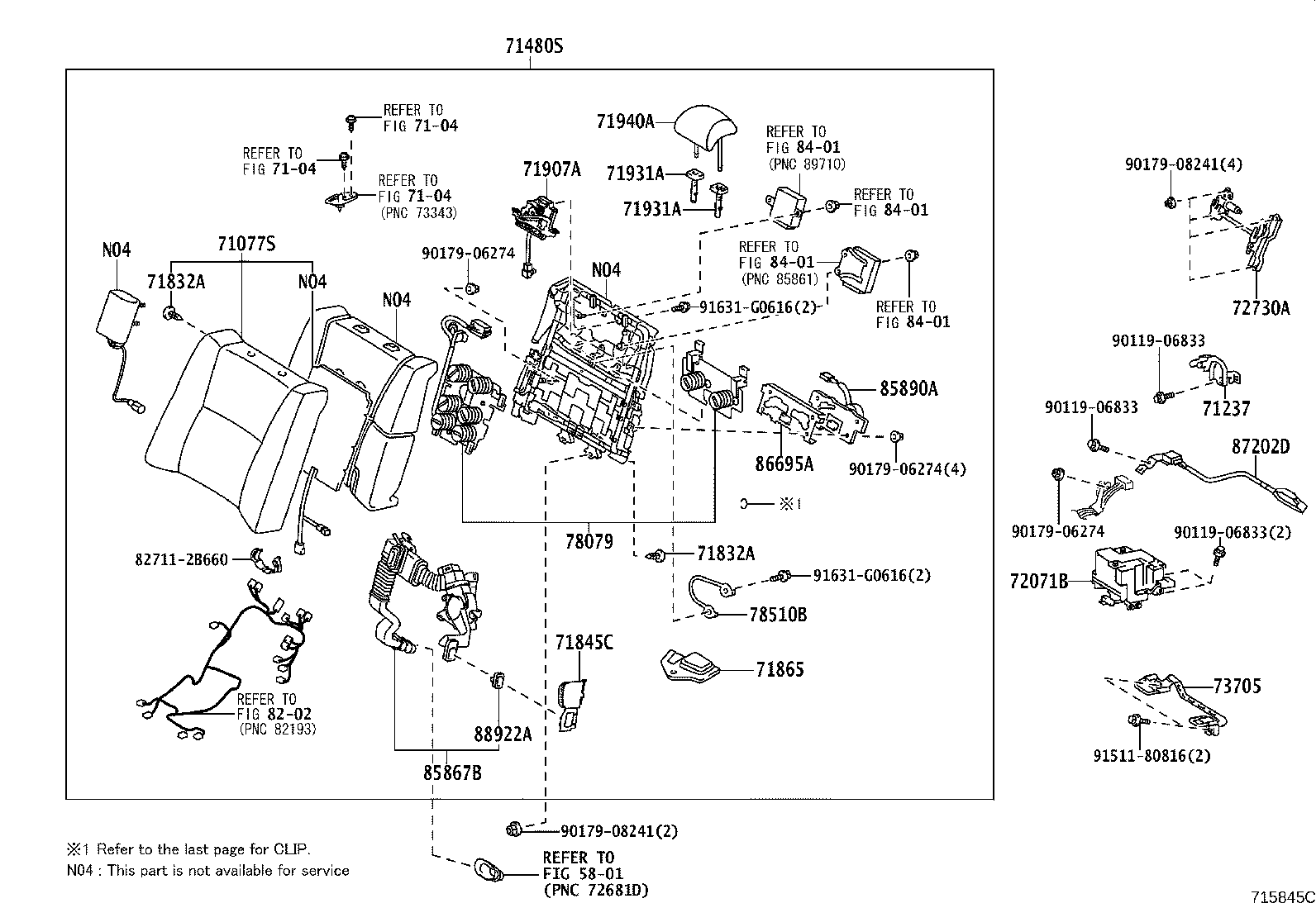

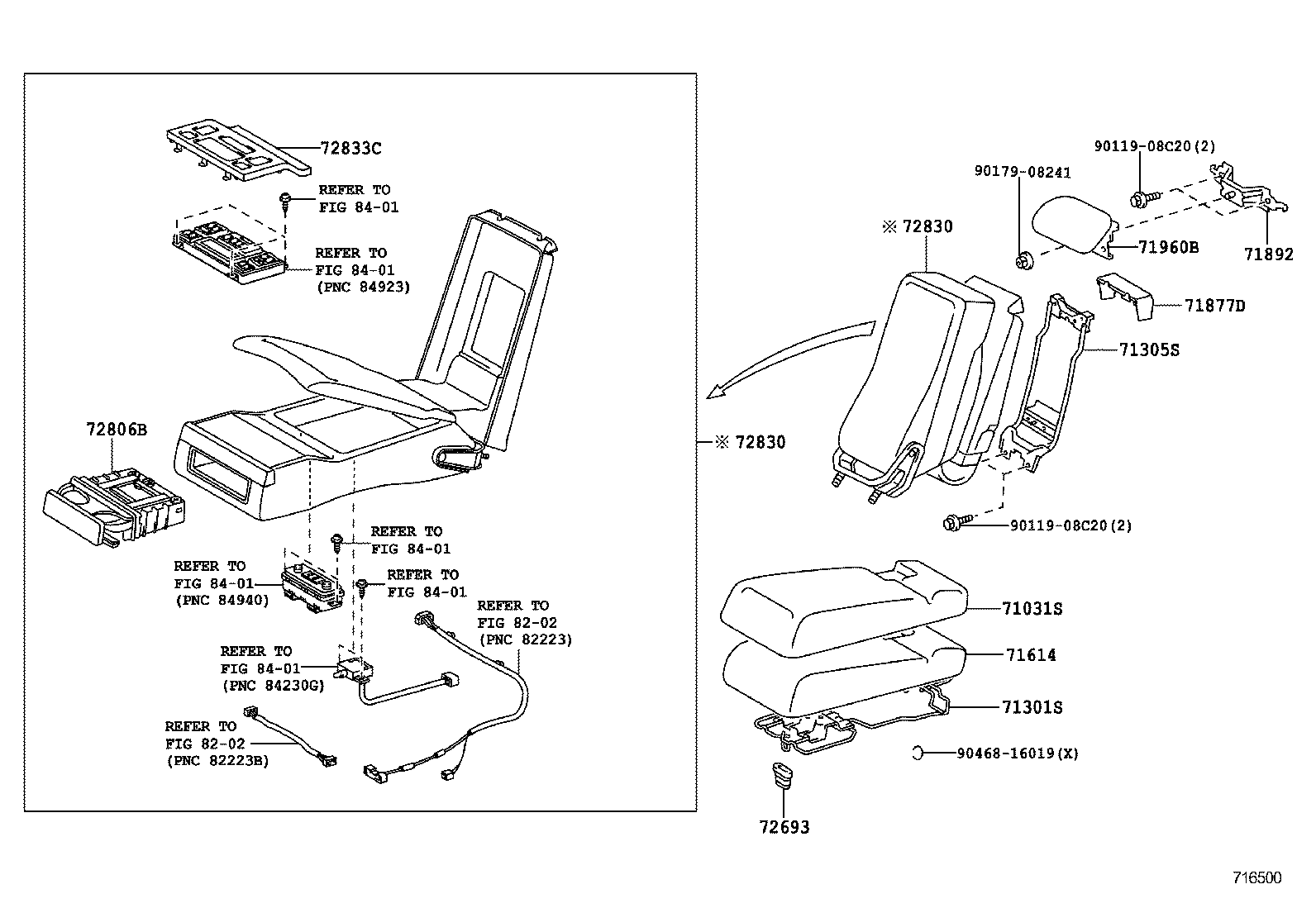

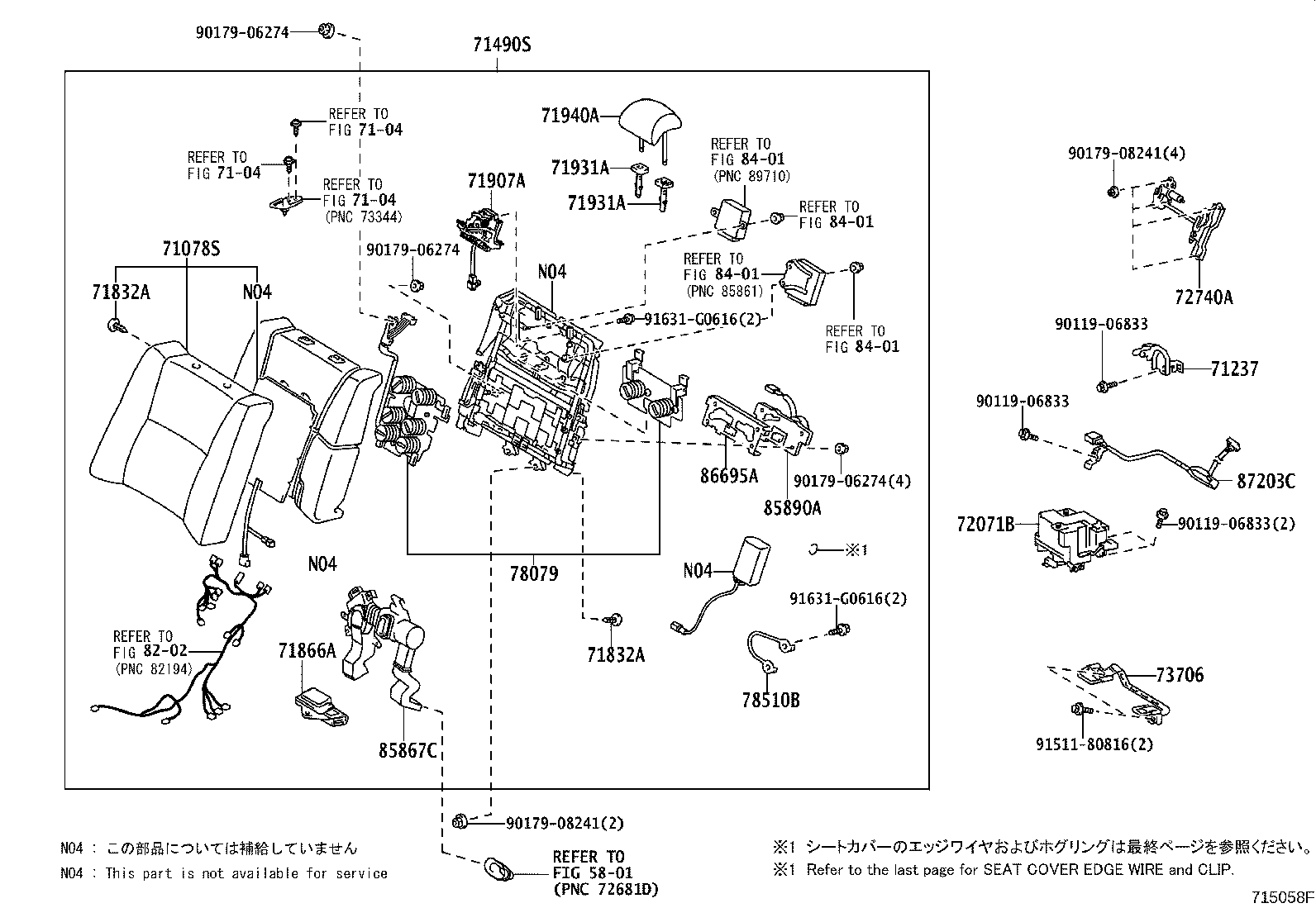

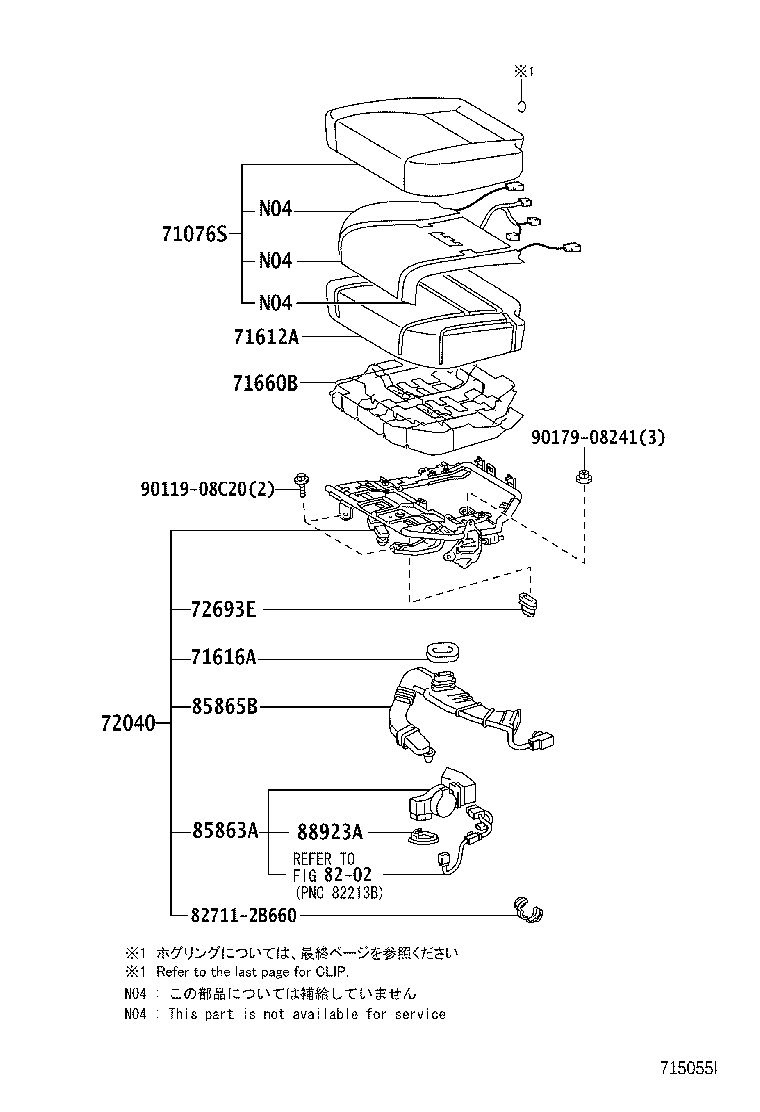

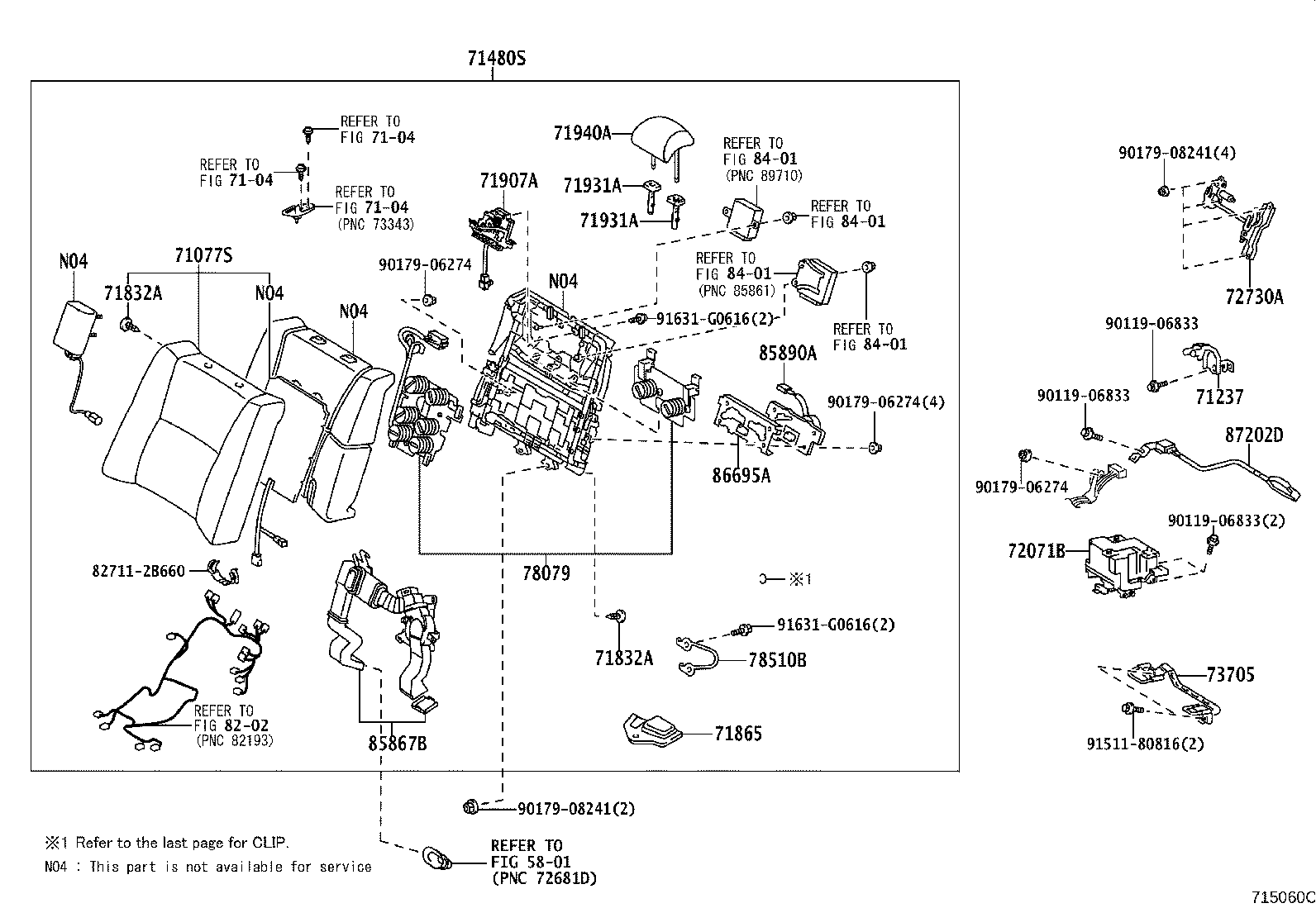

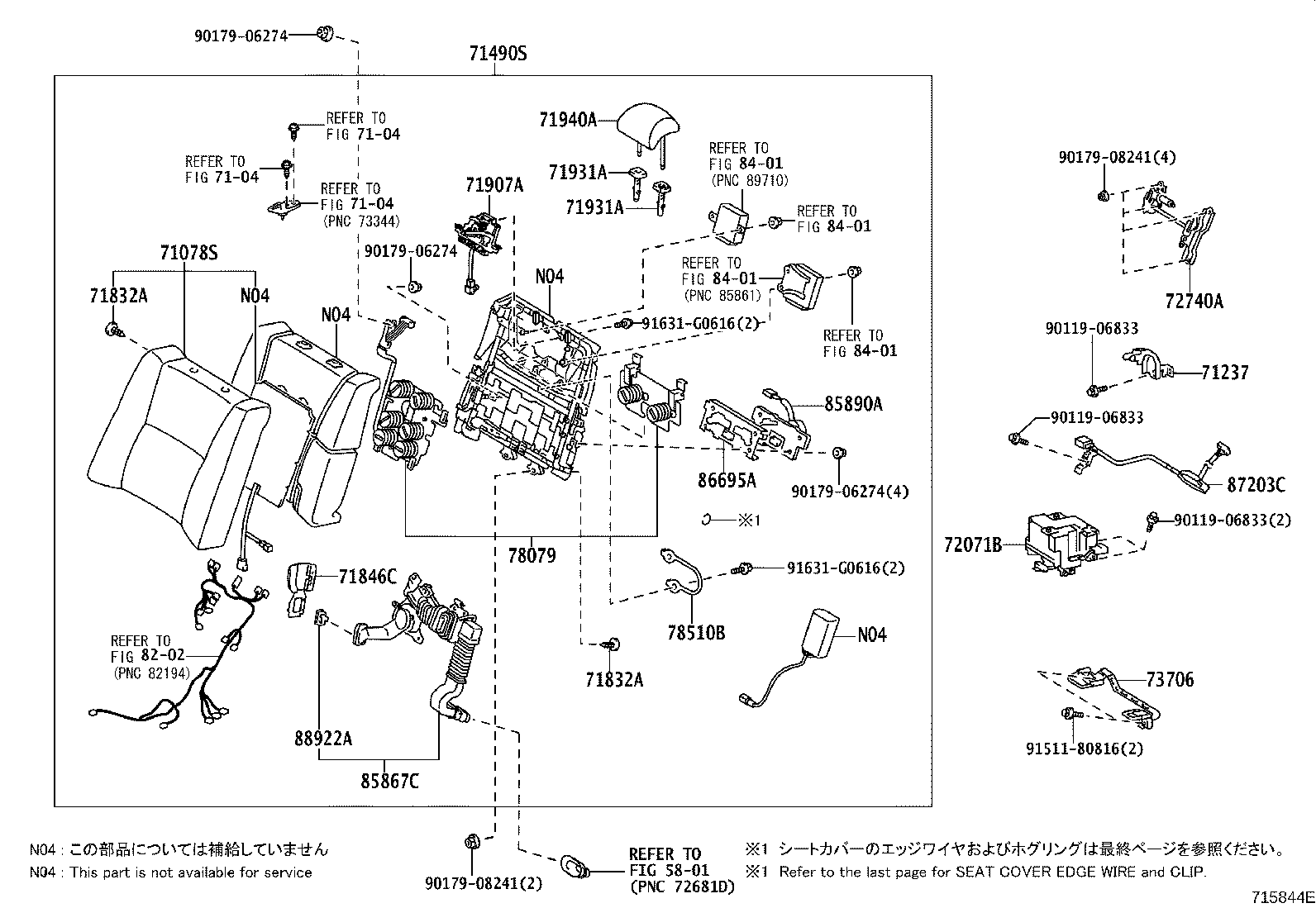

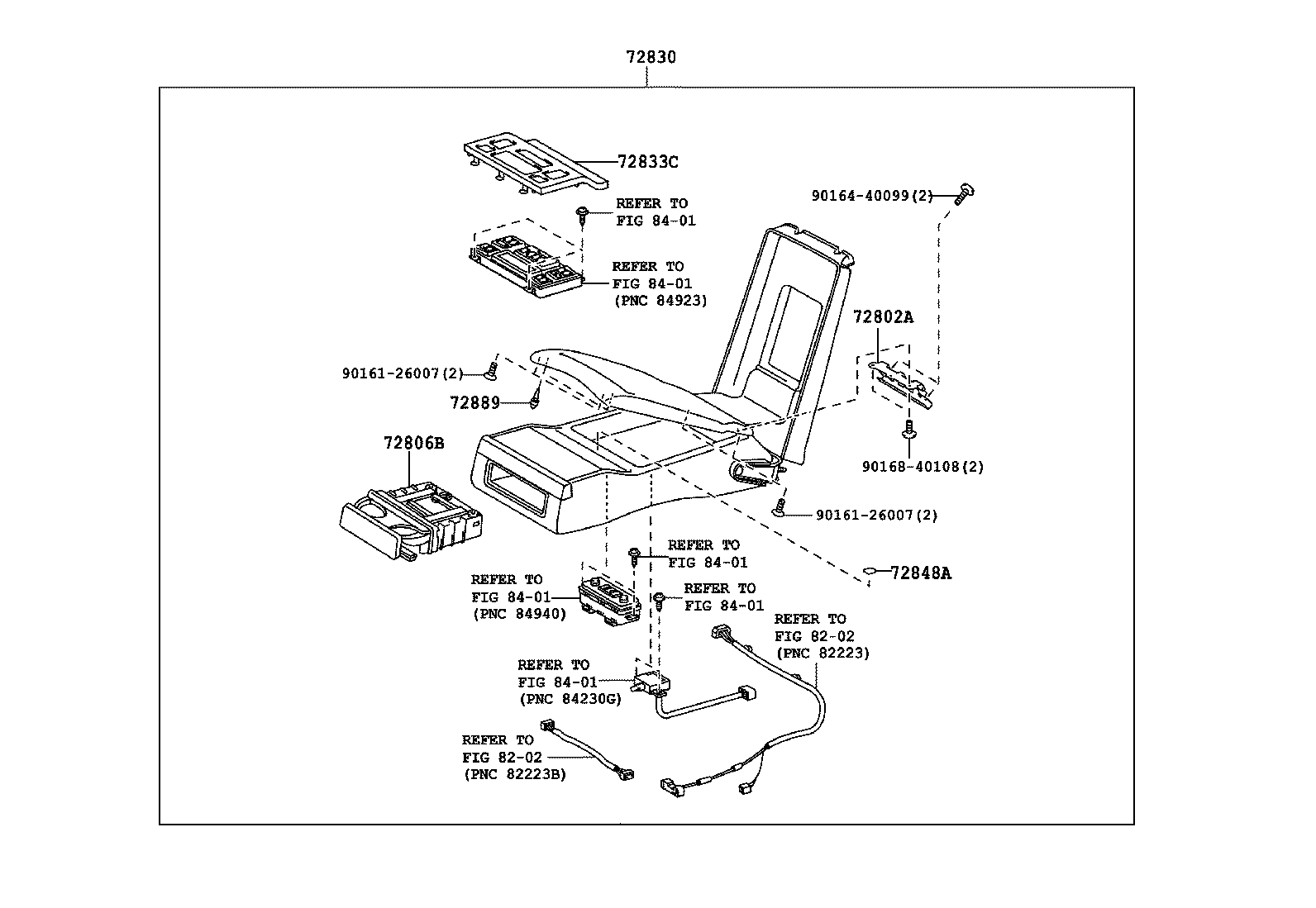

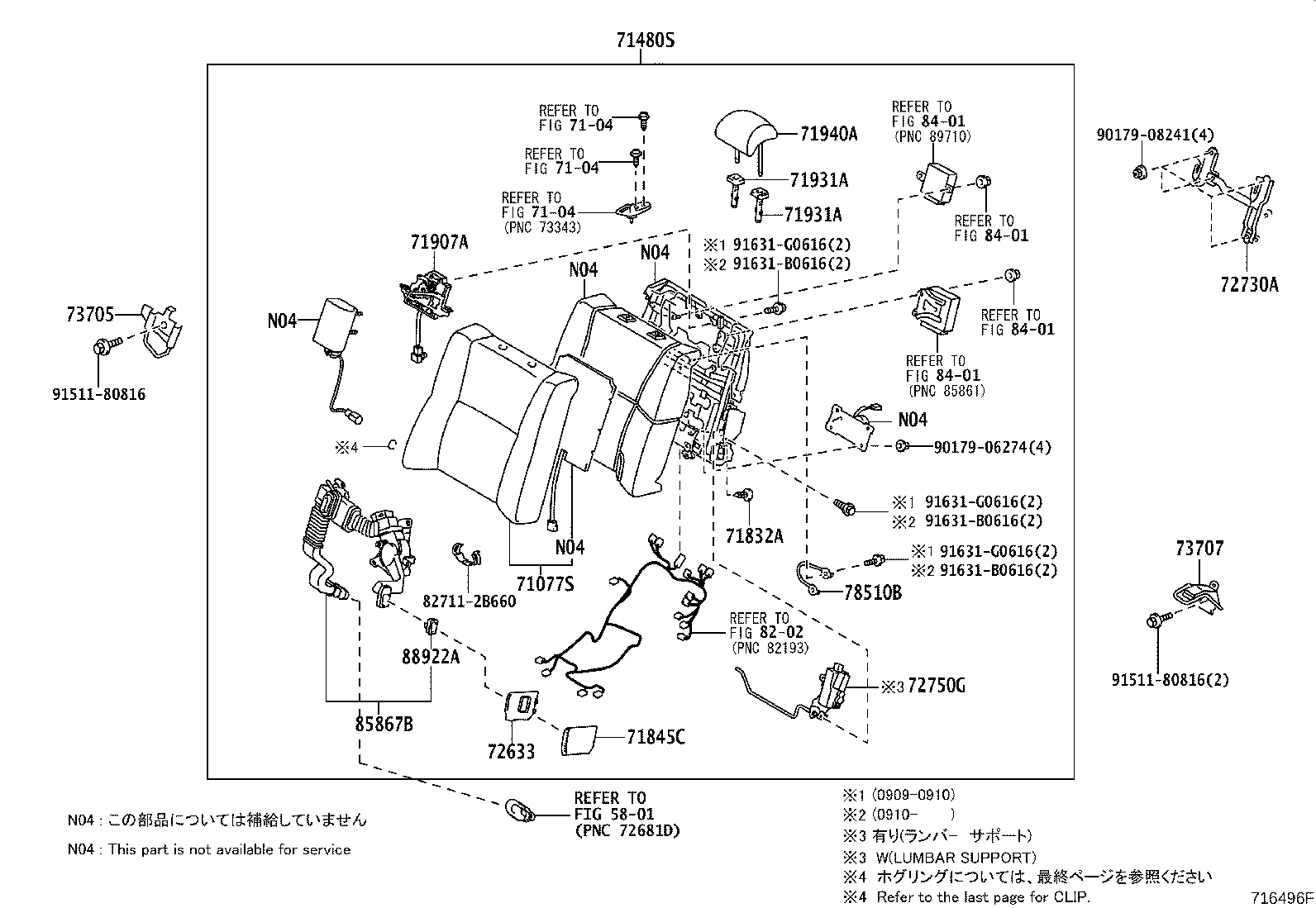

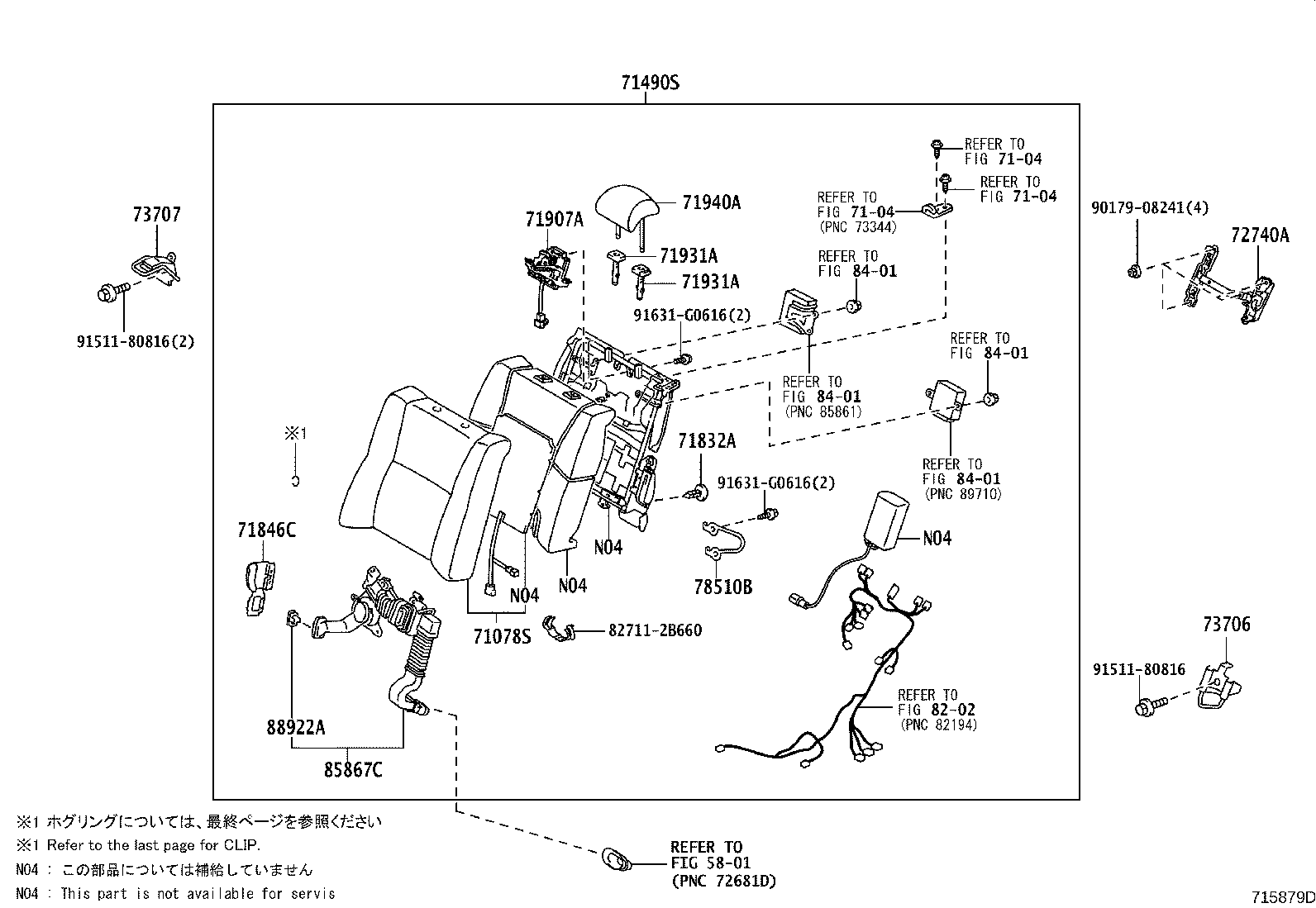

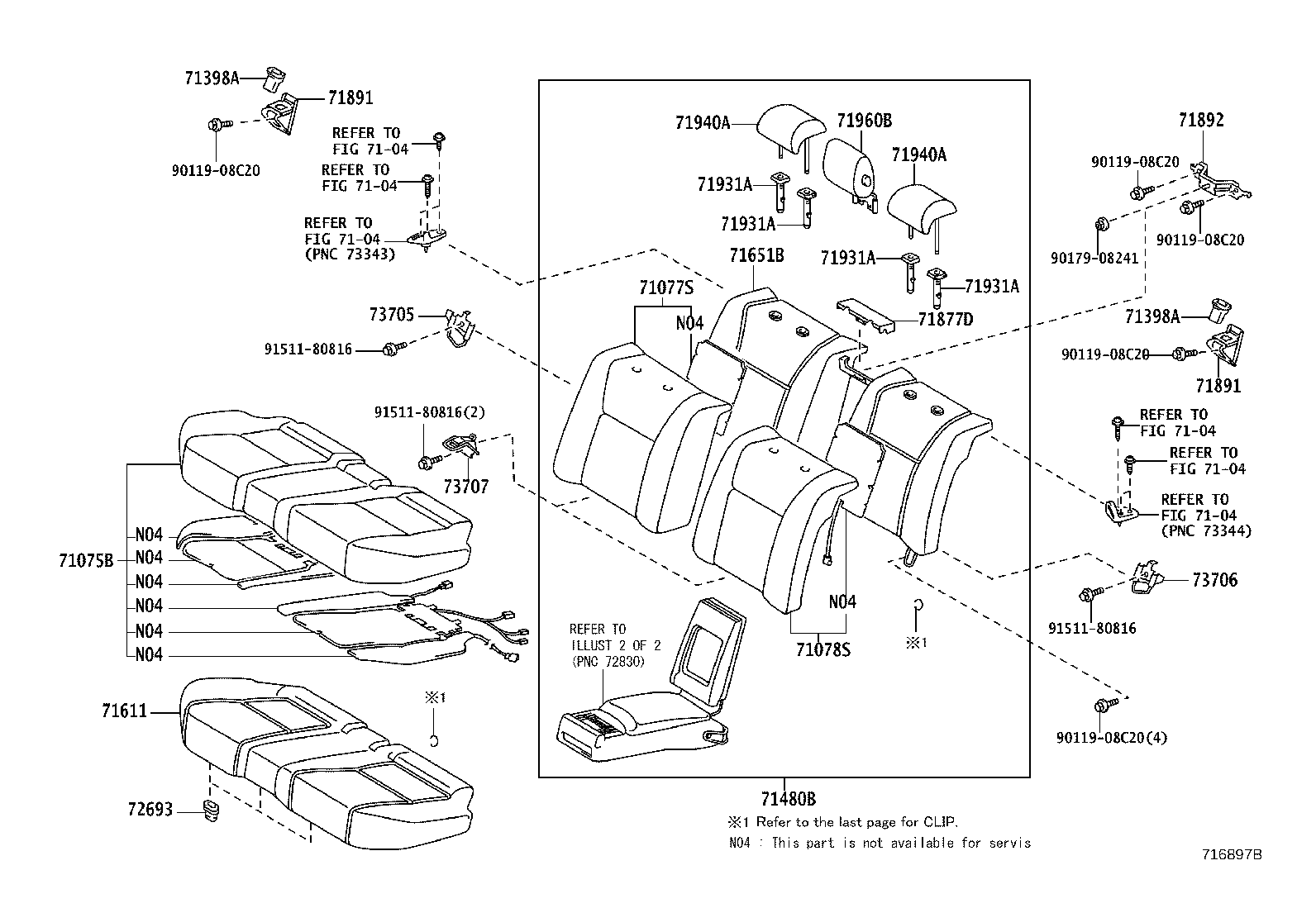

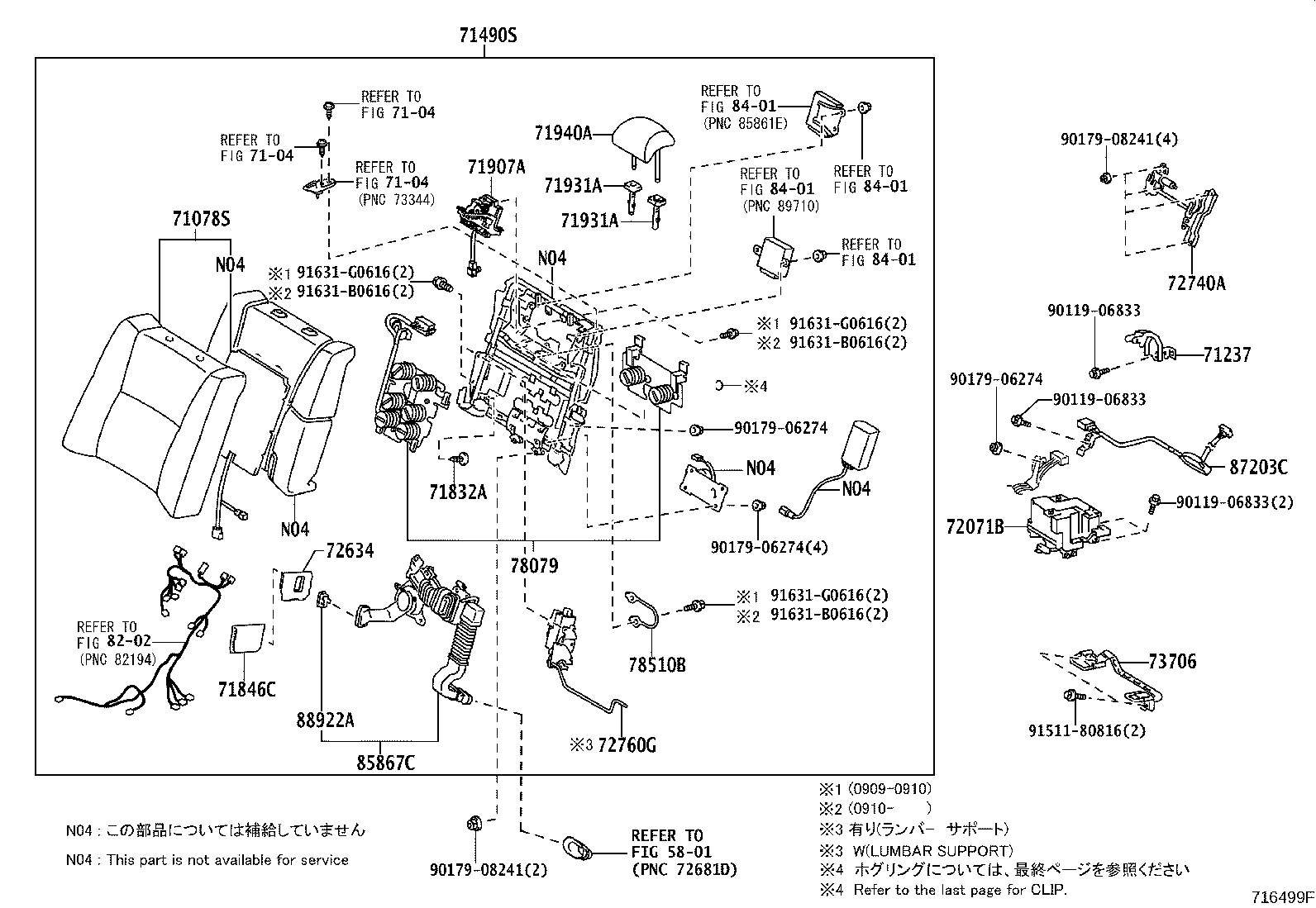

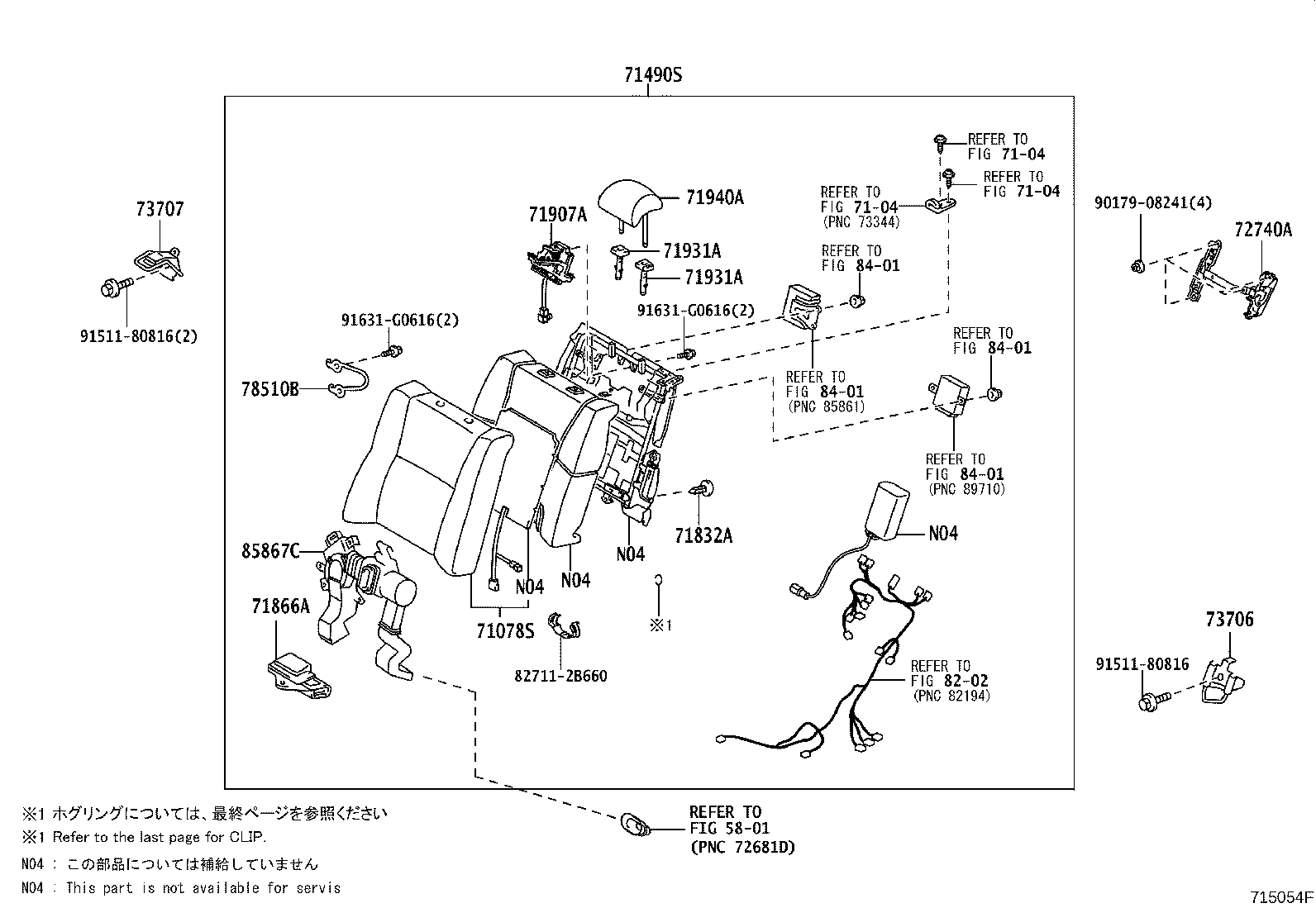

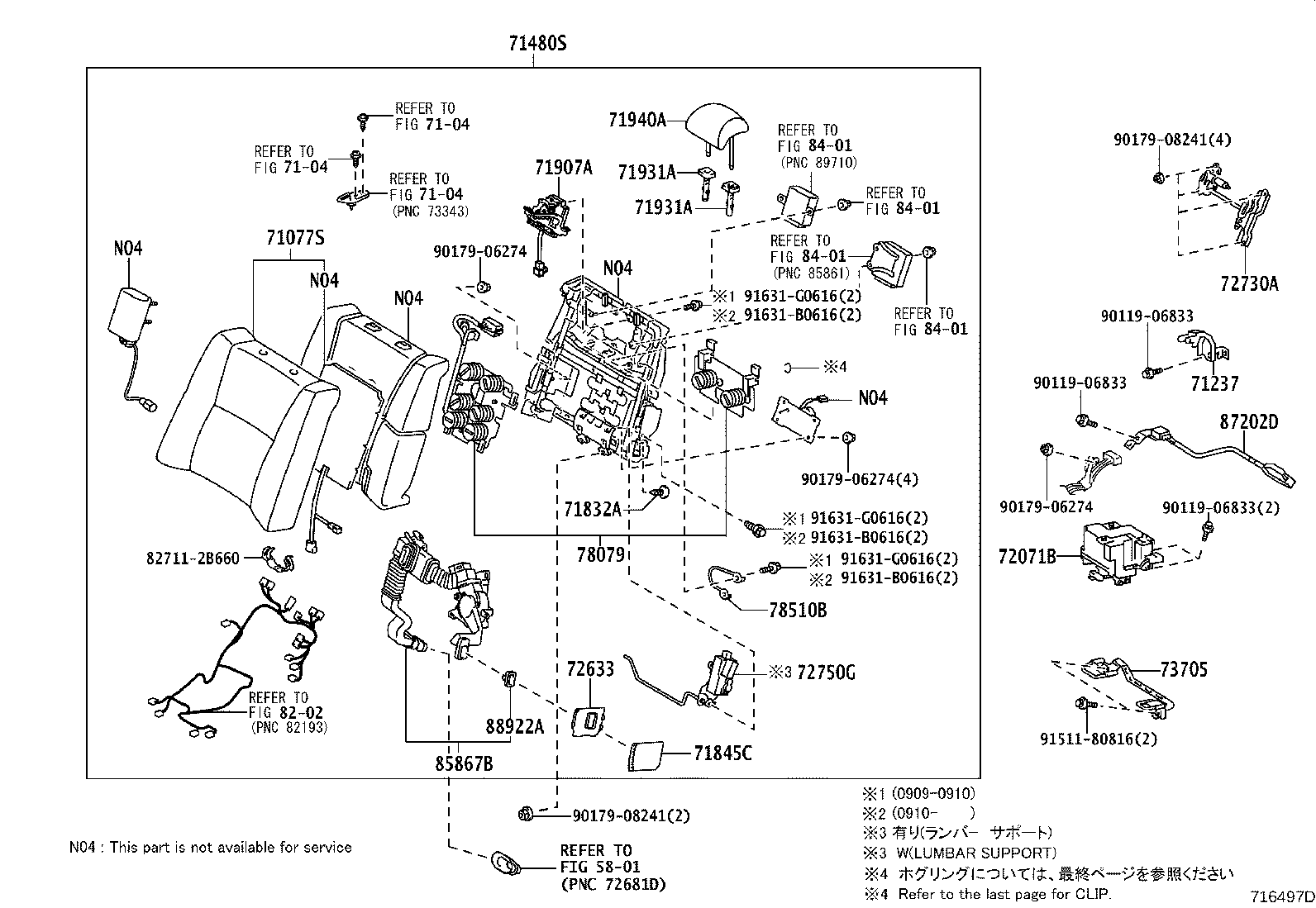

Figure 715080E 715080E 2006-08 → 2008-09 Figure 715060C 715060C 2006-08 → 2008-09 Figure 715841D 715841D 2008-09 → 2009-09 Figure 715845C 715845C 2008-09 → 2009-09 Figure 715054F 715054F 2006-08 → 2008-09 Figure 715058F 715058F 2006-08 → 2008-09 Figure 715879D 715879D 2008-09 → 2009-09 Figure 715844E 715844E 2008-09 → 2009-09 Figure 715057G 715057G 2006-08 → 2009-09 Figure 715077F 715077F 2006-08 → 2009-09 Figure 716897B 716897B 2009-09 → — Figure 715831 715831 2006-08 → — Figure 716496F 716496F 2009-09 → — Figure 716497D 716497D 2009-09 → — Figure 716498G 716498G 2009-09 → — Figure 716499F 716499F 2009-09 → — Figure 715081E 715081E 2006-08 → — Figure 71E558 71E558 2006-08 → — Figure 715055I 715055I 2006-08 → — Figure 71E557 71E557 2006-08 → — Figure 716500 716500 2009-09 → — Figure 716504 716504 2009-09 → — Figure 718166A 718166A 2006-08 → —

Part groups

PNCDescription
71031S Cover Sub-assy, Center Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71237 Bracket, Rear Seat
71301S Frame Sub-assy, Center Seat Cushion
71305S Frame Sub-assy, Center Seatback
71398A Holder, Rear Seatback
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71611F Pad, Rear Seat Cushion, A
71612A Pad, Rear Seat Cushion, LH
71612B Pad, Rear Seat Cushion, B
71614 Pad, Rear Seat Cushion, Center
71616A Pad, Rear Seat Cushion
71650B Spring Assy, Rear Seat Cushion, RH
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71660B Spring Assy, Rear Seat Cushion, LH
71812B Clip(FOR REAR SEAT CUSHION COVER)
71832A Clip, Rear Seatback Carpet OR Mat
71845C Cap, Rear Seat Cover
71846C Cap, Rear Seatback Board, NO.2
71865 Bezel, Rear Seat Cover, NO.1
71866A Bezel, Rear Seat Cover, NO.2
71877D Cover, Rear Seat Armrest Hole
71891 Bracket, Rear Seatback Set, NO.1
71892 Bracket, Rear Seatback Set, NO.2
71898A Hook, Seat Cover
71907A Adjuster Sub-assy, Rear Seat Headrest, NO.1
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72030 Adjuster Assy, Rear NO.1 Seat
72040 Adjuster Assy, Rear NO.2 Seat
72071B Pump Sub-assy, Lumber Support
72633 Base, Rear Seat Lock, RH
72634 Base, Rear Seat Lock, LH
72693 Hook, Rear Seat Cushion Lock
72693D Hook, Rear Seat Cushion Lock, RH
72693E Hook, Rear Seat Cushion Lock, LH
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72750G Adjuster Assy, Lumbar Support, RH
72760G Adjuster Assy, Lumbar Support, LH
72802A Hinge Sub-assy, Armrest Console
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72833C Panel, Rear Seat Center Armrest, NO.1
72848A Cap, Seat Armrest, NO.1
72889 Pin, Rear Seat Center Armrest Set
72927D Clip (FOR REAR SEAT CUSHION UNDER COVER)
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
73707 Bracket Sub-assy, Child Restraint Seat Anchor, Inner
73930A Airbag Assy, Rear Seat, RH
73940A Airbag Assy, Rear Seat, LH
78079 Plate Sub-assy, Sub Seatback
78510B Cable Assy, Stop
85862A Blower, Rear Seat Climate Control, RH
85863A Blower, Seat Climate Control, LH
85864B Controller, Seat Climate Control, RH
85865B Controller, Seat Climate Control, LH
85867B Blower, Rear Seatback Climate Control, RH
85867C Blower, Rear Seatback Climate Control, LH
85890A Vibrator Assy, Seat
86695A Plate, Vibrator
87202D Duct, Heater Air, Rear
87203C Duct, Sub-assy Air, Rear, LH
88922A Filter, Air
88923A Filter, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
