Toyota Lexus LS460/460L

2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe

Supported model Data version 2012-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

16 part groups · 3 illustrations

Illustrations

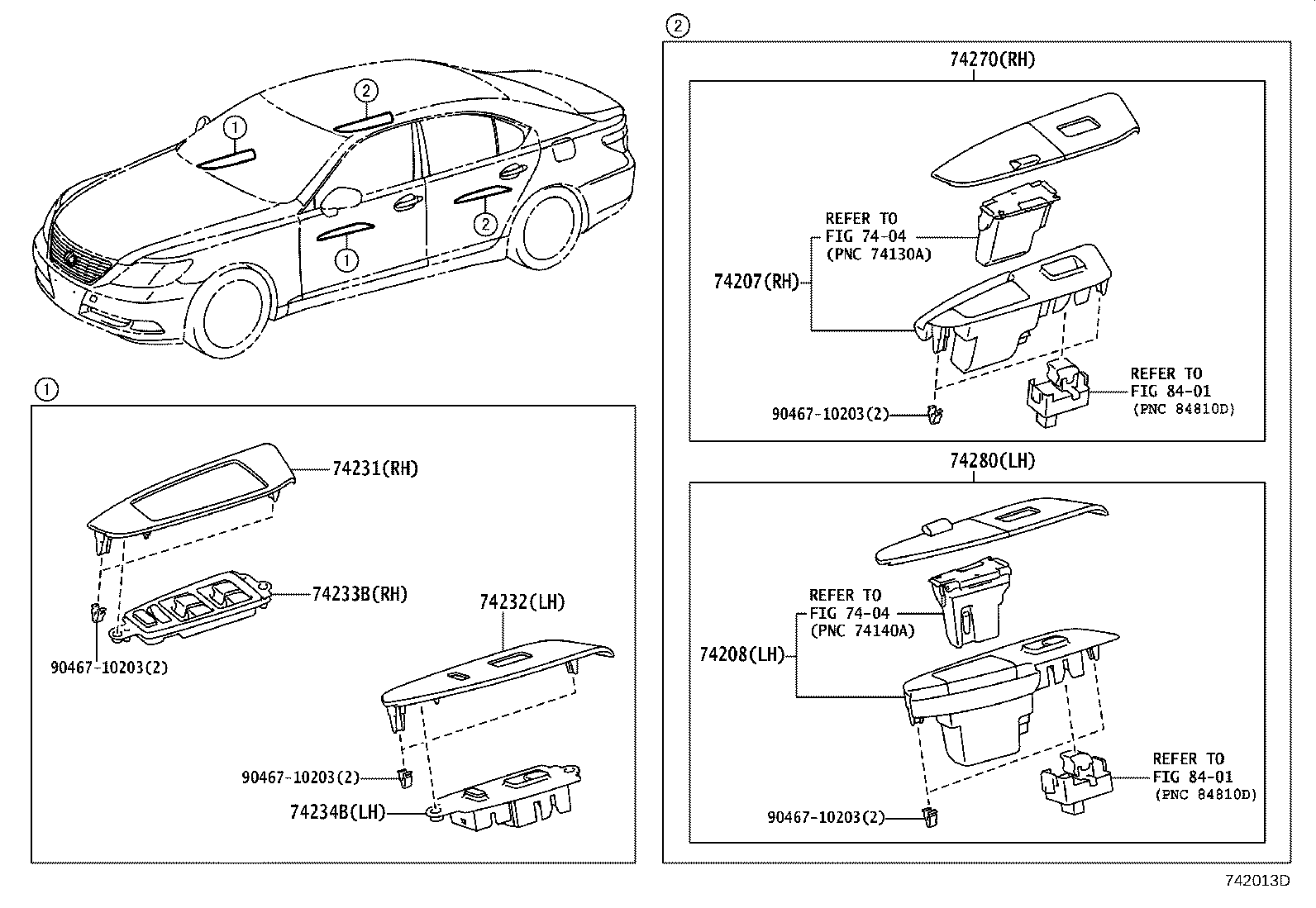

Figure 742012D 742012D 2006-08 → — Figure 742013D 742013D 2006-08 → — Figure 743744A 743744A 2006-08 → —

Part groups

PNCDescription
74207 Panel Sub-assy, Rear Armrest Base, Lower RH
74208 Panel Sub-assy, Rear Armrest Base, Lower LH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74233B Panel, Front Door Armrest Base, Lower RH
74234B Panel, Front Door Armrest Base, Lower LH
74270 Panel Assy, Rear Door Armrest Base, RH
74280 Panel Assy, Rear Door Armrest Base, LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74611C Cover, Assist Grip, LH
74612C Cover, Assist Grip, RH
74631B Hook, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
