Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe
Supported model
Data version 2012-10

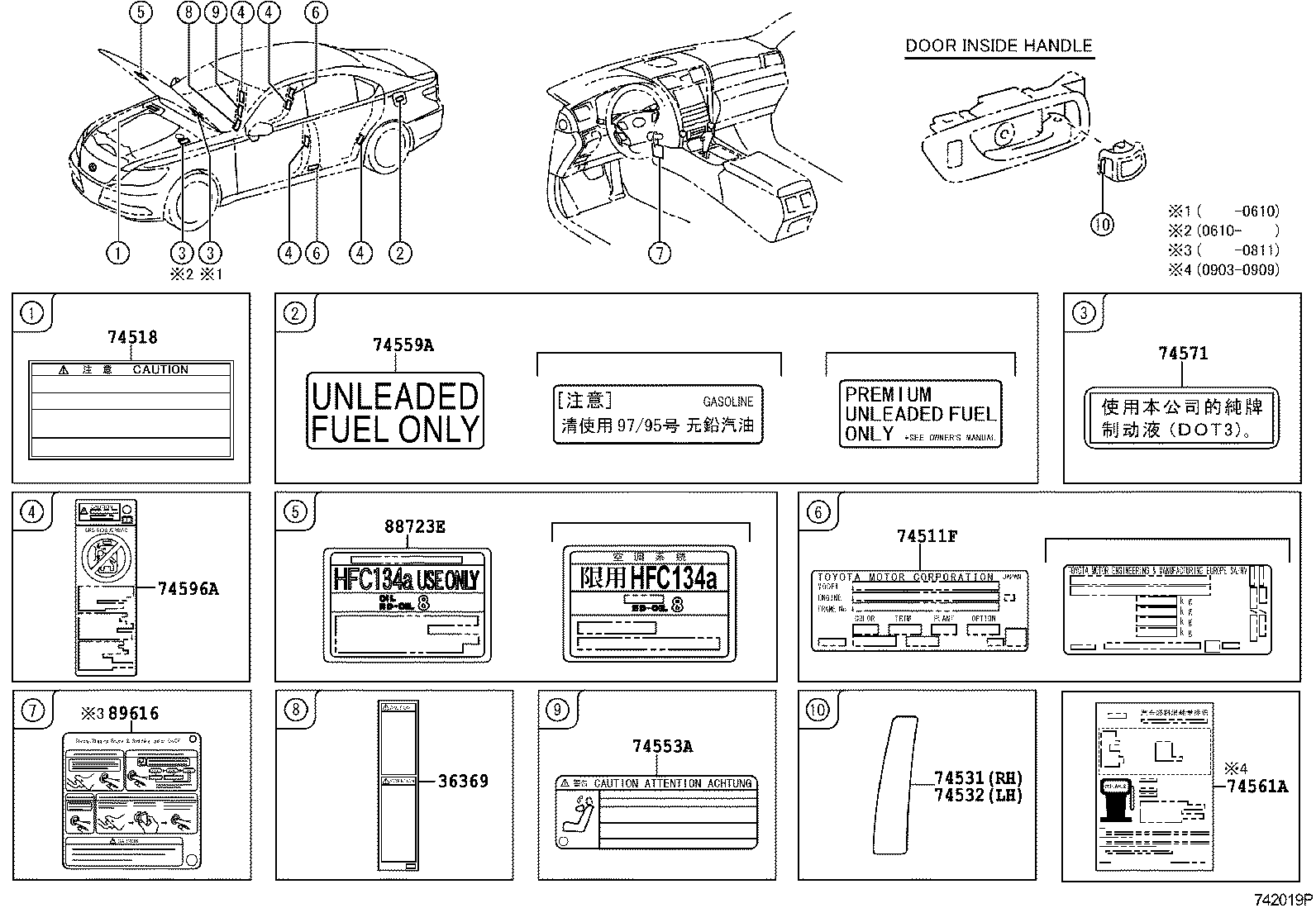

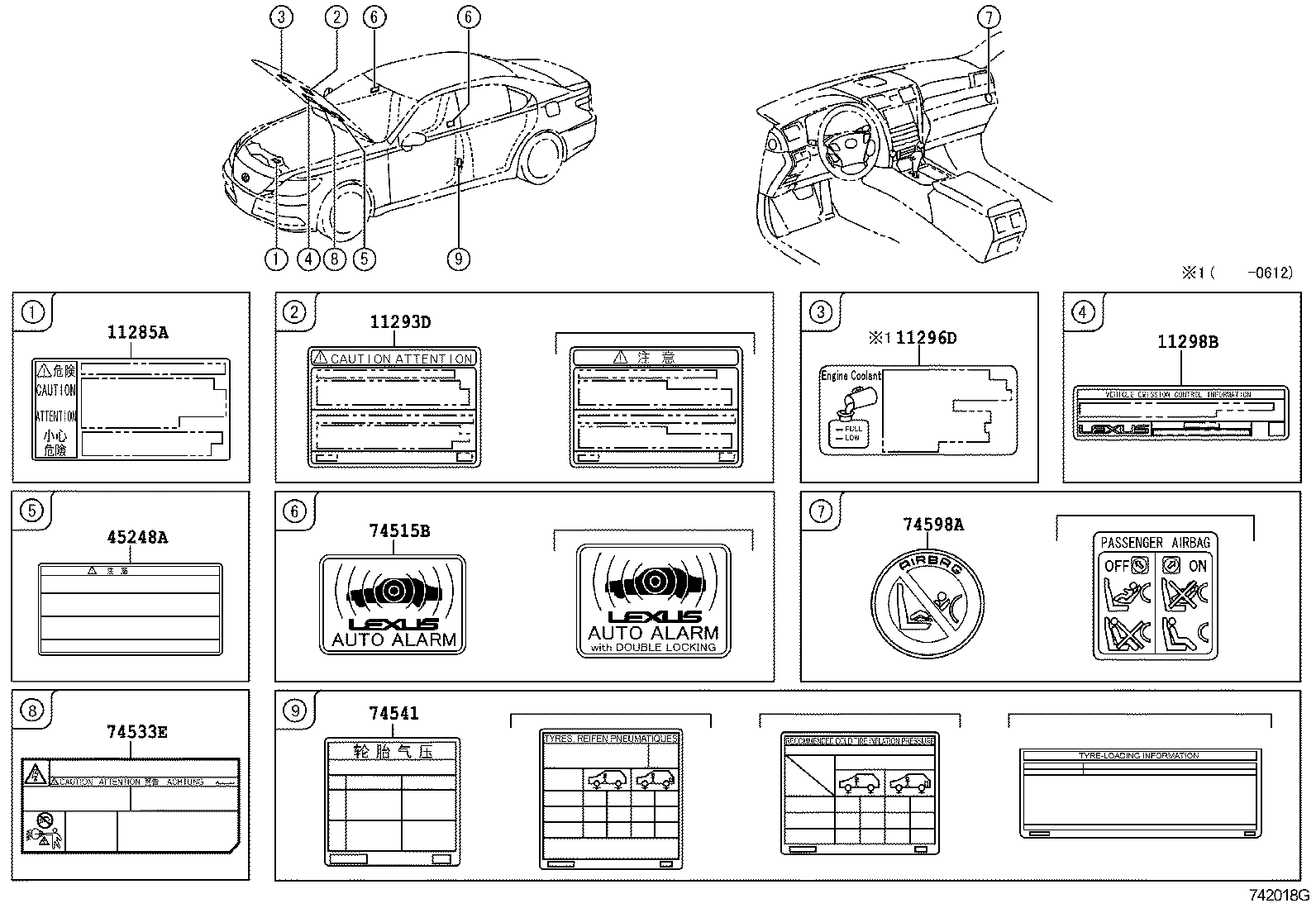

Caution Plate (EXTERIOR & INTERIOR)
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11296D | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 16793E | Label, Cooling Fan Caution |
| 36369 | Label, Transfer Information |
| 45248A | Label, Steering Actuator Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515B | Plate, Theft Warning |
| 74518 | Plate, Maintenance Caution |

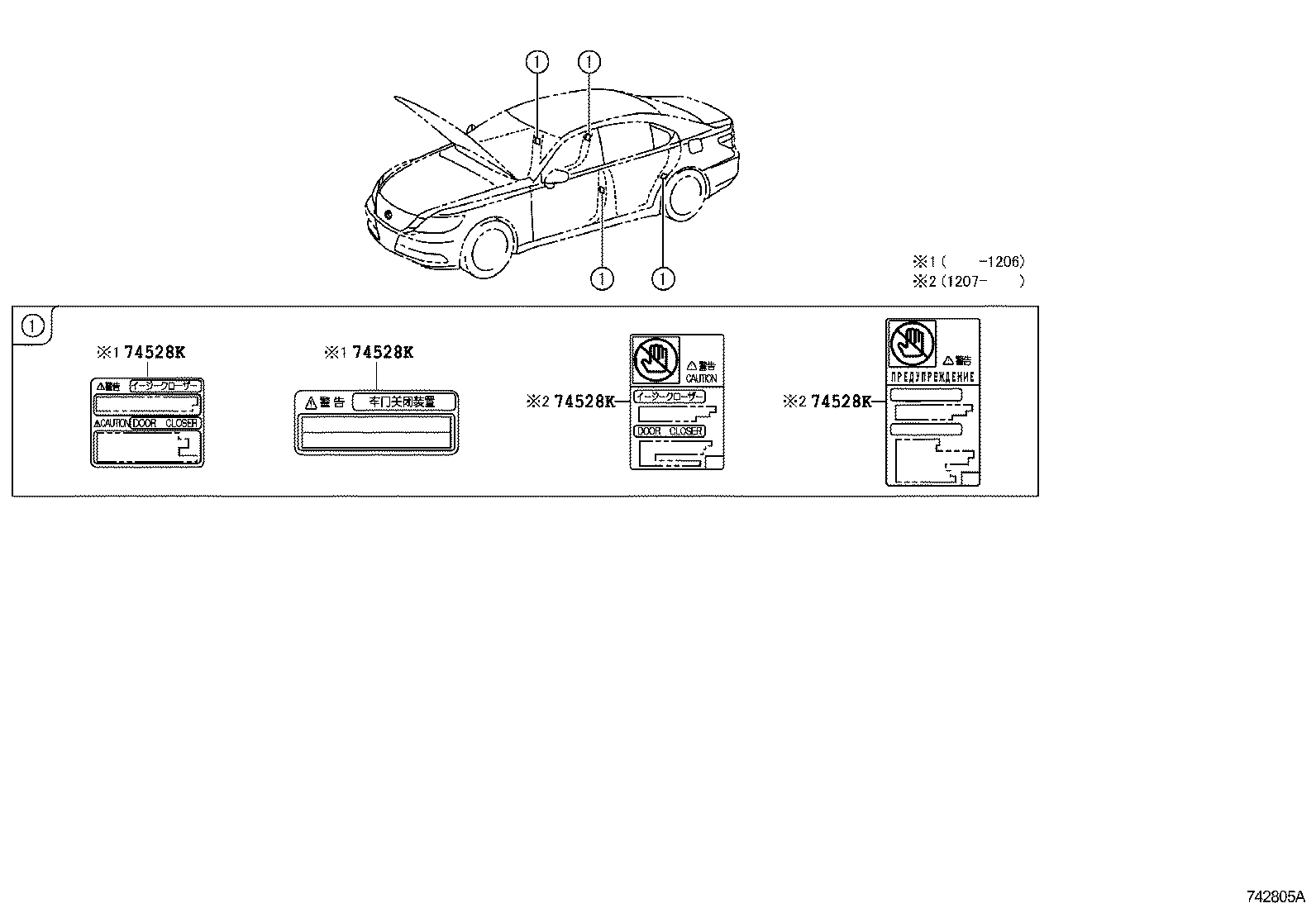

| 74528K | Label, Door Closer Caution |
| 74531 | Plate, Door Inside Handle Caution, RH |
| 74532 | Plate, Door Inside Handle Caution, LH |
| 74533E | Label, Headlamp Voltage Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74553A | Plate, Front Seat Caution |
| 74559A | Plate, Fuel Caution |
| 74561A | Label, Fuel Consumption Information |
| 74571 | Plate, Brake Fluid Caution |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 88723E | Label, Cooler Service Caution |
| 89616 | Label, Push Start Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
