Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe
Supported model
Data version 2012-10
Headlamp

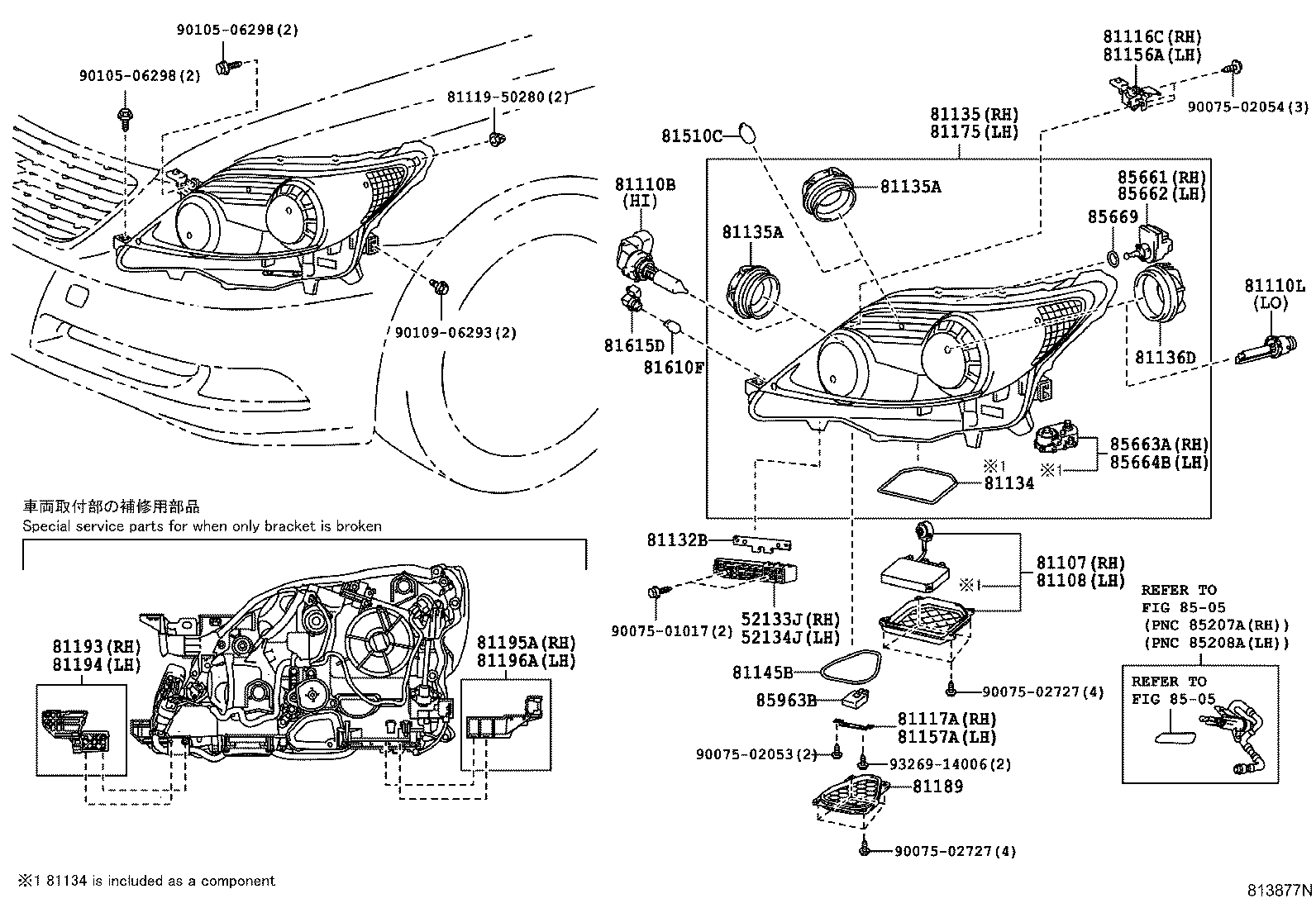

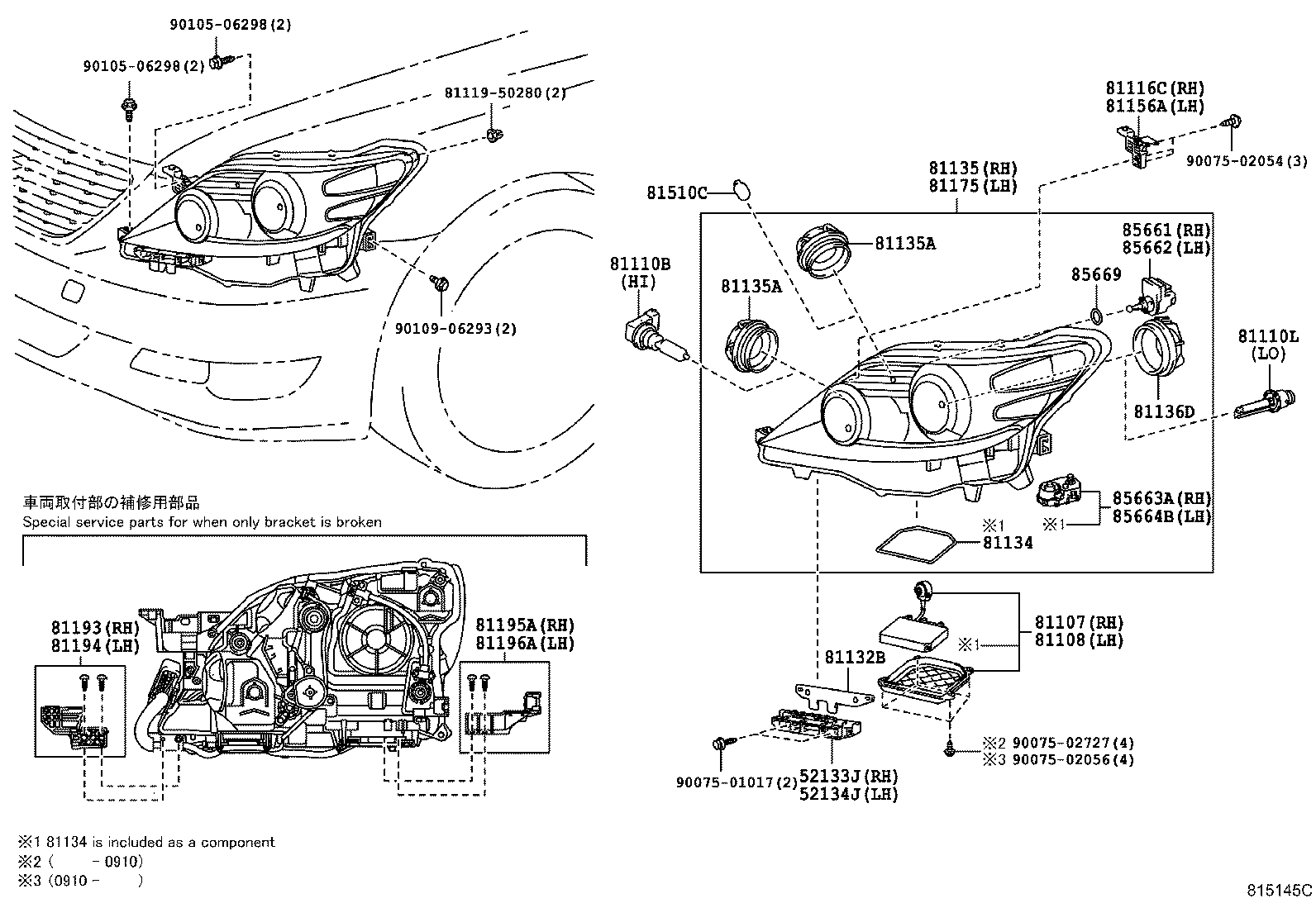

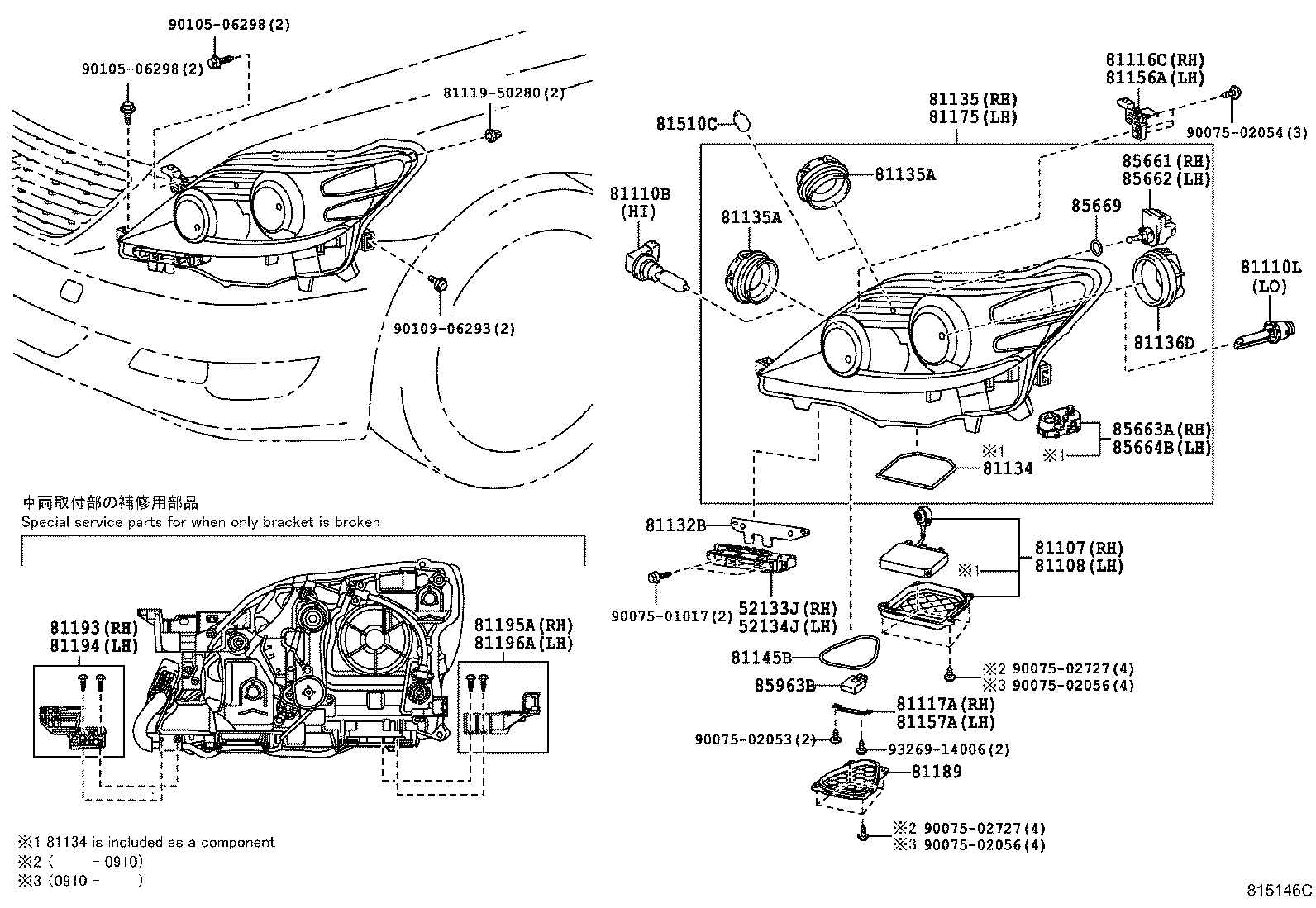

31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52133J | Reinforcement, Front Bumper Bar, RH |
| 52134J | Reinforcement, Front Bumper Bar, LH |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110L | Bulb, Discharge Headlamp |
| 81116C | Bracket, Headlamp, RH |
| 81117A | Bracket, Headlamp, RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135A | Cap, Locking |
| 81136D | Cover, Headlamp |
| 81145B | Gasket, Headlamp Cover, NO.1 |
| 81156A | Bracket, Headlamp, LH |
| 81157A | Bracket, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81189 | Cover, Headlamp |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85663A | Motor, Headlamp Swivel, RH |
| 85664B | Motor, Headlamp Swivel, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
| 85963B | Relay, Light Retractor Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
