Toyota Lexus LS460/460L
2006-08 → 2012-09 · chassis USF4# · catalogue 431240 · Europe
Supported model
Data version 2012-10

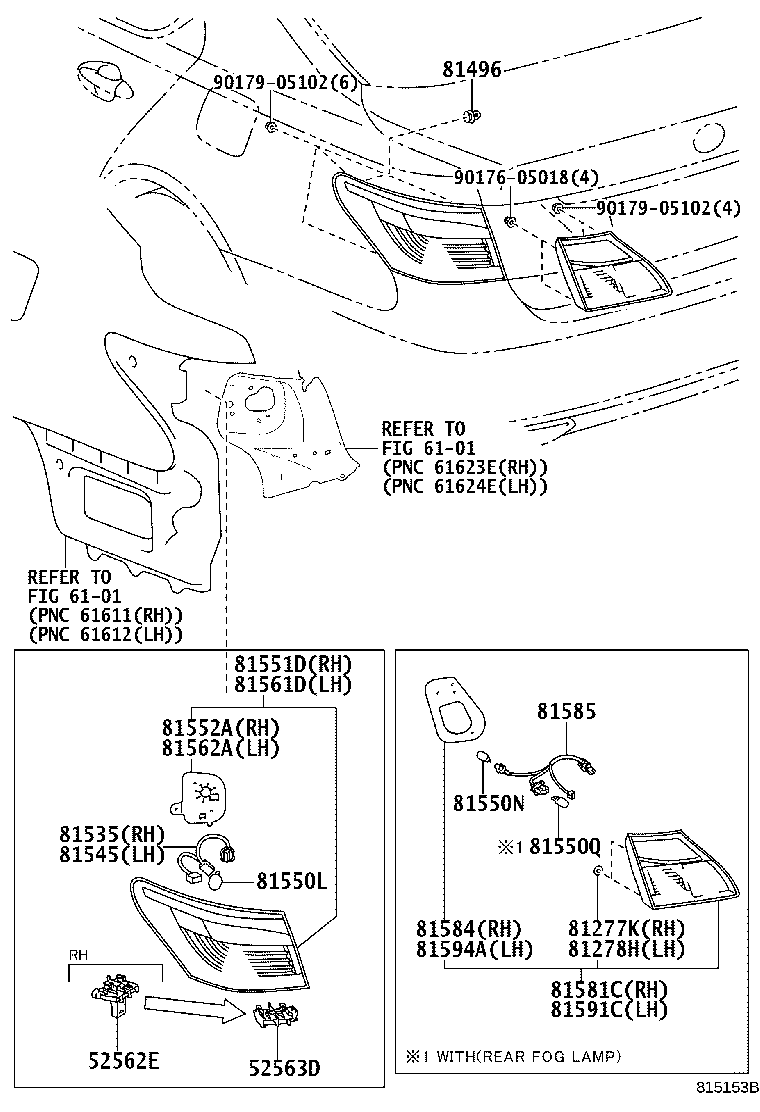

Rear Combination Lamp
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52562E | Retainer, Rear Bumper, Upper RH |
| 52563D | Retainer, Rear Bumper, Upper LH |
| 81277K | Shade, License Plate Lamp, RH |
| 81278H | Shade, License Plate Lamp, LH |
| 81496 | Guide, Rear Combination Lamp |
| 81535 | Socket & Wire, Rear Turn Signal Lamp, RH |
| 81545 | Socket & Wire, Rear Turn Signal Lamp, LH |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 81591C | Lens, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
